ST323 or 324 need measurements for control rods

Recommended Posts


Just recently purchased a 1964 34R and a separate deal landed a Snow Thrower, believe it to be a ST323 maybe a 324. It does not have the idler pulley. I did find posts for measurements on the pulley arm for Ranger. I need close up pics of the ends of the clutch rod and the crank rod as well as measurements so that I can fab these parts. Or if anyone has these parts for sale I would be interested.

Share this post

Link to post
Share on other sites

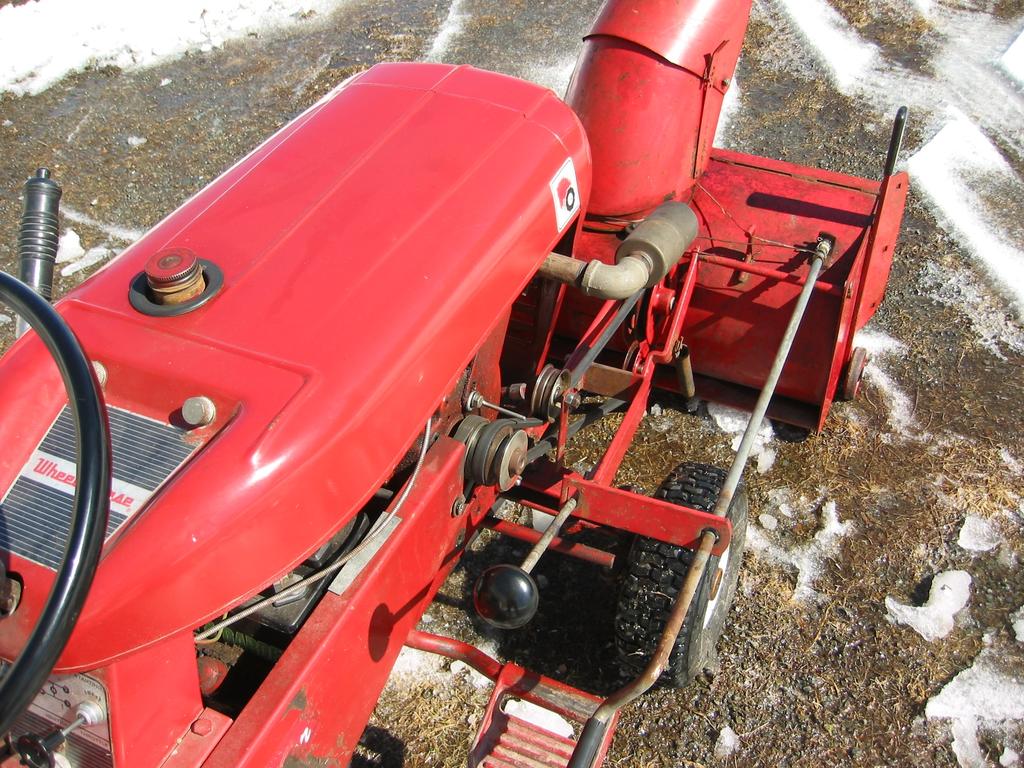

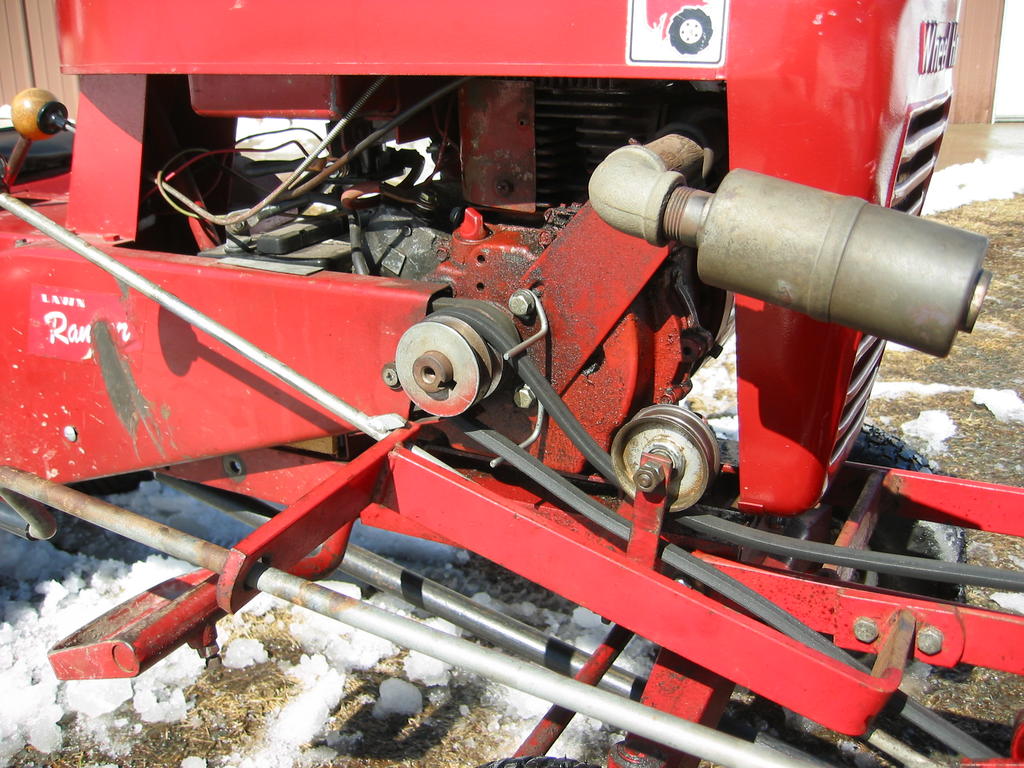

The crank rod is 1/2" stock.  32" from front end to the bend the 2.5 inch offset and 4 inch tail

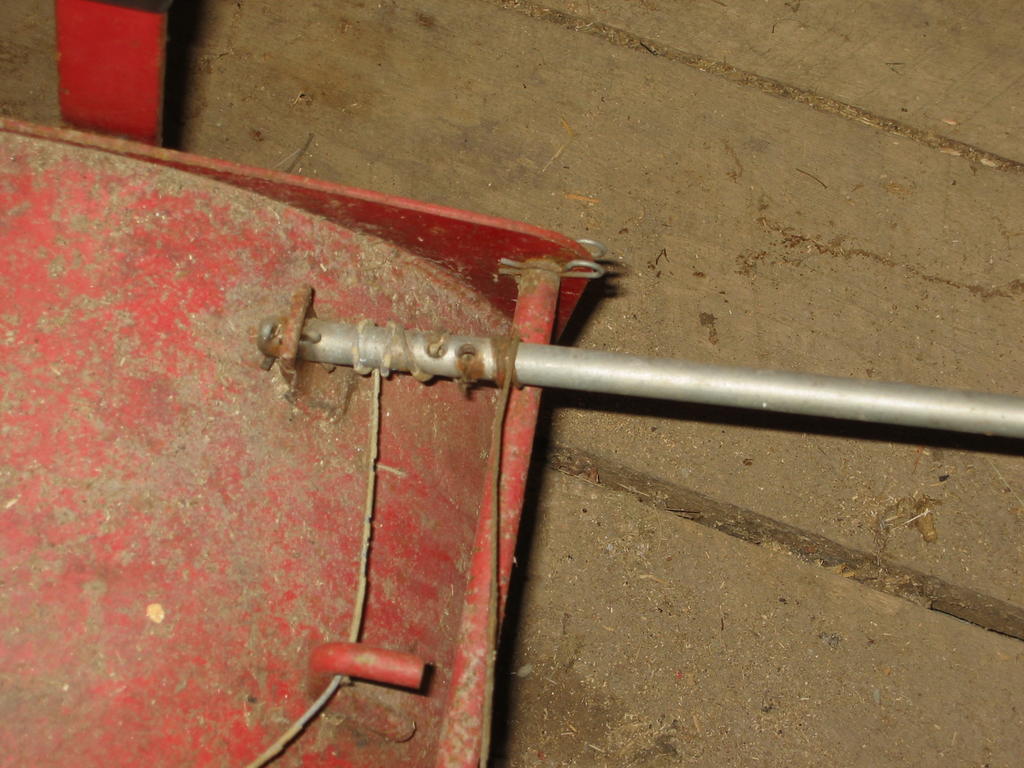

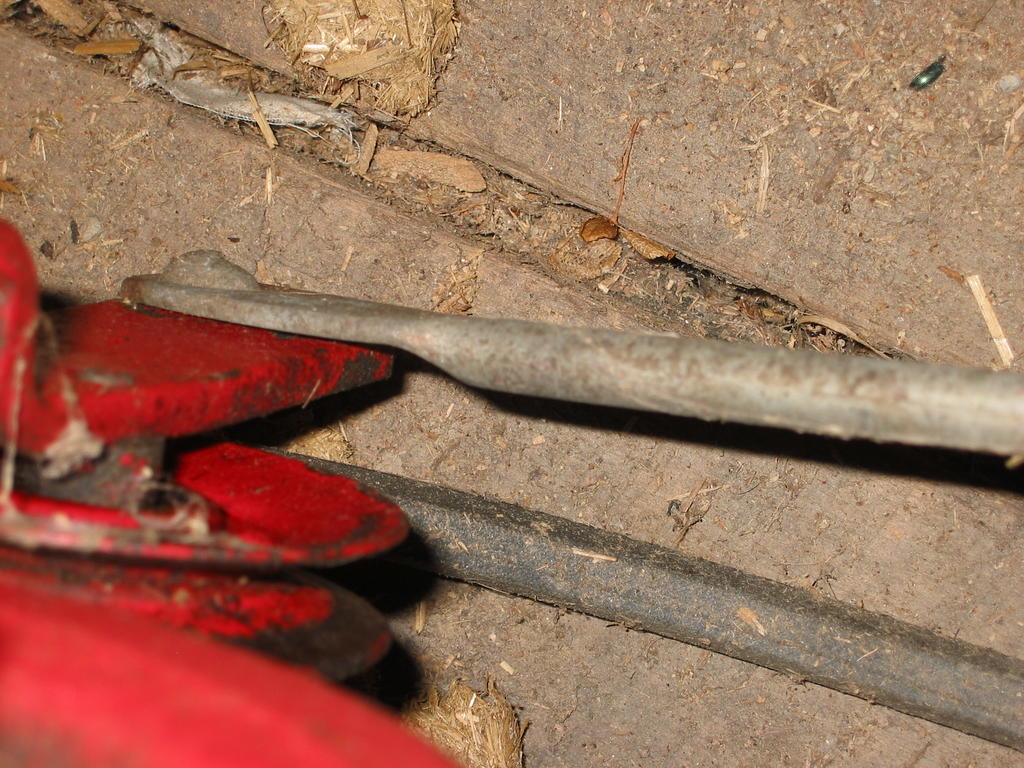

The clutch rod is 3/8" stock 28 inches long. it is 16inches from the front to the tab that catches the bracket and keep it engaged the end is flattened and a rivet lie thing welded in with a cotter pin on the oter side.




Share this post

Link to post
Share on other sites

Thank You for the Detailed information, just what I needed.

Share this post

Link to post
Share on other sites
