Fuse block question

Recommended Posts

608KEB

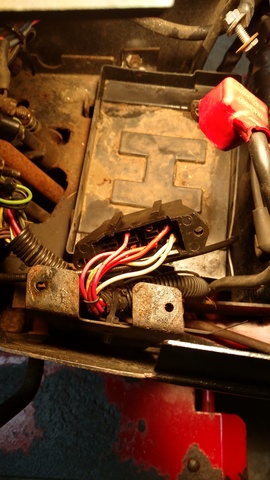

I would like to eliminate the current fuse block in my 1995 520H. I have a wiring diagram. It looks like the wires were tampered with but I'm not sure.  Suggestions about why both white wires are on the 30 amp block. The 25 and 30 amp blocks are connected with a bridge. I'm not sure how to wire these individually. The 30 amp fuse was melted.




Edited by 608KEB

Share this post


Link to post
Share on other sites

608KEB

I looked at it some more. I may have spoke before I thought about it. I'll post some pictures  of the finished job tomorrow. :wacko:

Edited by 608KEB
  • Like 1

Share this post


Link to post
Share on other sites

Dball

Their is a fella on this forum who sells a pre wired fuse block that is the same as u want to eliminate just figured i would tell u incase u would want to go that route in which i did they have pig tails on them and all the proper gear to cut the old out and wire the new in

  • Like 1

Share this post


Link to post
Share on other sites

608KEB

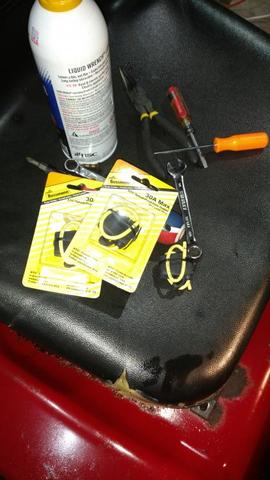

I looked at it some more. I may have spoke before I thought about. I'll post some pictures  of the finished job tomorrow. :wacko: I soldered a new fuse holder to side that was melted. Then I brushed liquid  electrical tape on it. No  problems now!:rolleyes:

Share this post


Link to post
Share on other sites

Burrell
On 12/29/2016 at 3:23 PM, Dball said:

Their is a fella on this forum who sells a pre wired fuse block that is the same as u want to eliminate just figured i would tell u incase u would want to go that route in which i did they have pig tails on them and all the proper gear to cut the old out and wire the new in



Share this post


Link to post
Share on other sites

Burrell
On 12/29/2016 at 3:23 PM, Dball said:

Their is a fella on this forum who sells a pre wired fuse block that is the same as u want to eliminate just figured i would tell u incase u would want to go that route in which i did they have pig tails on them and all the proper gear to cut the old out and wire the new in

I would like to get one of those per wired fuse blocks. Need details on how to get one.

Share this post


Link to post
Share on other sites

lynnmor

Get one of these and wire it just like the original, not rocket science.  $2.89 on RockAuto.

  • Thanks 1

Share this post


Link to post
Share on other sites
