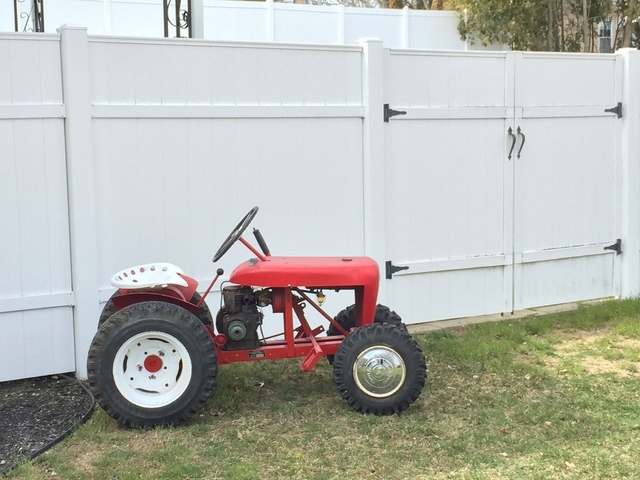

My First wheelhorse
By
Camarokid, in Wheel Horse Tractors
-
Similar Content
-
By CasualObserver
Operator manual
Illustrated parts list
6 pages 3.73MB
Illustrated parts list #A-7136
Includes PSB #023 #052 #058 #060 #080
10 pages 938.48KB
Engines used according to Toro
Clinton B1290-1107
Kohler K91-31307A
Kohler K91-31388A
Electric start kit
Electric starter kit model EC-35 for Clinton engine - Listed for 1958 and 1959
Electric starter kit model EK-35 for Kohler engine - Listed for 1958 and 1959
6-12 tire chains model TC-12 - Listed for 1958 and 1959
Seat cushion Foam rubber with imitation leather cover model FC-24 - Listed for 1958 and 1959
Transmission drive belt 1567 - (4L x 29" or 1/2" x 29")
Details & Attachments
2 pages 107.33KB
1958 model RJ-58
1958 serial numbers that have shown up for the RJ-58
Early models used Kohler K90T-27107D equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
00005
00251
01099 - No casting date on trans. Leather gearshift boot, large, round rear wheel hubs, "slab" hitch, replacement engine
01188 - Has round rear wheel hubs
01516
01768
01789 - No casting date on trans. Leather gearshift boot, 3-ear triangular rear wheel hubs, "slab" hitch, Clinton engine with Schnacke recoil
01797
01871
02525
03177
03501 - Located in UK
03796 - Kohler K90T-27107D with serial 364044 equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
04041
04883
04885
05000
05619
05714
05798
06528 - May be 16528
06749
06771
07633
07649 - Transmission J12-8 October 12, 1958
07725
08440
08612
09284
09337 - Hard to read
10163
11432
11628 - # 3521 spline gear with 10 splines changed to 11 splines in 5003 and 5010 transmissions at serial # 11628 PSB #023
11916
12221 - B3-9 trans casting date - Kohler K91 engine with Schnacke recoil
12291
14473
14713
16097
16528 - May be 06528
166x6
16868 - F4-9 trans casting date - Kohler K91 engine with Fairbanks recoil, solid pan seat without holes
18348
June 2023
18500 and lower
Late 1958 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
------------------------------------------------------------------------------------------------------------------
Details & Attachments
2 pages 106.94KB
1959 model RJ-59
1959 serial numbers that have shown up for the RJ-59
Early 1959 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
18501 and up - Possible 1100 units built
20078 - Located in UK
203xx
21033
292xx
21900 - 1960 Suburban 400 began production at serial #21900 somewhere around Aug-Oct 1959.
Late model RJ-59 tractors with a Kohler would have a K-91T-31388A with the Fairbanks recoil starter and paper air filter element. The 31388A was also used on the 1960 Suburban 400.
K91T-31388A Serial 425251 found on RJ-59
-
By CS-17
Used 1966 Wheel Horse 856. Includes Kholer K181 8hp engine and 32" deck. Runs and Drives Great!
I received it in non working order, I have since done the following repairs: To Engine/Transmission; New carburetor, fuel pump, fuel line, fuel filter, battery, throttle cable, head bolts, spark plug, regapped points changed oil in engine and transmission and cleaned air filter. To Body; striped and repainted wheels, blades sharpened and primed hood and rear fenders (ready to be painted). This mower is ready to add to a collection or used for every day tasks. Cash on pickup. $950 or best offer. Please feel free to CALL me for details or any question! THANKS for looking! -
By rustyedge1
Need a condenser for engine shown in photos 8 hp Kohler. Any venders carry them on this site ?
All help appreciated..Have PayPal or can send check..
-
By WheelPuke
I have my 25A fuse blowing every time I put a new one in the slot. The old one was burnt up when I got the tractor put this year. It sat for a year with a dead battery. I stopped using it as much because the transmission is clattering pretty bad when taking off on second or higher. I had to replace the clutch belt a few years ago and couldn't get an OEM. Not sure what is the problem there that's another issue though.
I have checked the wiring and patched the worn spots where it could be grounding out. The fuse blows as soon as there is power to the system with the ignition off. I'm at a loss of what to check for at this point. Any input from someone who has had this issue would be appreciated. I'm not sure what these units are in the photos but do not know how to test them for a failure. They are directly in loop with the battery and the ignition loom looks to run into that 25A fuse.
-
By wh315-8
This is a tag on a 1970 Raider 10 from someone on a FB group. Never seen one that had USED on it, it is Model 1-6041 U
Serial 342 USED.
owner thought tag reads 2-6041 U for model but not sure.
I just wonder if this was perhaps a warranty factory return and they used a new id tag this way?
Anyone ever come across something like this?
Typed in the numbers for Clarity.
-
