tommyg

D Snow Blower spring assist

By tommyg, in Implements and Attachments

Recommended Posts

tommyg    157

tommyg
Posted

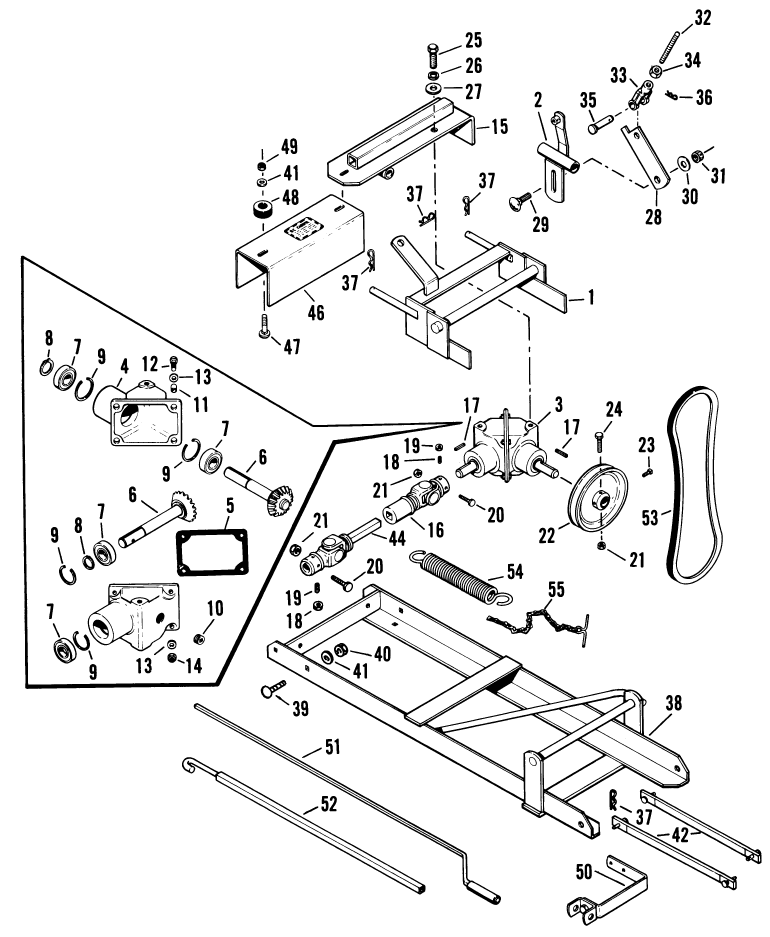

I'm working on restoring a blower for my D180. Missing is the spring assist mechanism, number 54 and 55 in this drawing. I was wondering if someone could take a few pics of their set up so I had a better idea of what I'm looking at. How long is this spring? I think I can find one of these without too much difficulty, but the other part of this set up puzzles me. One end of the spring hooks to the hole at the end of the bent tab on part #1. But that's all I can figure out. Any insight would be appreciated.

post-5507-0-97428800-1356219951_thumb.gi
