520H vent mod

[photorich1965 11]

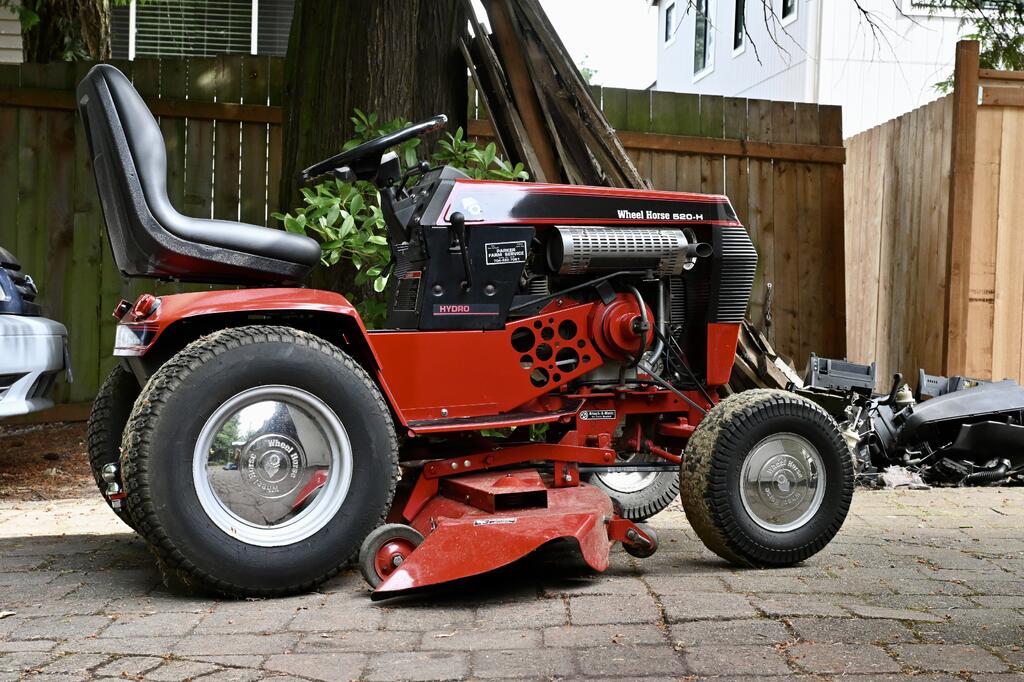

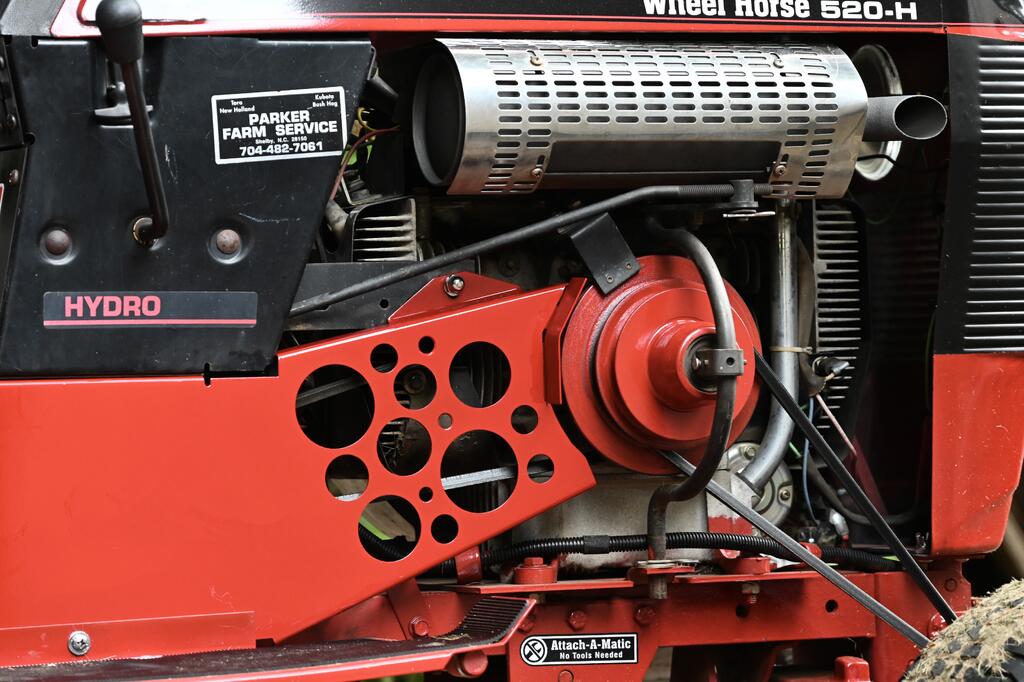

Thought the collective might enjoy my perforation project... I bought this tractor a couple months ago and turning it into a nice "user"... Won't be a perfect restoration, just a nice addition to my old Toyota 4x4.



Rich

[ebinmaine 79,377]

All looks good!

[sqrlgtr 3,092]

That whole outfit looks great to me.

[Terry M-(Moderator) 2,303]

Looks good to me too!   That trailer is the perfect size to haul the tractor around!!👍😎

[Bill D 2,965]

Looks good.  One minor detail,  the belt cover goes over top of the lip on the foot board.

[lynnmor 8,867]

1 hour ago, Bill D said:

Looks good.  One minor detail,  the belt cover goes over top of the lip on the foot board.

You missed the PTO trunnion being upside down.

[photorich1965 11]

1 hour ago, Bill D said:

Looks good.  One minor detail,  the belt cover goes over top of the lip on the foot board.

I wondered about that - the bolt hole didn't line up great so thought it must be as I assembled it.  I'll fix it when I repaint the belt cover.  Got all sorts of runs in the finish... sheesh.

[photorich1965 11]

2 hours ago, Terry M said:

Looks good to me too!   That trailer is the perfect size to haul the tractor around!!👍😎

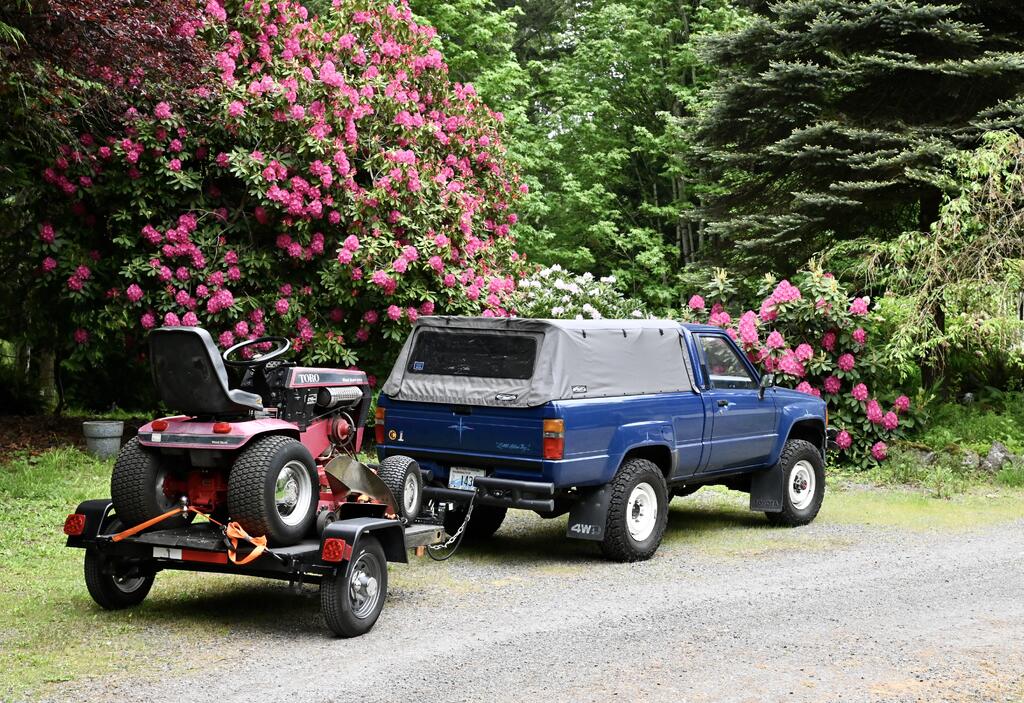

It's a trailer used for a pressure washer.  Really too small, but I'd driven too far to opt out when I purchased it.  I've had to re-weld the fenders twice aa my tractors have gotten wider ;-).

[photorich1965 11]

4 minutes ago, lynnmor said:

You missed the PTO trunnion being upside down.

Hi Lynmor - is the PTO trunnion the "U" shaped thing ?  I thought it was harder to remove than it should've been when I painted - so maybe the last owner had it wrong.

[lynnmor 8,867]

1 minute ago, photorich1965 said:

Hi Lynmor - is the PTO trunnion the "U" shaped thing ?  I thought it was harder to remove than it should've been when I painted - so maybe the last owner had it wrong.

It's the thing right under the muffler, the hairpin clip goes on top.  Yes, most are installed wrong.

[Handy Don 16,828]

Be sure to keep your right shoe’s laces out of those large holes!

[Handy Don 16,828]

1 minute ago, lynnmor said:

It's the thing right under the muffler, the hairpin clip goes on top.  Yes, most are installed wrong.

I keep a thin washer under the clip, as well.

[photorich1965 11]

2 minutes ago, lynnmor said:

It's the thing right under the muffler, the hairpin clip goes on top.  Yes, most are installed wrong.

Ah, thanks - appreciate the catch.

Rich

[sqrlgtr 3,092]

9 minutes ago, photorich1965 said:

Ah, thanks - appreciate the catch.

Rich

Aint much these guys dint miss......Wheel Horse related anyhow....

[Lee1977 7,661]

14 minutes ago, Handy Don said:

Be sure to keep your right shoe’s laces out of those large holes!

That big Onan is blowing out, not sucking in.

Edited 29 minutes ago by Lee1977

[Handy Don 16,828]

6 minutes ago, Lee1977 said:

That big Onan is blowing out, not sucking in.

Yep, I have one.

But the belt is flying past and the airflow can be affected by your foot being there flopping the laces around.

Just sayin'

[sqrlgtr 3,092]

I took a long hard look on mine at removing that top brace that holds belt guard on top or at least trimming it up a bunch. That brace looks like it really holds the heat in...
