Eaton 1100 hydro control ???'s

[sqrlgtr 2,382]

Anyone happen to know what the dimensions are of the cam return bearing (item#16) and the control rod end (item#10) is on the Eaton 1100. Also does the cam return Bearing mount on a stud or is it bolted on? My cam control (item#57) has a hole in it where the Bearing goes but thinking there is supposed to be a stud there.  I'm wanting to convert my 520 back from the foot control to the steering column control and these are the only 2 pieces I need to complete the task. BTW I borrowed this pic from another thread and #16 is kind of hid in picture by a red circle .



[cleat 8,856]

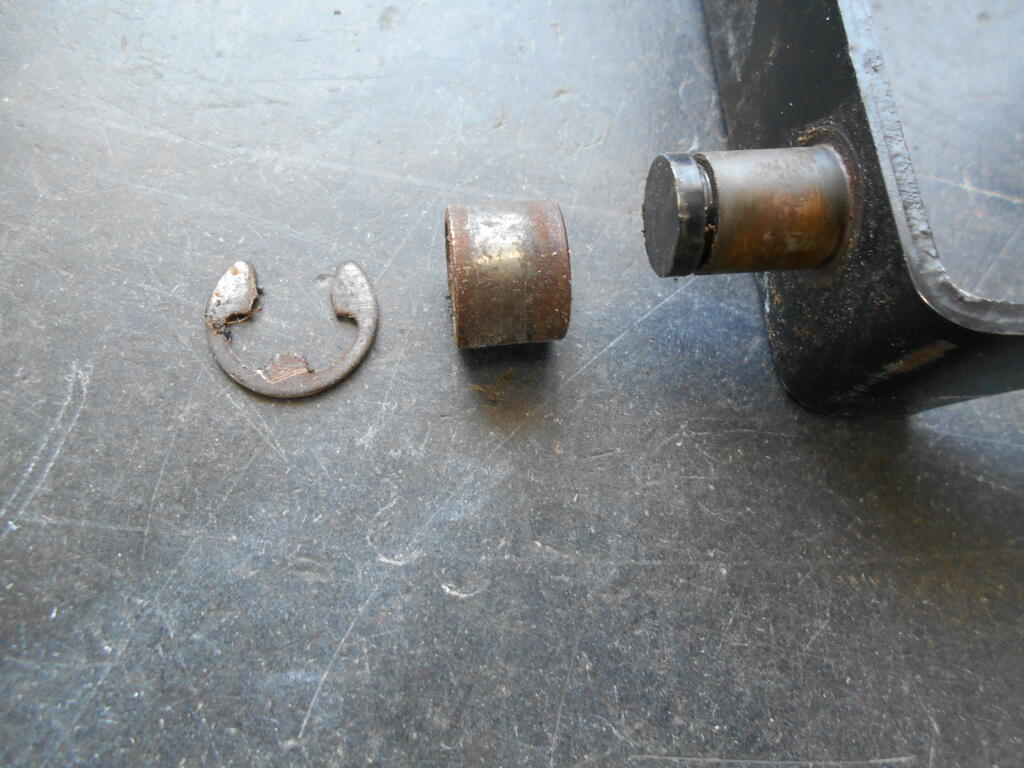

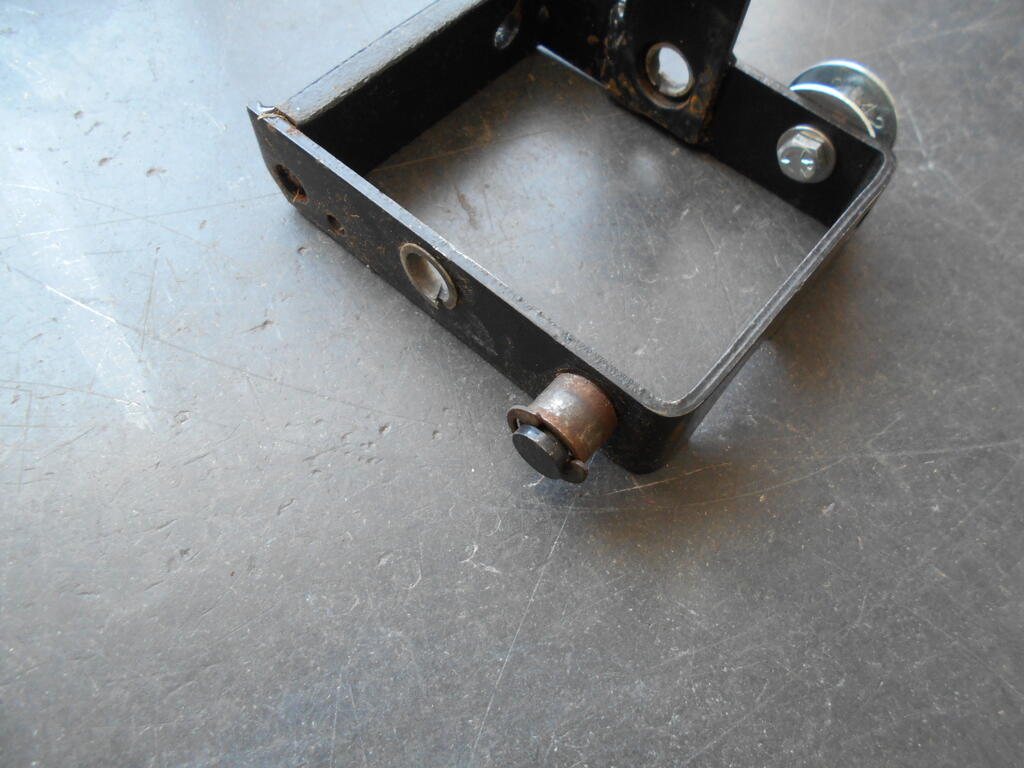

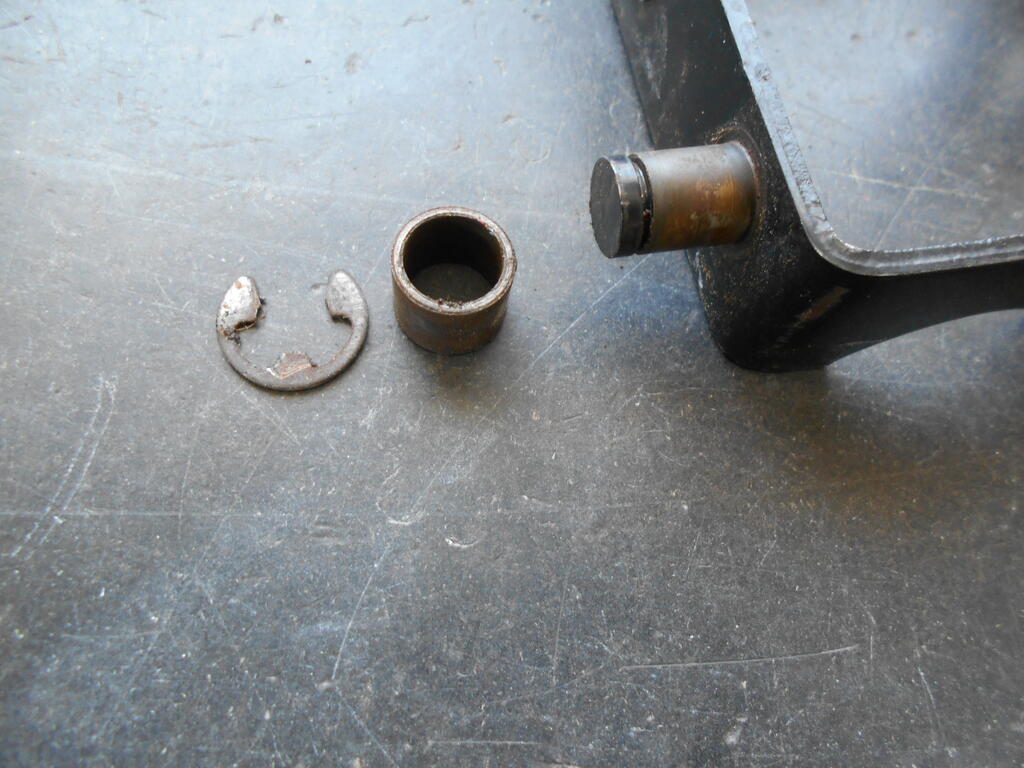

it is welded in.

Never seen one break off, I wonder if someone removed it on purpose for some reason.



Unless you have access to a welder it may be easier to just replace the cam as there should be some of them around.



I guess you could use a shoulder bolt.



I will get you the dimensions tomorrow.



[sqrlgtr 2,382]

1 minute ago, cleat said:

it is welded in.

Never seen one break off, I wonder if someone removed it on purpose for some reason.



Unless you have access to a welder it may be easier to just replace the cam as there should be some of them around.



I guess you could use a shoulder bolt.



I will get you the dimensions tomorrow.





@cleat

Thanks that would help a bunch, I think I can weld one back on or like you mentioned maybe make a shoulder bolt. I would really like for it to go back to neutral when hitting the brakes .
