Mule drive bearing ID

[19richie66 17,828]

I have a mule drive that came off of something I aquired over time. It’s the only one I have seen with a cast pulley. Trying to find out what bearing it takes. Anyone have anything on it? Pulley number 101762. I have looked but found nothing on it. Thanks in advance.

[ri702bill 11,578]

Where is that pulley used??

[JoeM 9,692]

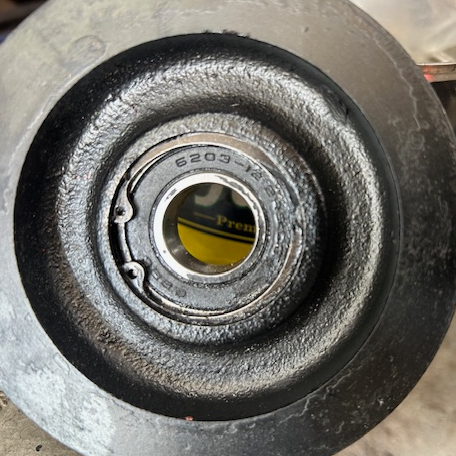

I believe that is a 6203-12 bearing I can double check tomorrow my pic did not show a clear number. 40mm od 3/4 id. 12 mm thick I am pretty sure it is the same as the 3/4" deck berings.





snap ring

[peter lena 9,799]

@19richie66https://www.google.com/search?q=wheel+horse+mule+drive+bearing&rlz=1C1CHBF_enUS866US866&oq=wheel+horse+mule+drive+bearing+&gs_lcrp=EgZjaHJvb  , might help , also personally  look for  any bearing with  wide rubber side grease shields , carefully remove , flat pocket screwdriver  or  small putty knife, wipeout original lube , usually  ceiling fan  , grease . thats why those bearings  whine / and fail , lucas geen chassis grease  X-TRA HD , 550 deg flash point , polyurea  rated , so it stays there , have that  conversion in all my  deck  spindles as well , no noise or failures  since change out  . make the problem stop , pete

[squonk 45,824]

57 minutes ago, JoeM said:

I believe that is a 6203-12 bearing I can double check tomorrow my pic did not show a clear number. 40mm od 3/4 id. 12 mm thick I am pretty sure it is the same as the 3/4" deck berings.





snap ring

Yes. 6203-12- RS. I have one in my desk drawer for just the occasion someone asks!

[gwest_ca-(File Mod) 12,080]

Item #85?

https://www.partstree.com/models/5-0620-toro-36-rear-discharge-mower-deck-1972/parts-list-for-rotary-mower-0/

[19richie66 17,828]

Thanks guys! Best site on the web!
