Cee245 755 #1 Posted January 9 Does anybody have a picture of the 9 pin connector to the dash safety lights? The block was broken and i didnt mark the wires thinking they would all be color matched... Not sure if white wire goes to yellow etc... Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,509 #2 Posted January 9 Do I have the correct year and model? 2 Share this post Link to post Share on other sites

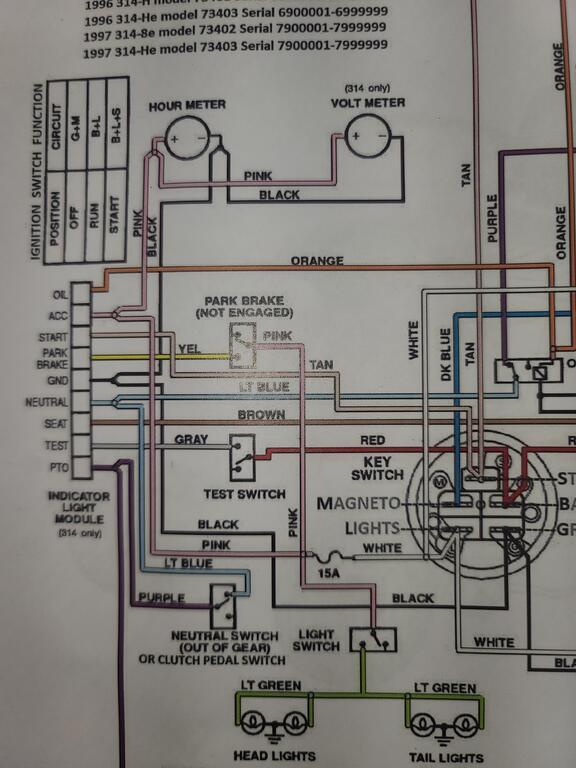

Cee245 755 #3 Posted January 9 (edited) Thanks @gwest_ca, yes you do. Its 93 314H. I have the wiring diagram, but im looking for the wire colors from the dash safety interlock lights to main harness... for example.... I have brown and yellow coming from main harness up to the "indicator light module" But only white and green ON the indicator light module(safety switch lights) I'm already assuming pink goes to pink etc, Edited January 9 by Cee245 Share this post Link to post Share on other sites

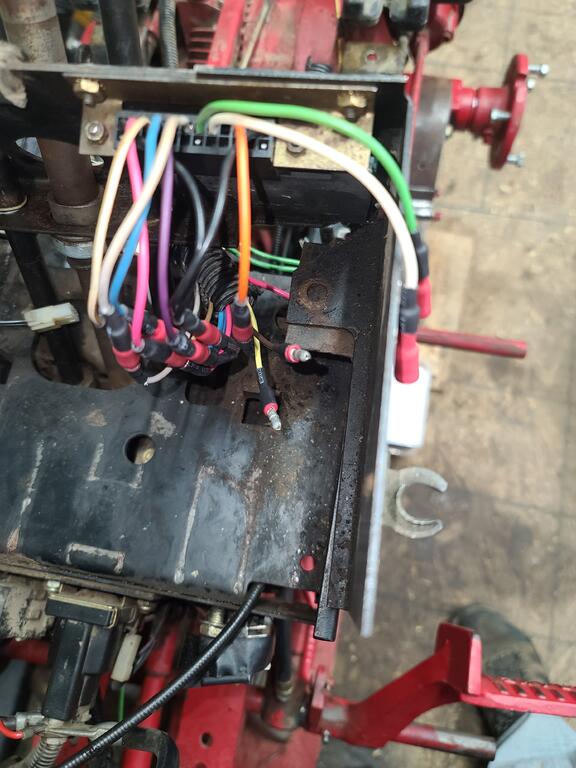

gwest_ca-(File Mod) 10,509 #4 Posted January 9 Click on the picture to see more. Assuming you have 2 lights not working because white and green on the board are not connected. Apply 12 volts to the white and/or green to see if the park brake light comes on. That wire should go to the yellow. Now ground the other white and/or green wire and it should put the seat light on. That wire would go to the brown. 2 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,509 #5 Posted January 9 It may be necessary to turn the key to the run position with the engine not running for the above to work. 1 1 Share this post Link to post Share on other sites
