need help with new holland pix?

[beachbumtroy 10]

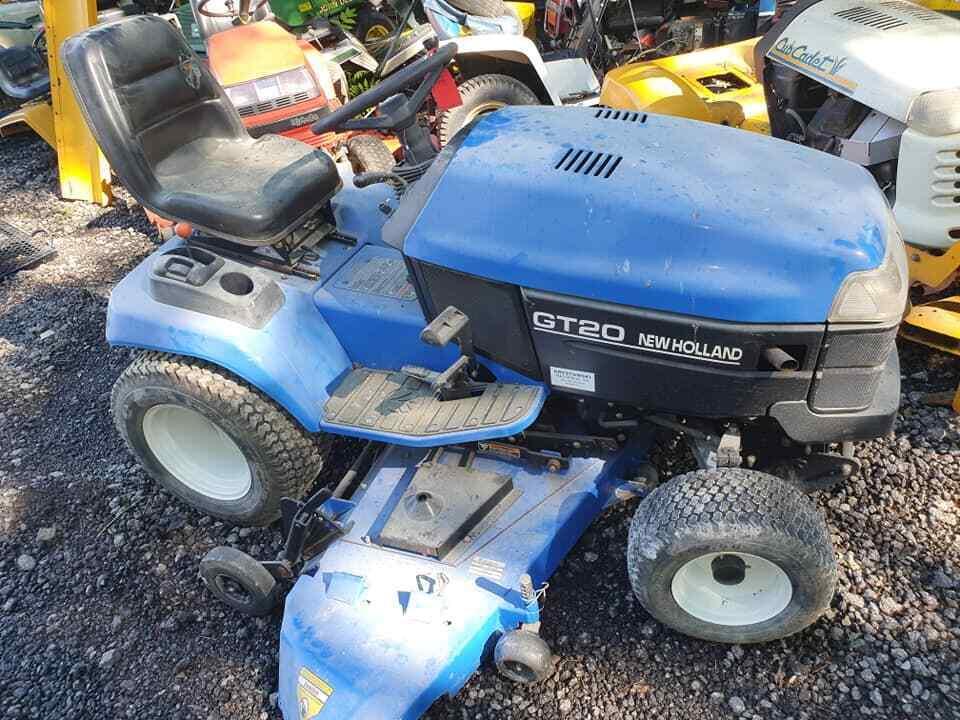

i messed up just got this 1997 new holland GT20 serial# 716498006 liquid cooled, kawasaki v-twin 60 inch mower and i took off the carb (to clean) and didnt take pix, so i have a repair manual and owners but the pictures are not good
enough for me to see how to put back on engine...as far as choke,accelerator cables and springs and governor and all outside hookups... anybody got some good detailed pix for me or a good site or place to go look? i got the general idea just need some pix to help me along on hookups? any help or leads is appreciated thnx bb

[gwest_ca-(File Mod) 10,517]

May help.

1998 was the first year for the Toro model.





[beachbumtroy 10]

well thats my motor i`ll check out and see if pix show what i need? thnx for the help and download

[JoeM 7,698]

I got these two from a LXI machine.

I can get better ones tomorrow but won't be till evening.

[beachbumtroy 10]

those 2 are a good start when u can ill taker pix of the governor and any hook ups to the carb if u will thnx these are alot clearer than the manual....and im a pictures guy lol oh and p.s i just learned from gwest_ca that ths motor

was used on toros too what model and year is ur toro? thnx bb

[JoeM 7,698]

6 hours ago, beachbumtroy said:

pix of the governor



[beachbumtroy 10]

thank u thank u so much this is alot of help..........

[beachbumtroy 10]

hey just letting u know the pictures worked great,runs like a champ.....now im on to the hydraulix see u soon lol
