Tractor 1965 Lawn Ranger D&A OM IPL Wiring Rev SN.pdf

Sign in to follow this

admin

7 Screenshots

About This File

Operator manual #206-207
IPL
Wiring
9 pages 441.16KB
Dated 9/14/64

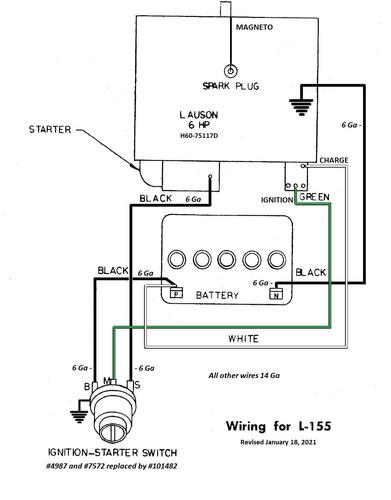

Wiring Revised pdf

1 page 209KB



Tractor drive belt for L-105 and L-155 #9691 - 1/2" x 70"



Mower belt 1555 replaced by 113912 (1/2" x 44")

8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades



Ignition switch for L-155 is 4987 replaced by 101482

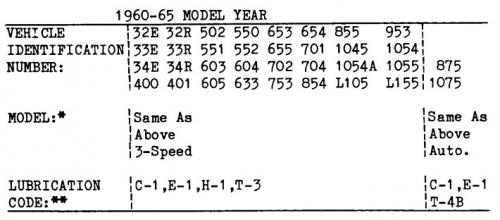

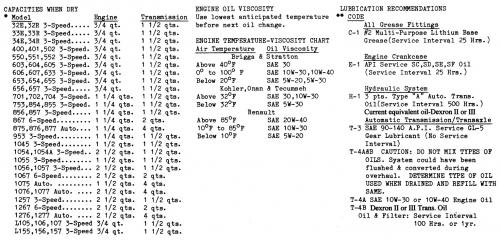

Lube chart SS


Details & Attachments
2 pages 107.20KB
1965 model L-105 - Recoil start
1965 serial numbers that have shown up for the L-105
108824
117473
117588
138328



-----------------------------------------------------------------------------



Details & Attachments
2 pages 107.31KB
1965 model L-155 - Electric start

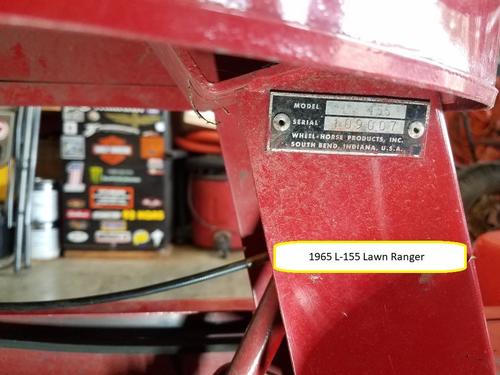

1965 serial numbers that have shown up for the L-155
105590
105779

108911

109007
109109
109469

10956x
137860
137989
137993
