Tractor 1967 1067 & 1267 D&A OM IPL Wiring Rev SN.pdf

Sign in to follow this

admin

7 Screenshots

About This File

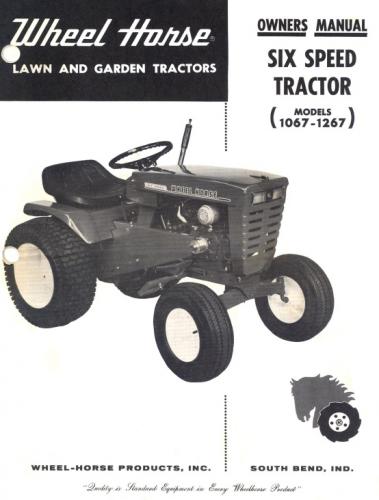

Operator manual #346-347
IPL
Wiring
12 pages 4.17MB
Dated 1/1/67

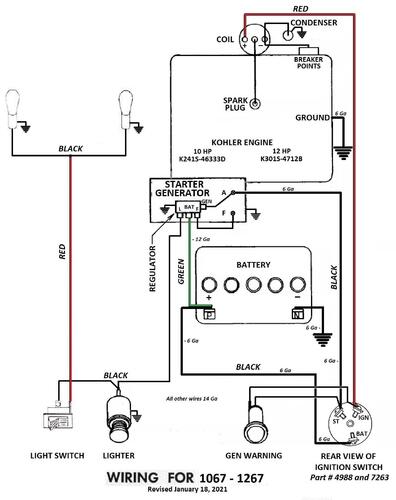

Wiring Color pdf

1 page 338KB



Models 867, 1067 and 1267 first models to get headlamps as standard equipment



Transmission drive belt 1586 replaced by 9714 (HA x 76" or 1/2" x 76")



Starter/generator belt

Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)

Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)



Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41

Big Block Kohler Napa # 25-7345   .41" wide x 35.3" long side angle 37 degrees Cross section HC41

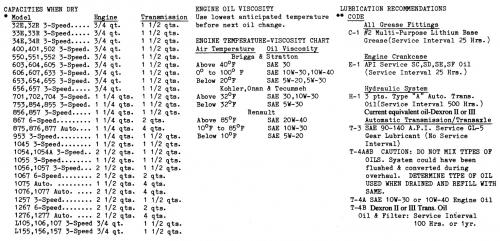

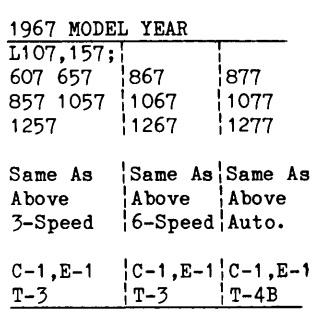

Lube chart SS



Details & Attachments
4 pages 119.89KB

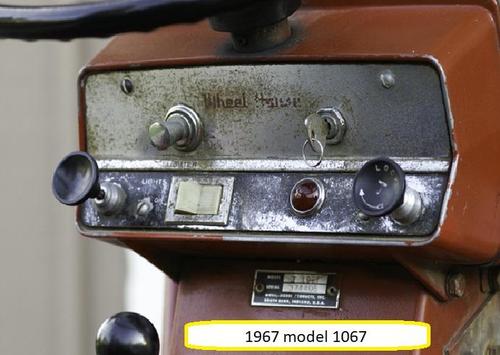

1967 model 1067
1967 serial numbers that have shown up for the 1067
288721

367453
374404
374405
374479

374530

374566
374623
378854
378895
380818

382828



------------------------------------------------------------------------------------------------



Details & Attachments
4 pages 119.58KB



1967 model 1267
1967 serial numbers that have shown up for the 1267
367508
367509

367640

374805
374866
374973
379124
379140

379154
379206
380578




×
×
