Tractor 1978 C-161 Twin 8-Speed D&A TIPL Wiring Revised sn.pdf

Sign in to follow this

gwest_ca

6 Screenshots

About This File

IPL from Toro Master Parts Viewer
45 pages 3.41MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

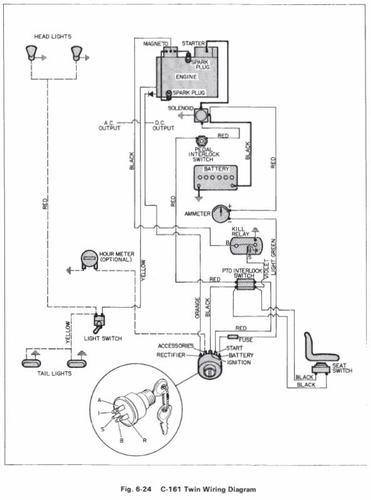

Wiring from SM

2 pages 82.81KB

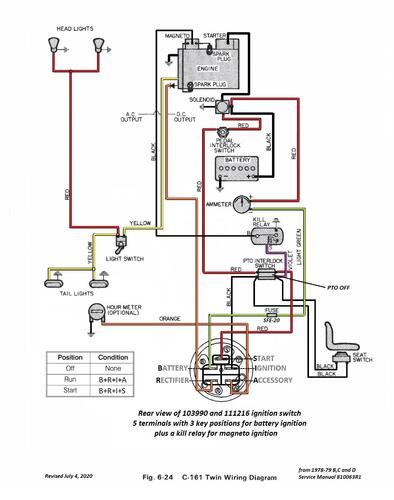

Wiring from SM Color pdf

1 page 344KB



Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379

6015 replacement fender kit was available for Twin tractors


Tractor drive belt  107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")



Lube chart SS


Details & Attachments
4 pages 122.80KB



1978 C-161 Twin 8-Speed model 81-16B801

1978 serial numbers that have shown up for the 81-16B801

011342 - Build date 1978 8113 April 23 Sunday



For tractor service manual see

Engine service manual



For electrical service manual see

For transmission service manual see low resolution

For transmission service manual see high resolution




×
×
