Afternoon/evening all it would appear that somehow I have an RJ 35 on my bench :D

Unfortunately it isn't actually mine but belongs to a chap you all know and love.. Neil.. Yep the very same Neil who happens to be a moderator around these parts..

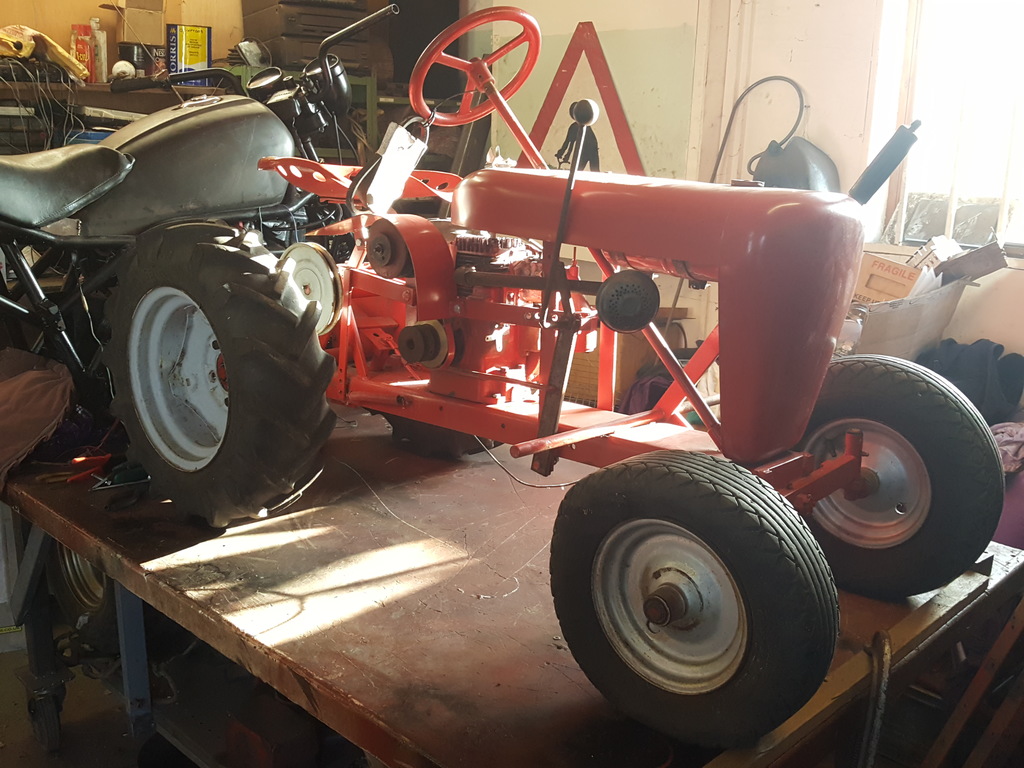

RJ 1.jpg

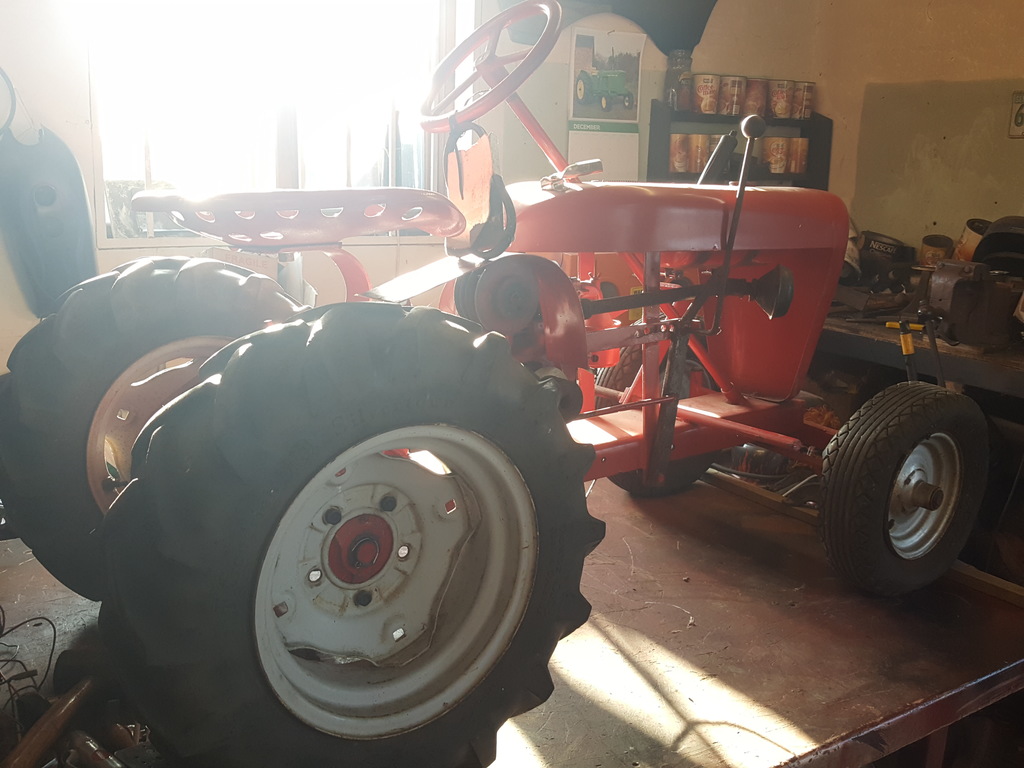

RJ 2.jpg

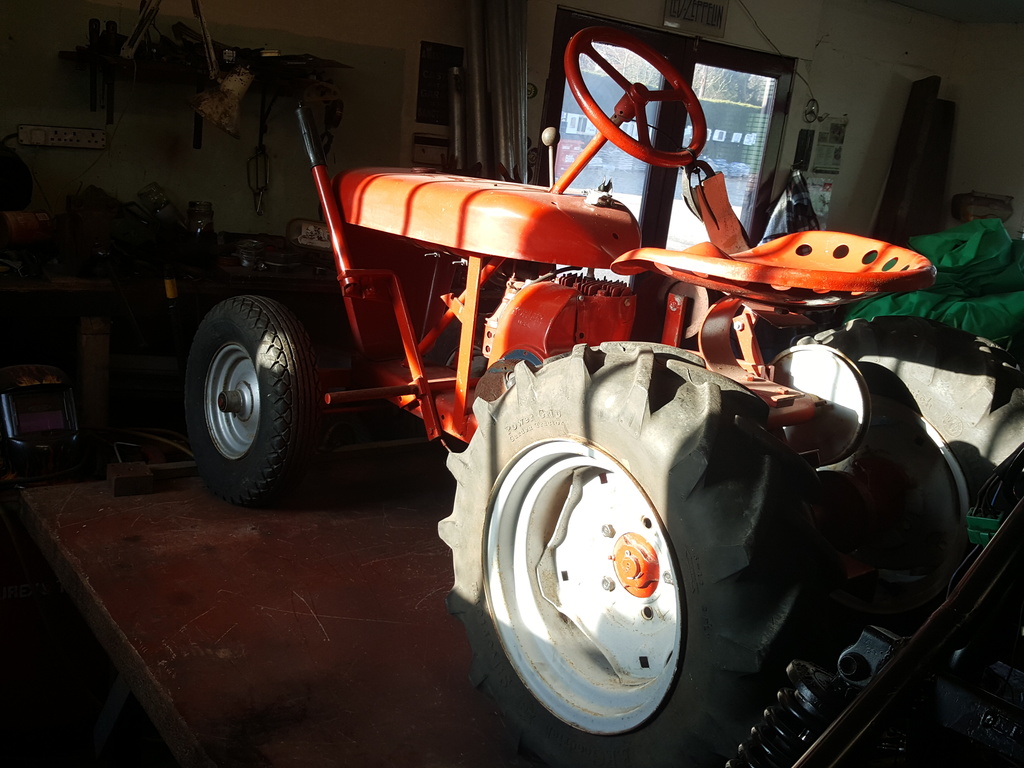

RJ 3.jpg





So why is Neil's RJ on my bench?

Well, Neil brought it up for Nigel in the workshop next door to do a bit of work on it, get it running, driving and maybe more.. I offered to help and it so happened that I had some space on the bench..

It's also nice to have a break from the quad for a while as I've missed working on Wheel Horses :)

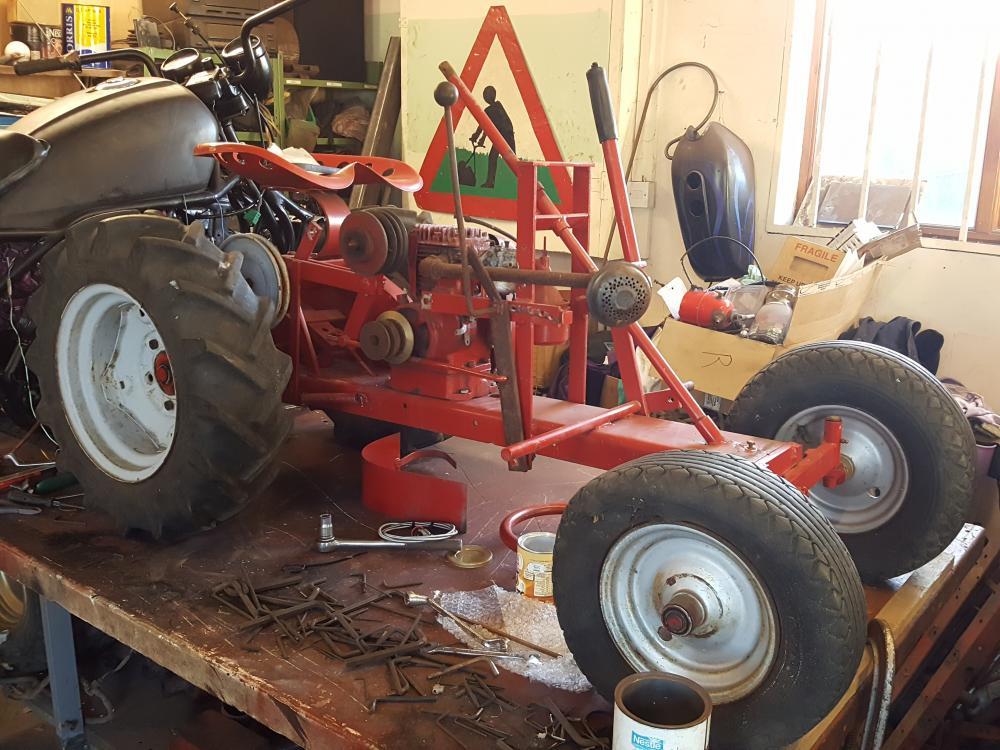

It didn't take long to get the belt guard and hood off..



RJ 4.jpg





The first job was to have a look at the engine, it has good compression and after a bit of plug and plug lead cleaning it has a spark :thumbs:

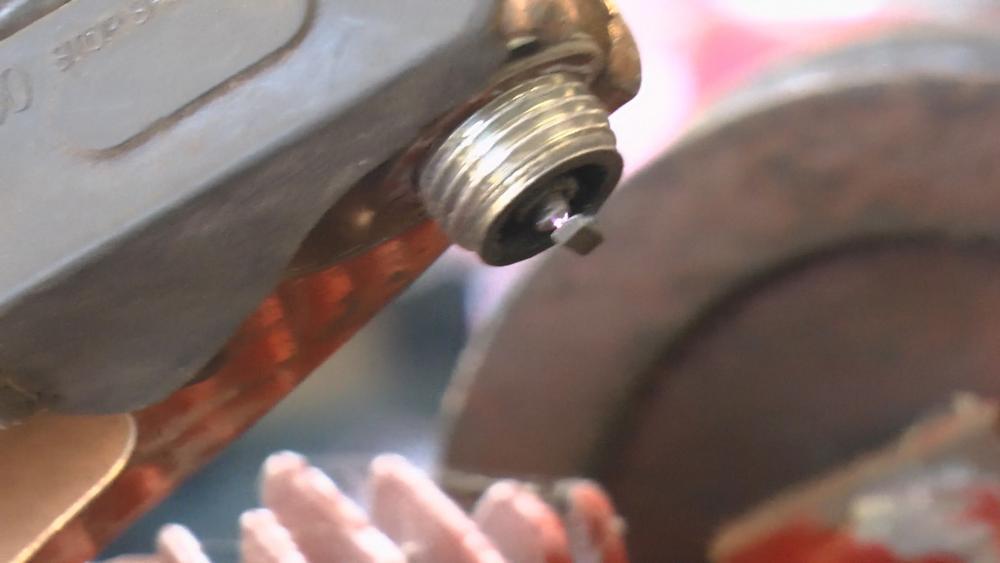

RJ 17.jpg





I expect with a temporary gas tank fitted and a bit of move juice the engine should come to life.. Something to look forward to on Monday :)

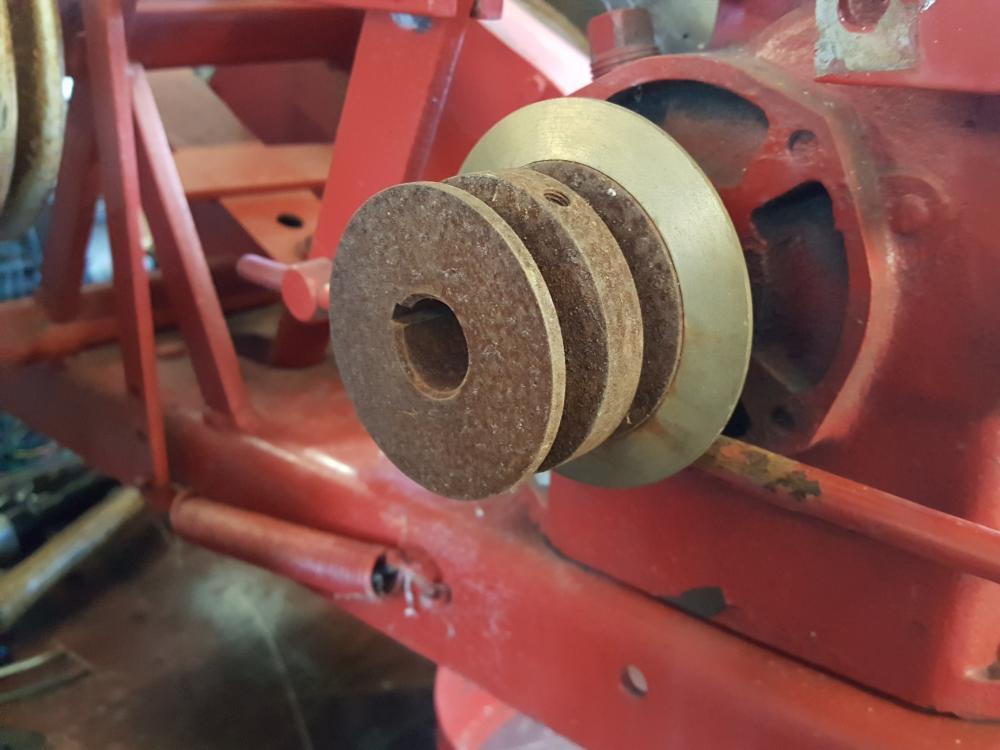

The engine pulley is not quite in the right place on the shaft, it should be closer to the engine..



RJ 5.jpg

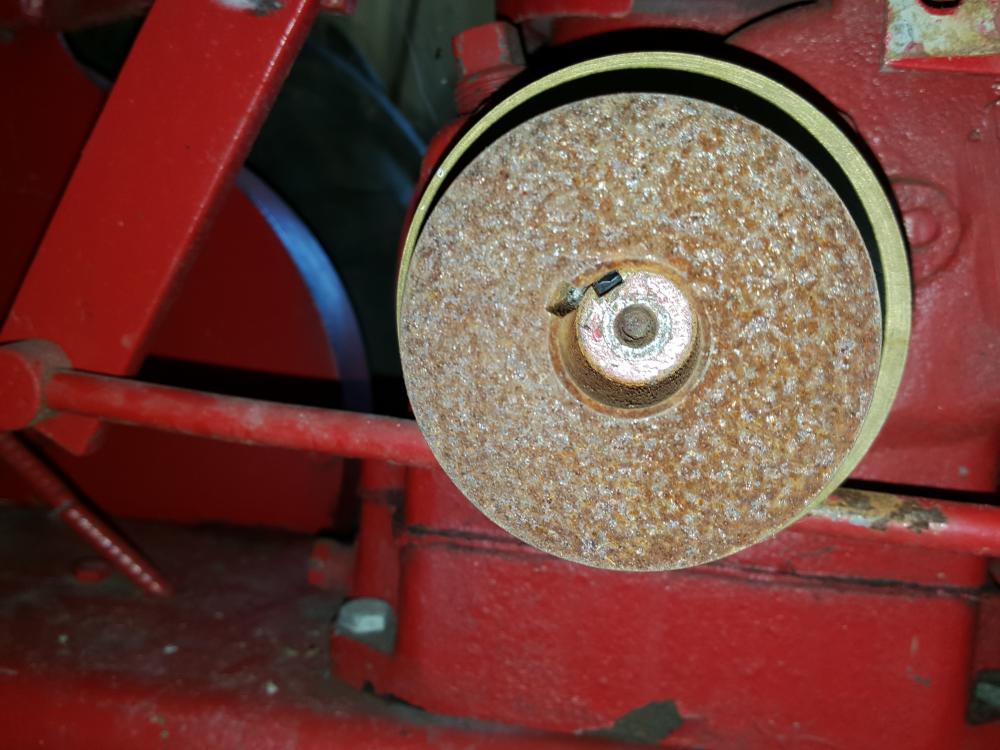

Me thinks the pulley needs to turn a little on the shaft as well..



RJ 6.jpg

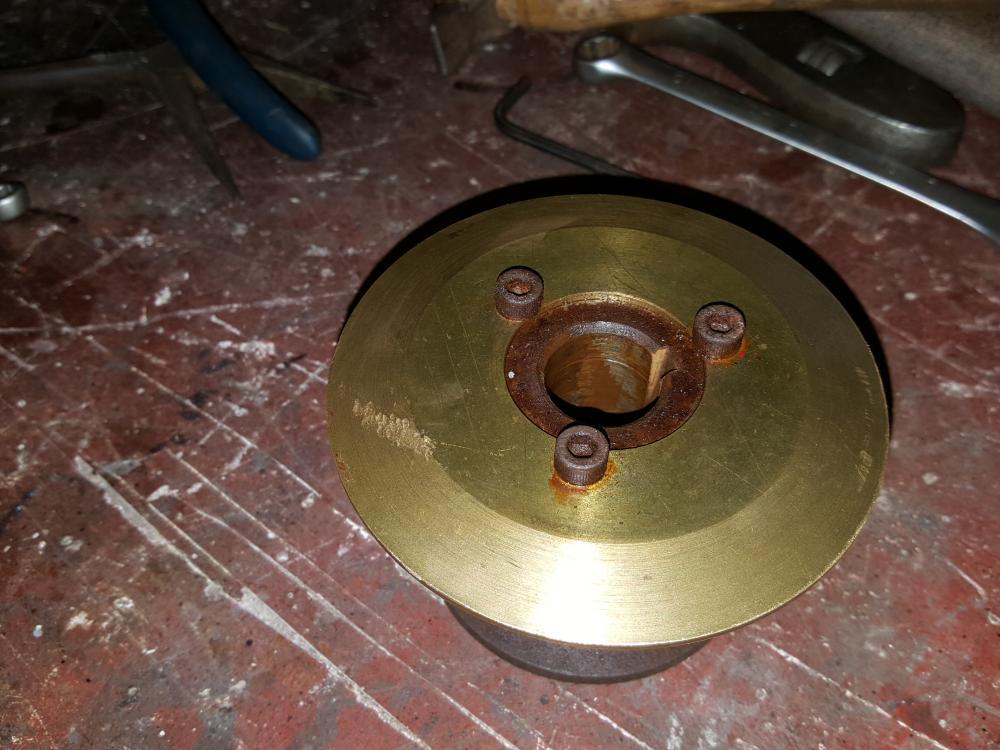

Having not worked on an RJ or any really early Wheel Horses before this er.. brassy bit on the back of the pulley confused me for quite a while until I worked out it's the reverse er.. cog :thingy:



RJ 15.jpg

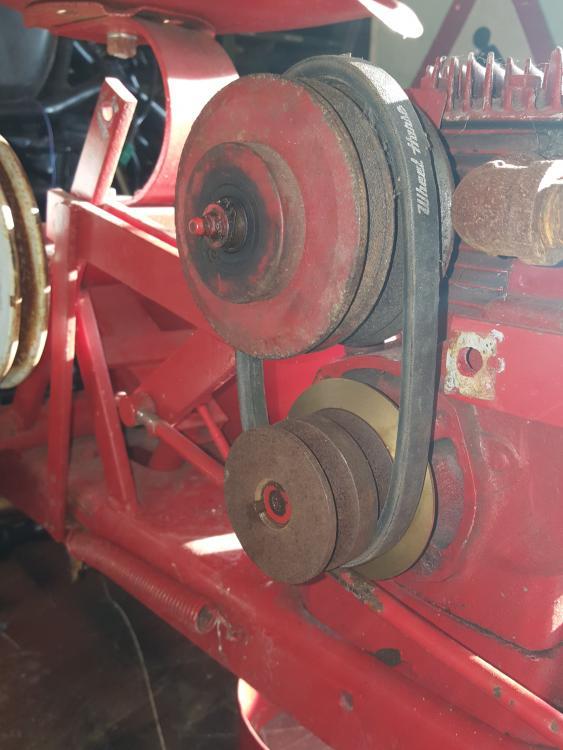

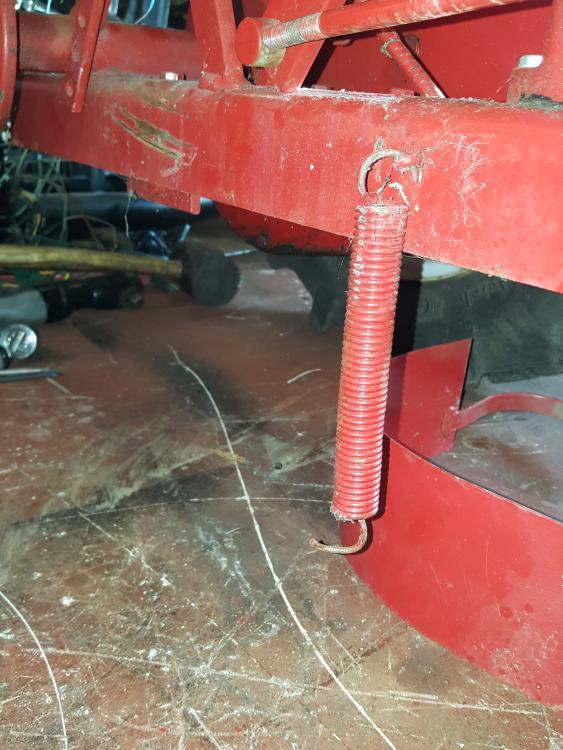

In fact the whole drive belt system confused me for a while until I disconnected this spring and then everything fell into place..



RJ 9.jpg



RJ 7.jpg





Speaking of belts, does anyone know what part number/size the larger rear drive belt should be?

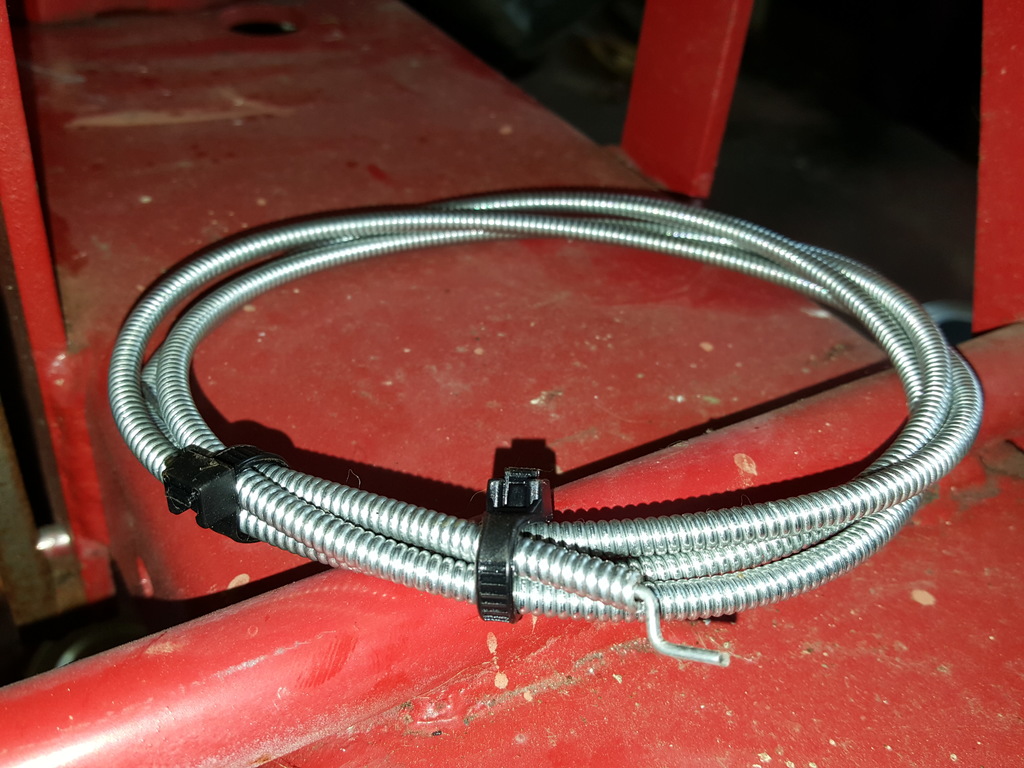

I need to fit this nice new throttle cable..



RJ 11.jpg

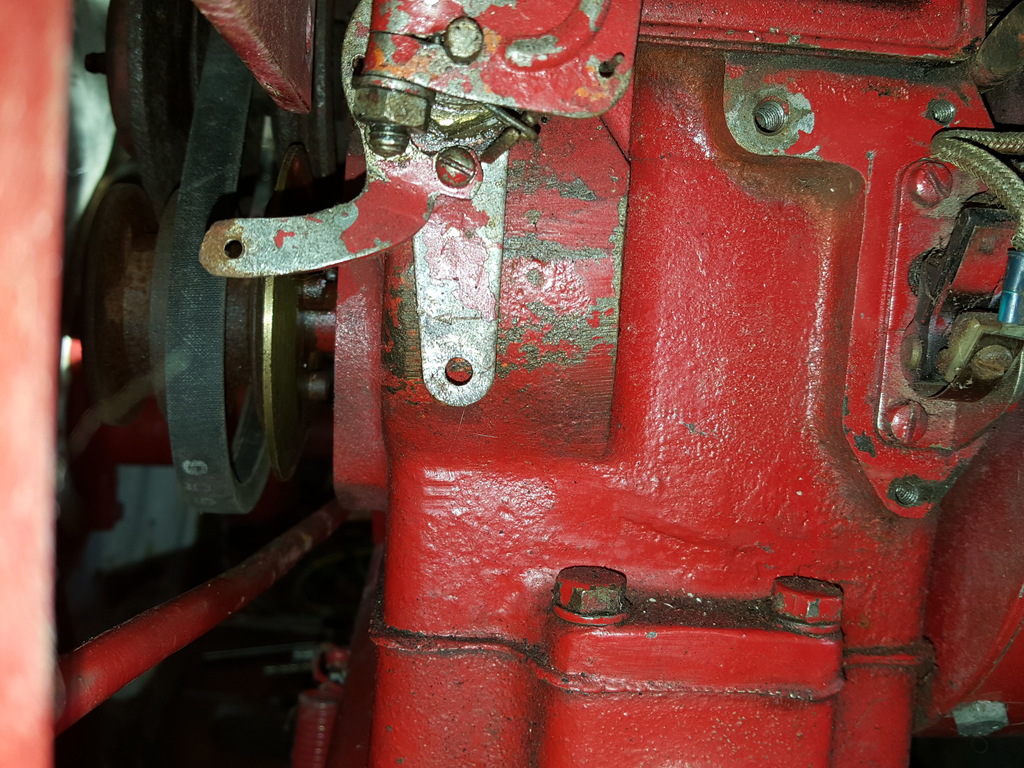

But has anyone a photo of the clip/small bracket thingy that holds the cable outer sleeve to the carb please?



That's all for now folks, more action as it happens..

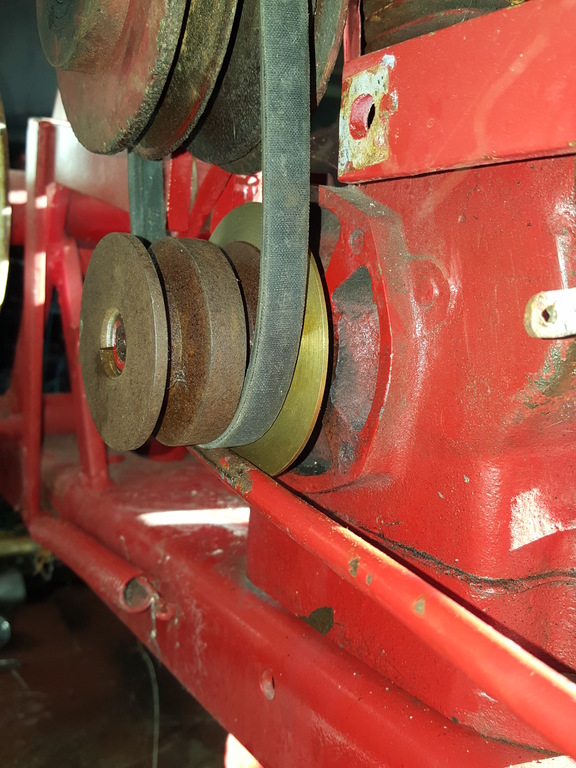

RJ 8.jpg

RJ 12.jpg

  • Like 9

Share this post


Link to post
Share on other sites

Try this Ian.

Tractor 1955-1957 Ride-Away Jr.pdf

Under manuals, has all the belt size's

Edited by chris sutton
  • Like 1

Share this post


Link to post
Share on other sites
On 21/01/2017 at 9:25 PM, redrooster said:

Love the round hood!



 It is rather nice isn't it :D





On 21/01/2017 at 9:27 PM, chris sutton said:

Try this Ian.

Tractor 1955-1957 Ride-Away Jr.pdf

Under manuals, has all the belt size's



Thanks Chris :thumbs:





On 21/01/2017 at 10:27 PM, meadowfield said:

A sweet thing to have on your bench indeed.... :wub:



It is indeed Mark..



With the RJ's engine having a good spark the time had come to look at the carb..



RJ 18.jpg





An interesting find behind the carb... Me thinks that gasket might be a bit small!



RJ 19.jpg





Everything moved freely in the carb, so with a new gasket made (your see it in an up and coming video) the carb was bolted back on and a temporary fuel tank lashed up.



RJ 21.jpg





A few pulls of the cord (steel cable in this case!) and the engine coughed into life and ran for a few seconds before stopping, which was just as well as the carb was leaking fuel from around the float bowl in vast amounts!



Off with the carb again, ahhh there's the problem!



RJ 29.jpg





As luck would have it Nigel had a spare carb which I could borrow to check out how the engine runs..  Thanks mate :thumbs:



RJ 22.jpg





A few pulls of the cord later and the engine didn't start... One "big" pull later the pull cord came off in my hand but the engine did start, run and sounded very nice until it ran out of petrol and I gave myself a shock from the HT lead!

All of which you will see in a video of course :)



I thought I had snapped the steel cable pull cord thingy (I hadn't seen on either) until a saw how long it still was and checked the (not so) snapped end!



RJ 24.jpg





As it turned out the nut that holds the end of the cable on was loose and the steel cable had simply pulled out!    Phew :D



RJ 28.jpg





While we have the pull start assembly apart let's turn it over and have a look..... What the???



RJ 26.jpg





Pull the cord and the center changes into a hexagonal shape!



RJ 25.jpg





Which grips on a hexagonal shaft on the flywheel!

I've never seen a pull start that works like that before... Me likes :thumbs:



RJ 27.jpg





Then this happened :D



RJ 31.jpg



RJ 32.jpg





More of an RJ update for you chaps, let's have a look at the hood/bonnet shall we..

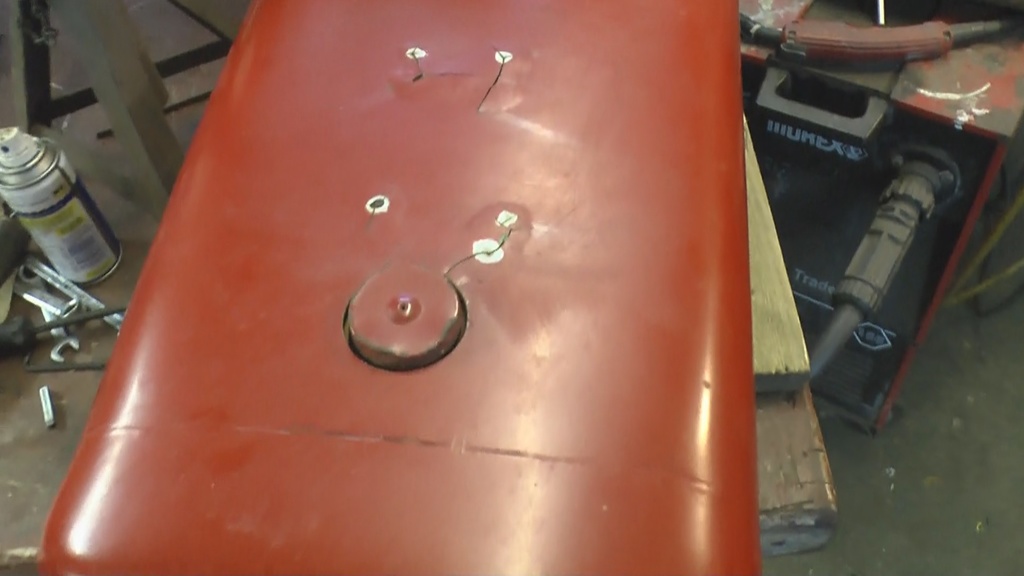

The top had these rather worrying filler bubbles.



RJ 52.jpg

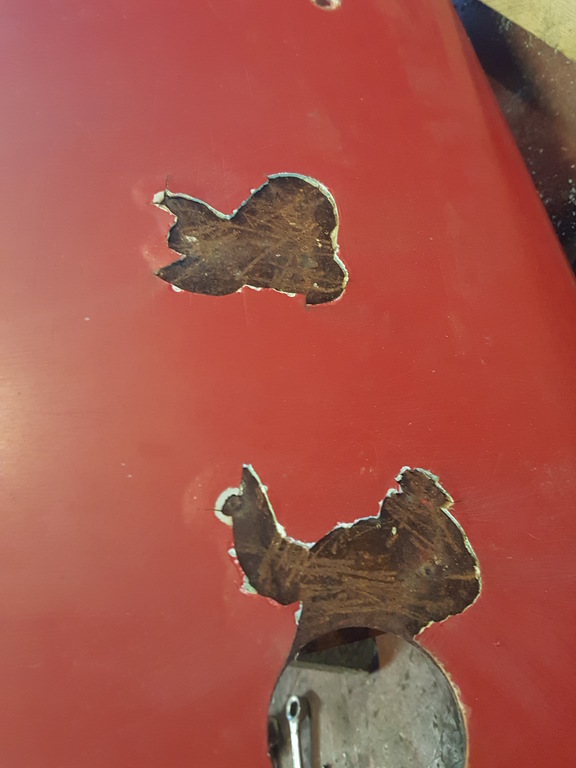

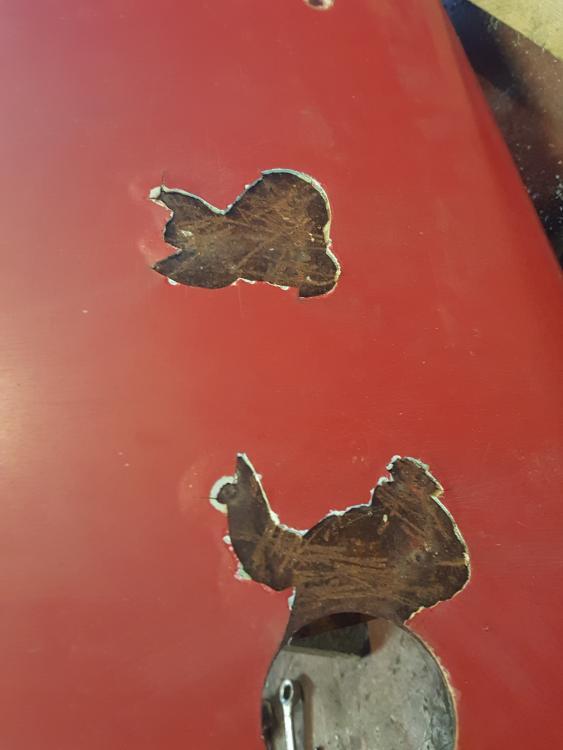

which when prodded with a screwdriver looked more like this!



RJ 38.jpg

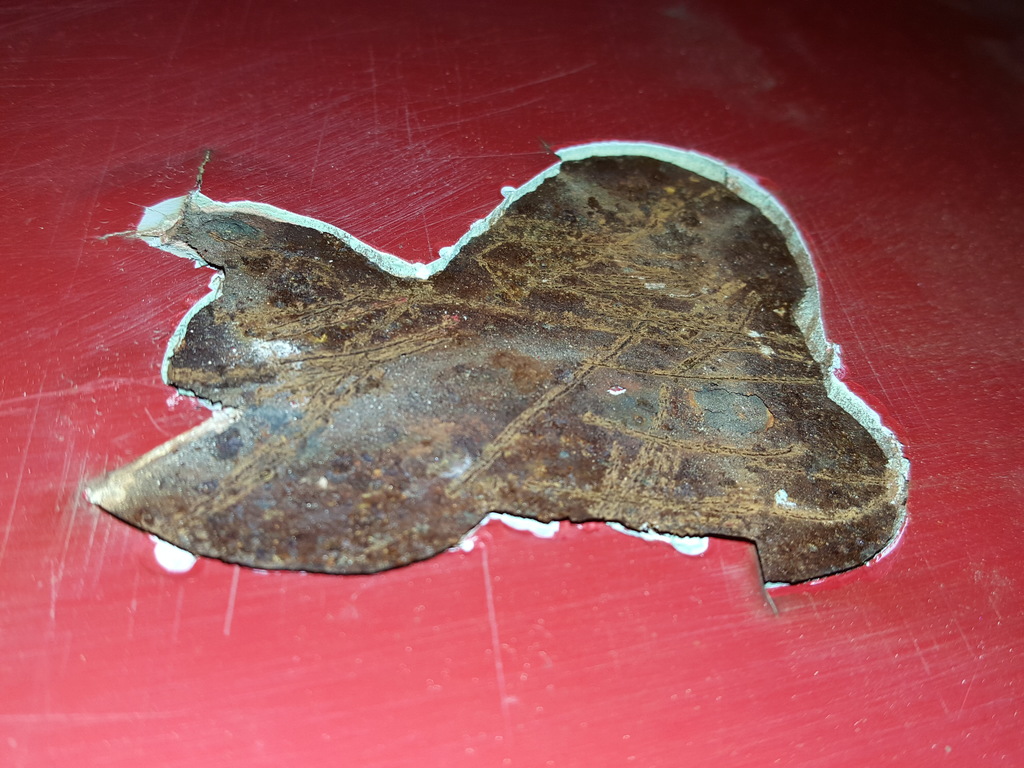

RJ 39.jpg





Interesting, a repainted gas tank with no fuel tap (Neil did mention it leaked :lol: ) and lot's of paint cleaned off the bottom!



RJ 33.jpg





What's going on under (or is that above?) the tank?



RJ 34.jpg





Soooooo... Someone has ground back the filler smoothing out the underside of the hood/bonnet to weld on new fuel tank straps!

I'd guess when the hood was painted no tank straps were fitted.. It so happen that the strap welds are in the same place as the filler cracks above!



RJ 36.jpg





Who ever did it thought something sucked as that's what it looks like has been written!

No idea why when I upload this photo it turns it sideways!



RJ 37.jpg





Oh, and the top of the tank never got painted!



RJ 35.jpg





Out with the grinder and a workshop full of filler dust later it was good to see the rust was surface rust only, and only where the filler had cracked...    And a random pop rivet!



RJ 40.jpg





As the bonnet/hood has quite a lot of ripples under the filler, there was no point in taking it all out only to replace it.. So with the surface rust carefully cleaned back to bare metal the first layer of filler went back in..



RJ 42.jpg





Easy sand no pin holes filler eh! At least the easy sand bit was right.. No worries, a second skim will sort it.



RJ 43.jpg

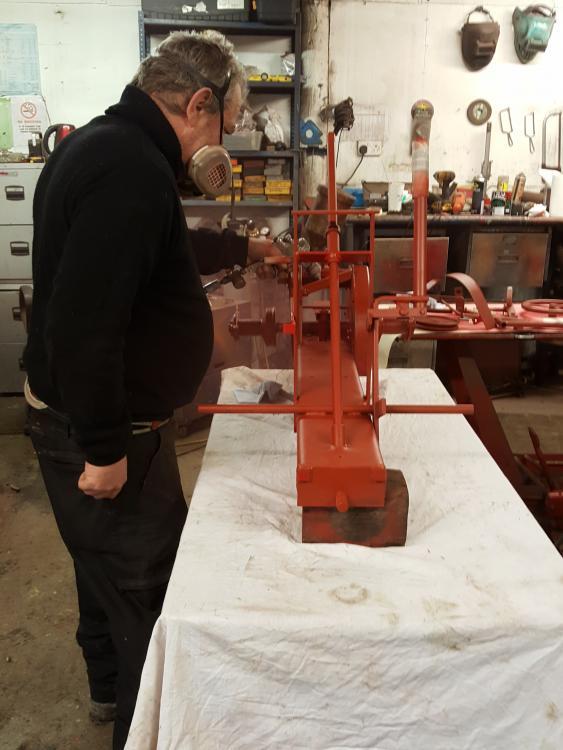

Meanwhile I catch Nigel dancing with some masking tape and a bench full of RJ parts! :lol:



RJ 44.jpg





Some parts like the gear (I'm not sure it should be called that!) lever had never be repainted, so here it is with all the thick surface rust cleaned off awaiting some red oxide primer.



RJ 45.jpg





Some parts in the "need to to have the paint flattened back to give the primer a good key" Que :D



RJ 48.jpg





Some primed parts hanging about the place.



RJ 49.jpg

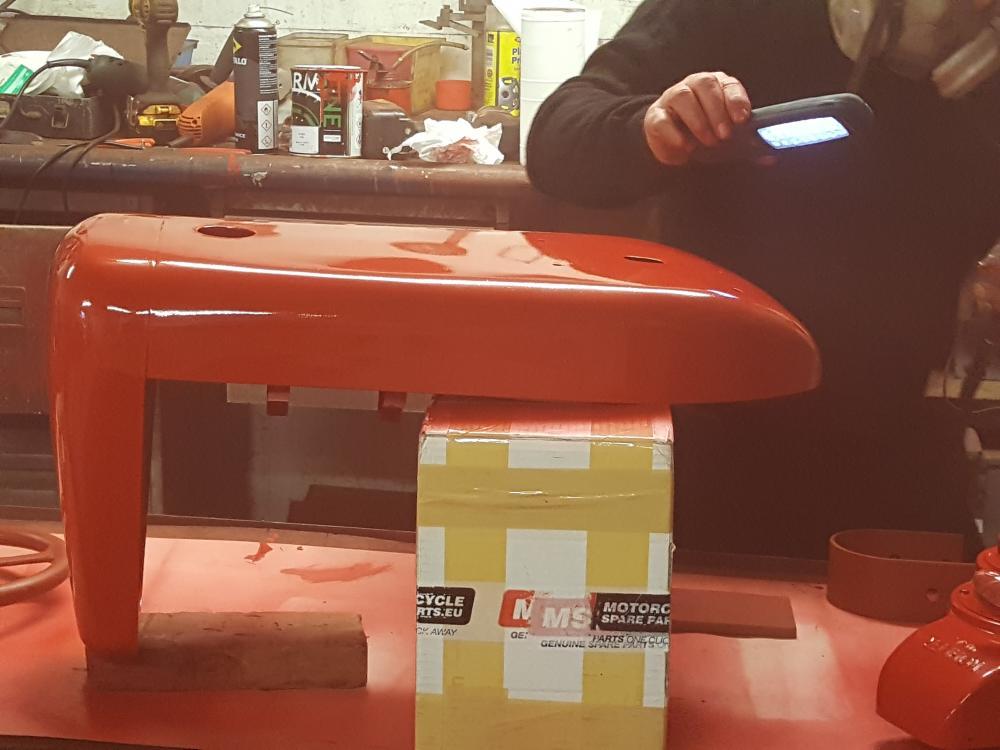

The hood now looks good with a fresh coat of red oxide primer, I'm happy with the overall shape of my filler work, there's a just a couple of little spots that are annoying me.. I will sort them tomorrow.



RJ 51.jpg











  • Like 6

Share this post


Link to post
Share on other sites
On 01/02/2017 at 6:47 PM, Jaymon74 said:

Project is coming along great!



Thanks Jaymon :thumbs:



More progress..

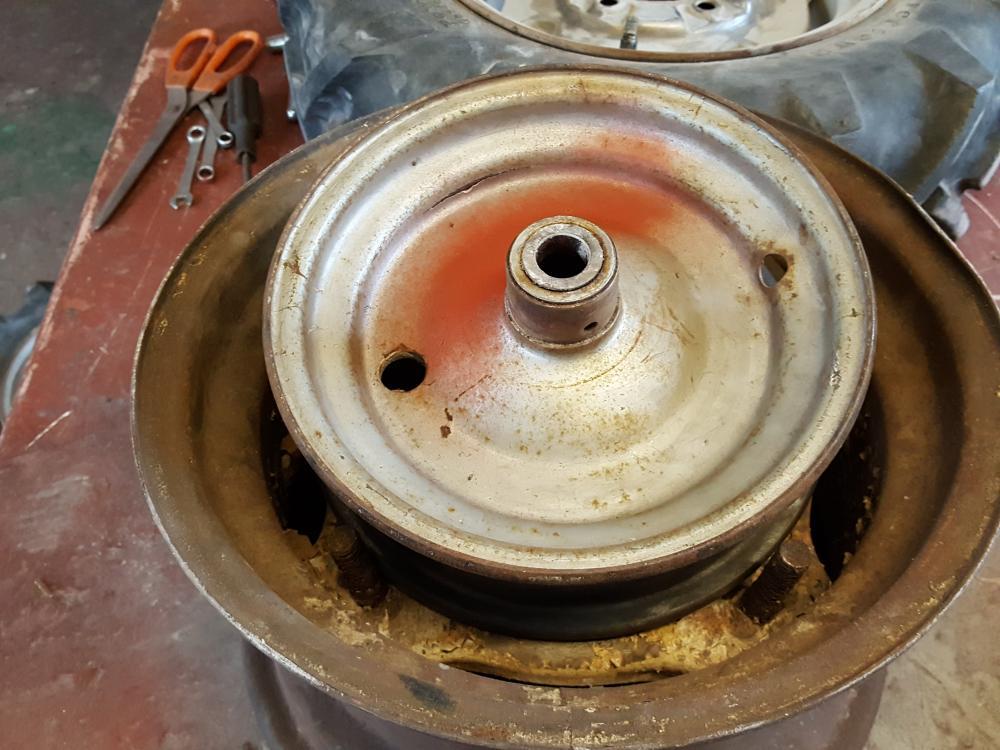

Getting the knackered tyre off the front wheel rim was fun, the tube put up more of a fight than the tyre!

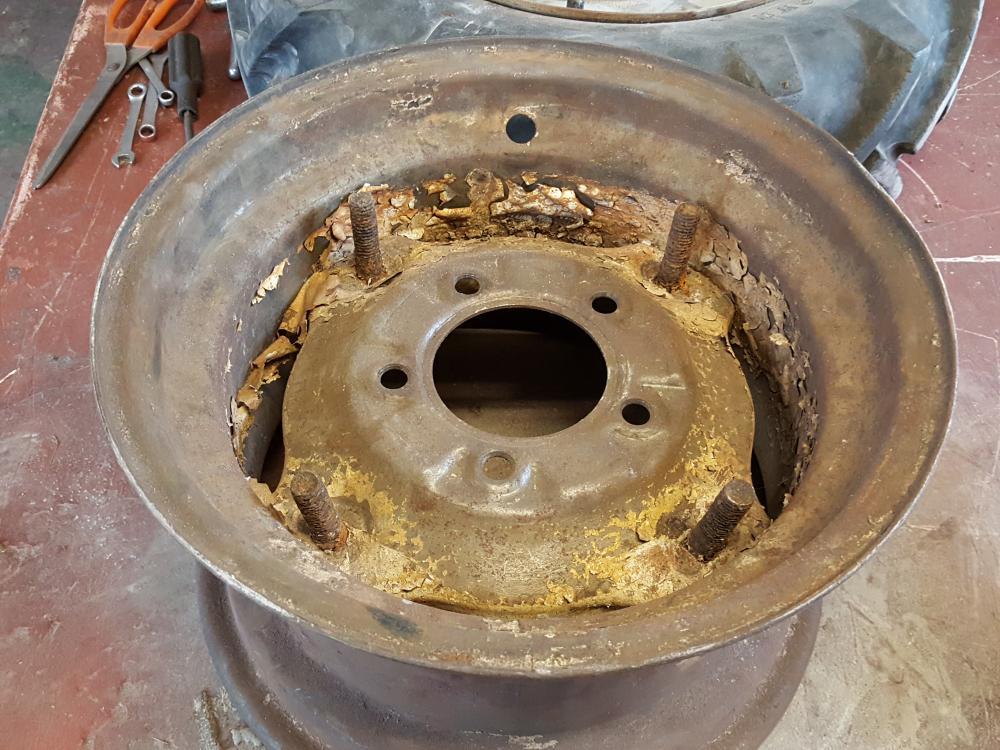

Does anyone know what the random hole in the wheel rim is for? It doesn't seem to line up with anything on the RJ and I'd of thought it would have two holes for bolting a wheel weight onto!

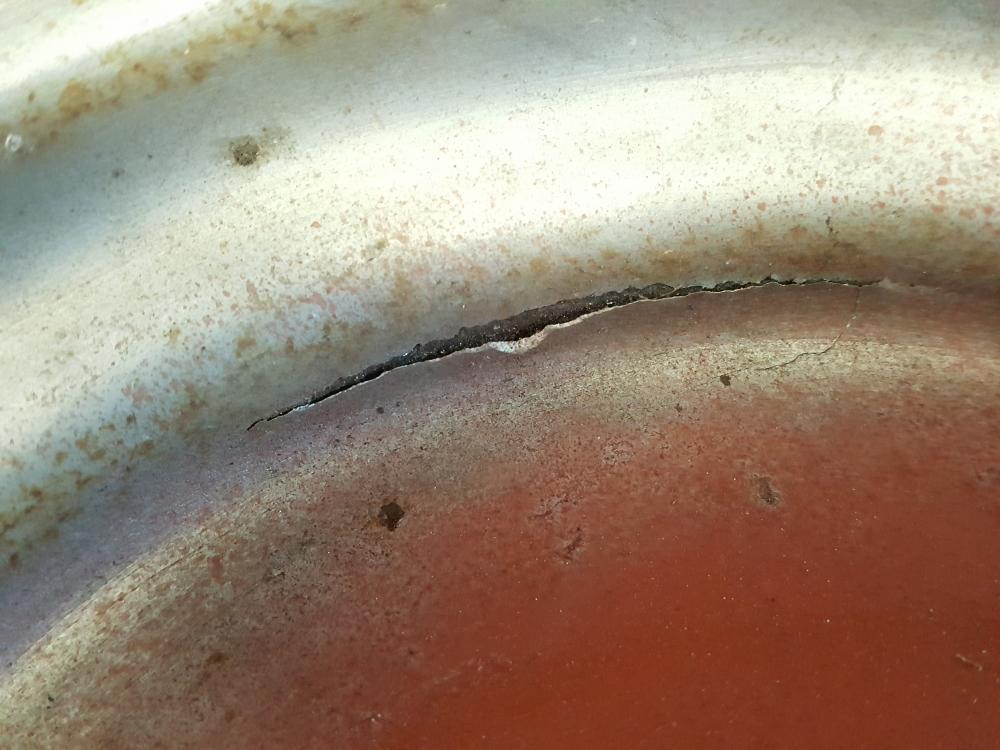

I wondered why the paint off the bottom of the gas tank had been stripped, someone has done a solder repair..








What's Nigel spotted in the tank?








Nope, it's not a mini star system but quite a few holes instead!











Some detail brought back by cleaning up  the pull start casing.. :)








Cleaning up the rear wheels.. Someone at some point had flattened the paint back to a beautiful smooth finish and then for what ever reason gave them a quick (very quick) spray with grey primer..   The odd rusty bit cleans up very easily :thumbs:








The other rear wheel decided it wanted to leak water on my bench!     10psi later and water was pouring/bubbling out all over the place!    I'm not looking forward to popping the tyre off the bead to clean the water out and see how badly rusted it is inside!

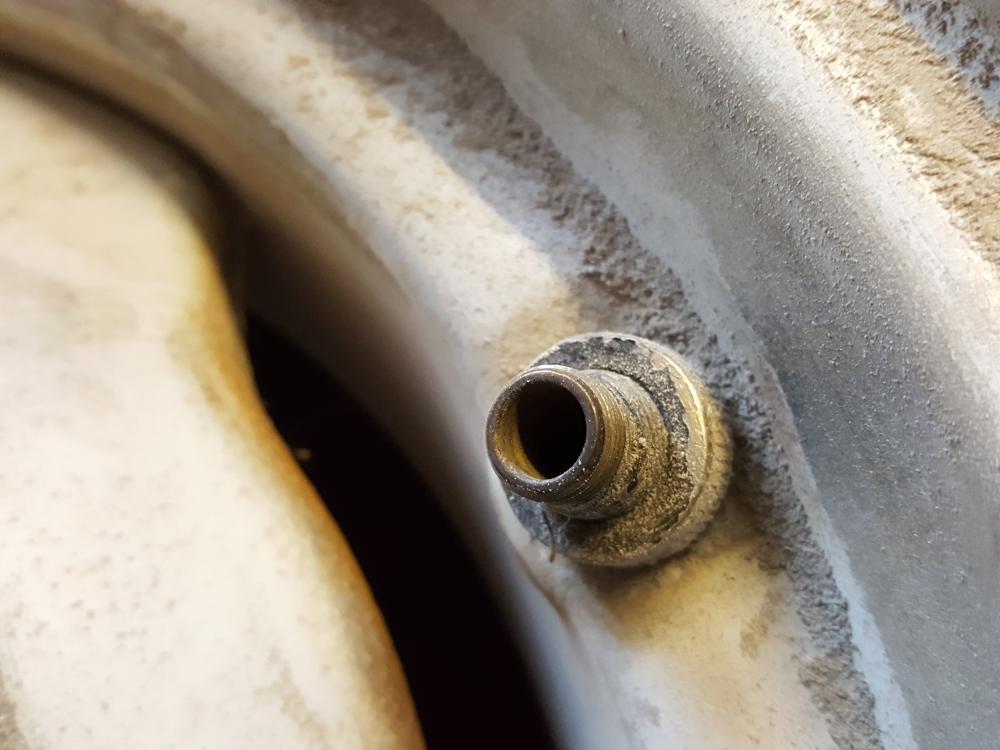

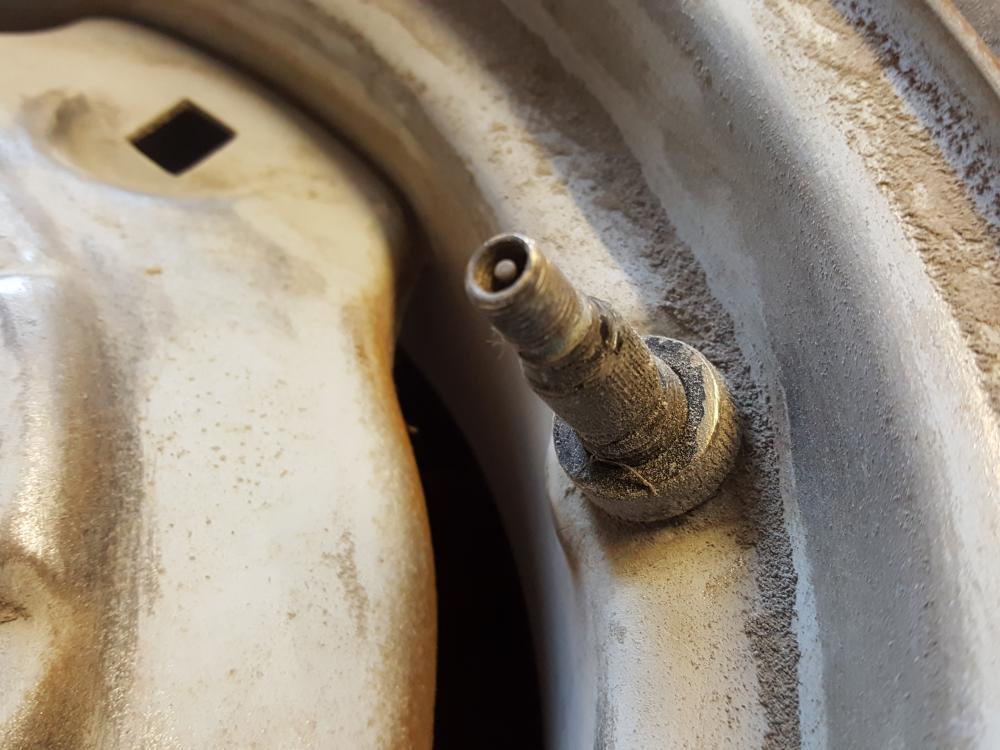

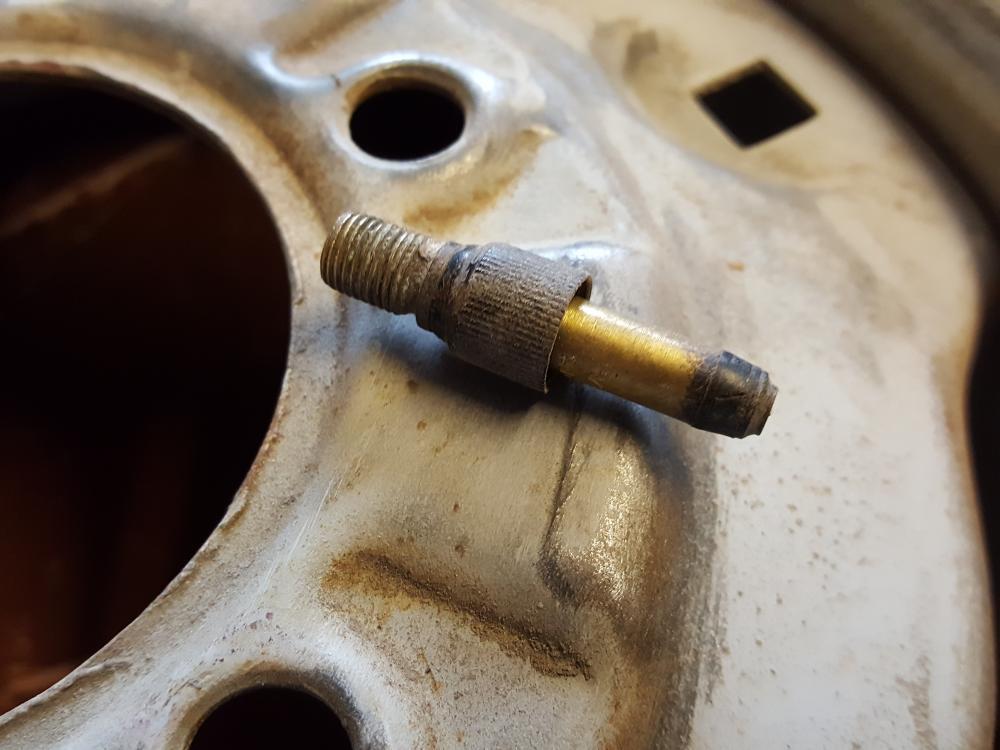

I must remember to take a photo of the tyre valve tomorrow as I've never seen one like it!

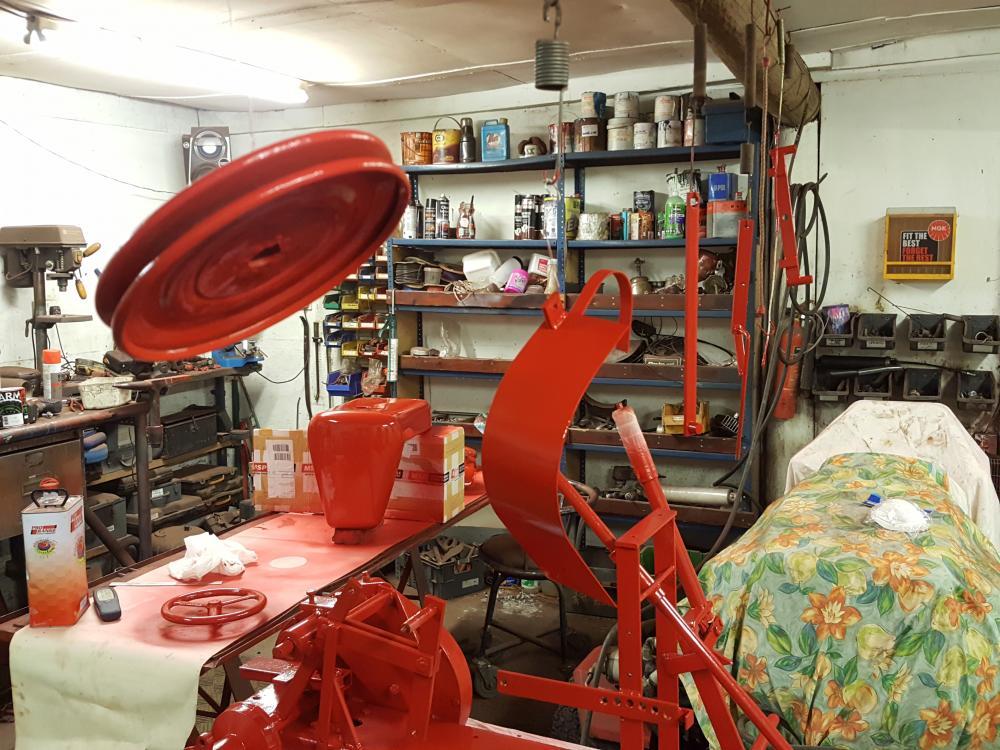

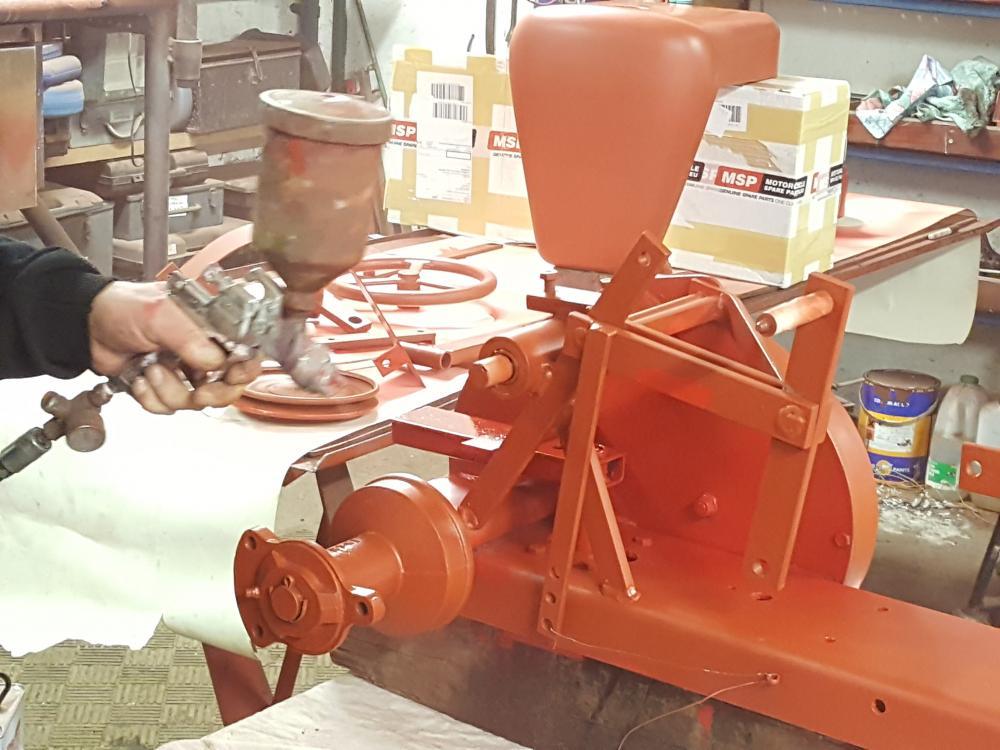

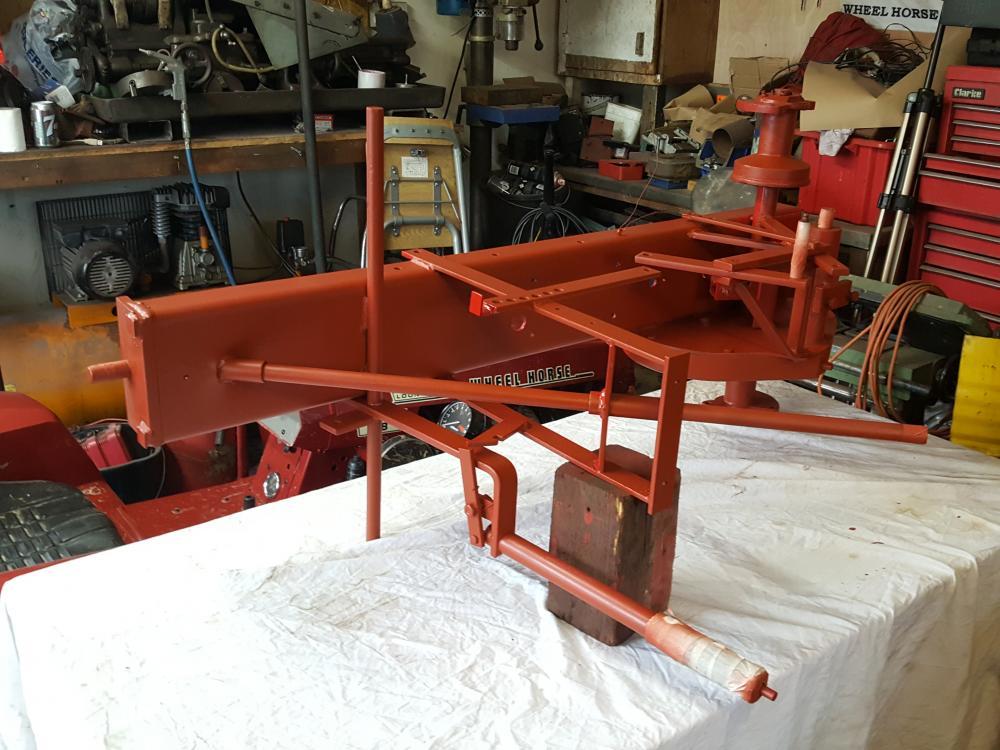

A hint of things to come :)








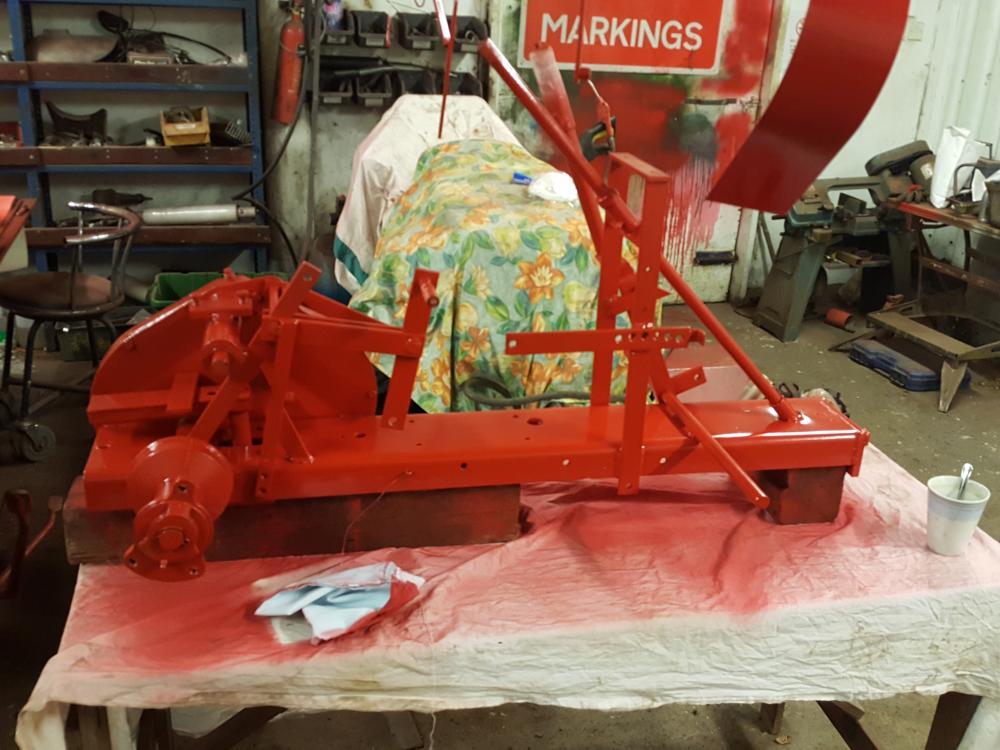

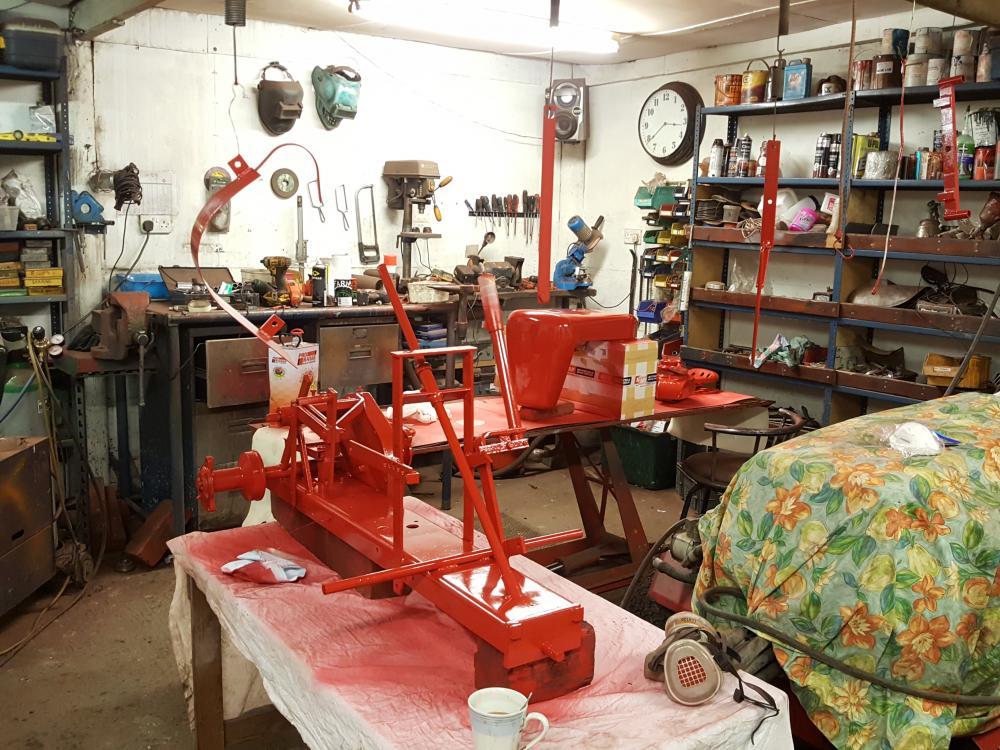

Not forgetting of course :lol:





  • Like 4

Share this post


Link to post
Share on other sites

The 2 part valve is to allow for fluid (weight) to be added to the tire before airing up.

  • Like 2

Share this post


Link to post
Share on other sites

As always I really like your detailed pictures. Keep up the great work. Can not wait to see the finished RJ. Cheers from across the pond.

  • Like 1

Share this post


Link to post
Share on other sites

Amazing job Ian, I hope I can get mine to this level of detail! :)

  • Like 1

Share this post


Link to post
Share on other sites

I can't stop coming back to this post. It's awesome

  • Like 1

Share this post


Link to post
Share on other sites

I'm getting itchy teeth now , I can't wait to get junior home , amazing work chaps , I hope you are having fun and enjoying the restoration

  • Like 2

Share this post


Link to post
Share on other sites
On 11/02/2017 at 3:03 PM, evanloock said:

The 2 part valve is to allow for fluid (weight) to be added to the tire before airing up.



Thanks for that, I wish I had those on my old 312-8 when I filled the over sized (massive) rear tires :lol:





On 11/02/2017 at 9:54 PM, elcamino/wheelhorse said:

As always I really like your detailed pictures. Keep up the great work. Can not wait to see the finished RJ. Cheers from across the pond.



Thanks Jim, not long now until the little RJ is done.





On 11/02/2017 at 11:18 PM, C-121uk said:

Amazing job Ian, I hope I can get mine to this level of detail! :)



Thanks Ewan, having seen the pic's of your Cadet you more than have the skills :thumbs:





On 12/02/2017 at 11:52 PM, J.A. said:

I can't stop coming back to this post. It's awesome



Glad you like it, it is a sweet little machine.





On 13/02/2017 at 11:39 AM, neil said:

I'm getting itchy teeth now , I can't wait to get junior home , amazing work chaps , I hope you are having fun and enjoying the restoration



:lol: Your start dribbling when you see the next lot of pic's Neil :lol:        Yep, having great fun doing this restoration, it's nice to see it all come together now..





Yesterday the little RJ started going back together, lift cable first followed by the engine. :)








I put a couple of bit's of inner tube on the frame before dropping the engine on.. It makes it easy to line the bolt holes up and stops the frame getting scratched while moving the engine about.








Cleaning out the grease nipples in a little petrol :lol:








Pulleys and drive belts on.








Front axle and steering on.

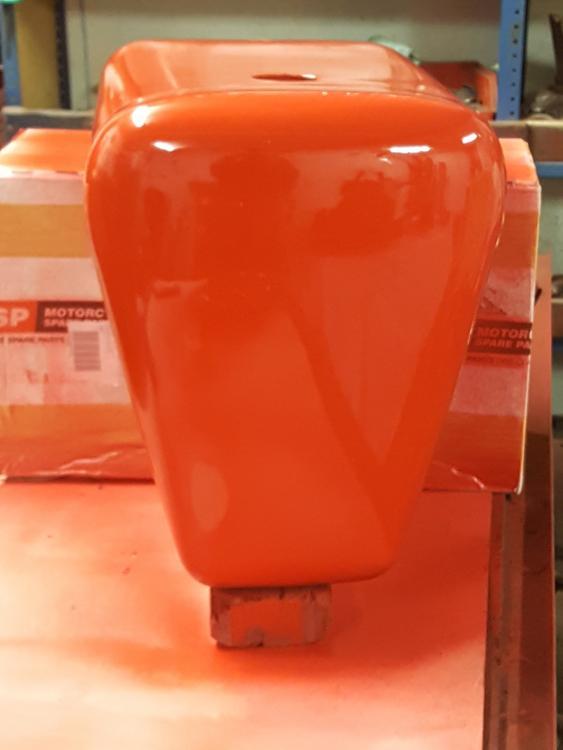

The crowning moment..... The tank isn't fixed under the hood yet, but we just had to have a look :D

















Not much left to do, the paint for the wheels and the fuel tank sealant should arrive tomorrow, and I need to sort the carb out now the rebuild kit has arrived..

  • Like 8

Share this post


Link to post
Share on other sites
1 hour ago, Stigian said:

I put a couple of bit's of inner tube on the frame before dropping the engine on.. It makes it easy to line the bolt holes up and stops the frame getting scratched while moving the engine about.

That is a great tip,    :text-thankyoublue:   That old RJ is looking GOOD!   :text-coolphotos:


  • Like 3

Share this post


Link to post
Share on other sites

Ian...fascinating thread on Neil's RJ.  Did you do electrolysis on the inside of the gas tank??  :think:

  • Like 1

Share this post


Link to post
Share on other sites
5 hours ago, stevasaurus said:

Ian...fascinating thread on Neil's RJ.  Did you do electrolysis on the inside of the gas tank??  :think:

No Steve it would of fallen to bits, all we have done is cleaned it right out ( there was not a lot of rust in it ) flushed it then today ian wasn't in so I put tank sealer in, a lot of it 😁Now we will leave it for a week to go hard and hope it's filled the holes, it's worked in the past for us, but we will see

  • Like 3

Share this post


Link to post
Share on other sites
On 15/02/2017 at 4:17 PM, stevasaurus said:

Ian...fascinating thread on Neil's RJ.  Did you do electrolysis on the inside of the gas tank??  :think:



As Nigel said, no :D

I do miss having an electrolysis tank, a very handy bit of kit you get going and leave it to it for a few days :lol:

I'd love to have another E tank, but due to my workshop now being on a nursery (the plants growing kind) no leakage can be risked..





On 15/02/2017 at 4:20 PM, Jaymon74 said:

Looking great!!



Thanks Jay? :thumbs:



Neil's RJ is so close to being done I can almost taste the first test drive :D



A few detail jobs, the points cover was missing a gasket so I had to make one...








The exhaust was missing a clamp and little doo dat that clamps between the exhaust and frame... Sorted :thumbs:








The foot pegs didn't have the optional? foot rest thingys (I don't even know if RJ's could be ordered with them?) so Nigel put some rubber shrink wrap stuff over the pegs to give a bit of grip and stop the paint wearing away.








Sorry Neil, a change of plan for the wheels... We thought gold would look much better and Nigel had all these cans of wheel paint kicking around you see..........








Only kidding :D








A second coat is needed at this point.. As is first coating the other side :lol:








Wheels second coated and bolted back on...... I can't help but grin every time I look at the RJ :D










  • Like 8

Share this post


Link to post
Share on other sites

B   U   T   FULL  :handgestures-thumbupright:

  • Like 2

Share this post


Link to post
Share on other sites
On 22/02/2017 at 2:16 PM, elcamino/wheelhorse said:

@StigianYou and Nigel do amazing work. You need to take a trip across the pond  for a meet at the Big show.



On 22/02/2017 at 0:08 PM, rjg854 said:

B   U   T   FULL  :handgestures-thumbupright:



Thanks Guy's... A trip across the pond would be nice, but rather unlikely as I'm not that good at flying..



Some machines just like to fight you, and the RJ has picked the very last stage to er.. Pick a fight!



With the fuel tank sealed up inside and painted, and the carb passing the leak test before it was installed the time had come to fire the RJ up and have a drive/adjust the shifter linkage..

I'm not sure if he didn't like coming off the bench or is just scared of being at ground level but the fighting started!

Problems with the pull start not being able to keep hold of the end of the cable and the re-coil wasn't!

Cable and re-coil eventually sorted only now the jaws bit that grabs hold of a hexagonal shaft on the engine wasn't grabbing any longer!

When the pull start is off the engine it works fine, but once fitted!!  :angry:



Sometimes walking away is the best option and go back to the problem with a fresh head.. Which will be happening tomorrow..



The dull weather makes the paint look darker than it actually is..














So what can I say about the RJ... I think AARRGGHHH sums it up quite well!



I don't know what the RJ has against us but it's really fighting us at the very last stage!!

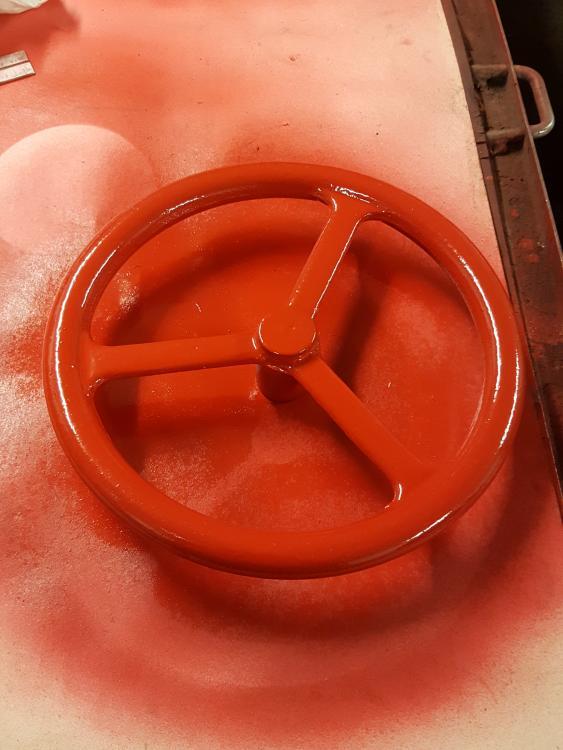

You would think something as simple as putting the steering wheel on would be easy, but no!

When the RJ arrived the steering wheel was held on with a bent nail.. Now most of the time it's because the original roll pin? has been lost at some point in time..

Not this time.. The holes in the wheel and column didn't actually line up very well so a nail was the only thing that would fit in!

I guess the steering wheel isn't the original!

Anyway, some very careful drilling and the wheel is now held on with a custom made quick release clip thingy  :)








"Deep breath"... Now onto the engine..



The very nice looking Schmacke or is it Schmacko? (It's hard to read on the photo's) has been driving us nuts!

The recoil didn't want to which was eventually sorted, the the "gripping" bits that grip the hexagonal shaft on the engine decided it didn't want to to the gripping bit!

Quite why we just can't work out, nothing is broken and it works 90% of the time when not fitted to the engine..

Fit it to the engine however and it will work for a couple of pulls then stop again!

If I had to count the amount of time the recoil unit has been on and off the engine both Nigel and I would have to remove our boots and socks as we would run out of fingers to count on very quickly!!!!



In the end for the sake of our sanity we decided to swap the recoil until over for one that works the more normal way, which in it's self is almost a straight forward swap...

Woo-Hoo we can pull the engine over again.... But why is the engine cover moving around so much???



That would be because there should be a bolt where this hole is... The trouble is the backing plate is missing most of the threaded bolt hole as it had been broken off at some point in it's life!

We do have another good backing plate to swap over, but that involves a lot of stripping two engine down to swap parts..



Forward one step, back two or is it four? :(








It's not all bad news though, we have had the engine running.. For a short while anyway..   Once started it would run quite nice for a few mins, then start running rough, then eventually it would stop!



Best have a look at the carb again, pulling the pin out that holds the float in place was nerve wracking as the casting one side which holds the pin in place isn't as strong as it should be..



Can you spot a problem?








Yep the new O ring doesn't like petrol and has grown somewhat!








No chance what so ever of getting this jet thingy out!!!








It looks like someone has been at the float valve thingy already!








Getting it out was er... Shall we say interesting!











The carb has now been put back together and will be going back on the engine once the backing plate has been swapped over and the "will it run ok?" sequence can start over again..





What a day Thursday was in RJ land, the first job was to swap the engine backing plate over.

I didn't get any photo's of the new backing plate in place, but here's the old one against the donor engine.








Along with the new backing plate came updated electrics as there didn't seem and point in swapping the parts between plates....



So, with the engine bolted back together again it was time to see if it would run...



Third pull it started right up ticked over well, revved up well and sounded generally very good.. :woohoo:

To celebrate having finally got the engine sorted on went the kettle....

It was while the kettle was boiling that I noticed bubbling oil coming out from the head gasket! No photo but it will be on the next video..



Anyway, as the head has a slightly chewed up spark plug thread...








We thought we would swap heads over as well as sorting he gasket..  Off it comes.








HHmm, interesting.. The piston looks quite clean, but the amount of oil on the piston is a worry!








I'd say that's a new piston which explains why the little engine has such good/high compresson which is also why the head gasket went pop!!








The new cylinder head has a slight recess about the inlet valve and slightly different fins but it bolted right on..








The engine now felt to have a lot less compression when pulling it over, it also ran very rough!!

Back off with the head to find it was oil coated!








Does the exhaust valve look like it has had a hardened insert er.. inserted?    The exhaust valve is where all the oil is coming from which means the guides/seals are shot!!








Oil was also bubbling out from around the exhaust itself, as you can see at some point it had been broken off and wound back in at a pished angle!








Quite where to go from here I'm not sure, Nigel and I did have a natter about swapping the RJ's crankshaft into the donor engine as it ran quite well and doesn't blow oil but the end of the crank is tapered not straight!!








So close but yet so far!! Sigh!!

  • Like 5

Share this post


Link to post
Share on other sites

Coming along nicely, If there is anyone that can get it all figured out it is you,  I'm sure of that!  A few positive notes...  The engine comes off the tractor in a jiffy, the engine is light and easy to lift and pretty easy to work on...:thumbs2:

  • Like 1

Share this post


Link to post
Share on other sites
Posted (edited)
On 29/03/2017 at 11:29 AM, Ken B said:

Coming along nicely, If there is anyone that can get it all figured out it is you,  I'm sure of that!  A few positive notes...  The engine comes off the tractor in a jiffy, the engine is light and easy to lift and pretty easy to work on...:thumbs2:



Thanks Ken, yeah the engine is really light, I'm just glad it wasn't a 16hp Kohler Magnum as they are very heavy :lol:



Time for a long over due RJ update, and unlike my last post this one has a happy ending :D



Monday morning Nigel and I had a visit from Neil, it was good to catch up again mate, it's been a while..

Not only has Neil got a huge amount of Wheel Horse history stashed away in he's head, but he also came with gifts... 2 engines :D



Here's the top half of Neil..








The bottom half of Neil was busy controling the rev's of a very nice looking engine that ran as good as it looks..

The blue engine has carb and spark issues as we found out, so that's a job for another day.








So with a quick pulley swap the new engine went in the RJ.








The shade of engine red is so close to the rest of the RJ we saw no point in repainting it match 100%.. It's looks good as it is.








One slight problem with the new engine is the exhaust port had two studs rather than the port itself having internal threads so swapping the  exaust over wouldn't be a bolt on swap.








Not a problem, take a flat bit of thick-ish steel and drill three holes in the right places... A quick test fit.








Trim a bit of the RJ's exhaust down to size them grind the thread of it so it fit's in the flange leaving plenty of space to weld it up from the inside. (No idea why this photo won't upload the right way up!)








Welded up, cleaned up and trimmed to shape.











And a coat of the black stuff to make it look good.








Exhaust on.








You can remove an RJ engine without taking the hood off, but you need to remove the spark plug.

Then once the engine is back in the spark plug has to go back in using a very special tool that won't scratch the paint on the hood :D:lol:








Knowing the engine is a good, the time had come to fire the little fella up and go for a drive..

Knowing the gear shift would need a bit of adjusting to get it to shift right and even though it should of been in netural but possibly wasn't the rear wheels where jacked up before starting..








A running issue was soon sorted by putting some petrol in the tank, so I climbed aboard and Dennis lowered the jack, and off I trundled :D











After so long it was nice to finally drive the RJ, but as you will hear in the video (coming soon to a YouTube page near you) the gear selector needs some adjustment so it get's all gears and the selctor bar does not rub against the reverse disc.

Also the engine governor need a tweak to stop the engine from trying to over rev..



So not much to do and the RJ will soon done :thumbs:



Told you this update would have a happy ending :D:lol:

Edited by Stigian
  • Like 2

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now


  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Clay Dodson
      RAINES AUCTIONS **LIVE AUCTION SEPT 16TH @ 10:00 AM WITH PREVIEW FRIDAY 9:00-5:00 AND ON SATURDAY @ 8:00 AM UNTIL AUCTION TIME**   <CLICK HERE FOR PARTIAL CATALOG>      ^^PRE REGISTER NOW TO AVOID LONG LINES ON THE MORNING OF THE AUCTION.  CALL KATIE AT 540 775 3880, SHE WILL ISSUE YOU A BIDDERS NUMBER.  THEN JUST SHOW YOUR ID AND PICK UP YOUR BID CARD ON FRIDAY AFTERNOON OR SATURDAY MORNING^^           See below for 3 preview videos of the BIGGEST selection ever of Farm Tractors, Garden & Yard Tractors, Riding & Push Mowers, Implements, Bush Hogs, Finish Mowers, Chain Saws, Weed Eaters, Generators, Snow Blowers, Chippers, Tillers and tons MORE all SOLD ABSOLUTE RAIN OR SHINE!!!!    Including 80+ Wheel Horse Tractors, Wheel Horse Raider Models 10, 12, 211-4, 656, 416-8, C-160, Wheel Horse Charger Models 12, GT-14, A100, C160, D160, D200 w/blade, 310 B, 856, 317, 332, 854, 212-6, 211-5, 520-8, 211-3, C-120, Lawn Ranger,  Antique & Rare Tractors including David Bradley Suburbans, Panzer T707 & Chain Driven Bolens, John Deere Models 650, 110, 112 L, 70, 420, 214, 316, 317, 318, 160, 111, 116, 212, 216, 332, Massey Ferguson 135 Diesel, Economy Power Kings & Jim Dandy models 1614, 2414, 2418 & others, Ford, 2 Yanmar 1500 & 2000, Simplicity Models 725 w/blade, 9020, 6216, Baron 7014, 7114, 2210, 3414, 637, 3012, 3410, 728, 3415, 3314, 7116, 7117, 5116 Special, 6211, 9020, Early Speedex Chain Driven Tractor, Scarce Very Clean Pennsylvania Meteor Model 1010, Gravely, Allis Chalmers, Case, Turf Trac, Toro, Cub Cadet, Troy Bilt, Honda, Craftsman and many many others.    ***CLICK HERE FOR PREVIEW VIDEO #1***   ***PREVIEW VIDEO #2***   ****PREVIEW VIDEO #3***     ##LOAD OUT TERMS ARE AS FOLLOWS## THERE WILL BE AN INDEPENDENT PERSON LOADING OUT LARGE MOWERS & TRACTORS FOR $10 PER UNIT IF YOU NEED THAT SERVICE.  DUE TO THE LACK OF ROOM, THERE WILL BE *NO* LOADING USING LARGE EQUIPMENT UNTIL AFTER 2:00 PM. WE WILL SELL THE TRACTORS & EQUIPMENT IN THE FRONT AREA FIRST SO LOAD OUT CAN START ONCE WE ARE DONE WITH THAT AREA, ABOUT 2:00 PM.  YOU WILL ALSO BE ABLE TO LOAD OUT ALL DAY SUNDAY, MONDAY AND TUESDAY THE 19TH UNTIL 5:00 PM.  AT THAT POINT, ANY ITEMS LEFT BEHIND WILL BE SALVAGED UNLESS YOU HAVE PRIOR PERMISSION FROM THE AUCTIONEERS, RAY RAINES OR CLAY DODSON.   ^^SPECIAL RATES AT THE ZION CROSSROADS BEST WESTERN (WHICH IS ONLY 3 MILES FROM THE SALE) IF YOU MENTION RAINES AUCTIONS^^  CALL 540 832 1700 AND REMEMBER TO MENTION RAINES AUCTIONS TO SAVE$$$~     **CLICK HERE FOR HOTEL ACCOMMODATIONS SUGGESTIONS**    Mark your calendar now for this Colossal auction that is not to be missed~    Ray Raines Auctions VA License #3395
    • By CasualObserver
      Operator manual
      IPL
      6 pages 3.73MB

      IPL #A-7136
      Includes PSB #023 #052 #058 #060 #080
      10 pages 938.48KB

      Transmission drive belt 1567 - (4L x 29" or 1/2" x 29")

      Details & Attachments
      2 pages 107.33KB

      1958 model RJ-58
      1958 serial numbers that have shown up for the RJ-58
      Early models used Kohler K90T-27107D equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
      00005
      00251
      01099
      01188
      01516
      01768
      01797
      01871
      02525
      03177
      03501 - Located in UK
      03796 - Kohler K90T-27107D with serial 364044 equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
      04883
      04885
      05000
      05619
      05798
      06528 - May be 16528
      06771
      07633
      07649 - Transmission J12-8 October 12, 1958
      07725
      08440
      08612
      09284
      11432
      11628 - # 3521 spline gear with 10 splines changed to 11 splines in 5003 and 5010 transmissions at serial # 11628 PSB #023
      11916
      14713
      16528 - May be 06528
      166x6
      18348
      18500 and lower
      Late 1958 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
      ------------------------------------------------------------------------------------------------------------------

      Details & Attachments
      2 pages 106.94KB

      1959 model RJ-59
      1959 serial numbers that have shown up for the RJ-59
      Early 1959 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
      18501 and up - Possible 1100 units built
      203xx
      292xx
      Late model RJ-59 tractors with a Kohler would have a K-91T-31388A with the Fairbanks recoil starter and paper air filter element. The 31388A was also used on the 1960 Suburban 400.
    • By RJ59
      Hi guys my name is Zac, I'm new to the forum and currently restoring my first Wheel Horse, I believe it is one of the late RJ models, (RJ-58 or 59) the serial tag is missing so I'm not sure (let me know what you think).
      Before it was given to me it was my great grandfather's and he was the original owner and he died before he could restore it, my grandmother had someone els work on the tractor but they lost most of the parts one the engine and never finished the job, thankfully didn't touch the rest of the tractor and she gave it to me and I am restoring it for her.
      The engine like I said was missing parts like the serial tag and flywheel guard and recoil and I can't tell what kind of engine it is, I know an original engine for a 58 or 59 is a Kohler K90 or
      Clinton B-1290 or the 498 Clinton, but my engine look nothing like either engines, the crankcase is a different style, I looked at other engines that came on Wheel Horses and I think it looks like a Lauson/Tecumseh H55B or D, take a look at the photos and if you can verify the model it would be great, it's probably not original so I am looking for an original Kohler or Clinton engine and if you have any suggestions on where to get one please let me know, Thanks for looking!






    • By 12 hp Kohler
      I saw this wheel horse for sale and I am trying to figure out if it is a suburban or Rj,parts on it look like a suburban and other parts look like an Rj 58 or 59, what are your opinions i would really like to know? I know the front axle is from a suburban but not sure about other parts.


    • By john7
      I just finished up an HD-42 plow with the RJ mount. Just need the decal/decals for it now. I think I've seen a few with a decal on the upper left on the back side of the blade but I don't recall the type of decal. Does anyone know exactly what the original decal/decals are and their placement on the plow or mounts?


×
