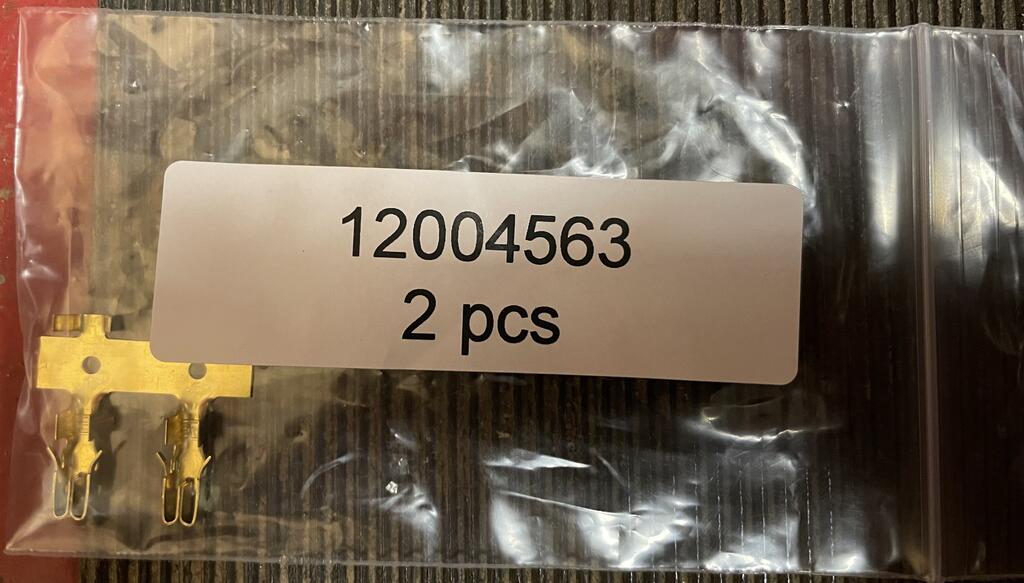

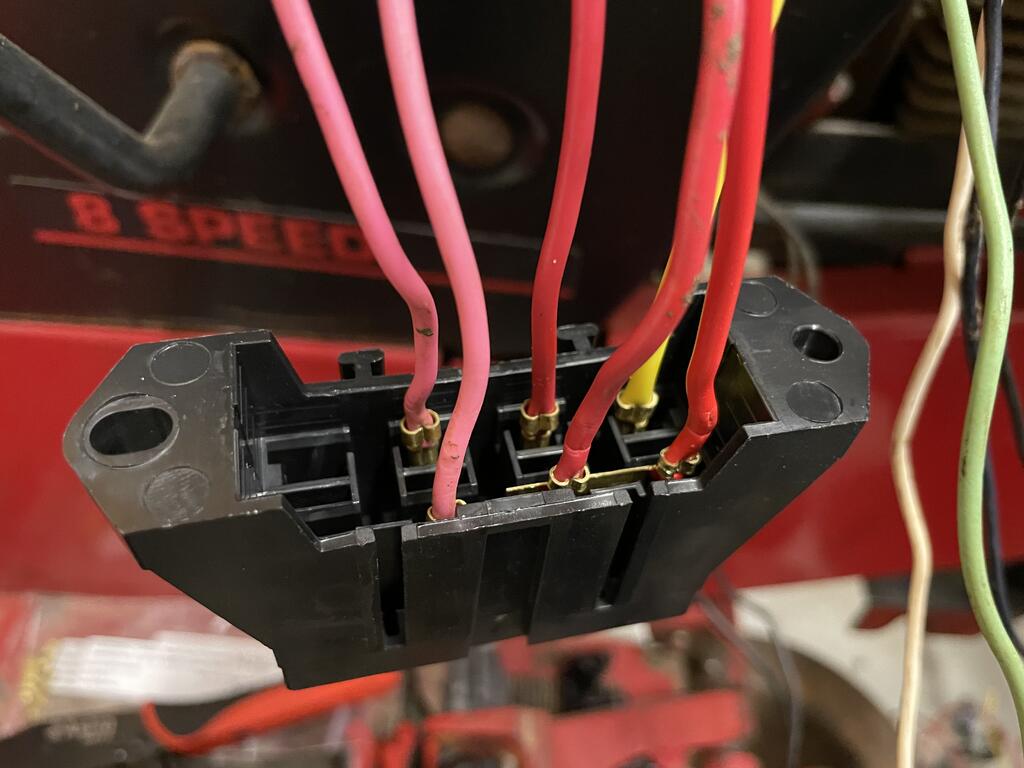

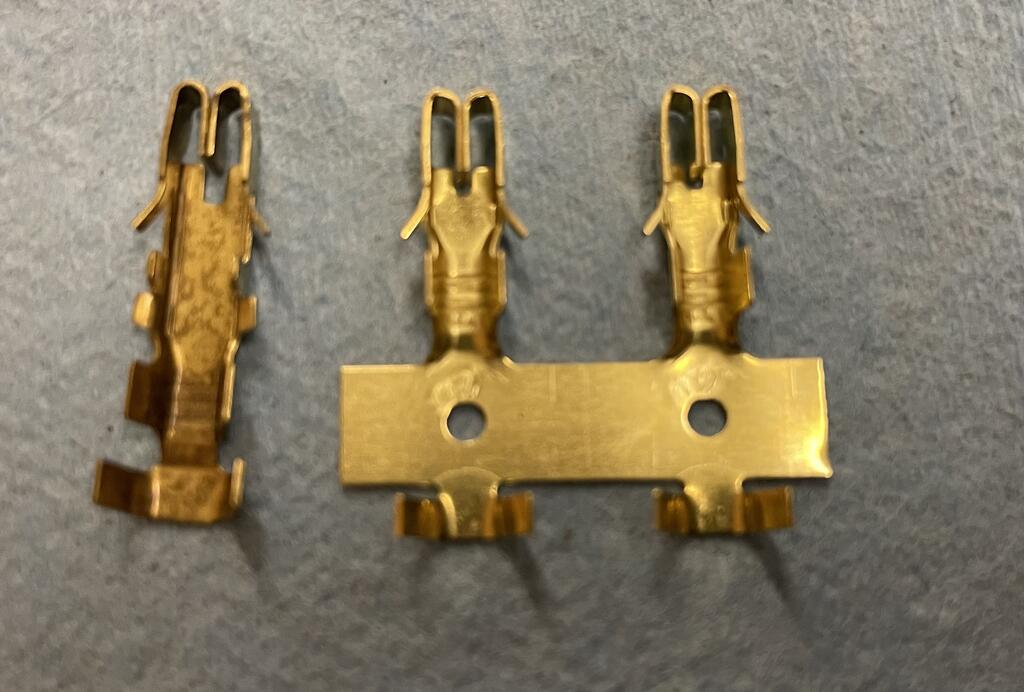

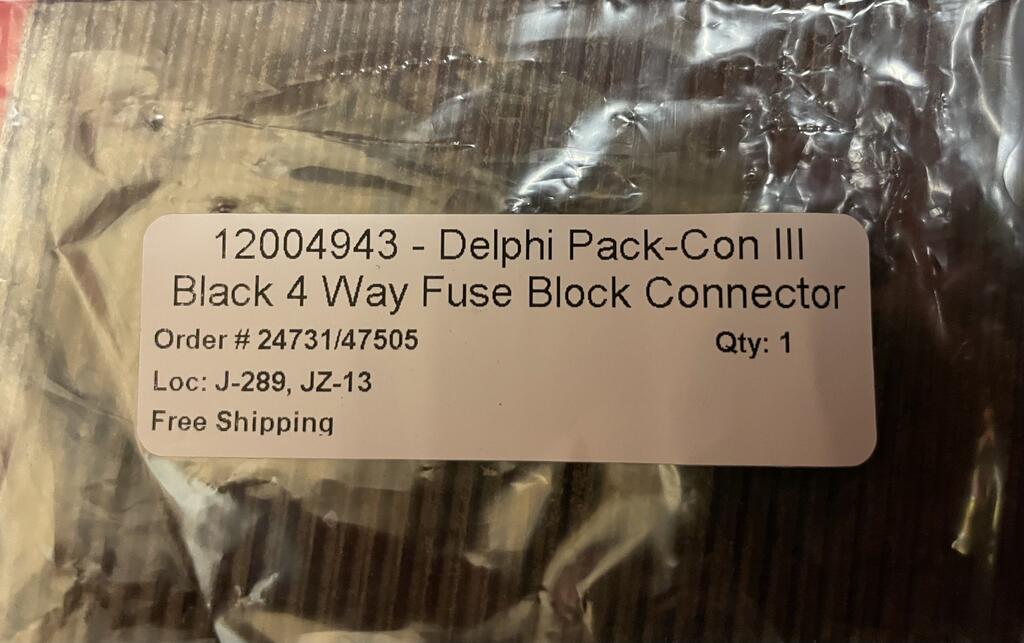

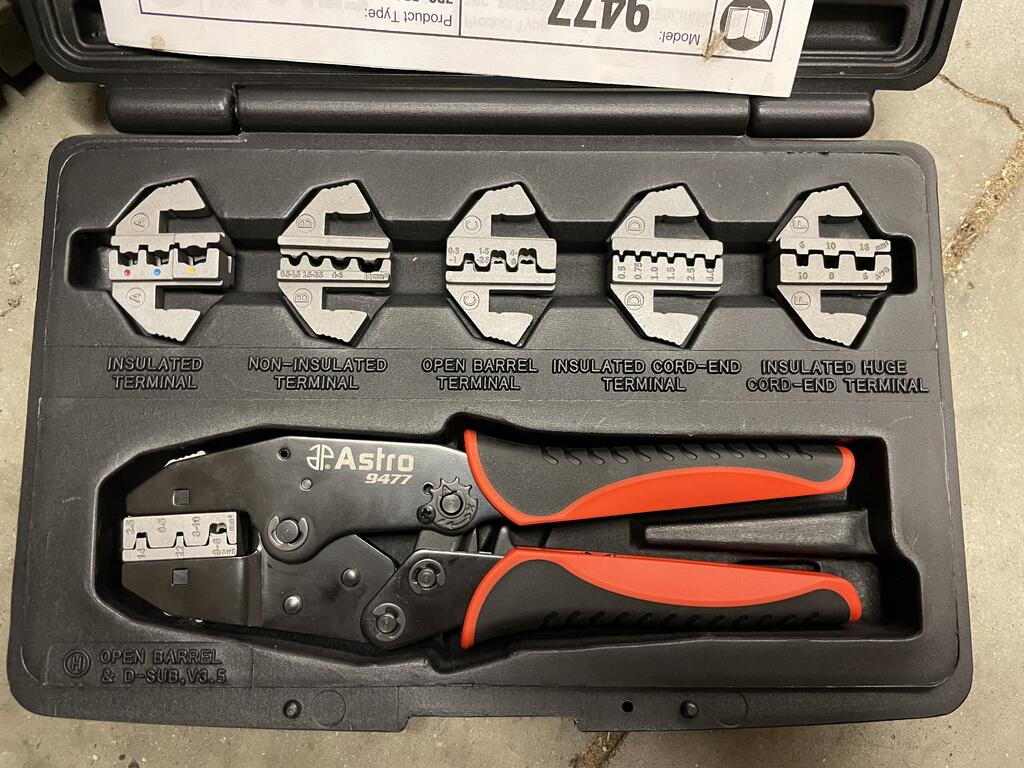

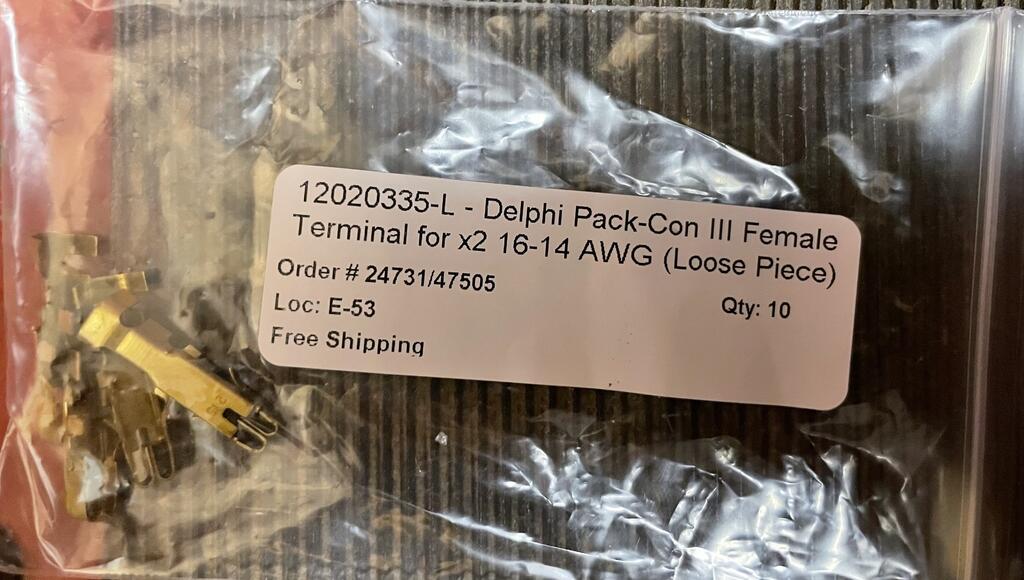

Bow_Extreme 538 #1 Posted August 21, 2022 For those who want an original fuse block setup on your Wheel Horse 520, here’s an option: Fuse Block & Connectors: Fuse Block: 12004943 Delphi Pack-Con III Black 4 Way Fuse Block Connector ATC Fuse Terminals: 12020335-L Delphi Pack-Con III Female Terminal for 16-14 AWG Two Position/Terminal Buss Bar: 12004563 Delphi Pack-Con III Female Terminal for 16-14 AWG Crimp Tool: Astro 9477 w/Open Barrel & D-Sub, v3.5(H) jaws. These crimpers work fairly well for these terminals but, the buss bar terminal is a little challenging. Almost need a custom crimp tool set for the buss bar. A little creativity will get you there. Installing this will avoid splices and odd or oversized wire combinations which can cause issues. 1 2 Share this post Link to post Share on other sites
lynnmor 6,851 #2 Posted August 21, 2022 You can buy a Dorman 85668 for as little as $3.14 and it has the connectors, of course there is shipping. You can get them at some local auto parts stores as well. When you have the fuse block out, add a 15 amp SAE connector to the fourth position for accessories. 2 Share this post Link to post Share on other sites
peter lena 8,131 #3 Posted August 21, 2022 @Bow_Extreme like the improvement idea , https://www.amazon.com/XHF-Spiral-Cable-Wrapping- . regularly use these , and the opportunity to RE ROUTE WIRING LAY OUT , eliminate wire chafing / tight binding set ups , increase your grounding from the battery ground cable bolt down point to your layout , don,t count on a being there , start it from this point . used to have wiring issues , eradicated the mess , verified function , corrected every step as I went along . BTW , how does your PTO LEVER WORK ? , notice rusty / crusty , no insults intended , added 3/8 - 7/16 , washers grease at the start point next to battery , firmed it up for very smooth / solid action , also added a HEIM joint to the end , removed trunnion , eliminate any scraping , dragging , works like it should , been there , pete Share this post Link to post Share on other sites
peter lena 8,131 #4 Posted August 21, 2022 @Bow_Extreme picture of added washers at pto lever start , also note heim joint lever end , battery ground cable to engine corner for rectifier . headlight enhancement , note battery tender plug in on choke cable with wire wrap , make it better , pete Share this post Link to post Share on other sites
Bow_Extreme 538 #5 Posted August 21, 2022 28 minutes ago, peter lena said: @Bow_Extreme picture of added washers at pto lever start , also note heim joint lever end , battery ground cable to engine corner for rectifier . headlight enhancement , note battery tender plug in on choke cable with wire wrap , make it better , pete Thanks for the info. Yes, I’m aware of these issues and I’ve done very similar to what you have. I’m working towards starting this tractor first. After I confirm it runs well, I will take care of those things. 1 Share this post Link to post Share on other sites
peter lena 8,131 #6 Posted August 21, 2022 @Bow_Extreme thanks for the reply , glad you are in the baseline maintenance mind set , getting things in a reliable function , is what you will grow on in many ways . nagging trouble can be stopped , just go step by step , verify function / action at every change . that way you know where its bad . easy to back up , improve , move on , regularly use these , https://www.amazon.com/WGGE-WG-026-Pieces-Colors-Alligator/dp/B06XX25HFX/ref=asc_df_B06XX25HFX?tag=bingshoppinga- makes a wire mess easier to plan out , only a reference , if you can get them locally , easier . had a number of chronic issues , ironically today those areas are my most reliable . keep in touch , pete Share this post Link to post Share on other sites
