Mustang67ford 234 #1 Posted February 22, 2022 Working on a 414 with a 3a AC charging system. The AC stator lead for the lights had been bypassed and headlights were running off DC from the battery. Most likely so the lights stay the same brightness and on even with engine off. If I want to put it back to factory, I assume I will need to change headlights to an AC compatible lamp correct? They are 36w 12v par 36 halogen now. Share this post Link to post Share on other sites
Maxwell-8 4,367 #2 Posted February 22, 2022 6 minutes ago, Mustang67ford said: Working on a 414 with a 3a AC charging system. The AC stator lead for the lights had been bypassed and headlights were running off DC from the battery. Most likely so the lights stay the same brightness and on even with engine off. If I want to put it back to factory, I assume I will need to change headlights to an AC compatible lamp correct? They are 36w 12v par 36 halogen now. I just run the same bulbs. I am guilty of that mod because I want the be able to turn the lights on whit out the engine running. Share this post Link to post Share on other sites
pfrederi 18,566 #3 Posted February 22, 2022 The halogen bulbs won't care DC or AC. The lighting stator puts out around 12 volts more a full throttle less at idle. If you use LED bulbs you will have to look at the specs. Many are DC only... 2 1 Share this post Link to post Share on other sites
Mustang67ford 234 #4 Posted February 23, 2022 2 hours ago, pfrederi said: The halogen bulbs won't care DC or AC. The lighting stator puts out around 12 volts more a full throttle less at idle. If you use LED bulbs you will have to look at the specs. Many are DC only... Good to know, thanks. Share this post Link to post Share on other sites
953 nut 59,272 #5 Posted February 23, 2022 As Paul @pfrederi pointed out most LED lights are DC but your lights are now wired for DC so shouldn't be a problem. The LED PAR36 5W (Eq to 35W Halogen) 12V DC Lamp draws five watts of power which is 0.4 amps each so less than one amp and your charging system five amps DC so you should be fine. 1 Share this post Link to post Share on other sites
Mustang67ford 234 #6 Posted February 23, 2022 4 hours ago, 953 nut said: As Paul @pfrederi pointed out most LED lights are DC but your lights are now wired for DC so shouldn't be a problem. The LED PAR36 5W (Eq to 35W Halogen) 12V DC Lamp draws five watts of power which is 0.4 amps each so less than one amp and your charging system five amps DC so you should be fine. Dont have led lighs Share this post Link to post Share on other sites
953 nut 59,272 #7 Posted February 23, 2022 8 hours ago, Mustang67ford said: Dont have led lighs You could BUY some LED light bulbs and your charging system will be able to handle them. 1 Share this post Link to post Share on other sites
Mustang67ford 234 #8 Posted February 23, 2022 8 hours ago, 953 nut said: You could BUY some LED light bulbs and your charging system will be able to handle them. Possibly. Do you have a replacement lamp part number? Share this post Link to post Share on other sites

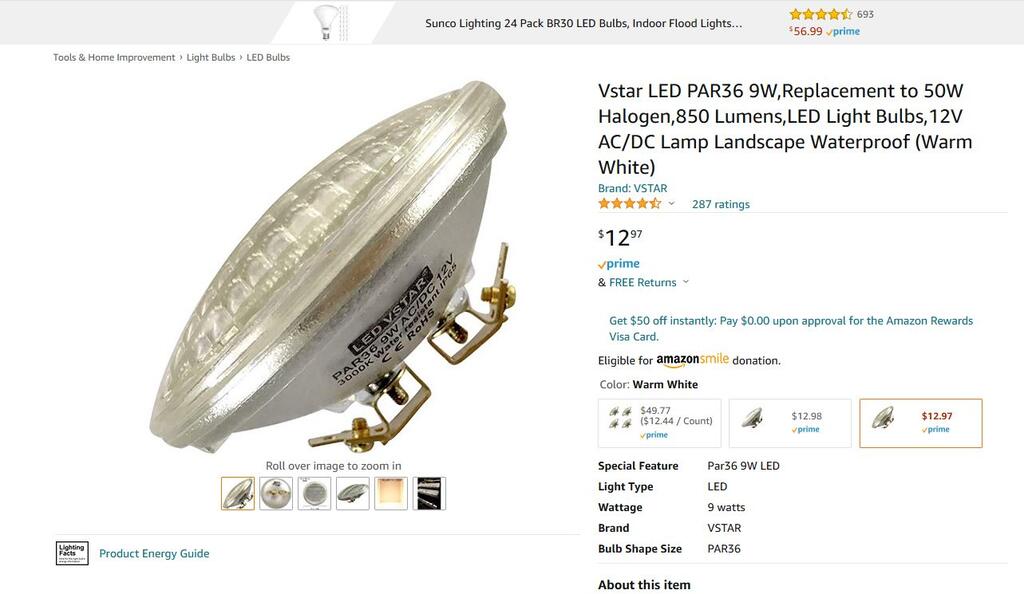

pfrederi 18,566 #9 Posted February 24, 2022 Lots to choose from.. an example Share this post Link to post Share on other sites
953 nut 59,272 #10 Posted February 24, 2022 Lots of good info. in this thread. Share this post Link to post Share on other sites
