K181S housing bracket

[Gary Ch 15]

I have a '74 B 80 that I am restoring, not bad original condition at all, but the engine/flywheel housing will not stay on, Apparently there is a perimeter bracket it bolts to that is ? missing ? I'm lacking the part # for this part.

I also need Part #103831, referred to as a "belt guard assembly", the long sheet metal panel that covers the drive belt. If anyone can help me out I would greatly appreciate it.

[Gregor 4,847]

Have you got the model and spec # on that motor?

[WHX?? 51,732]

It should just fasten to the tabs/ears on the bearing plate?

Check with A-Z tractors on the belt guard or put an ad in wanted. Should be a common one.

[Gary Ch 15]

W/H Model # 1-0140, Serial #60091,  Engine Model K181S, Serial #6167671

[Gary Ch 15]

K181S-30461D

[Gregor 4,847]

Is what you are looking for in here?







[Gary Ch 15]

The bearing plate must be missing, there are NO ears to attach to

[Gregor 4,847]

The bearing plate cannot be missing. That's what holds the crank bearing. Hence, "Bearing Plate" The bosses may be broken or stripped. I have re-tapped them to 5/16. You can do this if there is enough meat left. It is aluminum and taps pretty easily.

Of course you can buy a new one for $240

[Gary Ch 15]

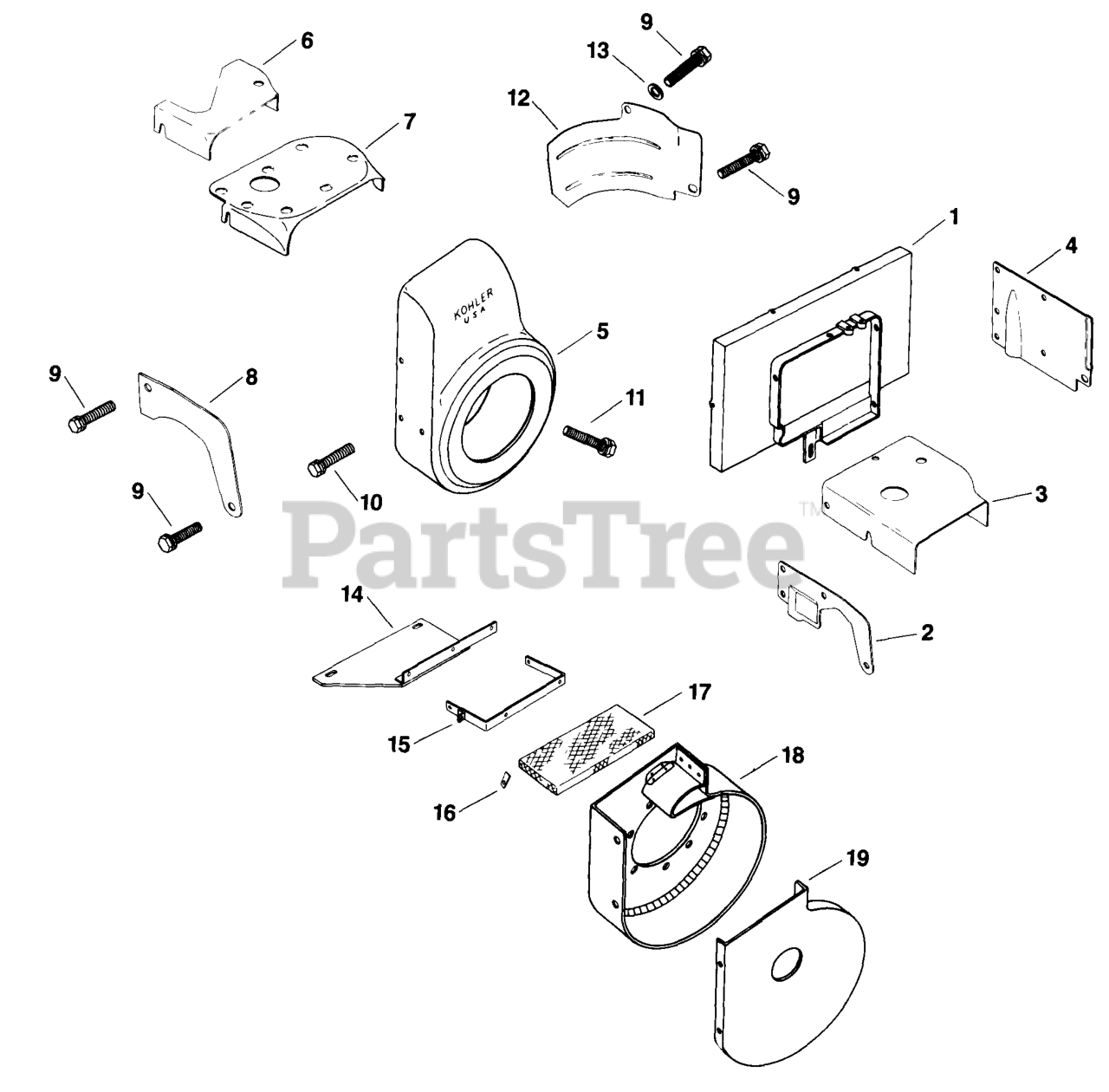

I'll just say it simply, its what #5 attaches/bolts/holds on to. I just tried to get a breakdown on the engine off of parts warehouse and the woman is so stupid that I got no where.

[Gregor 4,847]

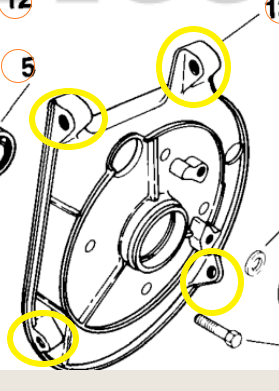

THAT  would be the bearing plate.

poke here for info

[Gary Ch 15]

Got it bud, and I THANK YOU OVERWHELMINGLY !

You didn't tell me, because you didn't know this, but you DID tell me !

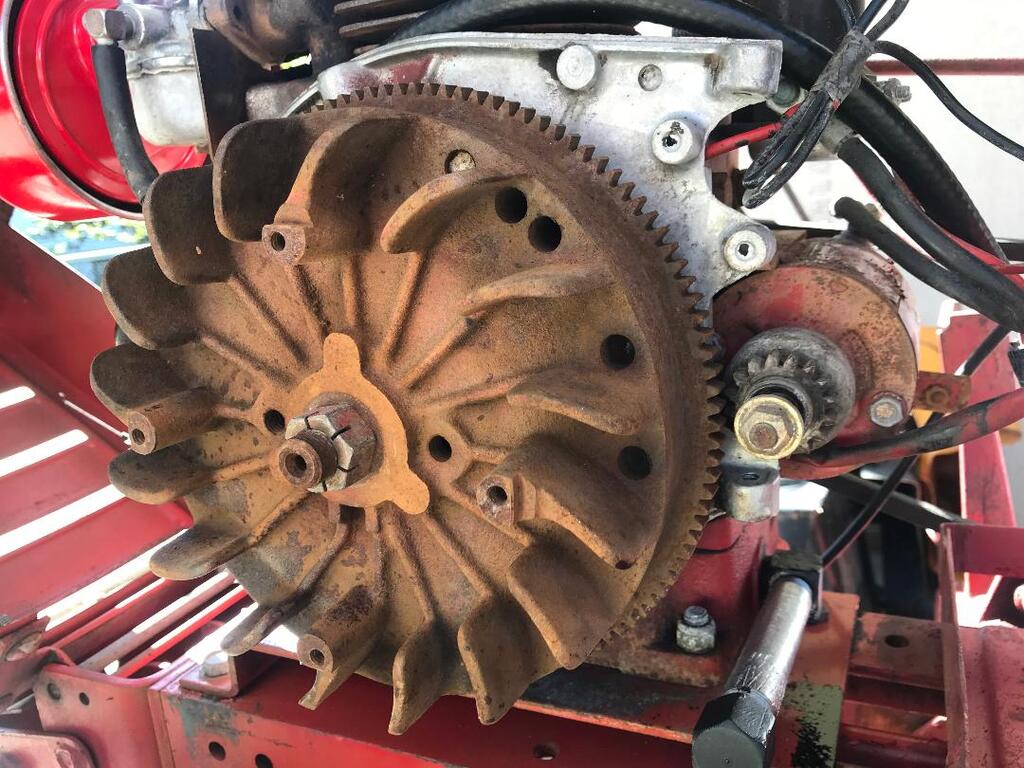

My bearing plate is mounted incorrectly 90 degrees to the right, which is why the
"mounting ears" are sideways, atop the starter. The top of this picture is the top of the engine, noting the bearing plate position ....(photo)

I AM in southern Ohio, and people here aren't the brightest bulbs on the tree, I grew up here so I know.....:)

THANK YOU AGAIN SO VERY MUCH, I'm learning

[Gregor 4,847]

2 minutes ago, Gary Ch said:



If someone were to ask me, I'd have said, that's not possible. Shows you how much I know.

[Gary Ch 15]

But I seem to be right, yes? Apparently you CAN mount this plate wrongly. You DID help me realize what I am looking at, and thats all that counts, you helped me see it, and I Thank You !

[Gregor 4,847]

Do you have a pic of your shroud? Maybe someone replaced the flywheel, added the electric start, and discovered that was the only way to get the shroud back on over the starter.

[oldlineman 1,537]

wow thats a new one I guess anything is possible.It's a wonder it didn't overheat! Bob

Edited September 29, 2021 by oldlineman

[Gregor 4,847]

Curiosity is killing me. Have you been running this thing this way? If so, DON"T !

[Gary Ch 15]

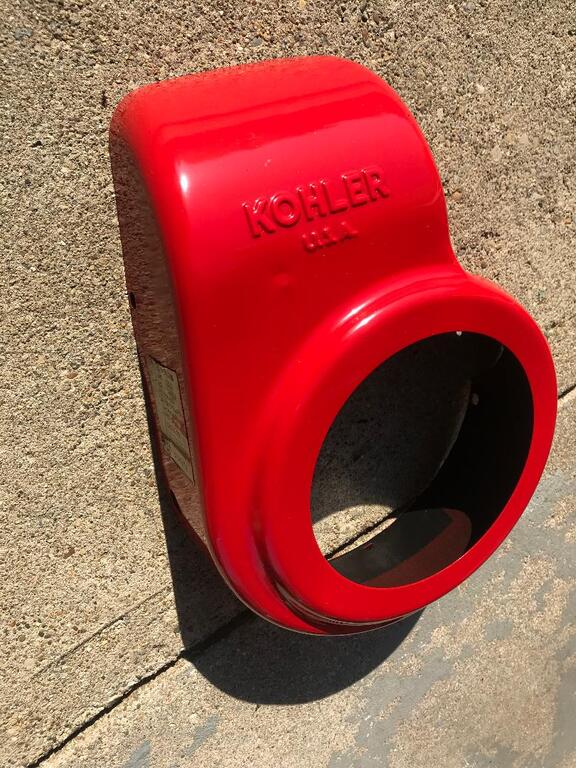

My shroud, engine housing pictured, it matches up with the "sideway" ears   so now I need to figure out (counter clockwise or clockwise) how to get the nut off that flywheel & get my gear puller out......

yeah, Bob, live & learn eh?

I'm enjoying my Wheel Horse, & I may inherit the one my father bought 43 years ago, if the sale goes through, buying back my childhood home here........Thank You guys, I so appreciate you all. !!!!!!!!

[Gregor 4,847]

Is there a bump on the other side of the shroud to accommodate the starter? Is there a cut-out in you bearing plate to accommodate the starter?

[Gregor 4,847]

4 minutes ago, Gary Ch said:

(counter clockwise or clockwise)

counter clockwise. Squarish section goes up.

[Gary Ch 15]

Oh, not running as of yet, I haven't gotten that far.

I need parts, mule team pulley housing front of the axle was missing, which someone already sent me on here, , crankcase was empty When I got it, I bought a new Kohler air cleaner and painted its housing, Troy Belt Red, along with the flywheel housing,

I still need:    drive belt guard # 103831, the flywheel  (4 screw)  "screen" outside flywheel, a mule team belt # 102607, & (3) new

blades, eventually to get another nice 36" deck to replace this rusty one.......maybe at our show in June !

I'm looking forward to meeting a lot of you guys there.........I am SO JAZZED having this mower !

I got a plug, gas tank spring, gas line, had to connect both the throttle & choke cables back again, buy a battery,(paint the tray first)

[Gary Ch 15]

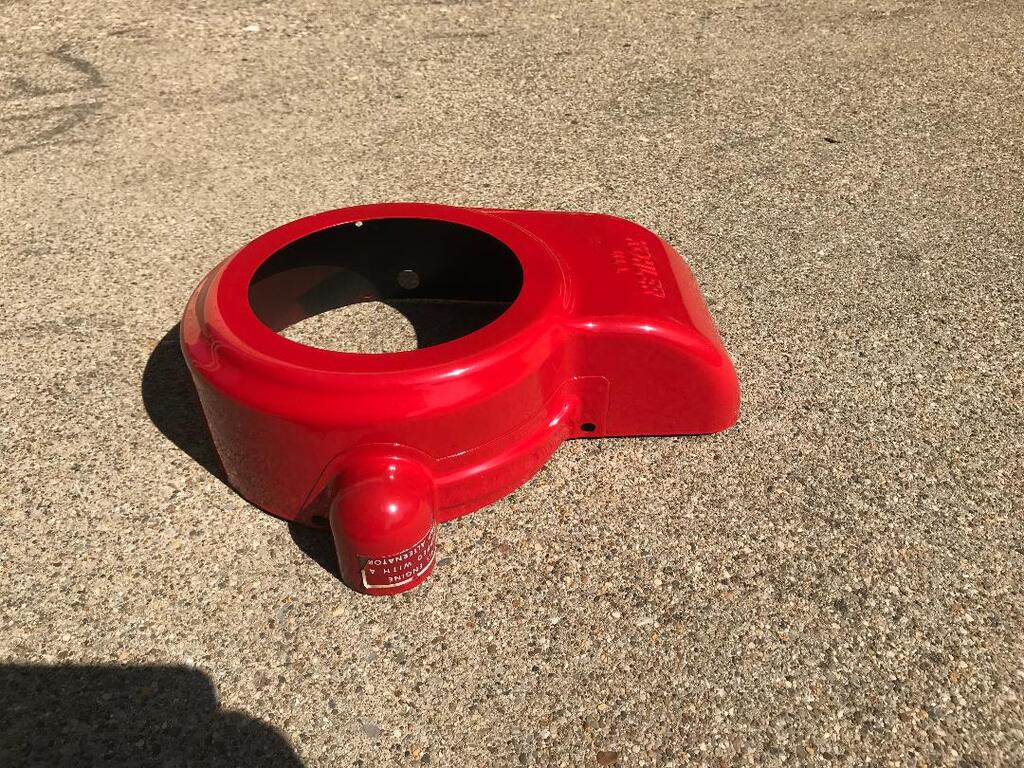

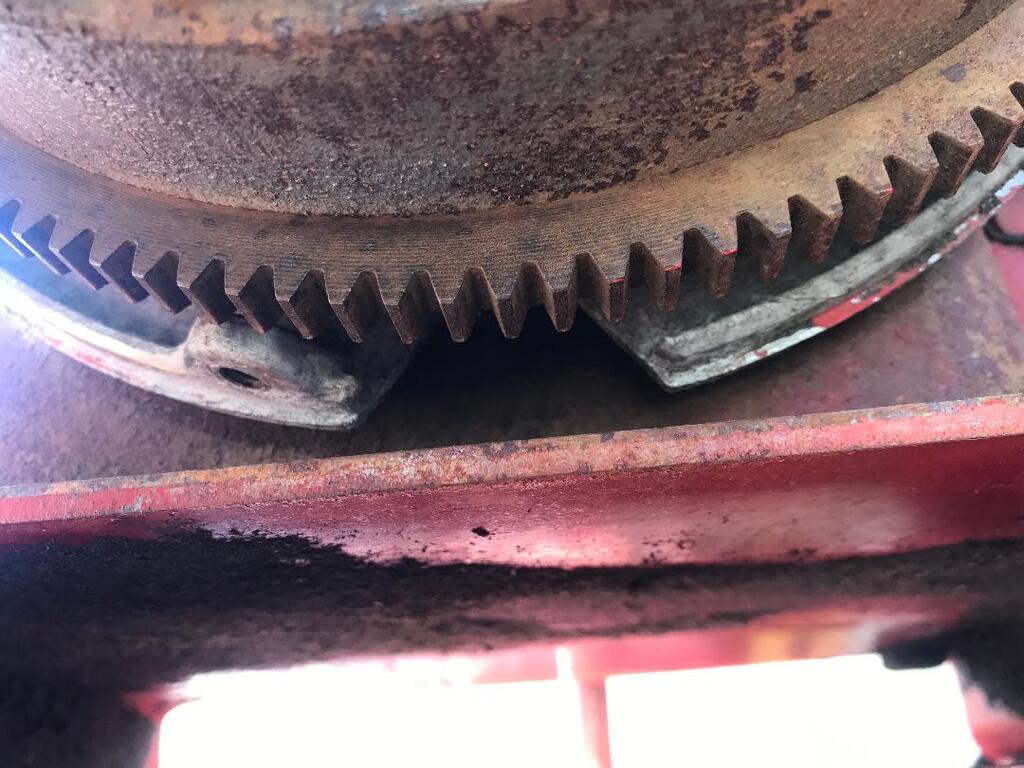

Yes and yes for both, the starter notch is at the bottom of the bearing plate right now, showing exactly what I thought, its mounted 90 degrees off, and the housing has its starter notch as well,

Thank You for the removal direction of the flywheel nut, I'll need to really get some torque on that baby now to remove it.

Thank You for all of your help man, you're a lifesaver !

[Gary Ch 15]

AND, that answers the question, will I remove the flywheel to repaint it black? YES, I have to now!

For another reason, gives me the excuse to strip it of rust and paint it.

[Gregor 4,847]

Is a 10 HP a big lock? I don't know, but if it is, and it has balance gears, many would advise you to remove them as long as you have the bearing plate removed anyhow. Maybe someone smarter than I will chime in, and advise. Whatever parts you may need for the motor, I'll bet @richmondred01can fix you up. Click on his name and message him.

[Gary Ch 15]

Now, flywheel is off easily with my gear puller, now whats needed is either removing the bearing plate from the crankshaft.... is there an easy way? OR removing the head and swiveling it & then having to replace the head gasket.......

 It will NOT swivel into the correct position without either removing the engine head heat shrinks, (then a new head gasket) or removing the fragile expensive to replace aluminum bearing plate from the crank.

Is there a ring inside/behind the rubber gasket at the bearing plate on the crankshaft that releases the bearing plate?
