How to put more tension on a drive belt?

[Jacob S 67]

I was wondering how to put more tension on a drive belt

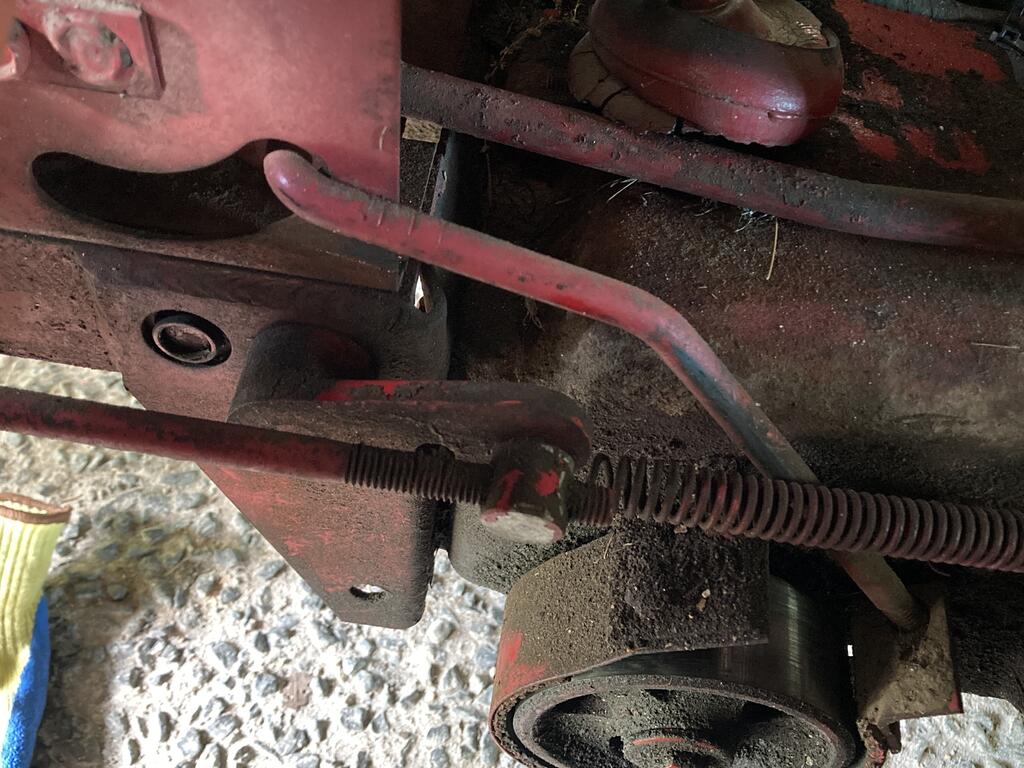

In this picture is that how you can adjust the clutch thing to get more tension

[Pullstart 59,529]

Hi Jacob,



it looks like you’re working on a B or C series, based on the brake rod.  That spring in the photo is all the tension you should need.  If you feel like it’s worn out, you might find what you need at a hardware store… just bring the old one in with you.  If your belt is still slipping, it may just be time for a new belt.

[Jacob S 67]

Thank you

[Maxwell-8 4,270]

If you want more traction for off-roading besides you pulley drills. Don't know if more tension is the answer.

 replacing that spring with a stronger one will give you more tension

[ebinmaine 62,936]

Jacob you can do that two different ways. You can get a new Toro spring part number 108035 on the internet for anywhere between $12 and $20, shipped.

You can also add a spring around the outside of that one without too much interference.



I've done both.



My version of off-roading is not like mud runs or anything but we have very rough terrain and I pull some pretty heavy stuff so I wanted good grip.



[stevasaurus 22,229]

It might help us to know what issues you are having???

[Handy Don 10,546]

51 minutes ago, stevasaurus said:

It might help us to know what issues you are having???

And, seriously, the model and serial of your tractor!

[Ed Kennell 35,576]

3 hours ago, Jacob S said:

is that how you can adjust the clutch thing to get more tension



No, the spring is all that provides the belt tension.       The lever does look to be pretty far to the rear which would cause the spring to lose rotational torque on the shaft.

Check the roll pin that fixes the lever to the shaft. It may have sheared allowing the lever to move on the shaft.

If the roll pin is OK, A new belt may be required.



The position of the trunnion on the threaded rod only adjusts the position of the brake pedal.

[squonk 38,842]

Probably has something to do with the wheelies he's popping in his avatar.

[Jacob S 67]

I have a 1978 c81 wheel horse and when I am pulling some times the belt will slip

[Jacob S 67]

81-08k801-0753 is the identification number

[ebinmaine 62,936]

15 minutes ago, Jacob S said:

I have a 1978 c81 wheel horse and when I am pulling some times the belt will slip



I have a 74 c160 which is fairly similar to your tractor. I pull well over a thousand pounds up out of the forest on steep up hills half a dozen times a year or more and my belt NEVER slips.



Do you know when's the last time your belt was replaced?

Are you popping the clutch or shifting gears while the tractor is moving?



[stevasaurus 22,229]

pulling??  as in tractor pulls???  The belt is made to slip a touch, that is the safe guard to not break the transmission.  Do not put belt dressing on the belt or the pulleys, you will not be able to shift without grinding the gears.

[Jacob S 67]

I replaced the belt last month or so and no I  never pop the clutch or or shift though gears while driving

[Jacob S 67]

Yes tractor pulling



[ebinmaine 62,936]

1 minute ago, Jacob S said:

I replaced the belt last month or so and no I  never pop the clutch or or shift though gears while driving

Good to hear.



What did you use for a belt? Brand and part number?

[Jacob S 67]

I really don’t now  I bought it at an out door power place

[ebinmaine 62,936]

1 minute ago, Jacob S said:

I really don’t now  I bought it at an out door power place

It's possible that the belt itself is your problem although your spring certainly does look like it needs to be replaced.

[ebinmaine 62,936]

Some of us have favorite brands of belt just like any other thing. There's no denying that a Toro wheel horse belt is about the best you can get by size and shape and correct friction surface.





[Jacob S 67]

I will try to remember to buy that next time and where do you get them that?

[ebinmaine 62,936]

You can do a search here on the site to get the correct part number.



I tried to buy local when I can but those belts I buy online.

[daveoman1966 3,586]

Based on your model 81-08k801, the OEM belt is #7478 and is available here for about $45.

https://www.psep1.biz/arinet.asp?aribrand=TO#



[Jacob S 67]

Thanks to everyone who helped me

[ebinmaine 62,936]

19 minutes ago, Jacob S said:

Thanks to everyone who helped me

Keep asking questions and keep us posted on your results.

[ebinmaine 62,936]

On 9/7/2021 at 7:56 PM, Jacob S said:

Thanks to everyone who helped me

Did you get the belt slip issue fixed yet?
