Ed Kennell

What module do I need to convert this Briggs from points/coil to solid state?

3HP   81332 0199 01 660322

Share this post


Link to post
Share on other sites

Achto
2 minutes ago, Ed Kennell said:

What module do I need to convert this Briggs from points/coil to solid state?

3HP   81332 0199 01 660322



Briggs part number 793281

Fits 2-4hp vertical or horizontal.





  • Excellent 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Ed Kennell

Thanks Dan, I think you answered this for me before, but I couldn't find it.

  • Excellent 1

Share this post


Link to post
Share on other sites


WHX??

I used that one on horizontal and it worked fine so far Ed.

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Ed Kennell
12 hours ago, WHX24 said:

I used that one on horizontal and it worked fine so far Ed.

Jim or Dan, did you ever find you had to turn the module around  ?    I read several reports where the module had to be flipped around to get a good spark.

Share this post


Link to post
Share on other sites

WHX??
Posted (edited)

I didn't have to (AL block) but some motors yes depending on the polarity of the magnets. You can send the flywheel in to have the magnets repolarized  but you don't want to do that. If they think the wheel is defective you won't get it back.  Dan will know more.

Edited by WHX24
  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Achto
14 minutes ago, Ed Kennell said:

Jim or Dan, did you ever find you had to turn the module around  ?    I read several reports where the module had to be flipped around to get a good spark.



Reversing the coil should only have to be done if you have a cast iron block. That block had reversed polarity on the magnets. Aluminum block should have the correct polarity for normal installation of the coil.

  • Thanks 1

Share this post


Link to post
Share on other sites

Ed Kennell
Posted (edited)

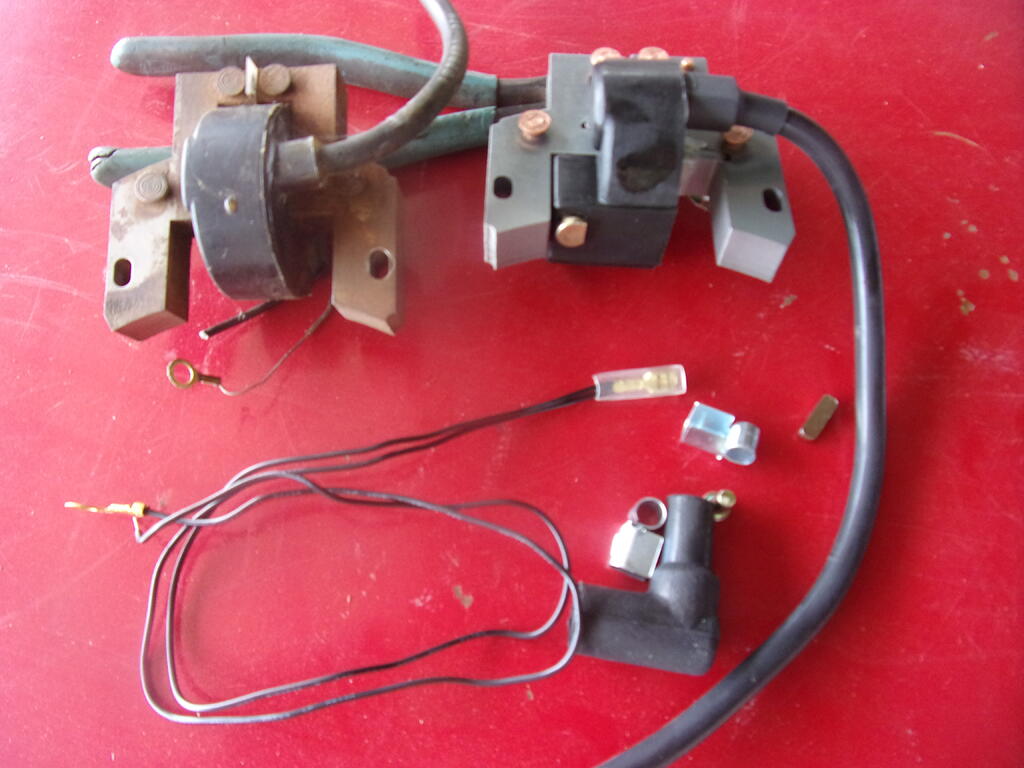

OK, I got the coil today and installed it with 0.010" gap.    Perfect bolt on match.

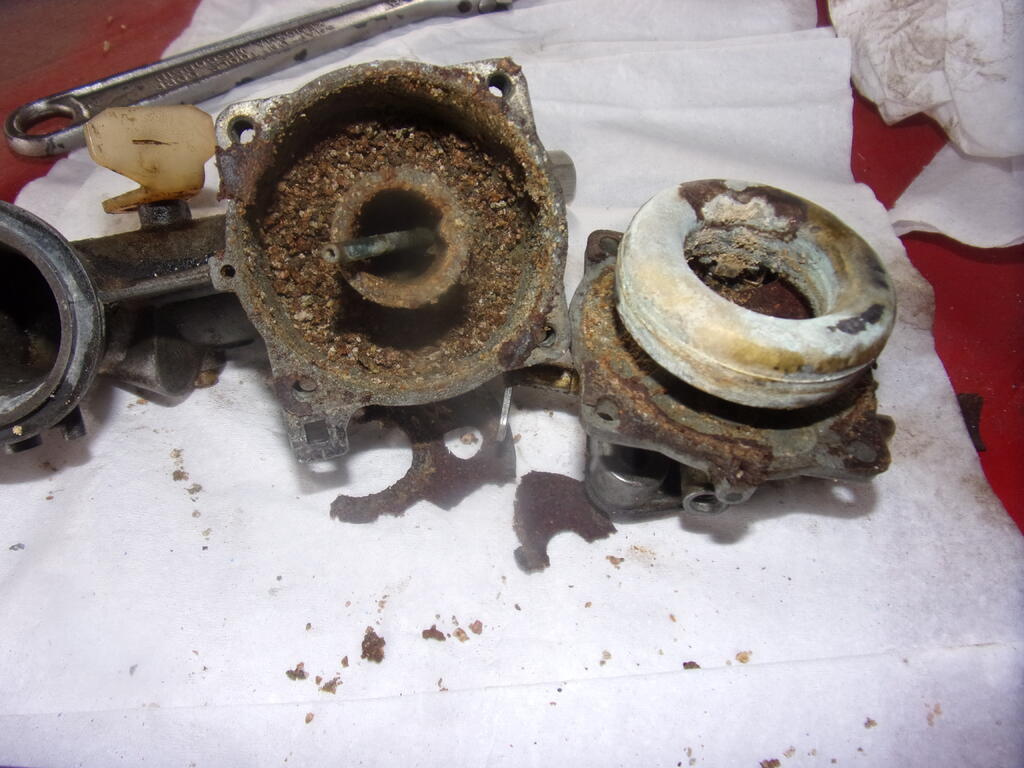

Have good spark and the Briggs ran but would not throttle up.   Seems to be starving for fuel.   So off comes the carb to find this.



It amazes me that it even runs like this.

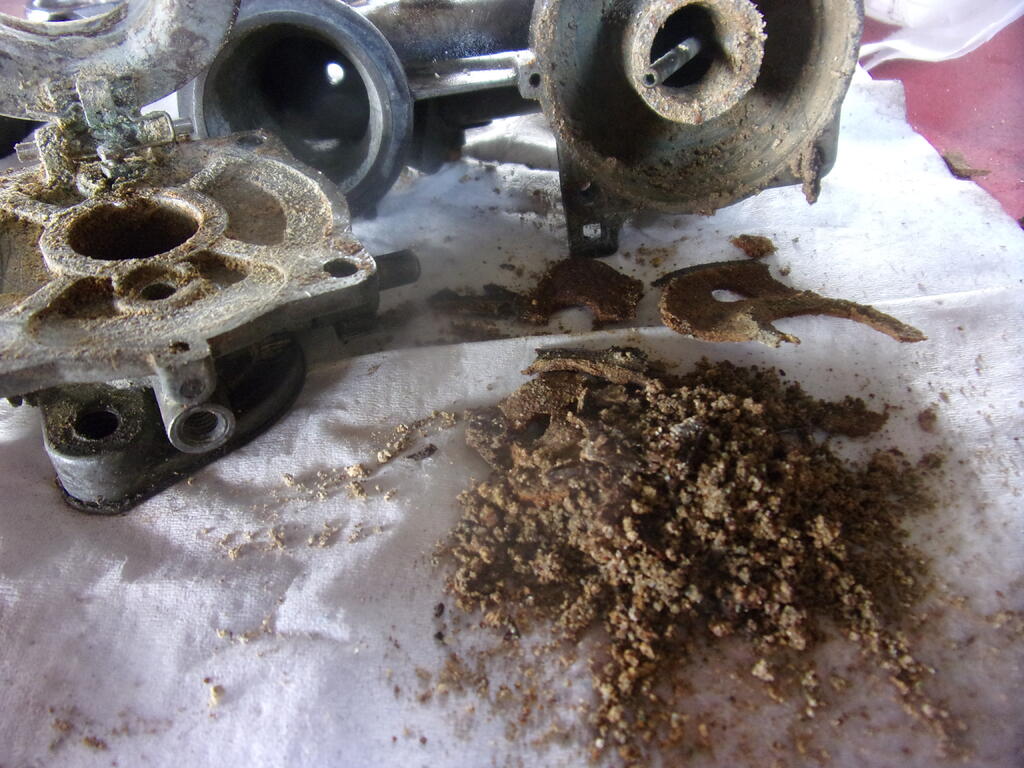

This was in the bowl.




The float pivots and the valve opens and closes,  but the pin is frozen in the aluminum ears.   Probably not coming out with out breaking an ear off.  I may just clean it up and put it together as is.



  Oh, Dan or Jim, why are there two kill wires coming off the same kill lug?  One has a bare end and one has a ring terminal.  I didn't connect either as there is a kill lever that shorts the spark plug.

Edited by Ed Kennell
  • Like 1
  • Sad 2

Share this post


Link to post
Share on other sites

wallfish
11 hours ago, Ed Kennell said:

 So off comes the carb to find this.

A couple more years and you would've had diamonds. LoL

Some engines had a kill switch on the engine and the other wire would be for a remote switch.

  • Haha 2

Share this post


Link to post
Share on other sites

Achto
3 hours ago, wallfish said:

Some engines had a kill switch on the engine and the other wire would be for a remote switch.



:text-yeahthat:On some engines there is a kill wire hooked to the throttle so the engine will shut down when the throttle is pushed all the way in the slow direction, or it can be shut off with a switch.



If you find that the carb is beyond repair, I have had good luck with the china 2 piece flow jets from :techie-ebay:. They usually cost just a few $ more than a B&S rebuild kit.

  • Like 1

Share this post


Link to post
Share on other sites

WHX??
26 minutes ago, Achto said:

few $ more than a B&S rebuild kit.

And you don't have to try and clean that mess!

What is this motor on Ed?

Share this post


Link to post
Share on other sites

Achto
8 minutes ago, WHX24 said:

What is this motor on Ed?





3HP   81332 0199 01 660322

Share this post


Link to post
Share on other sites

Ed Kennell
3 hours ago, WHX24 said:

What is this motor on Ed?


  • Excellent 2

Share this post


Link to post
Share on other sites

WHX??

Ahhh

Share this post


Link to post
Share on other sites

Ed Kennell
6 hours ago, Achto said:

china 2 piece flow jets from :techie-ebay:.

I only found two sizes.  The medium 3 bolt and the large 4 bolt.     Mine is a 4 bolt, but it is on a 3HP engine.     Do you think I need the large 4 bolt carb?

Share this post


Link to post
Share on other sites

Achto
2 hours ago, Ed Kennell said:

Do you think I need the large 4 bolt carb?



One would not think so.



The OEM number for the carb that engine should be 295607

If all else fails, check the venturi size in comparison to yours

  • Thanks 1

Share this post


Link to post
Share on other sites
