WH D-160 Onan Electric Clutch Diagram

Recommended Posts

mryanpilarski

Crazy question but has anybody ever done a step-by-step on how to add the clutch back onto the motor? Mine has been off after a tear down, I have all the parts bagged...i just dont remember how to put it all back together.



Right now as it stands the key is in the keyway, the round shaft (part#14-105) is on the front crank shaft,

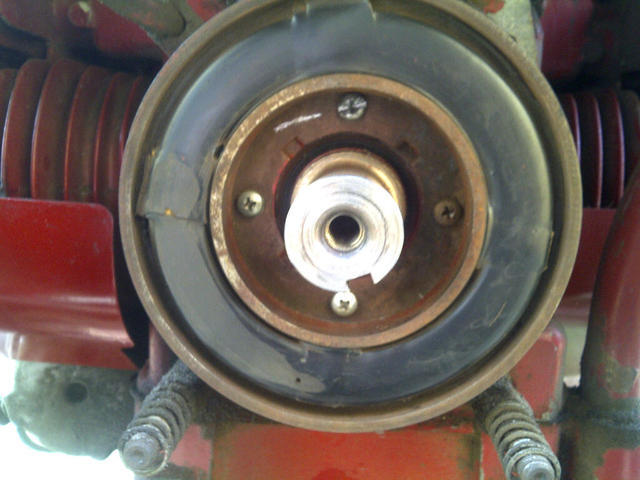

I can get as far as the attached pic with the magnet no problem, its after that i am lost



Thanks!




Share this post


Link to post
Share on other sites

gwest_ca

There is a section in this manual on adjusting the pto brake.

Section 9 of this manual has the same plus how to remove the clutch

A service bulletin on the clutch



  • Like 1
