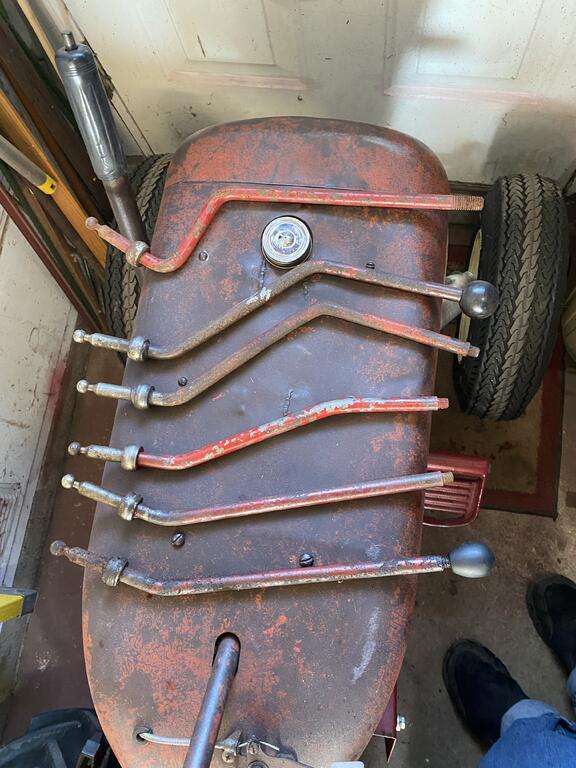

Lane Ranger 10,488 #1 Posted April 4, 2021 A photo of different types of Wheel Horse shifters I have. 2 7 Share this post Link to post Share on other sites

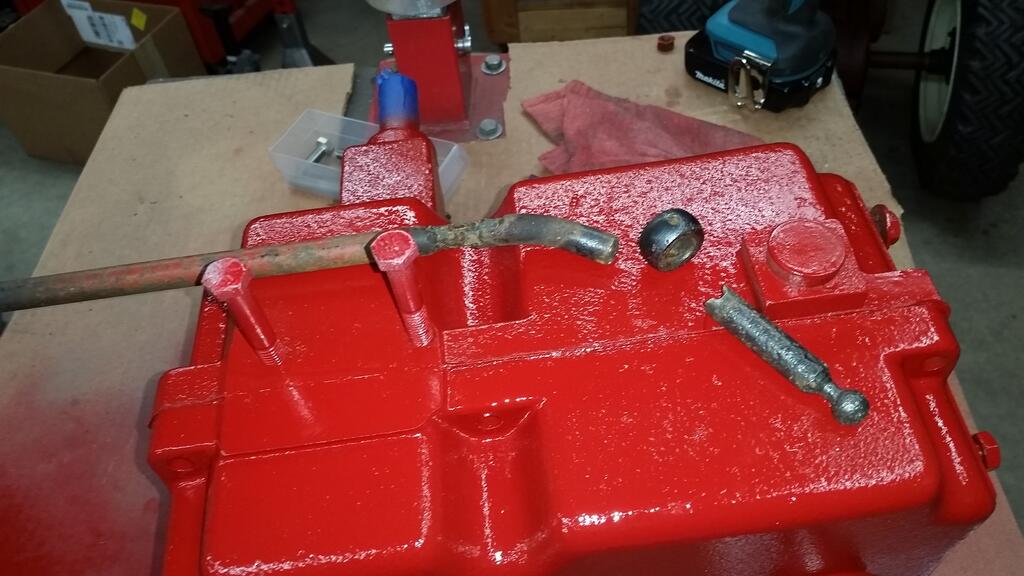

WHX?? 46,724 #2 Posted April 4, 2021 I am going to attempt restoing this 701 shifter... I just love the pits and think it would be a a good conversation piece down the road. That first or second one from the bottom is what I am aiming for. 4 1 Share this post Link to post Share on other sites

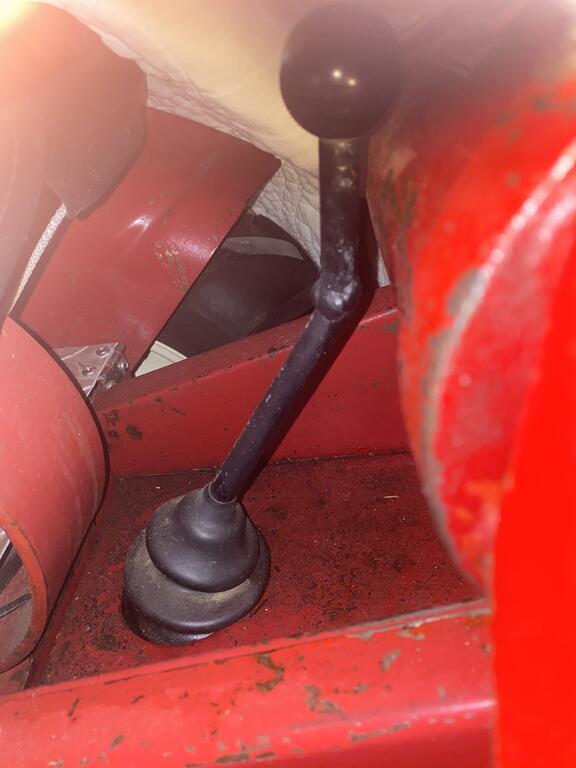

Lane Ranger 10,488 #3 Posted April 4, 2021 I broke the 701 shifter in a pipe bender ! When you have a Hein Werner pump on a 701 you have to bend the shifter to clear the pump! The Wheel Horse manual guidance tells you to bend it! Mine is welder where it broke snd I keep it as a reminder! 2 1 Share this post Link to post Share on other sites

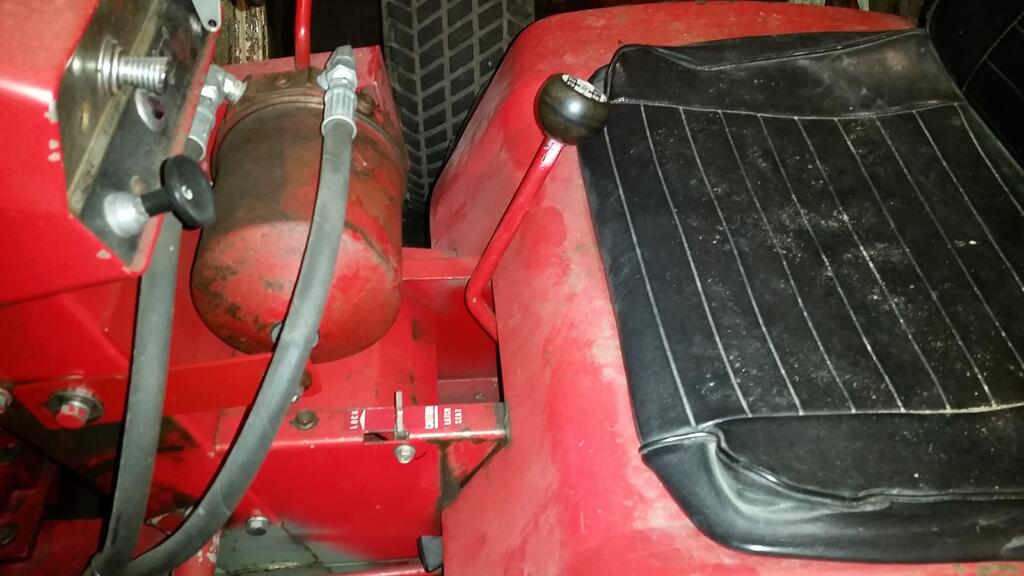

WHX?? 46,724 #4 Posted April 4, 2021 I had to bend the shifter a bit to get things to work on the plow mule. A 1257 with and HY-2. Might have got a bit too much bend says my 'nads ... just gotta be careful ats all . 1 6 Share this post Link to post Share on other sites
JoeM 7,620 #5 Posted April 4, 2021 6 hours ago, WHX24 said: says my 'nads 3rd nad shifter! Got to watch not to knock her out of gear! 1 Share this post Link to post Share on other sites
ebinmaine 63,073 #6 Posted April 4, 2021 @WHX24 just be careful shifting reverse to 1st. 7 hours ago, Lane Ranger said: A photo of different types of Wheel Horse shifters I have. Cool pic Lane. I'm familiar with all but the top one. What's that go to?? 1 1 Share this post Link to post Share on other sites

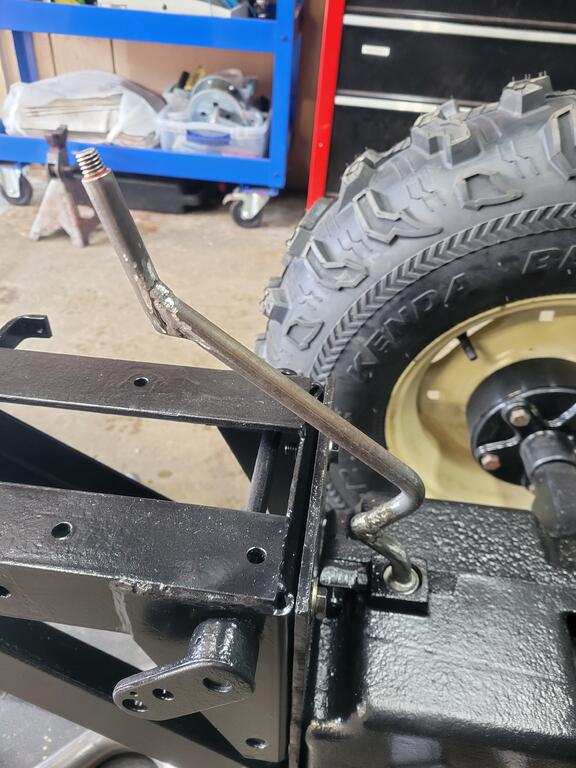

OldWorkHorse 2,992 #7 Posted April 4, 2021 Wow I still have alot to learn I thought there was just the 1 shifter type for the horses! The middle red one. Had to make a custom wheel horse shifter for project I'm putting together. 2 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,489 #8 Posted April 4, 2021 62-02856 - Trivia - 1962 serial 62-2856 and on have a bent shifter to clear the hydraulic pump Dated November 12, 1963 Models 5025 and 5046 are the same transmissions except for the shifters. All replacement transmissions now shipped less shifter and boot including 5047 Garry 2 1 1 Share this post Link to post Share on other sites
953 nut 51,616 #9 Posted April 4, 2021 2 hours ago, ebinmaine said: I'm familiar with all but the top one. What's that go to? The top shift lever is for a 953/1054. 1 1 1 Share this post Link to post Share on other sites
squonk 38,902 #10 Posted April 4, 2021 Lookin at that seat, you have either smooth fields or "Old Man Butt" hasn't caught up to you yet! HAPPY EASTER! 5 Share this post Link to post Share on other sites
AMC RULES 36,945 #11 Posted April 4, 2021 Are you saying... now you want to see his butt? Happy Easter! 1 5 1 Share this post Link to post Share on other sites

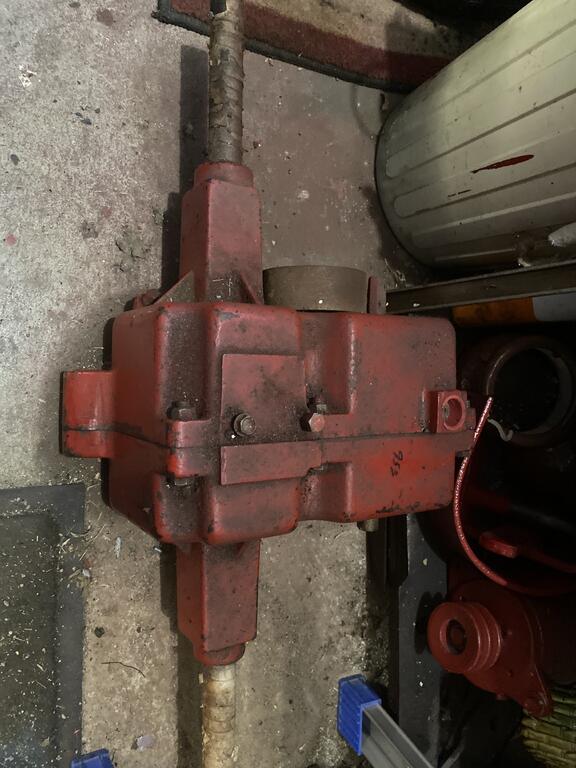

Lane Ranger 10,488 #12 Posted April 4, 2021 (edited) 3 hours ago, ebinmaine said: @WHX24 just be careful shifting reverse to 1st. Cool pic Lane. I'm familiar with all but the top one. What's that go to?? Yes like Richard said! For the big 953/1054 transmission. I have for a 953 transmission I had rebuilt with an stronger 8 pinion/point differential. Edited April 4, 2021 by Lane Ranger 3 Share this post Link to post Share on other sites
WHX?? 46,724 #13 Posted April 4, 2021 1 hour ago, AMC RULES said: Are you saying... now you want to see his butt? Happy Easter! I'd shoot the moon on Squonk anytime... 1 hour ago, squonk said: Lookin at that seat, you have either smooth fields or "Old Man Butt" hasn't caught up to you yet! HAPPY EASTER! Plow mule you need to be able to slide a round abit! 1 Share this post Link to post Share on other sites
