Travas

Workhorse gt 1100 lazy restoration

By Travas, in Wheel Horse Electrical

Recommended Posts

Travas    13

Travas
Posted

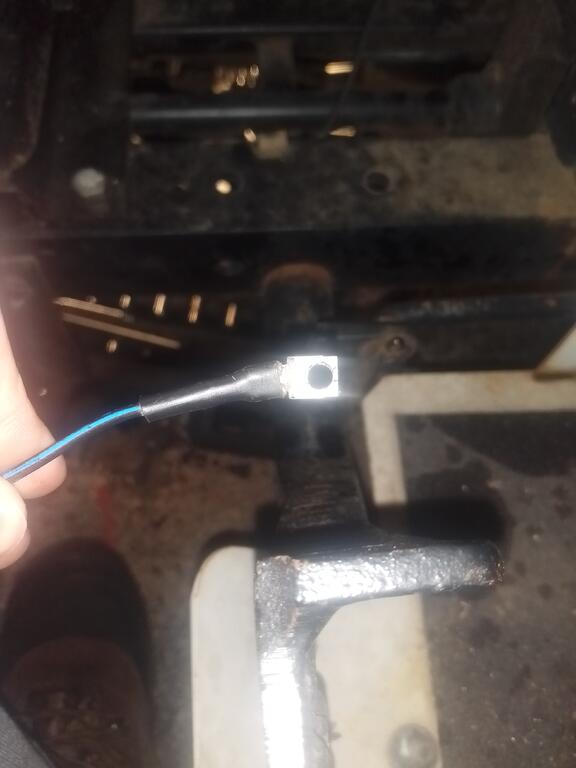

Need some help with setting up electrical to the engine. I got this one wire I don't know where it goes! I thought it went to the starter but it doesn't fit. A grounding wire went there I believe. Any ideas or manuals? And a front tire as well



Share this post

Link to post
Share on other sites


Travas    13

Travas
Posted

It does run but when it ran It had no exhaust pipe and wasn't in the engine. Just "pull" started it with twine.

Share this post

Link to post
Share on other sites


oliver2-44    10,397

oliver2-44
Posted

:text-welcomeconfetti:

Some of the workhorse pro's will be along shortly.

Share this post

Link to post
Share on other sites


gwest_ca-(File Mod)    11,271

gwest_ca
Posted

Welcome to the forum.

Click on the picture in the link for one of the wiring.

You can download the same one.

The black wire with a blue stripe may be considered a blue wire.

It may be a blue wire to the magneto. Do not allow any battery voltage into it if it is because that will burn up the ignition coil. The blue wire grounds the coil to shut the ignition off. If the key now shuts the engine off it is not the ignition wire - it already goes to the ignition switch.

  • Like 1

Share this post

Link to post
Share on other sites


Achto    28,856

Achto
Posted

:WRS:



Can you tell us where the other end of that wire is attached to? That may help determine where it should go.

  • Like 1

Share this post

Link to post
Share on other sites


SylvanLakeWH    27,647

SylvanLakeWH
Posted

:text-welcomeconfetti:

Share this post

Link to post
Share on other sites
