854 seat back bracket pics with measurements

[ebinmaine 64,061]

@Allen2265 requested the measurements for a seat back brace bracket so I figured I would share with the group.

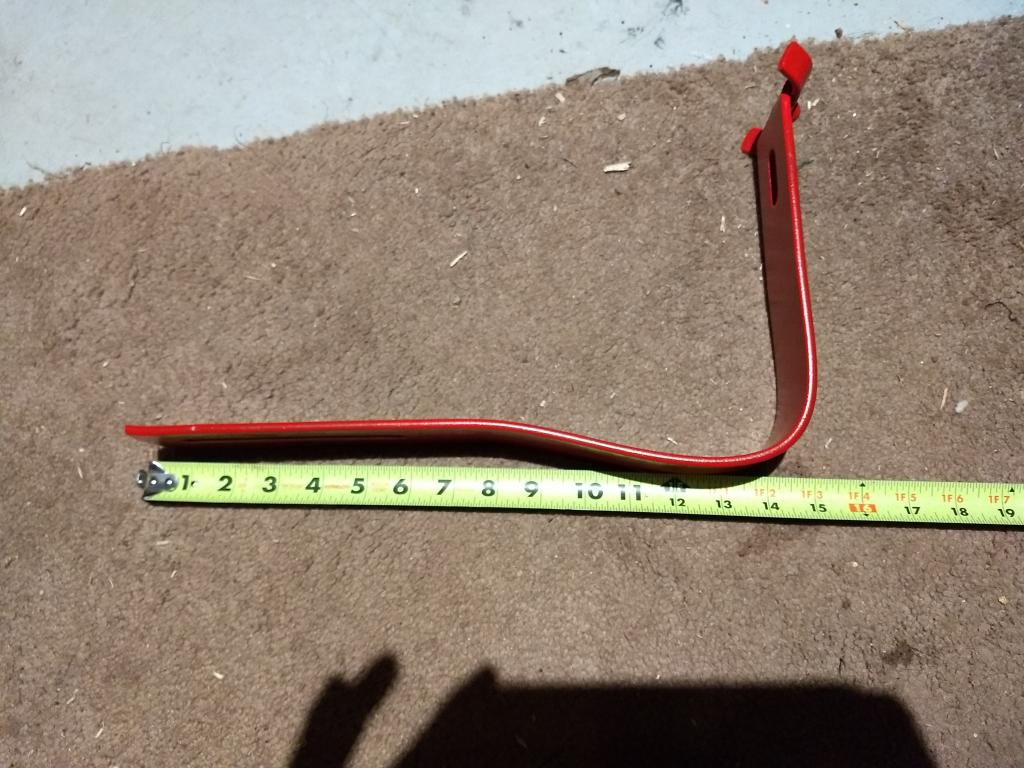

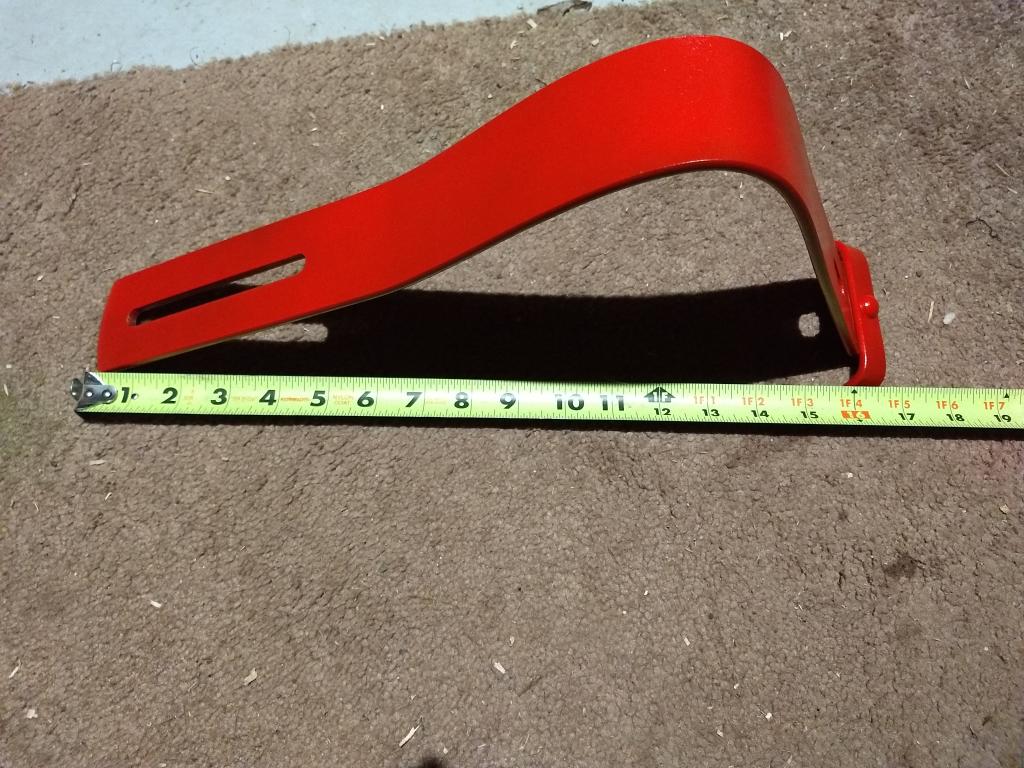

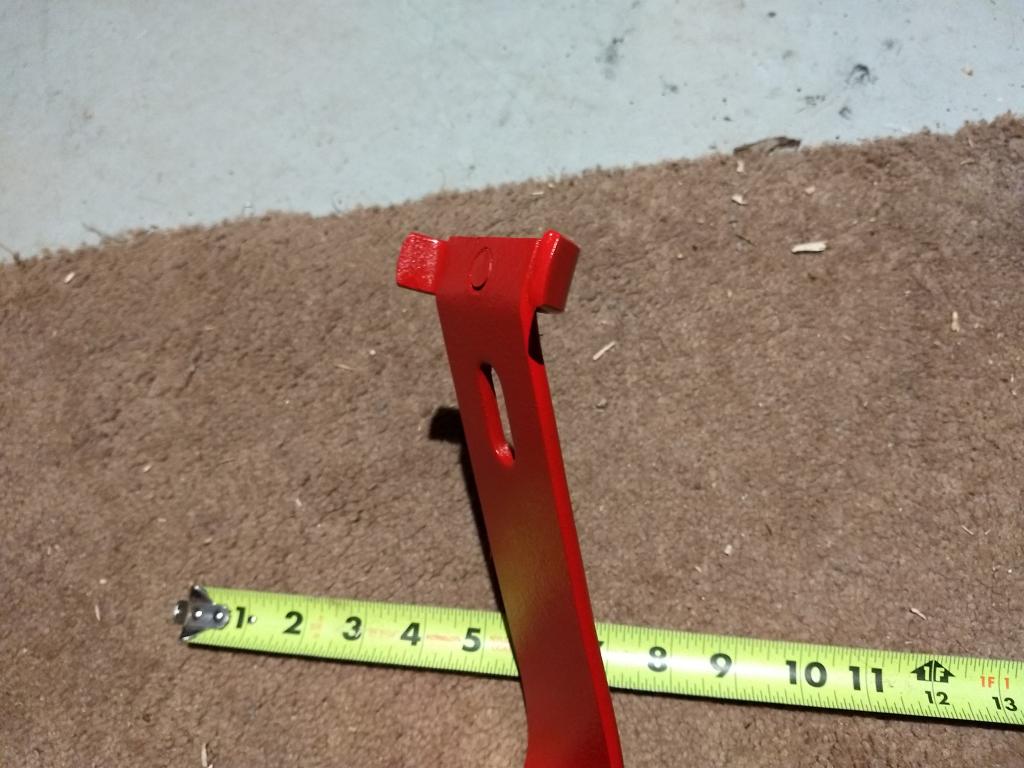

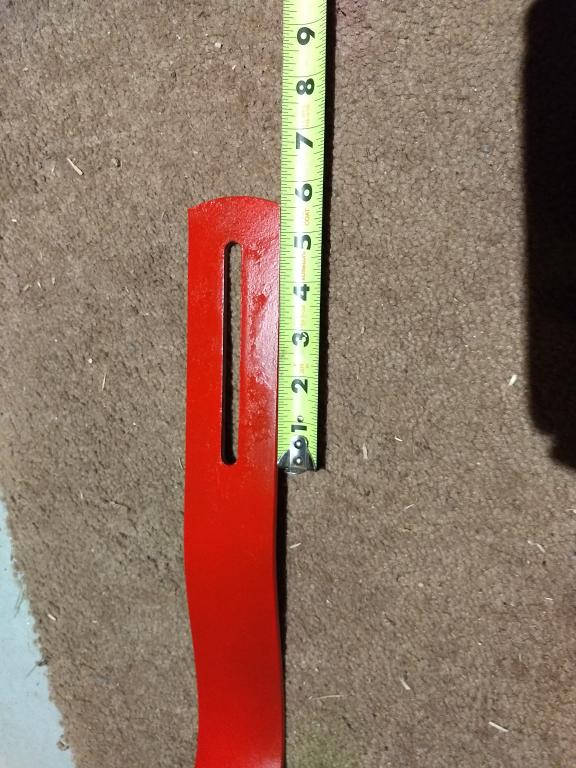

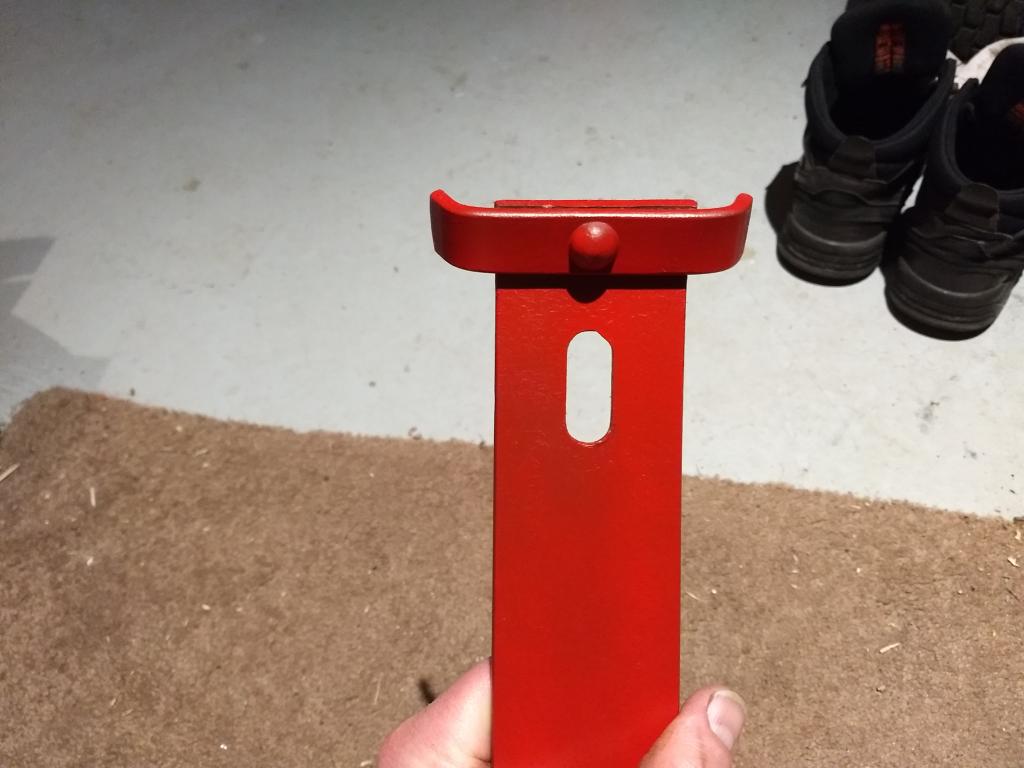

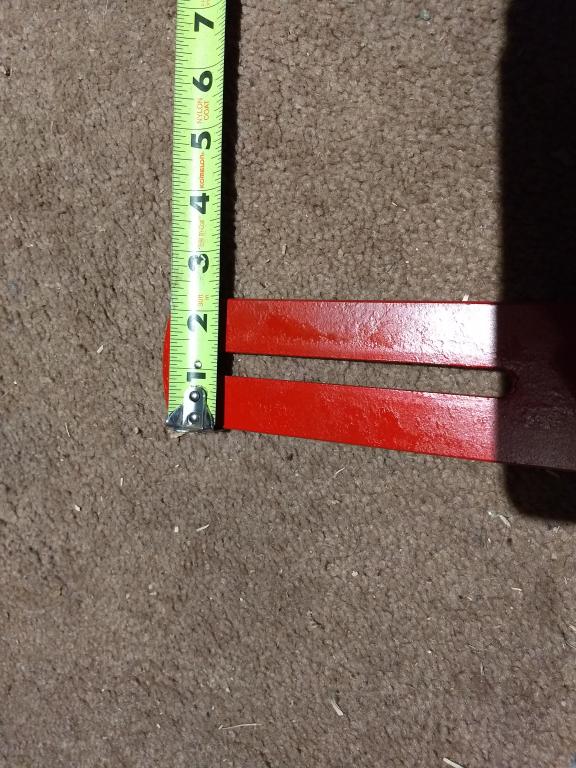

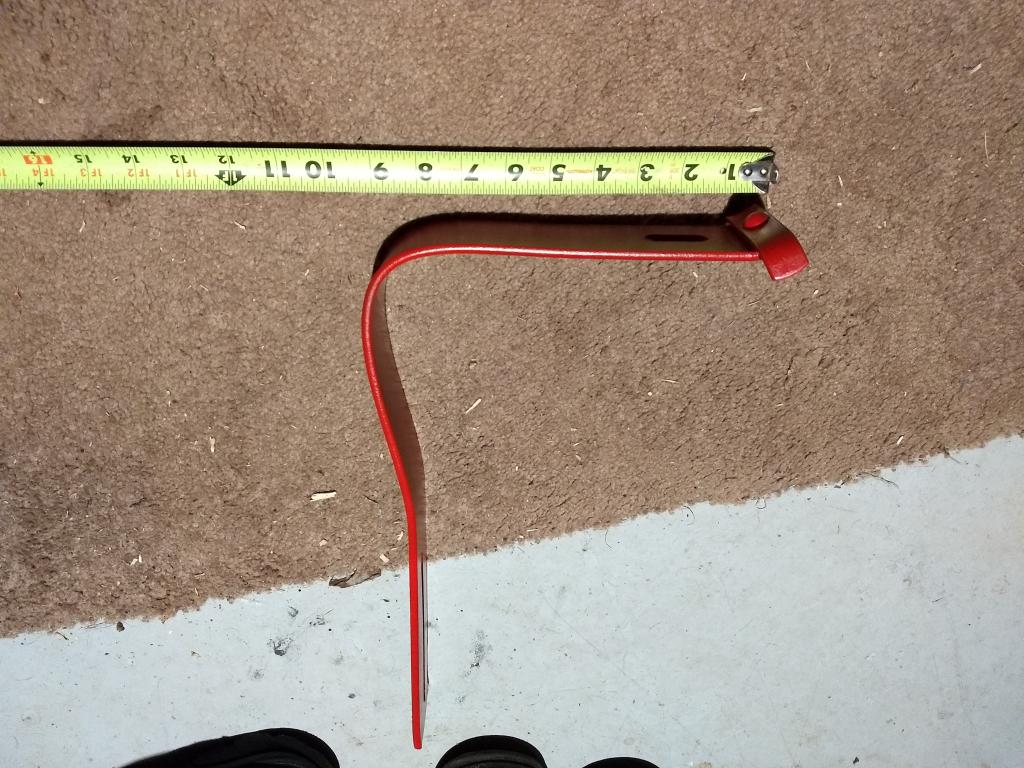

Here's an assortment of pics.























[Allen2265 1]

Thank you



[Pullstart 60,695]

Anyone know if these are spring steel or just plate stock bent up?

[ebinmaine 64,061]

12 minutes ago, pullstart said:

Anyone know if these are spring steel or just plate stock bent up?

I'm only guessing Kev but I'd say that's plate.



I really can't see a good reason for that to be spring steel.





I forgot to measure the thickness. Whatever it was, I would go one step thicker.



[Pullstart 60,695]

I’d guess 1/4”?  Just wondering if they can be reproduced easily...

[ebinmaine 64,061]

2 minutes ago, pullstart said:

I’d guess 1/4”?  Just wondering if they can be reproduced easily...

I'll check the thick-osity later...

[Pullstart 60,695]

12 minutes ago, ebinmaine said:

Thick-osity





I’ve been accused of being that before!

[ebinmaine 64,061]

3 hours ago, pullstart said:

I’d guess 1/4”?  Just wondering if they can be reproduced easily...



On the highly accurate carbon fiber composite digital caliper the thick-ocity measures .21



I don't know what gauge that is but obviously halfway between 3/16 and 1/4. Cases like this I would always go on the heavier side.



[dells68 7,495]

I’m not sure of the material, but I have one from another make that I wanted to bend slightly to make it more comfortable and I quickly found that I had to score it with a grinder before it would start to bend and then weld it back up.  It was very tough material.  I remember thinking it had to be some sort of spring steel.
