Sunstrand Hydro gear O rings

Recommended Posts

pfrederi

  O rings are described by a dash number as well as dimensions.  A good auto parts store or hardware source should understand dash numbers



Here are some replacement numbers for O rings WH used on Sundstrand hydros



D Series Manifolds  Small  WH# 971015   Dash # 015

                                Large WH# 971018   Dash # 018

                                Backer ring WH# 103184  Dash  #018BU



Charger Electro and Early C Series



Motion Control  Large  WH# 970026  Dash # 026 (I use the square version seems to seal better and is easier to install # 026S)

                         Small  WH# 972116  Dash #116



Tow Valve   WH# 971113  Dash # 113  (Uses 2)  (Under seat with a roll pin for a handle)

  There is also a backer ring WH#7268  it is a PTFE (plastic) ring dash #113.  I have not replaced any on mine but the McMaster picture below should be what you need



If you have a newer C series with tow valve on the side under the fender the valve uses WH# 971012 based on WH #system I would guess it is Dash #012



The ports on the hydro cylinders  control valve and pump are either SAE ORB #5 or #6

They have an O ring   The #5 (smaller  1/2 -20 threads)) use dash #905   the #6 use dash #906 ( 9/16 18 tpi thread)

WH # for ORB5 ring is 973310   for the ORB 6  WH# 973370





Another note, O rings I get have a shelf life of 15 years.  Long time ...but some of the NOS WH parts are getting pretty old.



I have extras of most all of them...if you need some just PM me  (They work out to 5-10 cents apiece)

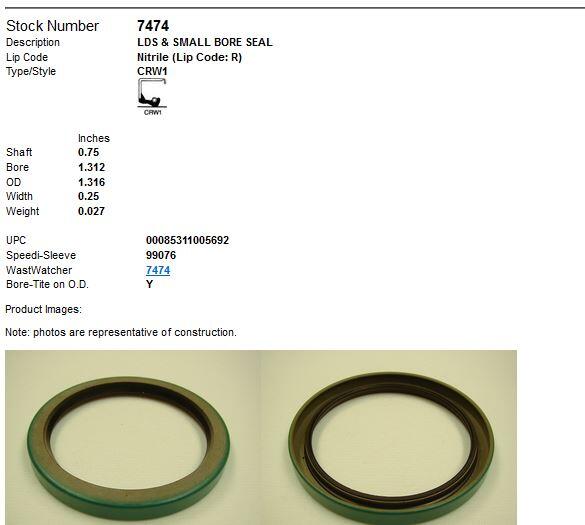

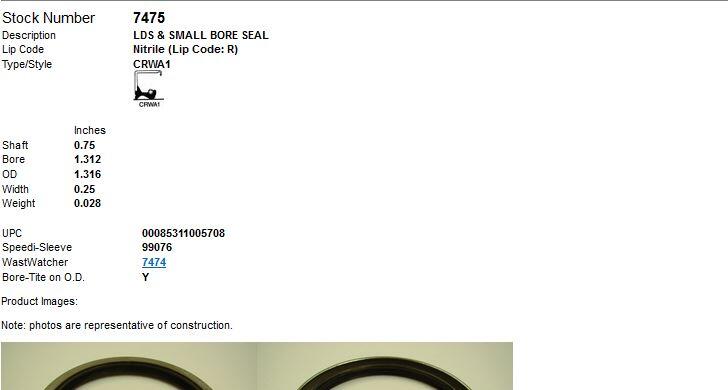

Input shaft seal for D series and Charger early C series WH # 7877  is CR 7475  (I guess it is SKF now..I am old school.)



One other item the woodruff key in the motion control linkage WH #937007  1/8 x 1/2 is also known as #3 woodruff key

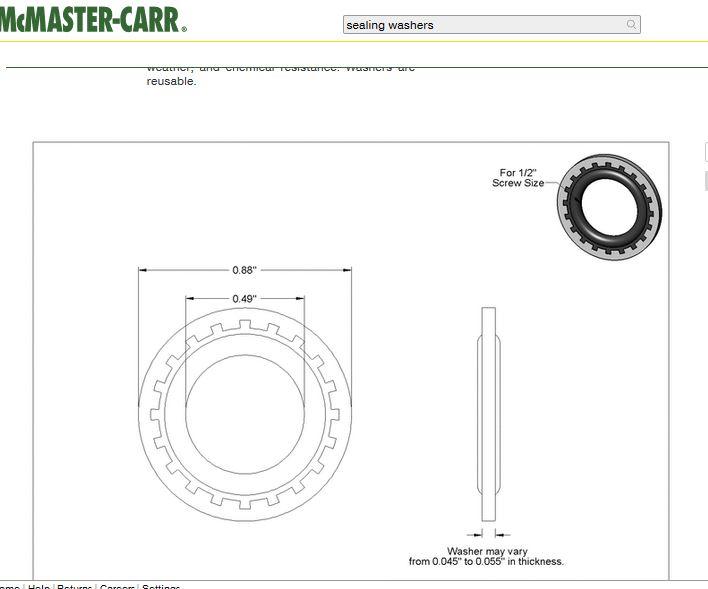

Sealing washer used on D series hydro motor in picture

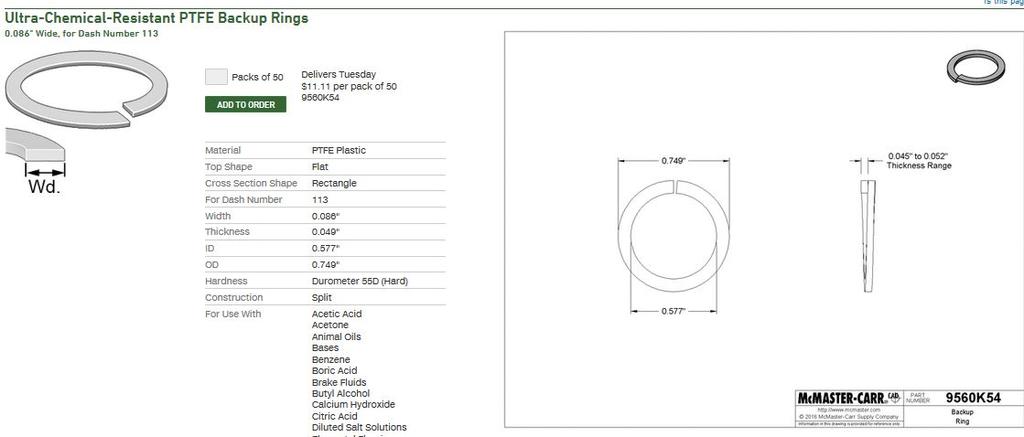

PTFE Backer ring for tow valve






Edited by pfrederi
  • Like 5
  • Excellent 2

Share this post


Link to post
Share on other sites

Sarge

Excellent info Paul, we need a lot more stuff like this to help others clarify the parts on not only the D series, but all of the machines with Sundstrand units. These systems were built 40 miles from where I lived, sure wish years ago I had enough forethought to go speak with their engineers and try to learn more from them as well as inquire about any manuals. They are still in business and producing many of the parts we need, sources like LJ Fluid Power in Michigan are a goldmine of knowledge and keep most of what is needed in stock.

McMaster-Carr has been my source for a lot of odd hardware, materials, and parts for years. If I order before 6pm, parts are here the next morning out of Chicago's warehouse, awesome.



Sarge

Share this post


Link to post
Share on other sites

pfrederi

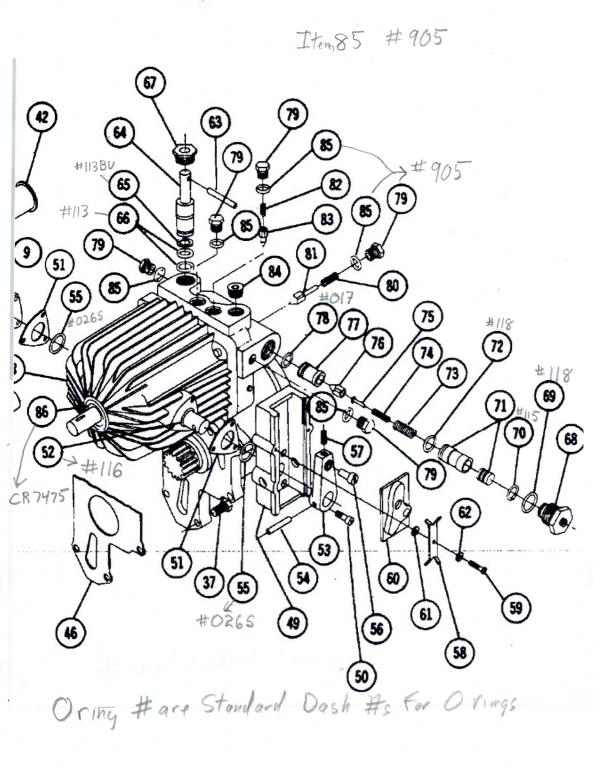

If anyone is into their hydro gear this picture may help ID the O rings you are looking for.  The penciled in #s are standard O ring Dash #s.  Two other numbers I have are for the charge pump (not shown) are 2 large ones #021S  and 4 small ones #011S.



I have all these rings  (When you buy them in bulk from McMaster they are only a few cent each)  so if you need some PM me I will mail you some.






Share this post


Link to post
Share on other sites

The Tuul Crib

I did call LJ fluid power and they have

the whole kit for around 45. Im assuming

that included the seals needed.

Share this post


Link to post
Share on other sites

pfrederi
26 minutes ago, The Tool Crib said:

I did call LJ fluid power and they have

the whole kit for around 45. Im assuming

that included the seals needed.

  Be interesting to know what is n the i"kit"

Share this post


Link to post
Share on other sites

The Tuul Crib

What are the seals that are needed for the 2046 beside the O-rings?

Share this post


Link to post
Share on other sites

pfrederi
9 minutes ago, The Tool Crib said:

What are the seals that are needed for the 2046 beside the O-rings?

  CR7475

Share this post


Link to post
Share on other sites

The Tuul Crib
6 minutes ago, pfrederi said:

  CR7475

Just one seal is always needed?

Share this post


Link to post
Share on other sites

pfrederi
2 minutes ago, The Tool Crib said:

Just one seal is always needed?

Yep!!  later Piston to piston units used 3 seals input shaft  (1) and swash plate pivot shaft (2) instead of the O rings used in 2046.

Share this post


Link to post
Share on other sites

The Tuul Crib
Just now, pfrederi said:

Yep!!  later Piston to piston units used 3 seals input shaft  (1) and swash plate pivot shaft (2) instead of the O rings used in 2046.

Ok to send you a pm?

Share this post


Link to post
Share on other sites

pfrederi
1 minute ago, The Tool Crib said:

Ok to send you a pm?

yes



Share this post


Link to post
Share on other sites

daveoman1966

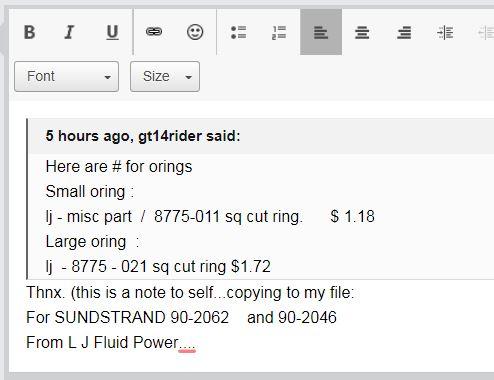

This is the list from L J Fluid Power...

O-Rings LJ Fluid Power.JPG

Share this post


Link to post
Share on other sites

Richard England

pfrederi, Thanks for the dash numbers.  As the WH part numbers become harder to find, the alternative commodity information is very valuable.
