Hydraulic 36" Snow Blade long frame

Recommended Posts

CX519

So I have a c-120 Hydraulic lift tractor.

The snow plow is also hydraulic...left and right blade sway. There are two hoses on the blade.

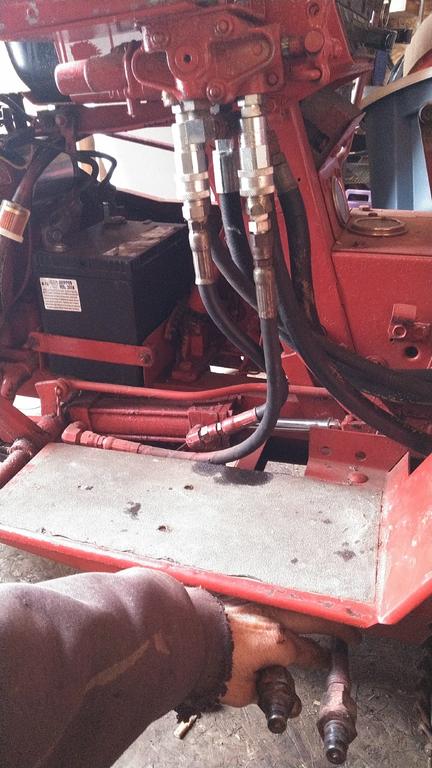

There are only two hookups on the tractor. And...they seem to run the lift arm.



My question is what's missing?





Share this post


Link to post
Share on other sites

CX519


Share this post


Link to post
Share on other sites

CX519

Man....I really don't know.

Share this post


Link to post
Share on other sites

ebinmaine

Do you have pictures of the blade and it's hoses and connections?



I'm fairly new to the Wheel Horse brand but I didn't know they ever made a hydraulic angle plow.



Share this post


Link to post
Share on other sites

CX519

So I have a c-120 Hydraulic lift tractor.

The snow plow is also hydraulic...left and right blade sway. There are two hoses on the blade.



There are only two hookups on the tractor. And...they seem to run the lift arm.



It has a rear lift as well but those hoses are not disconnectable.



My question is what's missing?






Share this post


Link to post
Share on other sites

CX519

And the hoses are not long enough to connect anyways for that matter.

Share this post


Link to post
Share on other sites

CX519

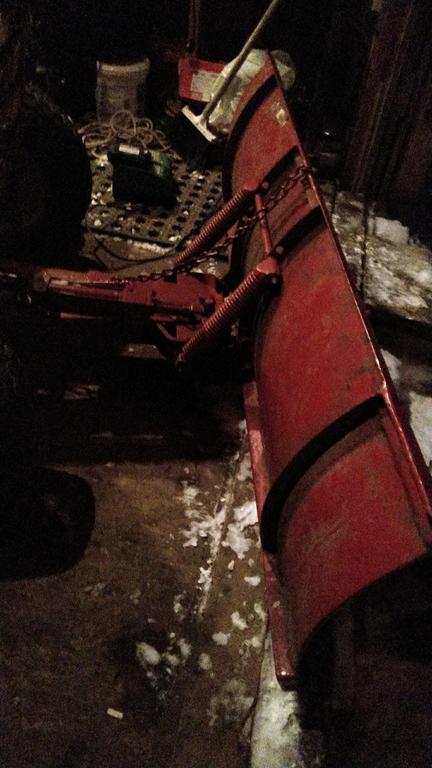

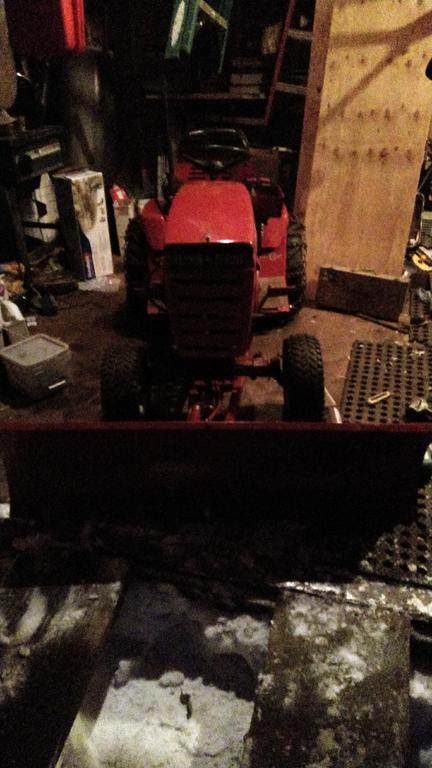

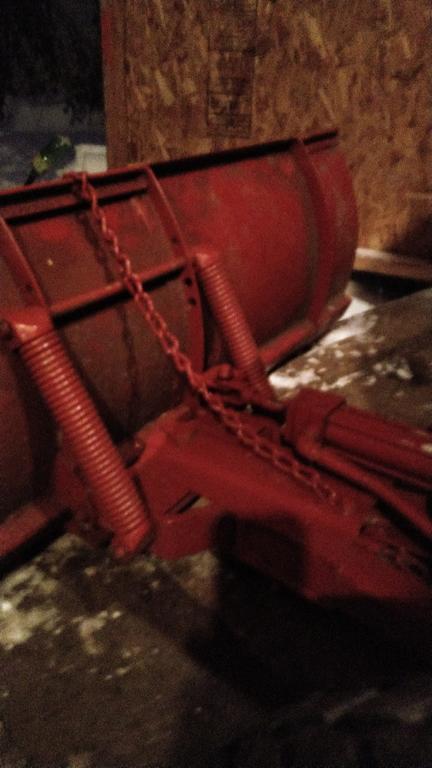

Yep gimme a minute. Who ever had this 35" blade added 6" to either side. Really good craftsmanship. Check it out.




Share this post


Link to post
Share on other sites

Achto
37 minutes ago, CX519 said:

My question is what's missing?



A tractor with remote hydraulics, like a C195 for example.



To make it work on your tractor you would need to have another control valve to run the left/right motion on the blade. Some thing similar to this.https://www.northerntool.com/shop/tools/product_200419671_200419671?cm_mmc=Google-pla&utm_source=Google_PLA&utm_medium=Hydraulics > Hydraulic Valves > Control Valves&utm_campaign=Prince&utm_content=204607&gclid=EAIaIQobChMIv43J3Onl5QIVFqSzCh39PwSyEAQYAyABEgLHyfD_BwE

Share this post


Link to post
Share on other sites

ebinmaine

Well I'll be....



That sure is nice work....





  • Like 1

Share this post


Link to post
Share on other sites

wallfish

You will need some type of control valve to operate a second circuit like the cylinder for the angle on that plow. Like Achto posted, or use a selector valve. A selector valve will allow operation of 2 different circuits by a single control valve (Like on your tractor) by "selecting" which circuit gets fluid from the control valve. It will not allow simultaneous use of both. If you are completely unfamiliar with hydraulics, it's a good idea to do a little research on the subject and that will guide you to the best solution for your particular preferences.

Unfortunately it is not a plug and play situation and the cylinder modification on the plow was added by a previous owner. It's not a factory set up.



https://www.surpluscenter.com/Brands/Prince-Mfg/3-8-NPT-20-GPM-Prince-Selector-Valve-9-6133.axd

  • Like 2

Share this post


Link to post
Share on other sites

oliver2-44





2 hours ago, CX519 said:

So I have a c-120 Hydraulic lift tractor.

The snow plow is also hydraulic...left and right blade sway. There are two hoses on the blade.

This is the first I've heard of a WH blade having hydraulic left and right movement.  Are you sure that it is a WH blade for a C series.

There are only two hookups on the tractor. And...they seem to run the lift arm.



It has a rear lift as well but those hoses are not disconnectable.

Please show us some pictures of the rear lift hydraulics.  That also is something probable added by someone.  (i would like to add it to my C-160)

My question is what's missing?






It looks like your tractor has the valves made by OMCO.   Currently you have an inner and outer side plate and one valve.  You can add multiple valves between those side plates.  Someone on here can tell you the O-ring sizes you will need when you take it apart.  .

  • Like 1

Share this post


Link to post
Share on other sites
