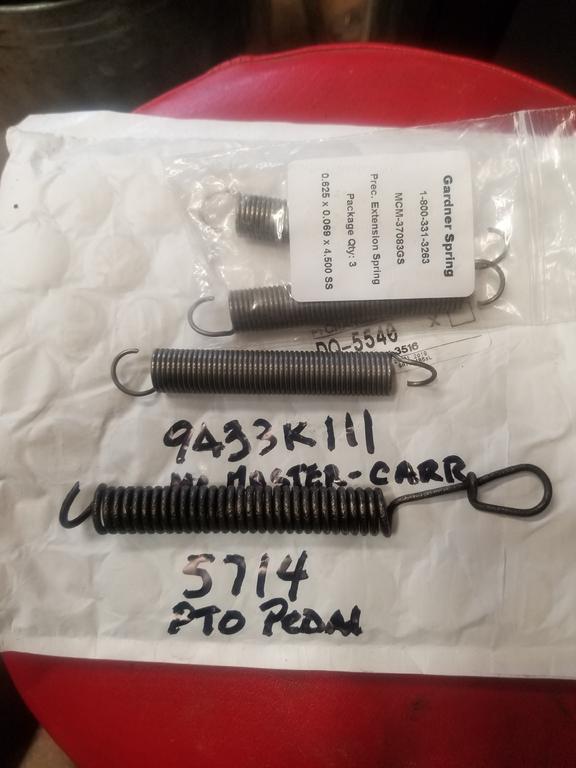

Elliot Garfinkel 166 #1 Posted October 31, 2019 Hi all doing restomod on 702 wanted to replace spring 5714 from what I see its nla I read that a replacement # 9433klll from mc master carr is being used as a replacement but I'm sure it will work unless someone has a better replacement. Thanks Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,491 #2 Posted November 1, 2019 Are you sure the spring for the 702 is not 1014? I have the 1014 was replaced by 83-2730 4.500" between hooks, .070" wire, .520" coil OD, .380 coil ID, 3.570" coil length, 52 + 2 1/2 coils https://www.partstree.com/parts/toro-83-2730/ Garry Share this post Link to post Share on other sites

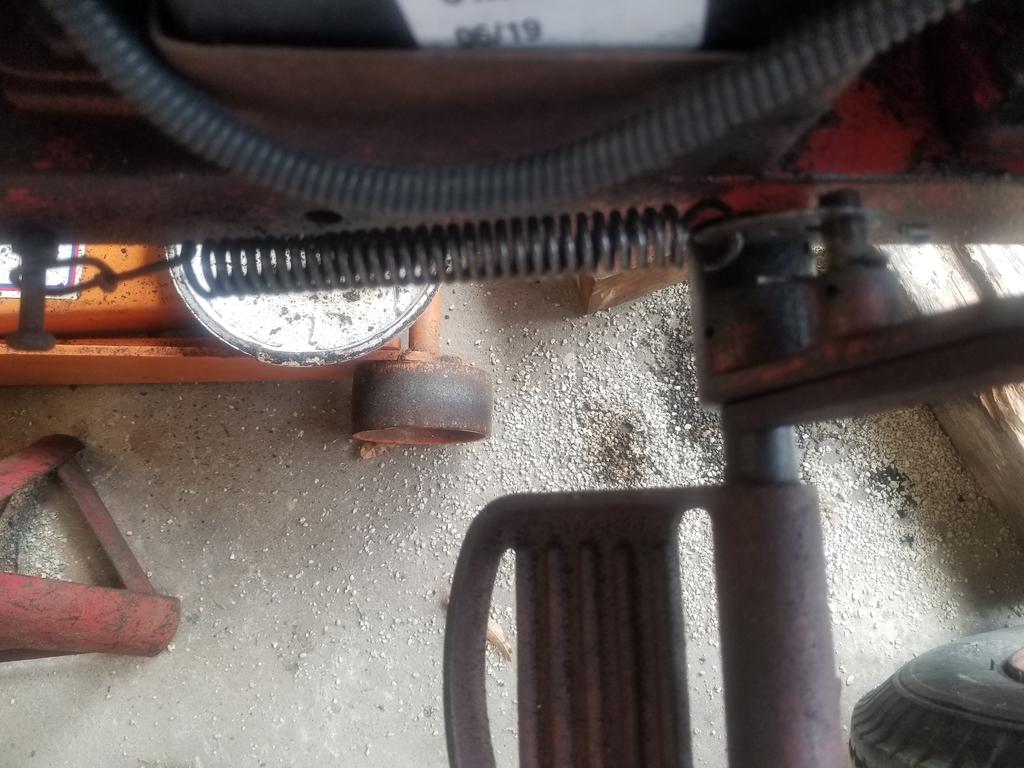

Elliot Garfinkel 166 #3 Posted November 1, 2019 Thanks for the reply the brake/clutch spring is the 1014 and the 83-2730 it's on the pto side it's the spring for the pedal for implements I believe.the spring that's in the picture looks better then it really is Share this post Link to post Share on other sites

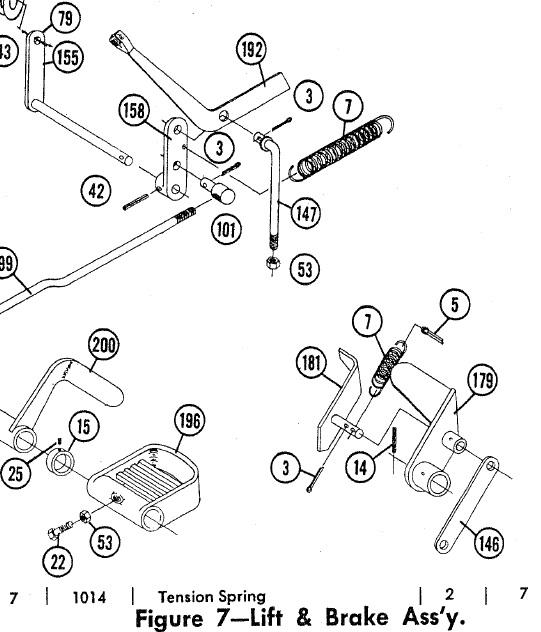

gwest_ca-(File Mod) 10,491 #4 Posted November 1, 2019 Here is what I was looking at - Item #7 in Figure 7 is shown twice. The McMaster springs appear to be much lighter. Garry Share this post Link to post Share on other sites
Elliot Garfinkel 166 #5 Posted November 1, 2019 Yes thanks for that info but I have a pedal on the opposite side I will send pic you might not see it too well but I dont think that spring will work for me. I have ordered that #7(1014) but i think it will be two short. Share this post Link to post Share on other sites
Elliot Garfinkel 166 #6 Posted November 1, 2019 You know now that I'm looking at the pic and your diagram I think you are right about that spring the one that was on their I assumed it was original cause it had that look to it.will confirm when I receive that one thanks again Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,491 #7 Posted November 1, 2019 The illustration of the pto hardware would have been better on the other side of the page but they did not have room for it. That mechanism has always amazed me. Once you work on one you never forget it's simplicity. The spring is hooked to the eye of a cotter pin in the frame. Garry Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,491 #8 Posted November 1, 2019 Finally figured out where the 5714 part number came from. Up to and including 1964 the spring part number is 1014. The parts lists starting in 1965 use the same illustration but have the part number as 5714. So is it a typo or different spring? Can find no other reference to 5714. Garry Share this post Link to post Share on other sites

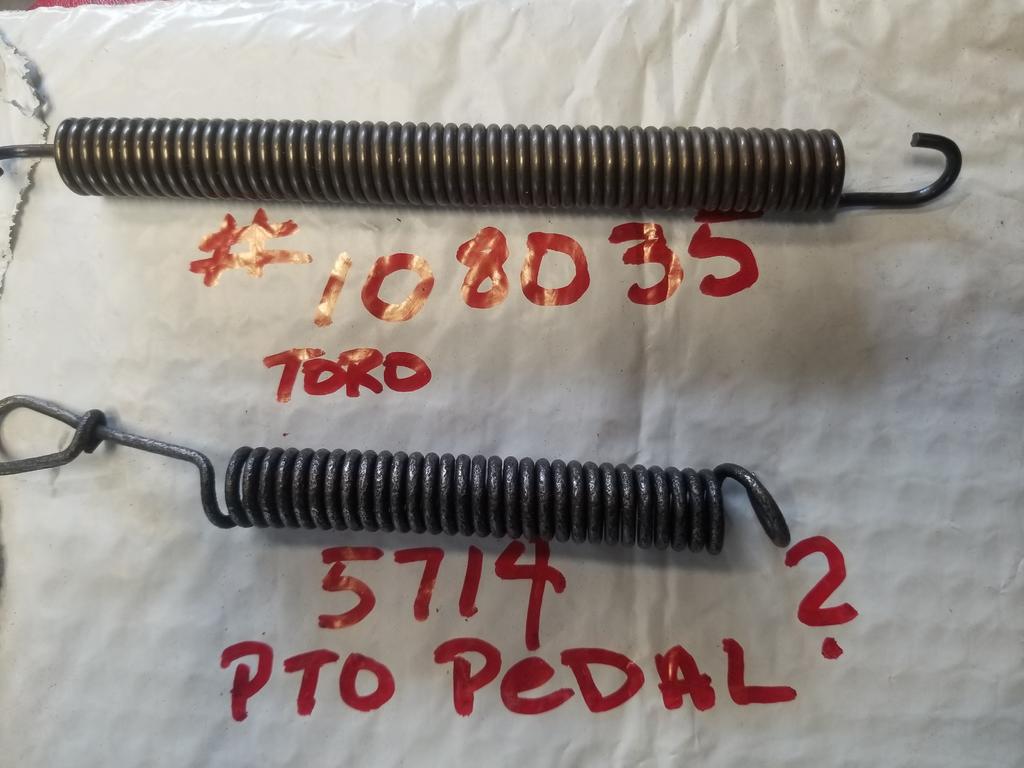

Elliot Garfinkel 166 #9 Posted November 9, 2019 Hey Gary good detective work I ordered a #108035 which I think will work to replace the 5714 and as far as the 1014 I did order the 83-2730 little shorter and thinner but I'm sure it will be fine. Thanks Elliot Share this post Link to post Share on other sites
