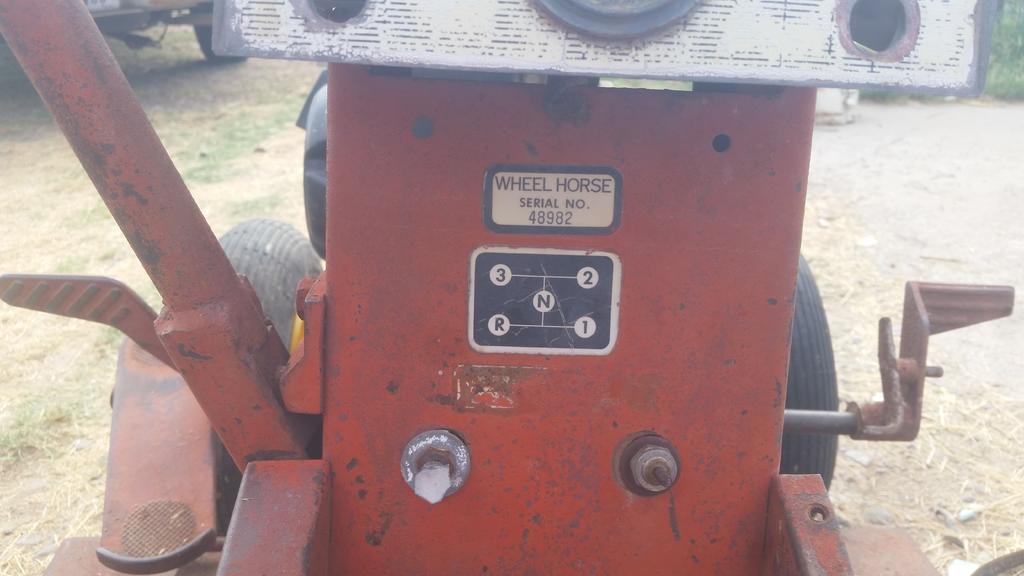

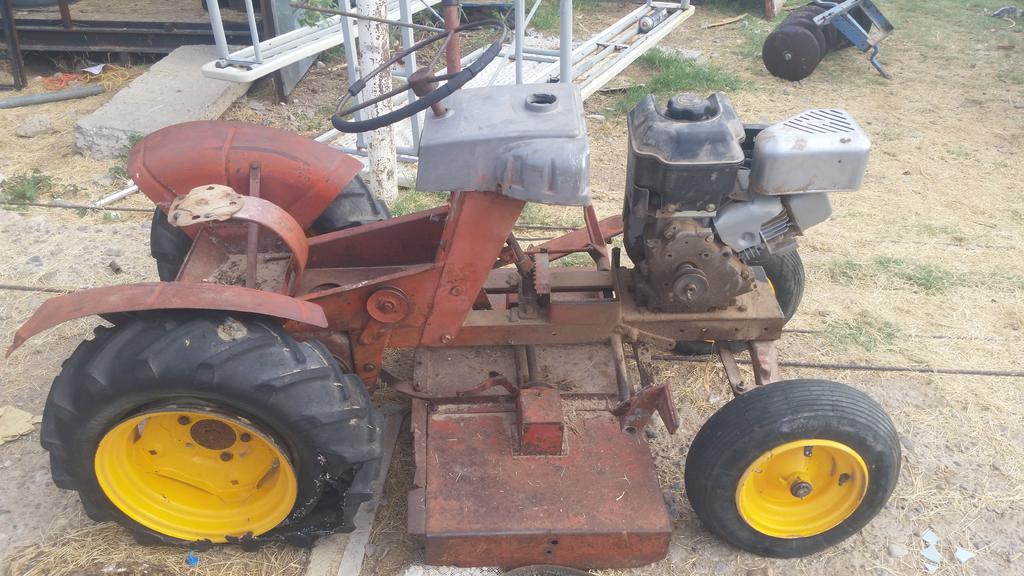

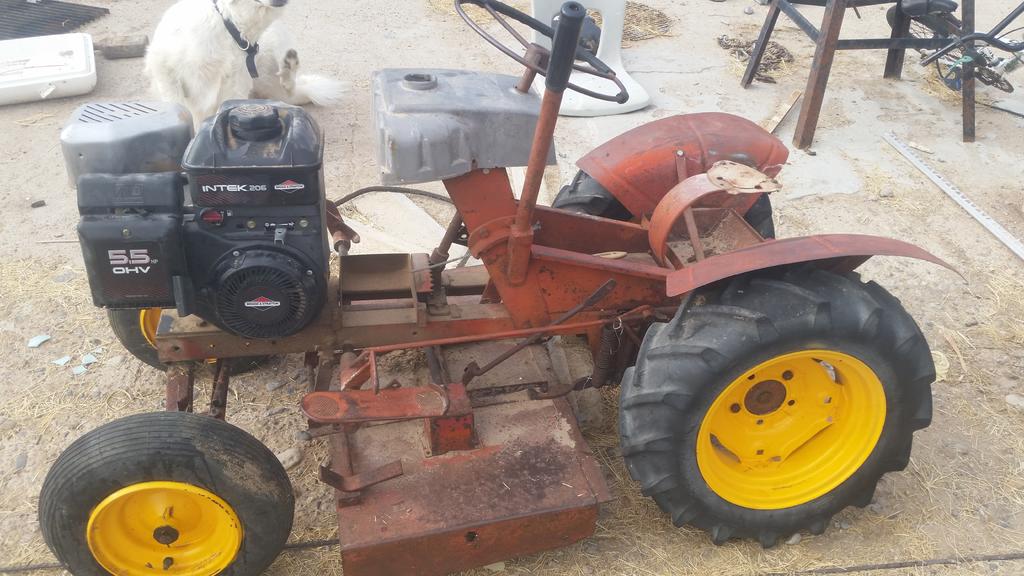

XLT 13 #1 Posted August 20, 2019 Guys, new to the garden tractor/ Wheelhorse world as of yesterday... I know this is likely mongrelized to a good degree, but any ideas as to what I have here? Also, shifter is broken off flush, and I don't see the dogpoint screw.... 2 Share this post Link to post Share on other sites
dclarke 4,011 #2 Posted August 20, 2019 Looks like parts of it are from a 1961 701, the rear fenders and brace, the left foot rest, pedal and the steering fan gear. 3 Share this post Link to post Share on other sites
The Tuul Crib 7,332 #3 Posted August 20, 2019 Nice !!to Share this post Link to post Share on other sites
XLT 13 #4 Posted August 20, 2019 yes, didn't realize the serial #'s were that well recorded. Thanks. Share this post Link to post Share on other sites
953 nut 51,769 #5 Posted August 20, 2019 It appears to have started life as a 1964 model 854. Share this post Link to post Share on other sites
XLT 13 #6 Posted August 20, 2019 Oh, and one other glaring thing... these rear wheels aren't even close to the right bolt pattern... anyone know off the top of their head what the bolt pattern is? Share this post Link to post Share on other sites
WHNJ701 4,164 #7 Posted August 20, 2019 if anything you have alot of hard to find parts, the 701 is model specific Share this post Link to post Share on other sites
WHNJ701 4,164 #8 Posted August 20, 2019 your serial is fairly close to my 701# Share this post Link to post Share on other sites
857 horse 2,581 #9 Posted August 20, 2019 THE BOLT PATTERN IS 4 1/2............................. Share this post Link to post Share on other sites
Achto 26,573 #10 Posted August 20, 2019 48 minutes ago, XLT said: these rear wheels aren't even close to the right bolt pattern... anyone know off the top of their head what the bolt pattern is? The early 's used a 5 bolt rim on a 3 bolt hub. I think that '64 was the last year that they did this. 2 Share this post Link to post Share on other sites
oliver2-44 8,854 #11 Posted August 20, 2019 (edited) Regarding your rear wheels, Wheelhorse used rims with a 5 bolt pattern, but the hubs use 3 of the 5 bolt pattern. So you rims, hubs look to be correct. ...They typed faster tham me. good to have another Texan on here, even if you are 8 hours away. Edited August 20, 2019 by oliver2-44 Share this post Link to post Share on other sites
Achto 26,573 #12 Posted August 20, 2019 3 hours ago, XLT said: any ideas as to what I have here? I believe that you have a 701 chassis. The fuel tank is from a different model. Share this post Link to post Share on other sites
XLT 13 #13 Posted August 20, 2019 I've read the parts are not as interchangeable as other years... any leads other than keeping an eye on ebay? Share this post Link to post Share on other sites
WHNJ701 4,164 #14 Posted August 20, 2019 7 minutes ago, XLT said: I've read the parts are not as interchangeable as other years... any leads other than keeping an eye on ebay? aside from the original 701 engine belt guard which is difficult to find, you already have most of the hard to find tractor components. Share this post Link to post Share on other sites
Retired Wrencher 4,880 #16 Posted August 21, 2019 XLT Enjoy the tractor and the project. You joined the right forum. Share this post Link to post Share on other sites
XLT 13 #17 Posted August 21, 2019 It also came with what I was told was the original motor... but at this point, may just be an old replacement... This originally had a 7hp briggs and stratton? 1" shaft? Share this post Link to post Share on other sites
XLT 13 #18 Posted August 21, 2019 Also, just for safety, is there a belt guard more readily available that I can put on until I find an original? Share this post Link to post Share on other sites
ri702bill 7,341 #19 Posted August 21, 2019 XLT: The belt guard from a 502 or 702 will fit - they will have the embossed shape for the "702" or "502" - the 701 does not. The left guard from a 502, 702, 753, 633?, or 854 will fit - they have a cutout for the parking brake - the 701 did not. 701 would have had a "straight" shift lever (no second bend to clear a HY2 Hydraulic unit. Original motor on a 701 is a Kohler 7 HP K161-S (with a double pulley setup for the Starter/Generator - no automatic compression release until 1962) The hood is solid - no grill (no the best idea, changed all models 1962 and later. Bill 1 Share this post Link to post Share on other sites
ZXT 2,394 #20 Posted August 22, 2019 Welcome from another Texan! Looks like I'm not the only 3 letter name person around here anymore! Haha. What are your plans with the tractor? WH's are pretty scarce anywhere in Texas. Your best source of parts will be here and on eBay.. Also keep an eye on your local craigslist and FB marketplace. Things do pop up from time to time. Share this post Link to post Share on other sites
XLT 13 #21 Posted August 22, 2019 Full restoration not really on the table at this point... hoping to get it up to "useful tool" level. Restoration would be great, and may be in the future. Ordered a new shifter, since this one is broken off... in one gear or another. Garden tractors as a whole are not common in Texas, apparently, but my property is barely big enough to turn a full size tractor around in.... so this is perfect size. I am not sure what motor was included as the "original" but it has no pulleys on it, and the charging system is absent entirely. It is a 1" shaft, so that part is at least correct, I think. Share this post Link to post Share on other sites
XLT 13 #22 Posted August 22, 2019 In fact, this one didn't technically come from Texas, either... I picked it up out of a yard in Anthony, NM Share this post Link to post Share on other sites

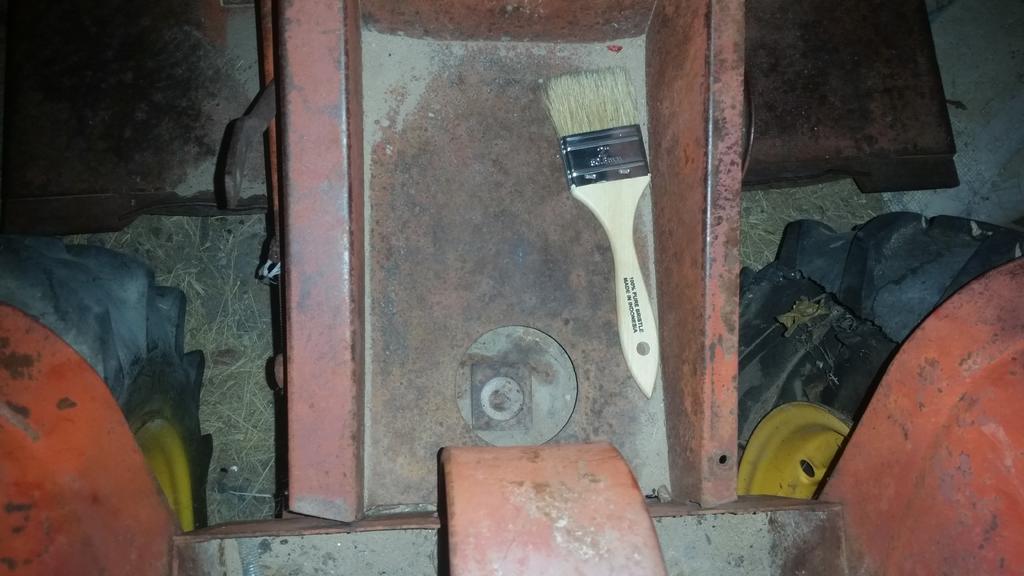

XLT 13 #23 Posted August 22, 2019 Doesn't seem to move... brushed it out and soaked with PB blaster... I can likely weld a rod on there to pull it out, but I'm not sure that the dog point screw isn't broken off in there somewhere Opinions? Share this post Link to post Share on other sites
XLT 13 #24 Posted August 22, 2019 And I have a new shift lever on its way... I just need to get this out. Share this post Link to post Share on other sites
The Tuul Crib 7,332 #25 Posted August 22, 2019 Is that sand on top? I so you might want to open it up before you run it. Share this post Link to post Share on other sites
