C101 8 speed transmission brake shaft oil leak

Recommended Posts

klink

Hi Guys

  I recently bought a C101 tractor at an auction. One of the defects is the transmission oil leak at the brake shaft. I'm looking for oil seal replacement help. Such as do I need to split the transmission and if so which side of the transmission should I face down in the vise in order to lift the other half up to open. Is there any other items to replace while I'm repairing the transmission? Any and all advice help is welcome. I got the tractor running after installing a new set of points.



Share this post


Link to post
Share on other sites

ebinmaine

Nice find.



You do not need to remove the transmission to get that seal out.



I'm not very good at verbalizing what I do to take one of those seals out but basically I use 1/4 inch screwdriver and kind of smash into the seal and then use the holes that I've made as my leverage points.

There are others that use a regular seal puller and that is probably the better way to do it but I don't have one nor do I know how to use it.

Be sure to thoroughly clean or better yet replace the brake shoe.

Share this post


Link to post
Share on other sites

The Tuul Crib

I would be real careful also of the needle

bearing  immediately behind the seal. I have destroyed one before . A small screw

driver with a small hook on the end should

do the trick.put grease on the shaft and seal and use a socket a little bigger than the shaft to gently tap it  back in place.

Good luck!



oh and  :text-welcomeconfetti:to

:rs:

Edited by The Tool Crib
  • Like 1

Share this post


Link to post
Share on other sites

klink

Thanks Guys for getting back to me.

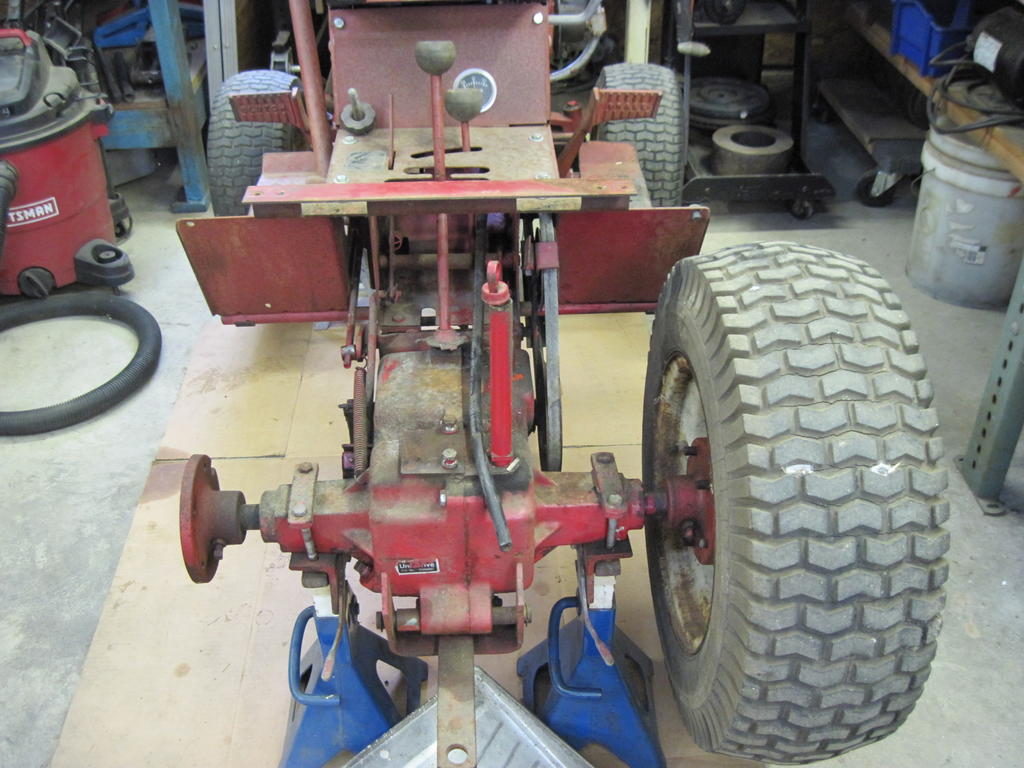

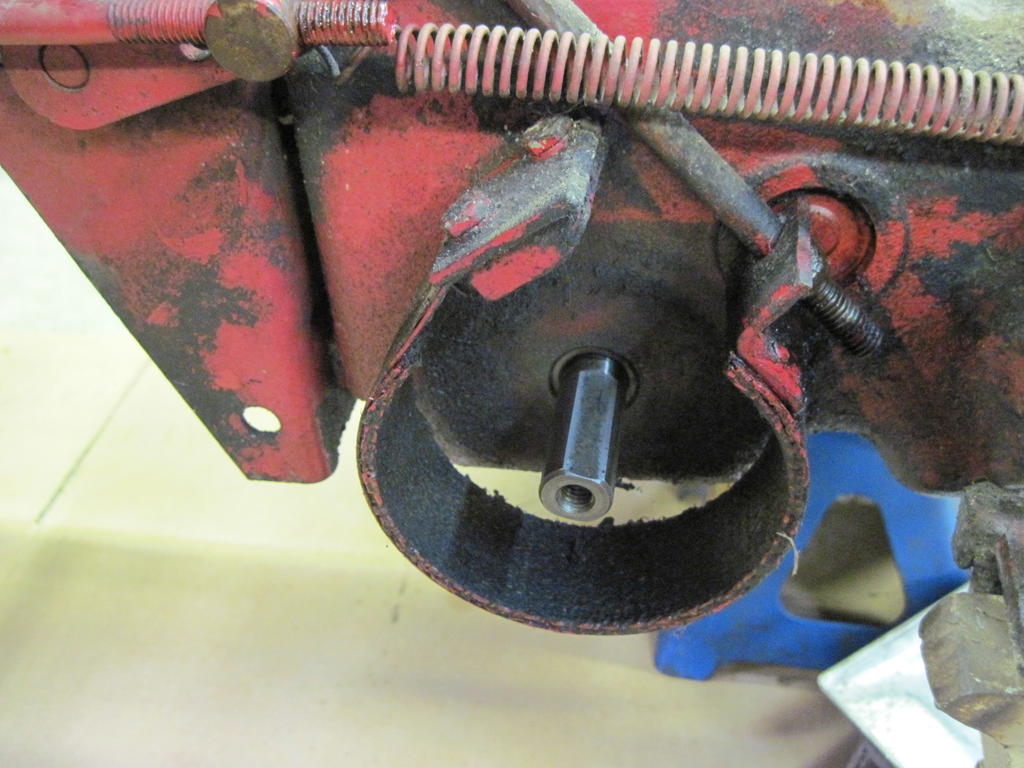

drained oil out of trans-axle. Then I got the old oil seal out by drilling 3 small holes in the outer metal part of the oil seal and picked out with a scribe tool. I will be buying a new seal soon. I also put on a new main shift rod rubber boot.

Thanks

Edited by klink
update
  • Like 2

Share this post


Link to post
Share on other sites

klink

I bought 2 seals, but only needed the one. I got the new oil seal and brake drum installed. I may have more questions in the future as I go through the restoration of the C-101.  Thank you for your support.

  • Excellent 2
  • Thanks 1

Share this post


Link to post
Share on other sites

ebinmaine
1 minute ago, klink said:

 I may have more questions in the future as I go through the restoration of the C-101.  Thank you for your support.

That's what we're all here for!



  • Like 1

Share this post


Link to post
Share on other sites

moe1965

If you are that far I would also replace the axle seals as well

  • Like 1

Share this post


Link to post
Share on other sites

George Gadach

 I also have an transmission oil leak at the brake shaft differential case. The 8 speed C-101 mower transmission is an Eaton Uni Drive. Can somebody provide info where I can purchase the seal?

Share this post


Link to post
Share on other sites

ebinmaine
1 hour ago, George Gadach said:

 I also have an transmission oil leak at the brake shaft differential case. The 8 speed C-101 mower transmission is an Eaton Uni Drive. Can somebody provide info where I can purchase the seal?

George, you can find a seal cross reference thread pinned at the top of the transmission section.

That'll have what you need to bring a number to your local parts store.



Or.....

You can contact our own vendor... Wheelhorsepartsandmore.com



Lowell and Joette will fix you right up.





Share this post


Link to post
Share on other sites

stevasaurus

Are you sure you have an Eaton transmission in a manual tractor??  :eusa-think:  All the Eatons are in auto horses.  You should have the Wheel Horse #103916   brake shaft seal is SKF 7410.

  • Like 2

Share this post


Link to post
Share on other sites

klink

IMG_3322.JPG.895006855a2db0cd7b2fd01901a26772.JPGIMG_3321.JPG.c0683d3b62da9ad40edfff5da9c489b4.JPGHi Guys

   Sorry for not getting back with after restoration pics, I know that I enjoy pics of all other tractors. So here is 3 pics of winter storage. I hope to get some more out to you this coming spring. BTW, on warm winter days I go around my 2 storage barns and take turns starting and running all my tractors, so as to keep them from long storage engine problems,IMG_3323.JPG.acd2f220935823bb8e76c8319d71bc34.JPG along with fuel stabilizers.

  • Like 2
  • Excellent 1
  • Thanks 1

Share this post


Link to post
Share on other sites

ebinmaine
12 minutes ago, klink said:

stabilizers

Stabilizers are great. Do you have access to non ethanol fuel?





Thanks for sharing those pics!!





Share this post


Link to post
Share on other sites

klink

Yes, I do have access to non ethanol fuel and last summer [2019] I started using non ethanol fuel in my older garden tractors. Now concerning newer Garden tractors, such as my John Deere X540 & X580 mowing tractors, I'm not sure if I should use it in them, since they were engineered with non ethanol fuel in mind. I also use non ethanol in my little 2017 walk behind Simplicity snow blower for 2 1/2 years. I use it in my old classic farm tractors. I think it is the way to go.

Share this post


Link to post
Share on other sites

ebinmaine
2 minutes ago, klink said:

they were engineered with non ethanol fuel in mind

They were engineered to "tolerate"  it longer than pre E engines.

The seals and gaskets are more resistant to it's damage.



Still shouldn't use it.

It will still do damage to aluminum and ethanol pearls will still have the capability of clogging up the fuel system.



  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

buckeyes

I personally use non ethanol in all my tractors. Generally anything that is carbureted. I don't even like running ethanol in any vehicle that wasn't designed to use it (E-85 compliant). But that is just my opinion.

Edited by buckeyes
  • Excellent 1

Share this post


Link to post
Share on other sites
