jimbo7921

Hi there was looking to fab up the trigger or handle that u use to swivel the plow. Was wondering if anybody had dimensions of that part. Thx for your time. Jim

Share this post


Link to post
Share on other sites

The Tool Crib

:text-welcomeconfetti:to:rs:



:wwp:!!

Share this post


Link to post
Share on other sites

SPINJIM

I needed that part a few months ago, and found one on ebay.   It wasn't worth the trouble of trying to fabricate one myself.

I think that there is still one available, brand new, on ebay.    Good luck.

   Jim

  • Like 2

Share this post


Link to post
Share on other sites

pfrederi

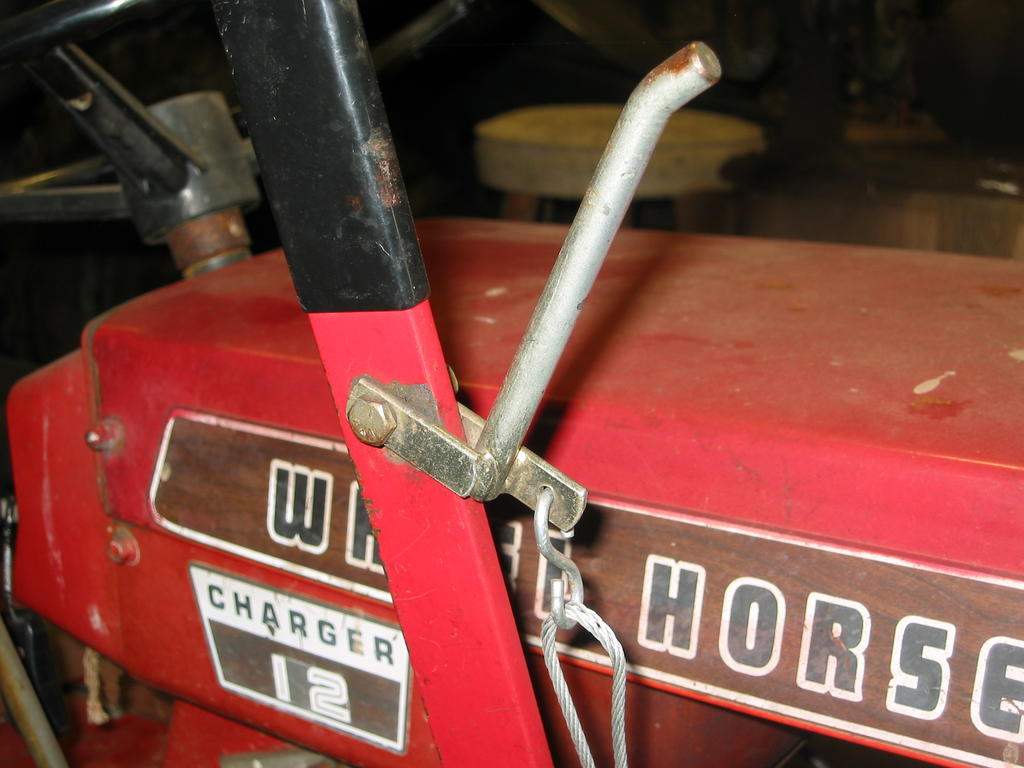

Rod is 3/8" x 4-3/4"



Inner tab is 1/2  x 2-3/8"

Outer tab is 1/2 x 1-1/2"







  • Like 1

Share this post


Link to post
Share on other sites

jimbo7921

Thx fir the picks and dimensions pfrederi. Thx for the suggestion jim but i work in a fab shop so the $45 on ebay is a little rich for me.

  • Like 1

Share this post


Link to post
Share on other sites

cleat

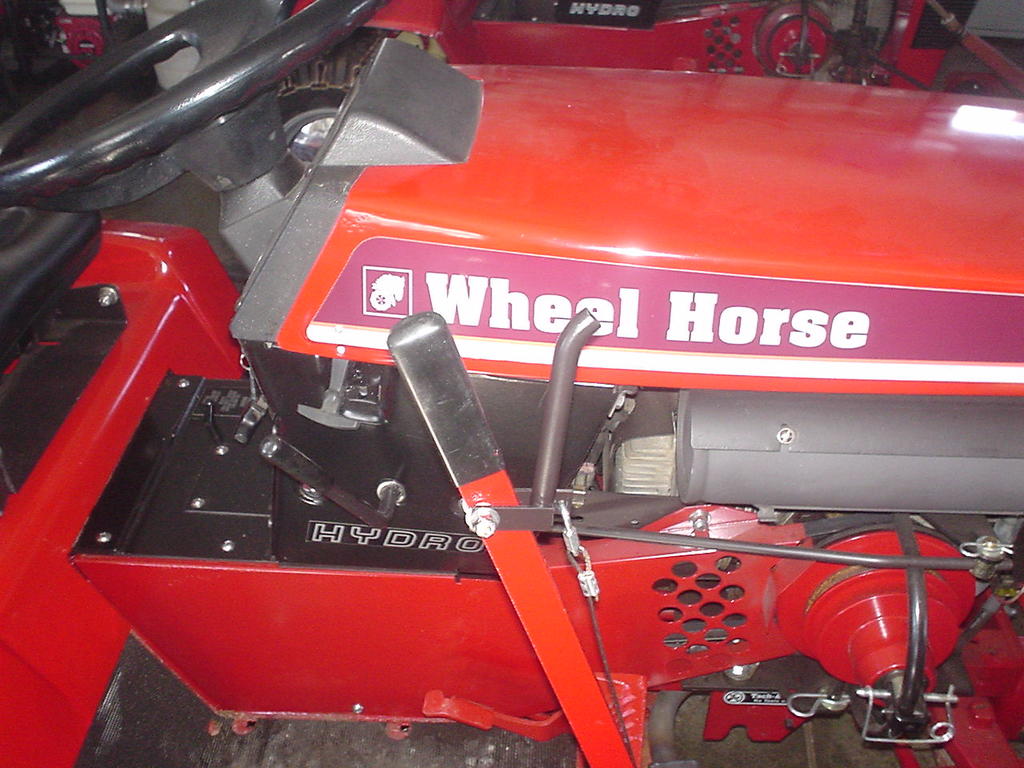

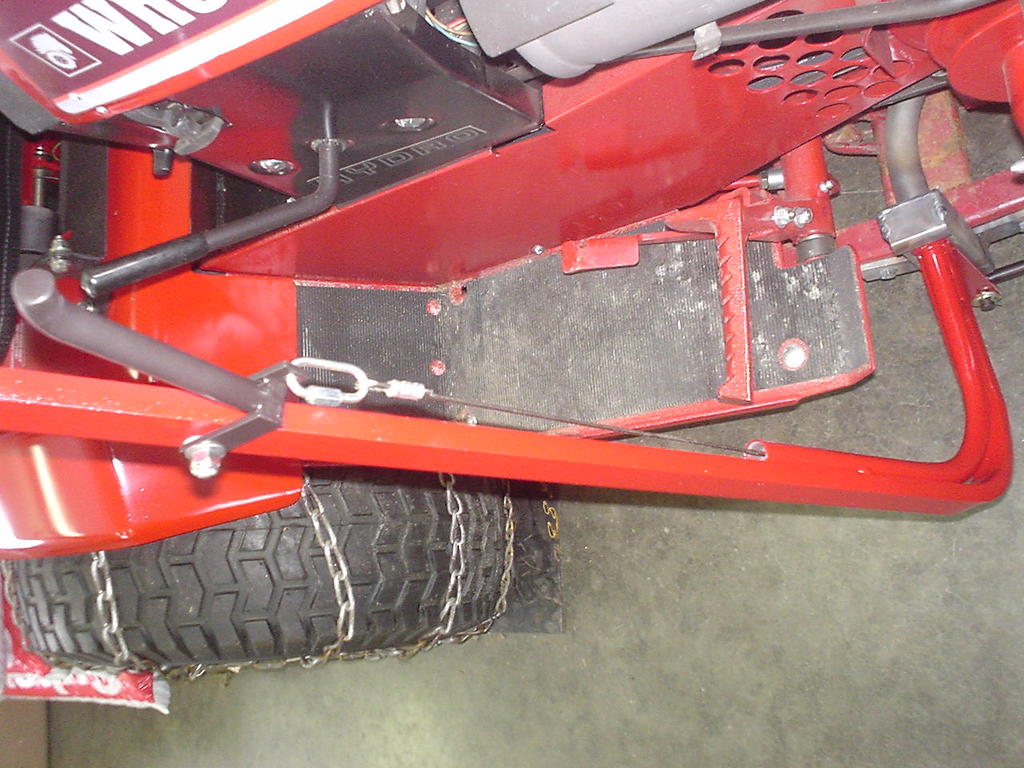

This is how I built mine.



Snow blade turn handle overview.pdf

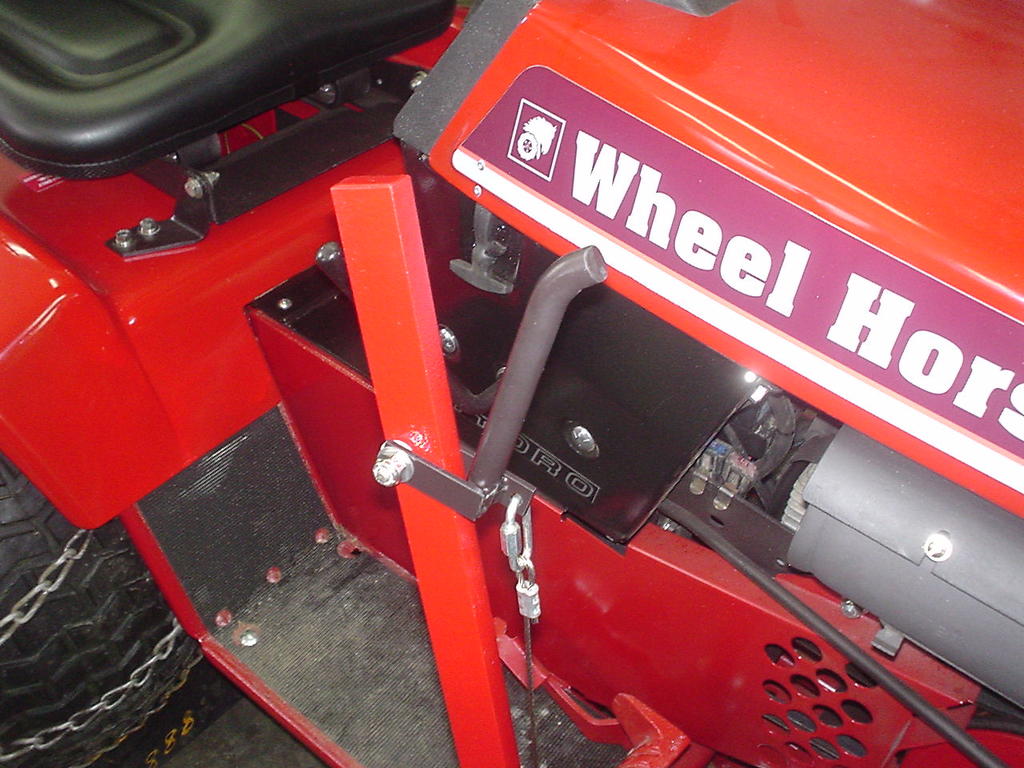

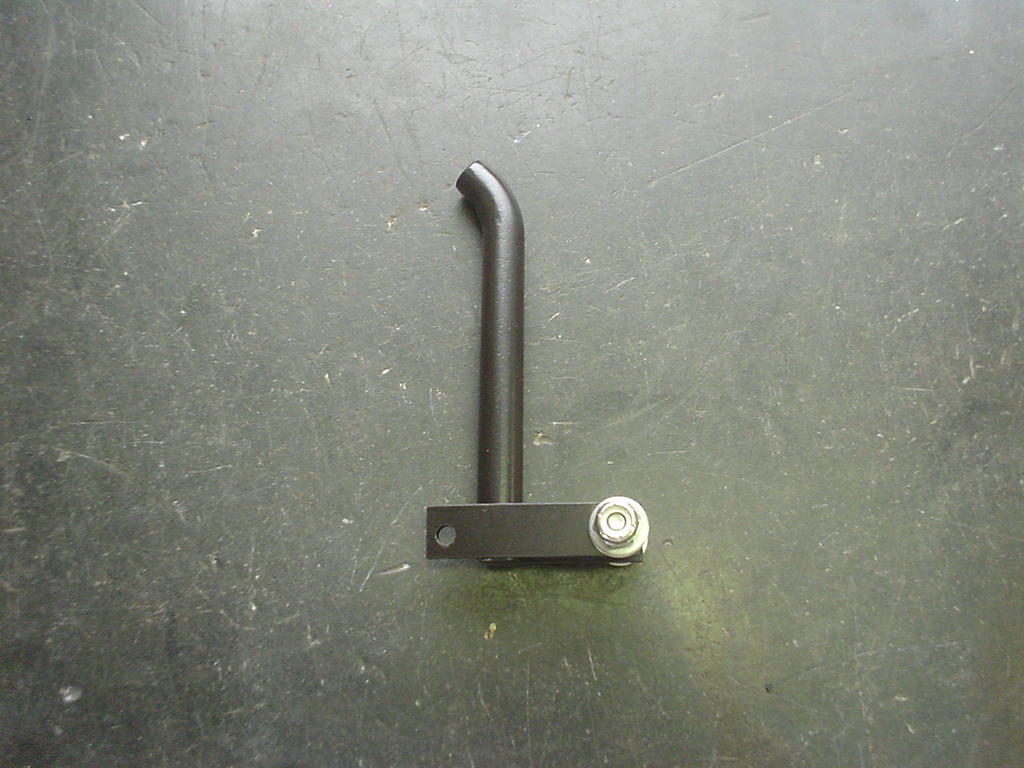

1090921779_Bladeturnhandlereleaseleverinstalled.jpg.736720115e1a0825c277c5b112dda204.jpg
