Vinylguy 4,670 #1 Posted December 19, 2018 @Stevebo gave me an idea to change these decals so the original stamping would show through. Because I am powder coating the engine tin on my 857 I was able to use my own spec plate to experiment with. The good news is this will also save time and material as I can make them in groups of six because they will all be the same with no need for set up of spec and serial numbers. 3 10 Share this post Link to post Share on other sites
WHNJ701 4,164 #2 Posted December 19, 2018 that's a great idea, I know I can use one Share this post Link to post Share on other sites
Mike'sHorseBarn 2,912 #3 Posted December 19, 2018 AWESOME IDEA!!!!!!! Share this post Link to post Share on other sites
Vinylguy 4,670 #6 Posted December 19, 2018 Now what I need are images of other K series spec plates to verify valve settings and get all these correct before listing. If anyone has or can take a close up image and post back to this thread I will be very grateful. Thank You Terry Share this post Link to post Share on other sites

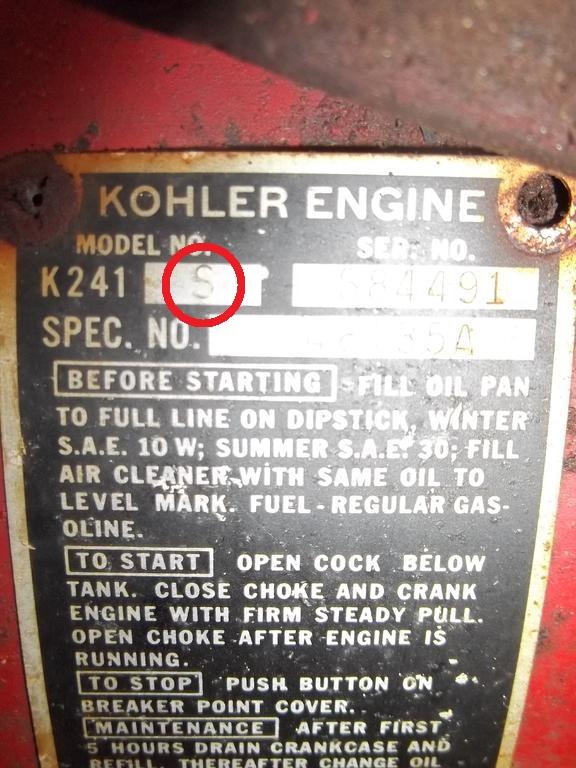

Mike'sHorseBarn 2,912 #7 Posted December 20, 2018 Here is one of a K241. I thought I had a lot more on my computer/phone, but I don't. I can get you K91, K90 & K161 if no one beats me to it. I don't currently own anything bigger than a k241, how sad 1 Share this post Link to post Share on other sites
Vinylguy 4,670 #8 Posted December 20, 2018 10 minutes ago, Mike'sHorseBarn said: Here is one of a K241. I thought I had a lot more on my computer/phone, but I don't. I can get you K91, K90 & K161 if no one beats me to it. I don't currently own anything bigger than a k241, how sad Thanks Mike This is very helpful. It seems there were 2 variations of the k241 plates? I will post back with a picture comparing both that I have found. Share this post Link to post Share on other sites
Vinylguy 4,670 #9 Posted December 20, 2018 It appears that the left image is for older pull start kohler engines? Did any Wheel Horse tractors have pull start 10 horse? I have much more to learn before listing these new plate decals Share this post Link to post Share on other sites
953 nut 54,038 #10 Posted December 20, 2018 Terry, here is another 241, it is a long tag and had to do it in two photos. I also have one of a K-90. 1 Share this post Link to post Share on other sites
Vinylguy 4,670 #11 Posted December 20, 2018 (edited) 11 minutes ago, 953 nut said: Terry, here is another 241, it is a long tag and had to do it in two photos. I also have one of a K-90. Thanks 953nut What was this K241 motor used on? Edited December 20, 2018 by Vinylguy 1 Share this post Link to post Share on other sites
953 nut 54,038 #12 Posted December 20, 2018 1 minute ago, Vinylguy said: Thanks Dick What was this K241 motor used on? You know that my handle is 953 nut! The engine was on an early production 953. The K-90 was on a 1957 RJ-35 Share this post Link to post Share on other sites
Vinylguy 4,670 #13 Posted December 20, 2018 (edited) 4 minutes ago, 953 nut said: You know that my handle is 953 nut! The engine was on an early production 953. The K-90 was on a 1957 RJ-35 Sorry 953nut I did not know they were pull start. Again I have so much to learn. I do have a K90 template and your image will help me verify I have it correct. Thanks again Edited December 20, 2018 by Vinylguy Share this post Link to post Share on other sites
Mike'sHorseBarn 2,912 #14 Posted December 20, 2018 I don't believe the K241 was ever offered in Recoil start. However the difference in the early production engines may be that they weren't fully 10hp. I believe the early k241's such as the one on 953 were advertised as being 9.5hp. 1 Share this post Link to post Share on other sites
953 nut 54,038 #15 Posted December 20, 2018 They were a 9.6 HP on the 953 and 10 HP on the 1054. The "S" stamped in the plate indicates it was equipped with a starter from the factory. Share this post Link to post Share on other sites
WHNJ701 4,164 #16 Posted December 20, 2018 here are 3 k181s, note the one you can't read a decal/sticker would be nice! 1 Share this post Link to post Share on other sites
Vinylguy 4,670 #17 Posted December 20, 2018 Thanks I see a typo on my design for the k181s. .006 intake I have .060 Will fix this right away. 1 Share this post Link to post Share on other sites
ebinmaine 66,130 #18 Posted December 23, 2018 Terry, this is a photo of a mid-60s 10 horse. The engine is painted orange. Maybe off of a Jacobsen? This one is a Wheelhorse K341 from a 1977 C160. Hopefully you can zoom in on it a little bit. 1 Share this post Link to post Share on other sites
Vinylguy 4,670 #19 Posted December 30, 2018 On 12/20/2018 at 3:17 PM, 953 nut said: They were a 9.6 HP on the 953 and 10 HP on the 1054. The "S" stamped in the plate indicates it was equipped with a starter from the factory. That is what confuses me @953 nut. If it had a starter from the factory why would they use recoil start and stop instructions? I have listed the decal for the K181S but need to make sure on the others before listing them. If someone has a K241 plate that they can scan and email it would be very helpful to get the cut away areas correctly sized? Thanks for all your feedback guys. https://www.redoyourhorse.com/kohler-k181s-engine-spec-plate-decal/ 1 Share this post Link to post Share on other sites
ebinmaine 66,130 #20 Posted December 30, 2018 4 minutes ago, Vinylguy said: If someone has a K241 plate that they can scan and email it would be very helpful to get the cut away areas correctly sized? Terry, would the one in the above picture help you? It isn't in particularly good shape and... I do realize that's not a Wheelhorse but I don't know if it makes any difference. It appears to be fastened with flat head screws so I could take it off and have Trina send a scan to you. Share this post Link to post Share on other sites
953 nut 54,038 #21 Posted December 30, 2018 39 minutes ago, Vinylguy said: I have listed the decal for the K181S but need to make sure on the others before listing them. If someone has a K241 plate that they can scan and email it would be very helpful to get the cut away areas correctly sized? I will do that Monday. 1 Share this post Link to post Share on other sites
Vinylguy 4,670 #22 Posted December 30, 2018 34 minutes ago, ebinmaine said: Terry, would the one in the above picture help you? It isn't in particularly good shape and... I do realize that's not a Wheelhorse but I don't know if it makes any difference. It appears to be fastened with flat head screws so I could take it off and have Trina send a scan to you. If it is not off a wheel horse that would explain why I see a few differences in the copy. I appreciate your help but I want to make sure it will work on a kohler 241s that was made for Wheel Horse. Thanks Eric. 1 Share this post Link to post Share on other sites
Vinylguy 4,670 #23 Posted December 30, 2018 (edited) anyone out there that has an 87 414-8? I need to verify the idiot light location on the upper dash panel. Some had the seat switch at the top location with the parking brake light below it in second position and some models had the parking brake light at the top position? Actually any and all pictures of 300 and 400 dashes will be much appreciated. Will need to know the year of the tractor it is on also? Edited December 30, 2018 by Vinylguy Share this post Link to post Share on other sites
953 nut 54,038 #24 Posted December 31, 2018 22 hours ago, Vinylguy said: I have listed the decal for the K181S but need to make sure on the others before listing them. If someone has a K241 plate that they can scan and email it would be very helpful to get the cut away areas correctly sized? Here it is Terry Share this post Link to post Share on other sites
