44" 2-Stage Assembly Questions

Recommended Posts

WHMan2012

I see there are a lot of threads on this site about these Snow Blowers, but can't seem to find good detailed photos on ( From Ground Up Assembly ! ). I was able to pick my model # 79361 up back in July and I'm glad I did, because this poor thing needed major attention all around. From missing a bunch of parts / pieces ( that I found out later on ! ) to a bent up impeller, rusted and a cracked tub. Until now I've only had the single stage snow throwers, but always wanted the 2-stage, because I help the neighbors out around me. One gentleman who's an elderly Veteran, another women who suffers from Lyme disease and the elderly lady across from us who just lost her Veteran husband last Spring and being a Veteran myself, I wouldn't think of saying no, as would any descent person. So, anyways when I got the call on this unit, I jumped ( Too Fast, I think lol ! ), right on it, due to the fact I've been searching since last Fall. Anyways, I have the PDF manual, but it's either too dark or too light or doesn't give a good enough for me description of where certain parts go. Any help or guidance would be greatly appreciated, thank you for your time in advance.

  • Like 1

Share this post


Link to post
Share on other sites

gwest_ca

These later manuals should be good copies but don't know if there were subtle changes made to the unit. Click on the pictures and download from that page

Garry

  • Like 1

Share this post


Link to post
Share on other sites

Kurt-NEPA

I bought a basket case two stage for my 520H.  I ended up doing a complete rebuild. It was well worth the effort, this blower is fantastic.  Take it one step at a time and post questions here, we can help.

I recommend replacing the auger shaft bearings with cam lock bearings.  Not expensive and a great upgrade.  Also consider paddle extensions on the impeller, it really helps throw the snow.



I have lots of pictures of mine, post if you need some.



Good luck with your project.  Keep us posted with lots of pictures, we love pictures.

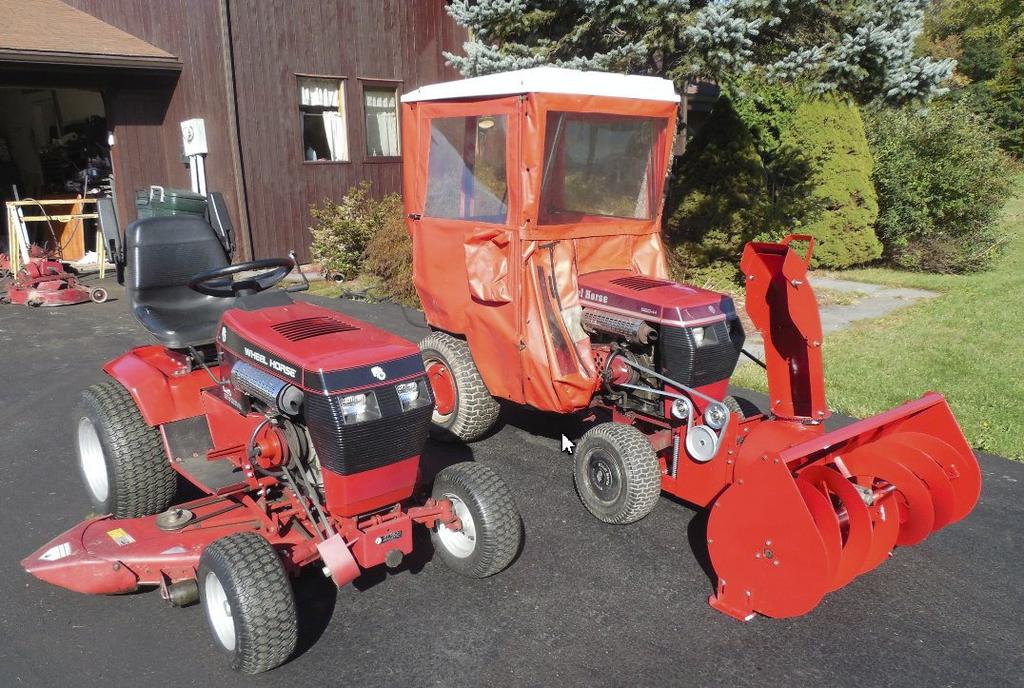

My two stage


  • Like 2

Share this post


Link to post
Share on other sites

WHMan2012

Where do I find the Paddle Extensions, who's selling them or are you guys making them up yourselves ? Thanks for the Downloadable file as well, I'll be working on it some more this weekend, hoping to get it finished or spinning over by Thanksgiving. I ordered the cam lock bearings already, they should be here by Monday hopefully. Had a machinist down the street make me up a new main auger shaft, min was broke right on the shear pin hole and someone tried to weld it, but for a $100.00 I have no worries about that now. Where are you guys buying those spring loaded chain sprocket idlers from ? Thanks again, I'll post pictures this weekend and show you what I've been up against up here.

Share this post


Link to post
Share on other sites

Kurt-NEPA

I made my own paddle extensions from 1/8" steel with 1/16" clearance, but most use rubber sheet.  Secure them to impeller blades with screws.  Lots of videos on YouTube about this.



I usually use idler sprockets from Tractor Supply.  They are for #40 chain which is quite common.  I get the chain there too.  But lots of places on the net sell them.

Edited by Kurt-NEPA

Share this post


Link to post
Share on other sites

WVHillbilly520H
4 hours ago, WHMan2012 said:

Where do I find the Paddle Extensions, who's selling them or are you guys making them up yourselves ?

https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F291664407065.     Looks like this after installed, and mine was also basically a basket case when I bought it.



  • Like 2

Share this post


Link to post
Share on other sites

Kurt-NEPA
5 hours ago, WHMan2012 said:

Where do I find the Paddle Extensions, who's selling them or are you guys making them up yourselves ?

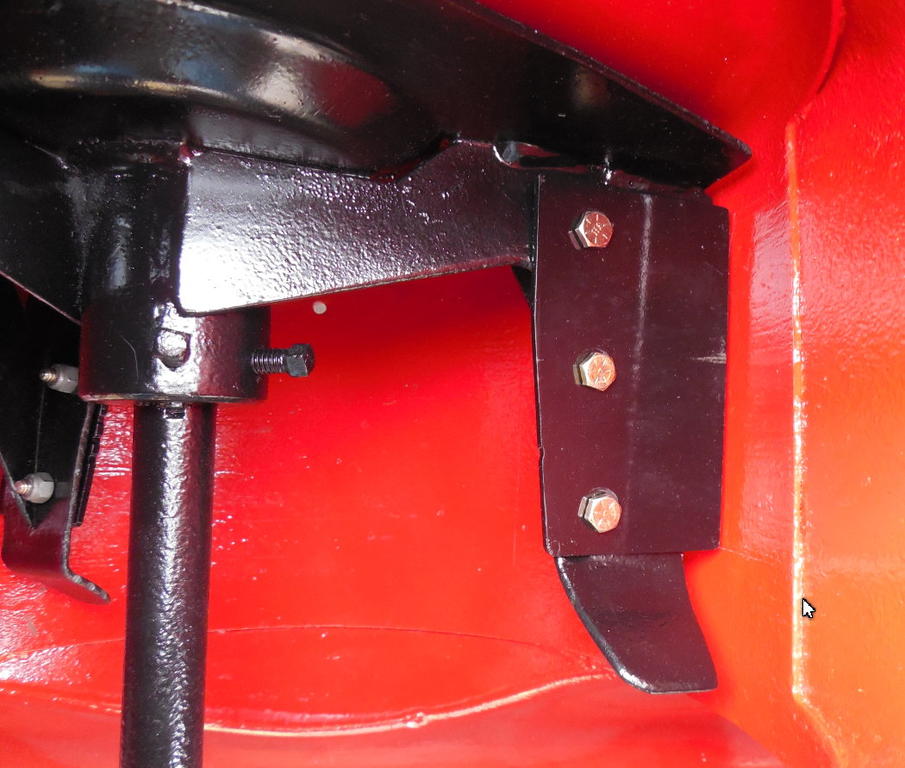

Here is a picture of my metal impeller paddle extensions.  Most use rubber for this, but I'm a metal guy.






Mine at work




  • Like 3

Share this post


Link to post
Share on other sites

WHMan2012

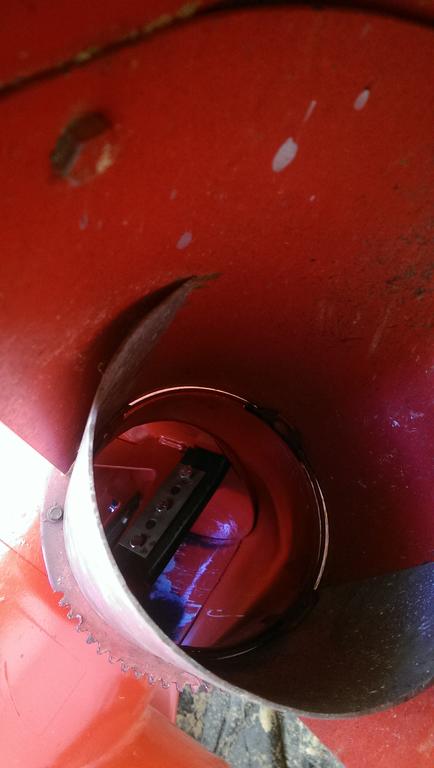

That last photo is what I'm hoping for. The metal extensions didn't mess with the impeller as far as vibrations ? I'll check TSC tomorrow for the idler sprocket. I noticed that you also installed a piece of sheet metal inside your shute and I have two questions for you. Did a make a world of difference no matter what kind of snow ( Wet or Fluffy ) and the other question is how did you anchor it in there / ( Weld or Bolts ? ). One more question I have is, I saw that some other tractors have the turn/ lock cable control on their shute deflector ( up or down motion ) so they can stay seated during operation. Has anyone come up with anything similar for these tractors ? Thanks again the help and the photos, hopefully more playing less shoveling this Winter.

Share this post


Link to post
Share on other sites

Kurt-NEPA
1 hour ago, WHMan2012 said:

That last photo is what I'm hoping for. The metal extensions didn't mess with the impeller as far as vibrations ?



I was concerned about that too.  So I was careful that the thee extensions are exactly the same size and the bolts are in the same place.  In the end, the vibration stayed about the same as it was before.  Later I added a center support to the auger gear box and that took almost all of the vibration out of the auger.




  • Like 3
  • Excellent 2

Share this post


Link to post
Share on other sites

WHMan2012

I was thinking about doing this as well, surprised they didn't come through with this support in place or as an option at least. Where you guys during the production meetings lol. The pictures you guys post really help out as well and I do thank you for taking the time to post them. One part that I'm still missing is the lift control / spring assist mount that sits in the front tach-matic .  I think I can make one ok if I had a few measurements and a good photo of one so I can get the angles right, but if someone out there has a spare, let me know your price and shipping and hopefully we can work something out. I also had my machinist friend down the street make up a new set of steering linkages for my tractor out of some tool steel and new swivels. The old ones didn't look like they were going to be up for the task of hauling the weight of the blower around this Winter.

Share this post


Link to post
Share on other sites

Kurt-NEPA
16 minutes ago, WHMan2012 said:

One part that I'm still missing is the lift control / spring assist mount that sits in the front tach-matic .

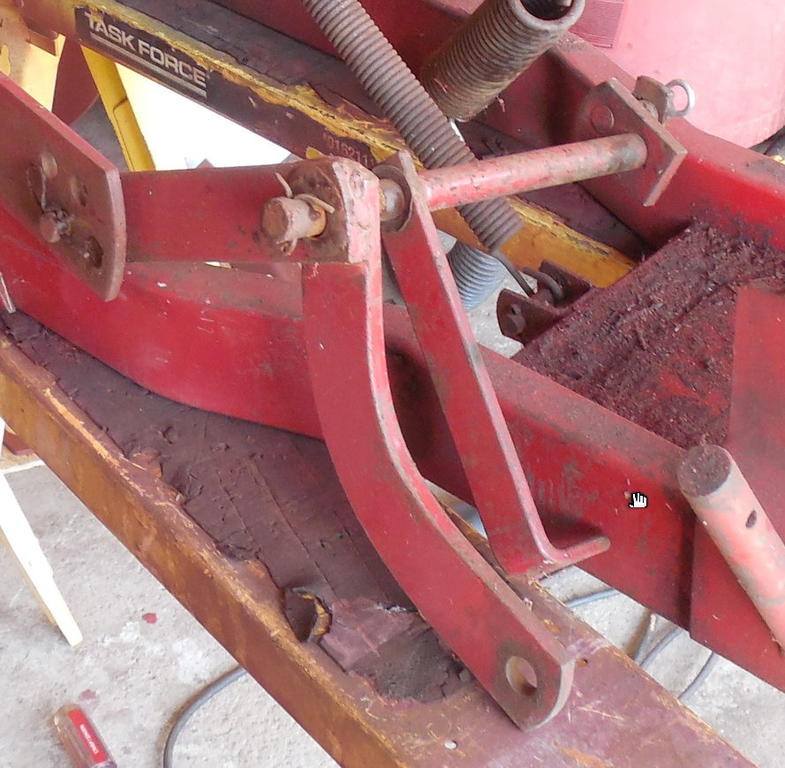

Is this the part you need?  This is from my blower, so I don't have a spare, but I might be able to get some dimensions.1964420972_TwoStageLiftArm.jpg.896df9cc4da49dc3b87b493d96c93f10.jpg

  • Like 1

Share this post


Link to post
Share on other sites

WHMan2012

Yes, Please And Thank You, I'd really appreciate that, thanks for taking the time to do this.

Share this post


Link to post
Share on other sites

Kurt-NEPA
5 hours ago, WHMan2012 said:

Yes, Please And Thank You, I'd really appreciate that, thanks for taking the time to do this.



I will see what I can measure.  Can't get to it until tomorrow.

Share this post


Link to post
Share on other sites

WHMan2012

Ok, not a problem. I have enough to do until then. Tomorrow I'm bringing my cam lock bearings down to my machinist so he can make the spacers I need to install the bearings with. I can't believe all the help and knowledge I've already had so far, thanks again to everyone, it's greatly appreciated.

Share this post


Link to post
Share on other sites

Kurt-NEPA

Sorry to take so long responding, Yesterday got crazy.  Anyway, here is a picture and some chicken sketches.  Hope they help.  If I missed a dimension, just ask and I'll see what I can measure.  This is a tricky part to get accurate numbers on, especially when its mounted.  I did the best I could.



Good Luck



1525639287_LiftCrank.jpg.bb5b4adc77e660f122f7849f9aff2334.jpg1.jpg.674f5c2155ac209af20609aabd4dad09.jpg2.jpg.3689e2f2ba620a2c56ce915637aea4ce.jpg

  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

WHMan2012

WOW !!! Thank You For Such A Detailed Drawing, I really Appreciate It. I'll Be Making One This Weekend. I'll be dropping off the bearings today to have parts machined up so I can install my auger hopefully this weekend as well. then I can work on the paddle extensions before I place the shute back on. I'm finding that the small stuff, ie: nuts, bolts, washers, pins etc.. add up fast. lol.

  • Like 1

Share this post


Link to post
Share on other sites

Kurt-NEPA
4 hours ago, WHMan2012 said:

WOW !!! Thank You For Such A Detailed Drawing, I really Appreciate It. I'll Be Making One This Weekend. I'll be dropping off the bearings today to have parts machined up so I can install my auger hopefully this weekend as well. then I can work on the paddle extensions before I place the shute back on. I'm finding that the small stuff, ie: nuts, bolts, washers, pins etc.. add up fast. lol.



Let me know if I missed something.......

Share this post


Link to post
Share on other sites

WHMan2012

You sent more than I need, Thank you very much for taking the time and with great detail, I really appreciate it. Now I can make one this weekend and from the sounds of it, I should have the spacers by the end of the week so I can start assembling / installing the auger parts back together as well.

  • Like 1

Share this post


Link to post
Share on other sites

WHMan2012

Hey Guys, Just Wanted To Send An Update On The Assembly Process. After A Long Unforgiving Hunting Season And Holidays, I know Will Have The Time This Weekend To Start The Assembly. I Just Ordered The Rubber Paddle Extensions, Which I Saw In Another Thread. Tomorrow I'll Run Into TSC And Grab A Few Pounds Of Grade 5 Bolts, Nuts, Etc.. ( Still Looking For That Chain Idler ! ). So Hopefully Saturday Am I Can Start Making This Pile Of Metal On My Garage Floor, Bench, Shelves, Etc... LOL Look Like A Snow Blower Again. I'll Post Photos As I Go If Anyone Has Any Suggestions On Making Things Work Easier Or Go Smoother, Please Feel Free To Post Your Advice Right Here. Thanks Again For The Guys Who Already Posted With Their Help, I Do Appreciate It.

Share this post


Link to post
Share on other sites

WHMan2012

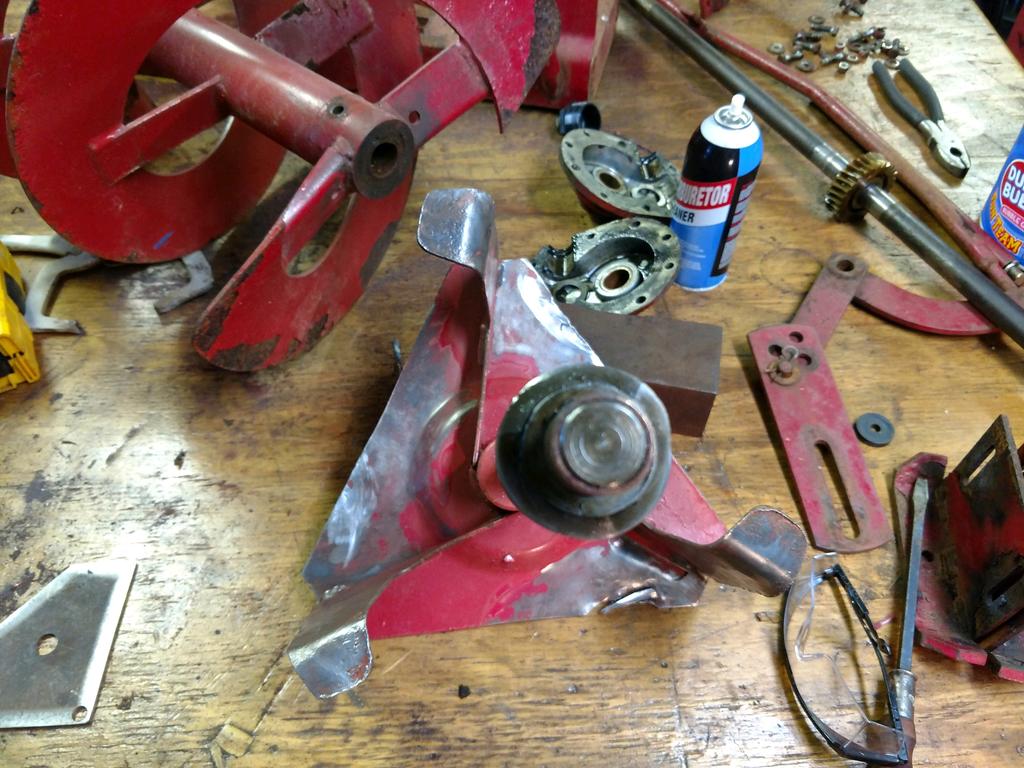

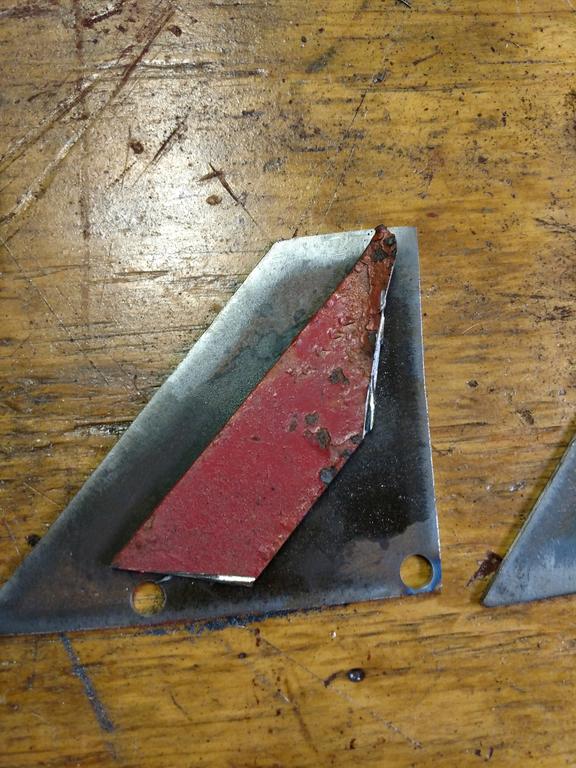

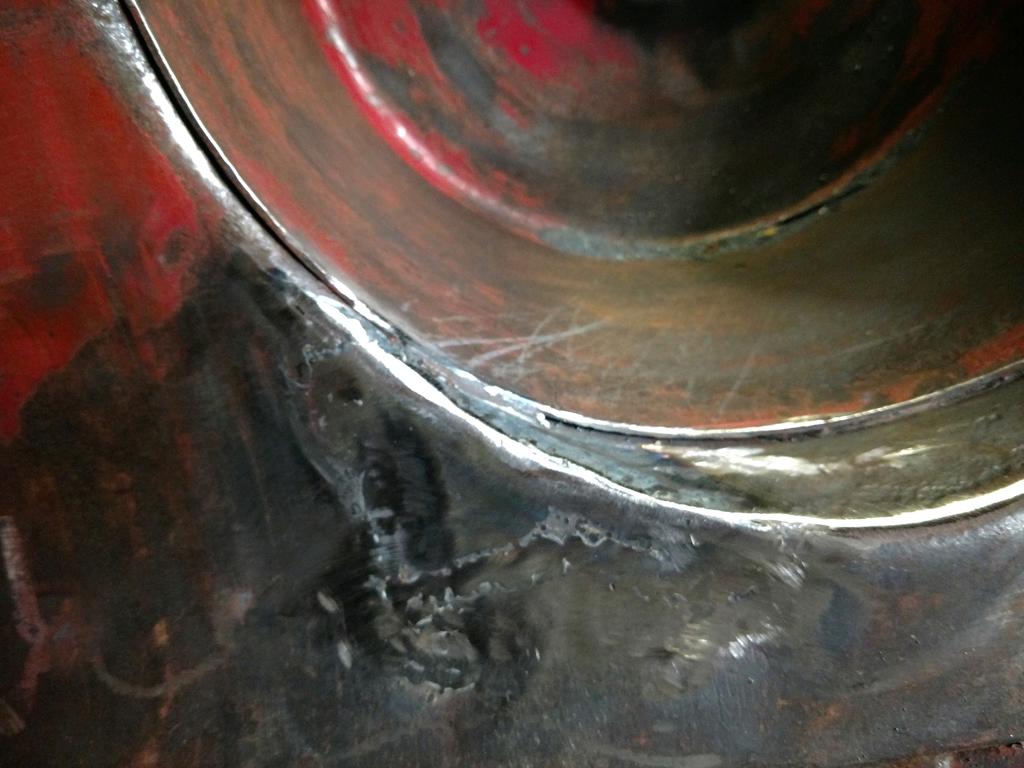

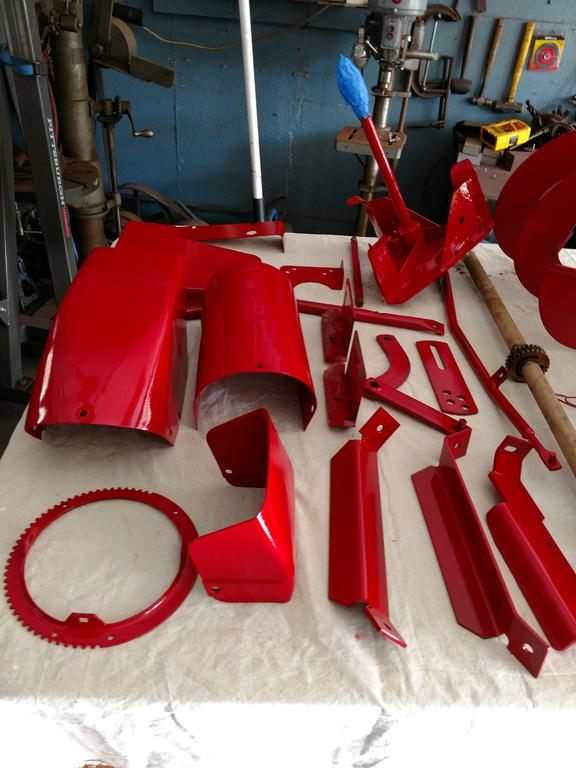

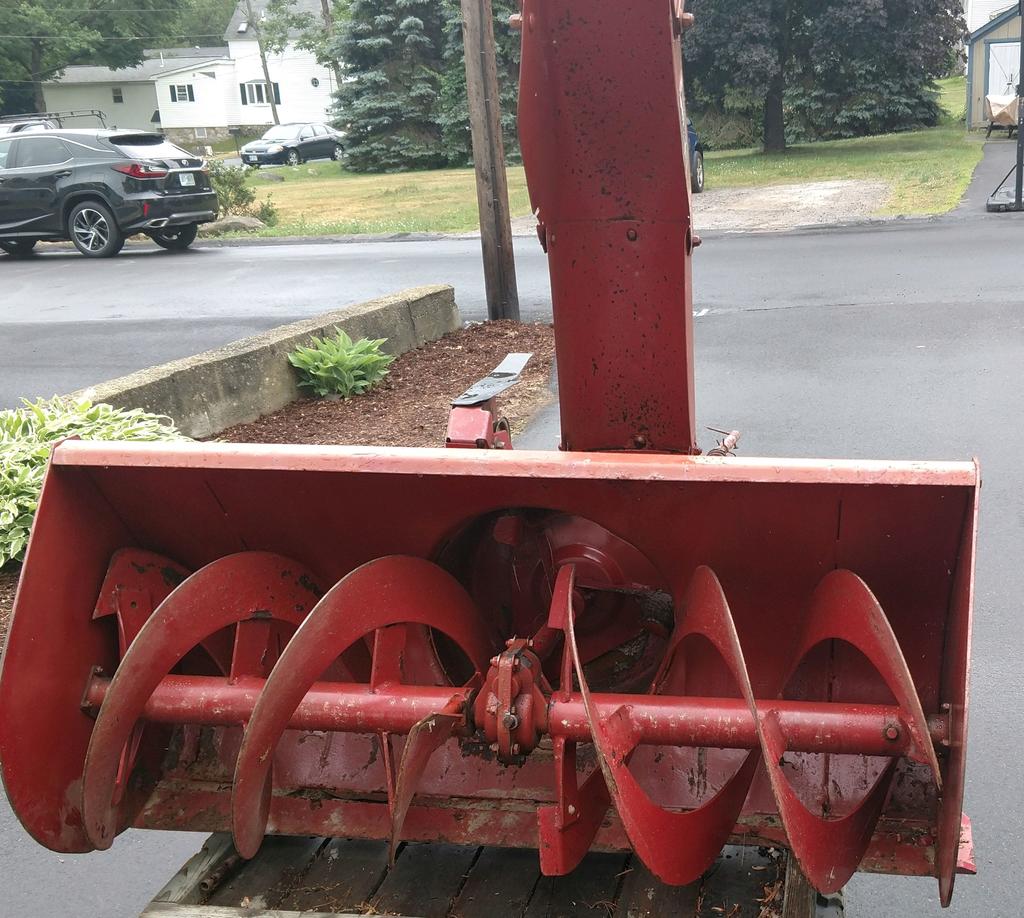

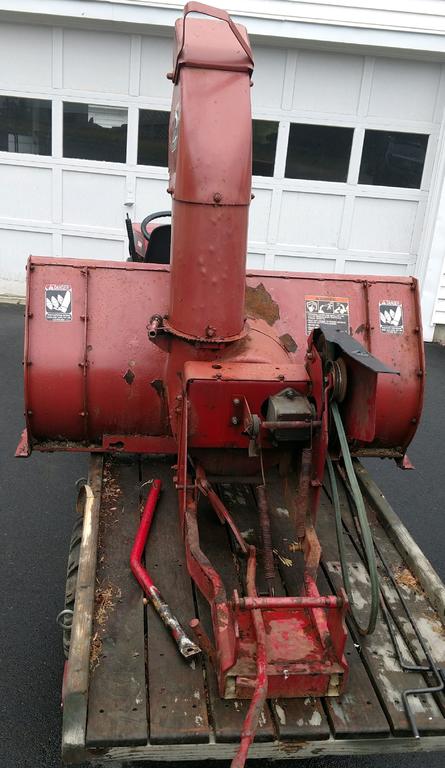

Okay, So Here's What I Bought Back In July Of Last Year.IMG_20180623_142241672_BURST000_COVER_TOP.thumb.jpg.867405e9f59dc375661df86bd503fdb8.jpgIMG_20180623_142254341.jpg.9abc190bae9423e6f8acd0cbafecb63d.jpgIMG_20181008_121139291.jpg.9a655f7c2dca06abba252bc798323d7e.jpgIMG_20181008_121148898.jpg.09d2c23efc433171976b8ebfe8900ec7.jpgIMG_20181011_135829025.jpg.17fa600bcd7eac1dc12590e029f9e6ed.jpg

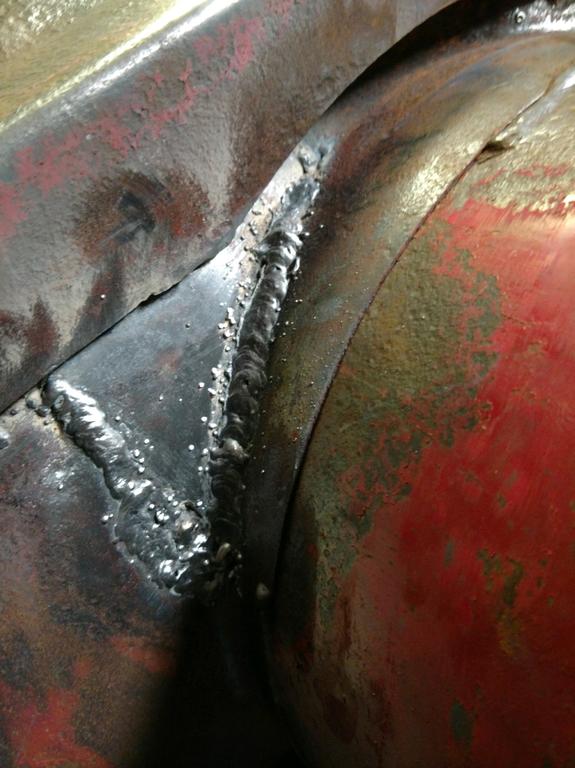

IMG_20181013_181809245 (2).jpg

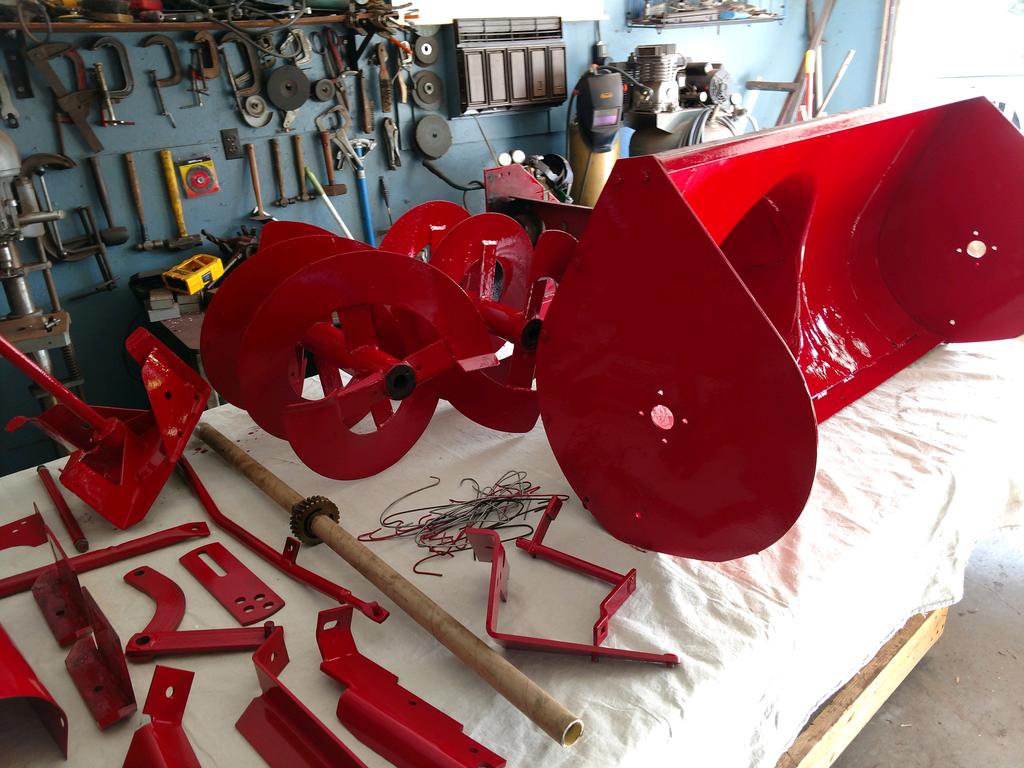

IMG_20181025_134444330 (1).jpg

  • Like 2
  • Excellent 1

Share this post


Link to post
Share on other sites

WHMan2012

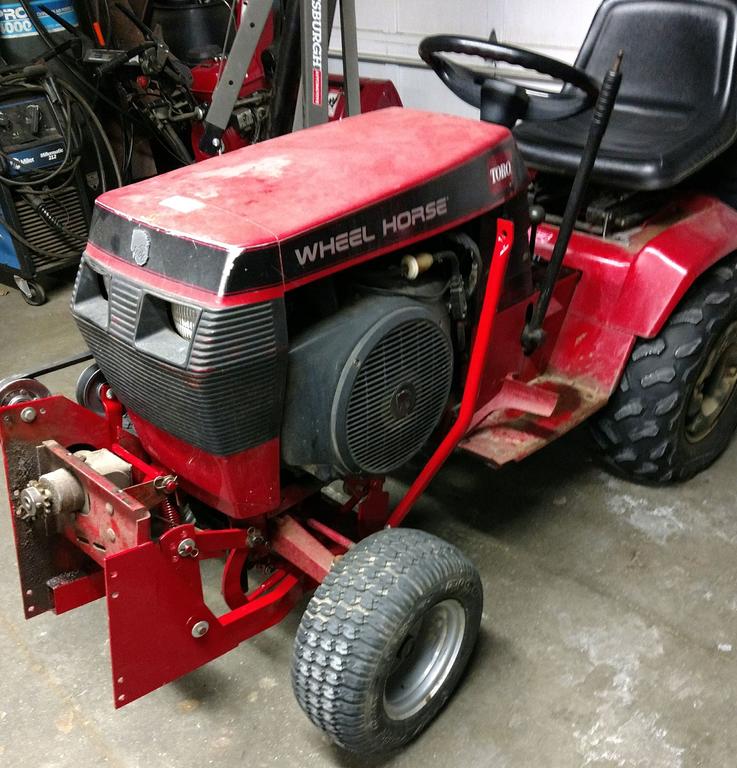

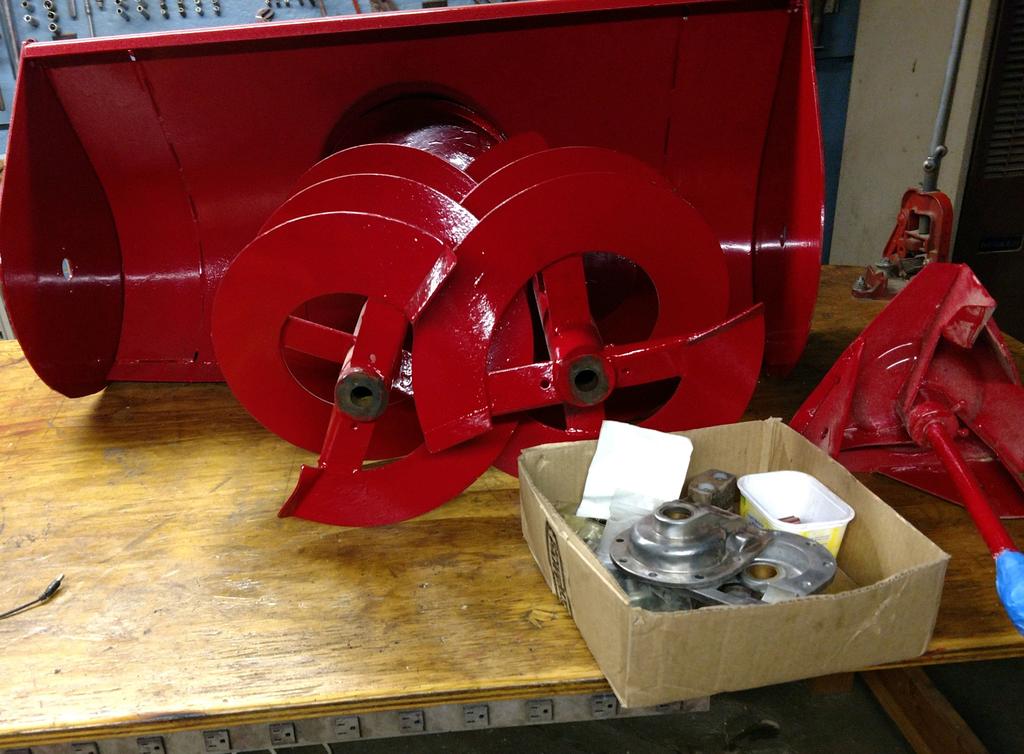

And This Is Where I am At After This Weekend …. IMG_20190112_173415413.jpg.0d15aa830ed9bf2fcbb84173423a3dab.jpgIMG_20190112_173400833.jpg.0db93af508a3bb622aee0c60d6a825cd.jpgIMG_20190113_181741114.jpg.59f4f991544508db230f6aeda586cfb5.jpg

  • Like 3
  • Excellent 3

Share this post


Link to post
Share on other sites

WHMan2012

Heard We're Finally Going To Get Some Snow This Weekend Up This Way, I Think I'll Be Ready By Then. I'll Send More Photos Later This Week.

  • Like 1

Share this post


Link to post
Share on other sites

mmmmmdonuts

Looking great. Keep up the great work! Can't wait to see the finished product

Share this post


Link to post
Share on other sites

Kurt-NEPA

Nice job WHMan.  You sure did put a lot of work into the beast.  It will be worth it.

Share this post


Link to post
Share on other sites

WHX24

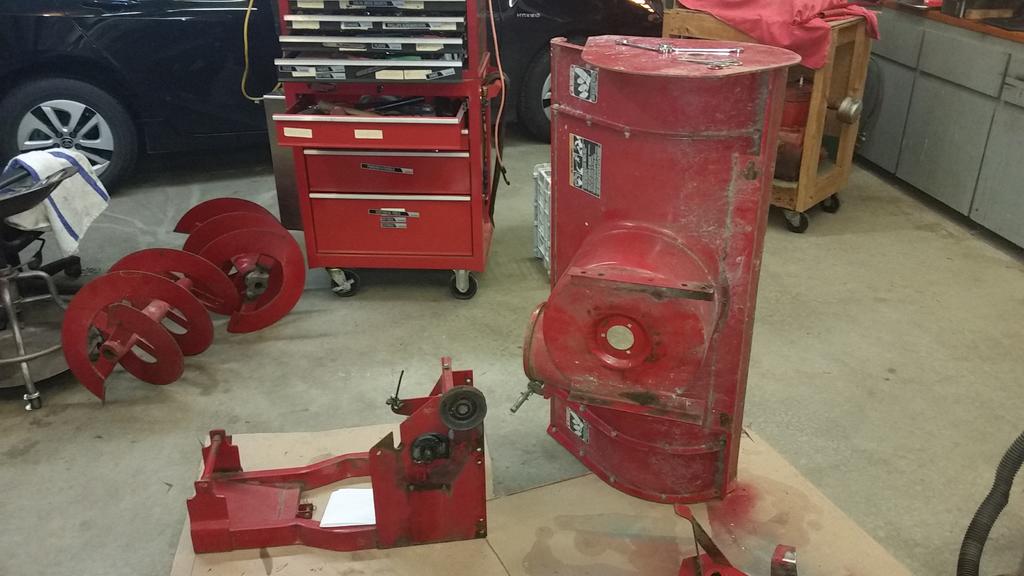

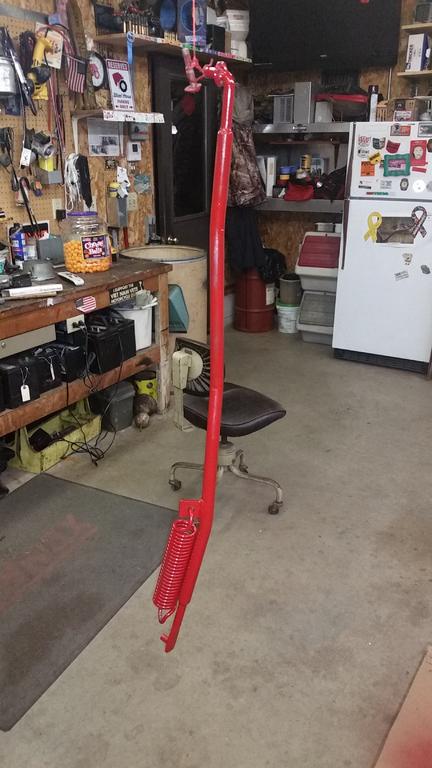

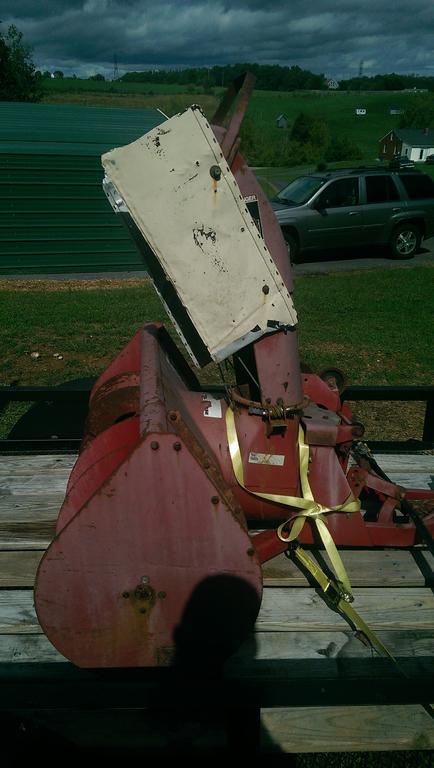

Holy crap guy that's gonna be a tough act to follow... I barely scratched the surface yet! I need to get off my duff and get the gear box seals ordered. Fit up the auger bearings upgrade, finnish Kurt's gearbox strut, rubber paddle upgrade This is where I stand with mine. :blink: Got the new lift bar painted anyway! :lol:



  • Like 2
  • Haha 1
