Test switch??

Recommended Posts

Kasweld

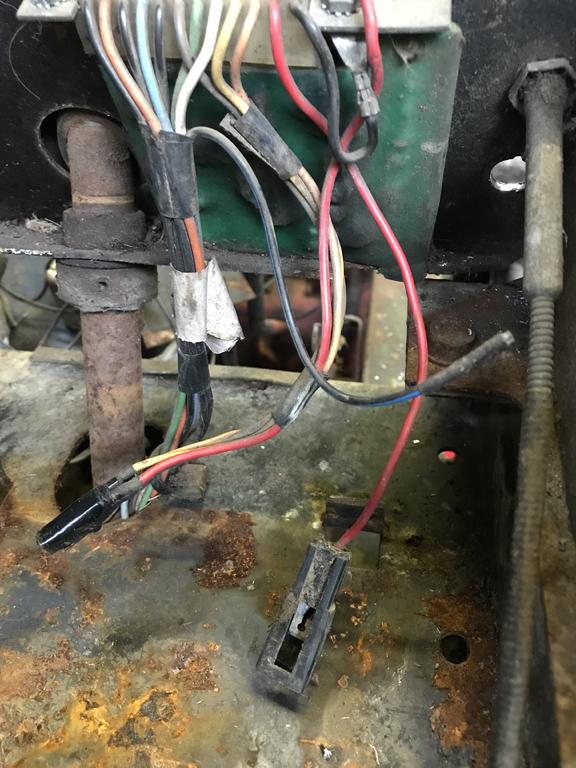

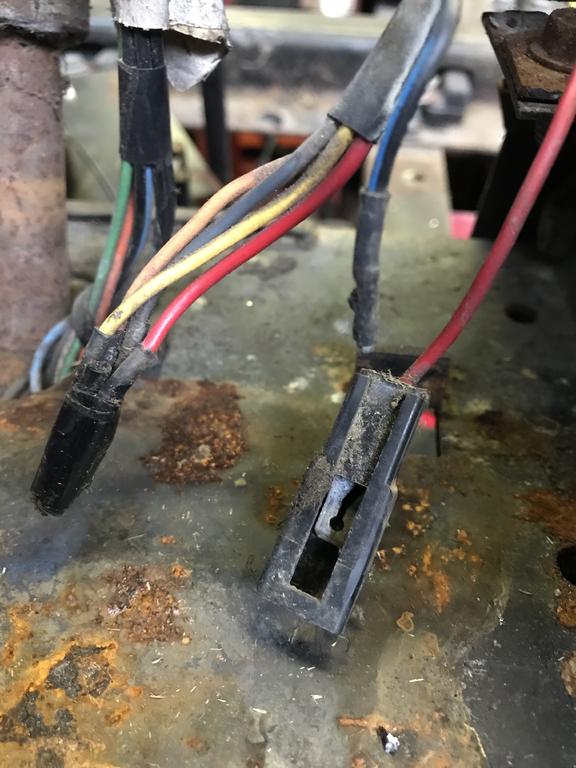

Ok guys, I’ve been sorting the wiring out and am stuck with these six,

think they are to do with the test switch, is there anyway I can connect up to a normal 2 pole flick switch and also which go to which

is the single red one direct to battery positive??

Any help much appreciated

Karl



Share this post


Link to post
Share on other sites

Kasweld

Forgot to say it’s on a 312-8 have been told an 88-89 ish model

thanks

Share this post


Link to post
Share on other sites

Kasweld

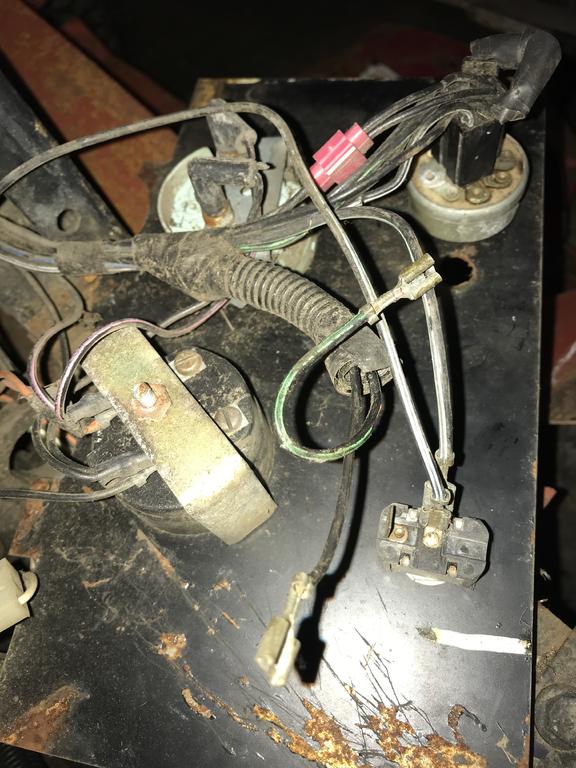

Also these two out of loom behind instrument panel


Share this post


Link to post
Share on other sites

Kasweld

Any help much appreciated thanks

Share this post


Link to post
Share on other sites

gwest_ca

Stared at this too long.

I think the red wire in the connector was fed from a 25 amp fuse.

The test switch has to be a double pole double throw momentary switch.

The black with blue strip might be the one going to the low oil circuit from the test switch along with the 4 taped together.



Something we have learned is the complete light panel can be disconnected and it will have no effect on the rest of the tractor.



On the last picture what it the switch behind the loose wires for? Headlamps?



Garry

Share this post


Link to post
Share on other sites

Kasweld
5 hours ago, gwest_ca said:

Stared at this too long.

I think the red wire in the connector was fed from a 25 amp fuse.

The test switch has to be a double pole double throw momentary switch.

The black with blue strip might be the one going to the low oil circuit from the test switch along with the 4 taped together.



Something we have learned is the complete light panel can be disconnected and it will have no effect on the rest of the tractor.



On the last picture what it the switch behind the loose wires for? Headlamps?



Garry

Yeah the switch is the head light switch

so should be ok to leave the wires taped up and not connect the test switch

thanks

Share this post


Link to post
Share on other sites

Kasweld

So you think the red wire should be connected to battery positive with inline fuse?

Thanks

Share this post


Link to post
Share on other sites

953 nut
20 hours ago, gwest_ca said:

we have learned is the complete light panel can be disconnected and it will have no effect on the rest of the tractor.

:text-yeahthat:     The wiring on the 310-8 is the same with the exception of not having those test lights, less useless parts to fail!

Tractor 1987-88 300 & 400 OM Wiring Pt3 #810473R1.pdf

Share this post


Link to post
Share on other sites

Kasweld

Thanks 953nut

  • Thanks 1

Share this post


Link to post
Share on other sites

gwest_ca
8 hours ago, Kasweld said:

So you think the red wire should be connected to battery positive with inline fuse?

Thanks

Looking at the diagram that red wire only feeds the indicator lights that no longer work so no need to hook it up either.



Garry

  • Like 1

Share this post


Link to post
Share on other sites

Kasweld

Ok thanks
