i bought this 1961 701 in fall of 2018 and restored it. I completed it in fall of 2019 and I wanted to show some pictures of before during and after I got it done. I did my research and tried to make this tractor as close to original as possible. The few exceptions are tires, wiring and the steering support. Not a perfect tractor but sure is nice enough for me.
all stainless hardware
Rustolium stops rust Primer
Rustolium Regal Red enamel paint
powder coated wheels and seat
Glenn Pettit Reproduction dash
By Lane Ranger
If anyone has a HL-5 Headlight setup on their Wheel Horse I would appreciate some help on getting the dimensions of the u-shaped pipe/tubing that the headlights attach to.

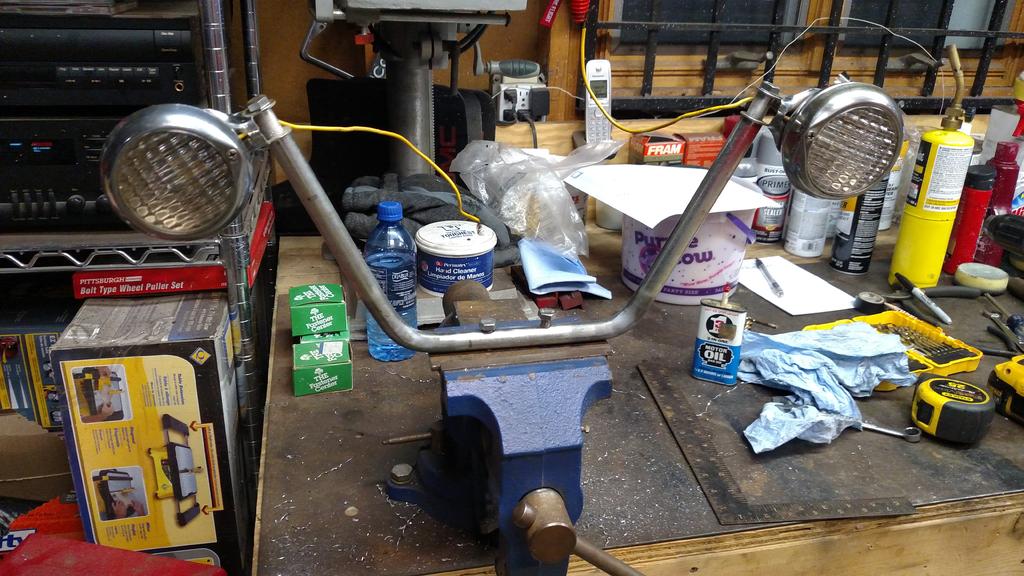

I decided that I can make a couple sets for our Lawn Rangers by using conduit and steel plate. I have some chrome headlights that will work with no probelm to the tubing.
The location of the muffler/exhaust on the tractor suggest the length of the tubing and angle has to be under ten inches to avoid any problem being close to the heat of the muffler and exhaust pipe.
Any help with this information would be appreciated.

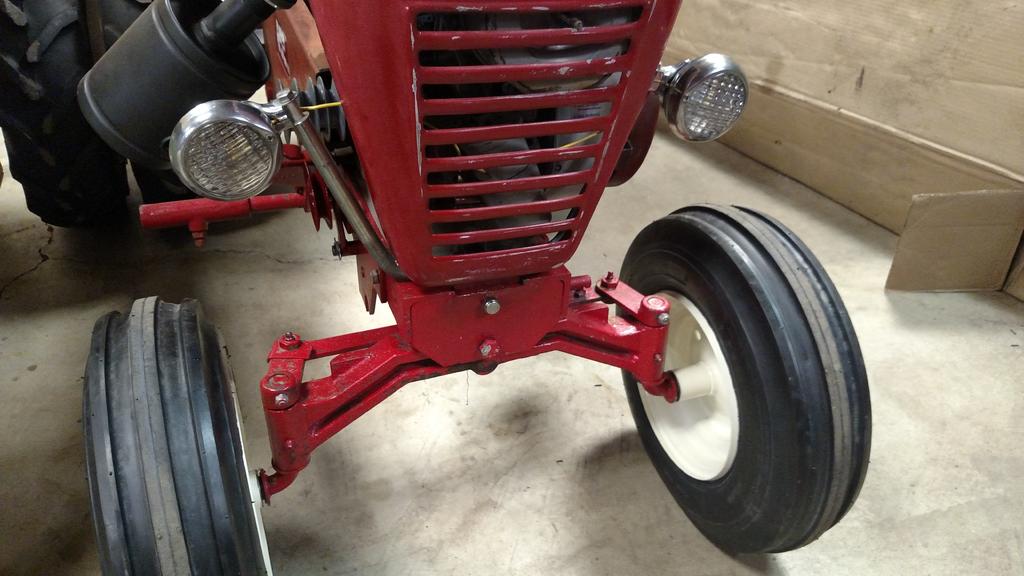

Added the first replica HL-5 today on the 653, the first of a couple of dozen in the works. They are not connected yet, working on a bracket for switch.
anybody here have a original wheel horse cyclopse light on any of your tractors ?
got pics ?.
