john7

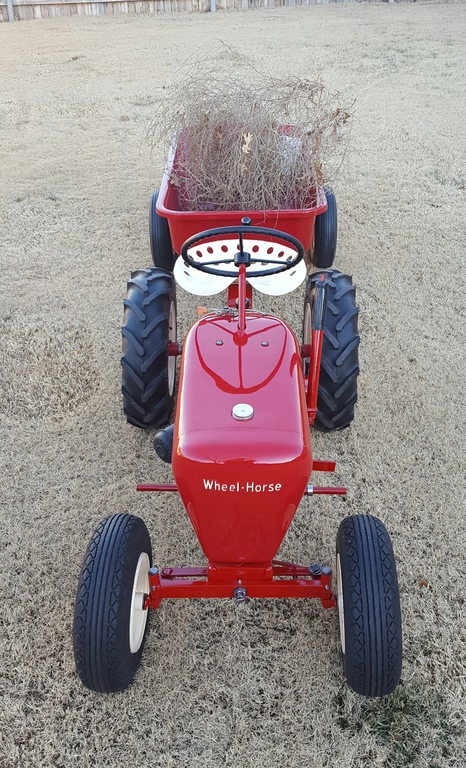

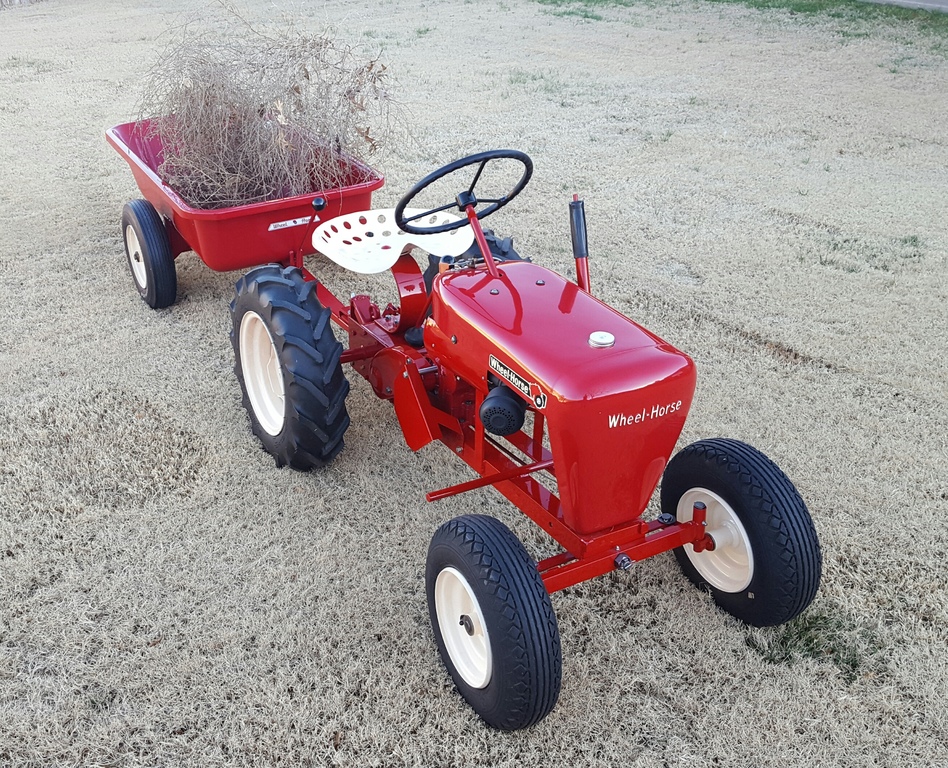

RJ58 with one heavy haul!

Recommended Posts


Sign in to follow this

  • Similar Content

    • Jennifer
      By Jennifer
      Needing someone that has one of these WT-30 tillers to please load pictures of the belt tension thingy!  We know there has been two at the big show one this past year another the year before!  Hopefully they are members here!  If so and you would be so kind to help us with this, Thanks in advance!  Husband is trying to get ours useable.  He got a 32" belt but something isn't going his way!  LOL!  Every thing we have gotten on this tiller shows a Kohler K91.  We have in fact a Clinton 1200 that runs fabulous!  The Tiller does not appear to have ever had red paint on it.  Engine and tiller paint match.  Also we are looking for the speed reduction to slow the tractor, CC-60 conversion assembly!  Thanks everyone!




    • Willlawre
      By Willlawre
      Looking to purchase a wheel horse that is complete runs and drives. Preferably an older model with rear hydraulics but also would consider a 520 series or other work machine.
    • CasualObserver
      By CasualObserver
      Operator manual
      Illustrated parts list
      6 pages 3.73MB

      Illustrated parts list #A-7136
      Includes PSB #023 #052 #058 #060 #080
      10 pages 938.48KB

      Engines used according to Toro
      Clinton B1290-1107
      Kohler K91-31307A
      Kohler K91-31388A
      Electric start kit
      Electric starter kit model EC-35 for Clinton engine - Listed for 1958 and 1959
      Electric starter kit model EK-35 for Kohler engine - Listed for 1958 and 1959

      6-12 tire chains model TC-12 - Listed for 1958 and 1959

      Seat cushion Foam rubber with imitation leather cover model FC-24 - Listed for 1958 and 1959

      Transmission drive belt 1567 - (4L x 29" or 1/2" x 29")

      Details & Attachments
      2 pages 107.33KB

      1958 model RJ-58
      1958 serial numbers that have shown up for the RJ-58
      Early models used Kohler K90T-27107D equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
      00005
      00251
      01099 - No casting date on trans. Leather gearshift boot, large, round rear wheel hubs, "slab" hitch, replacement engine
      01188 - Has round rear wheel hubs
      01516
      01768
      01789 - No casting date on trans. Leather gearshift boot, 3-ear triangular rear wheel hubs, "slab" hitch, Clinton engine with Schnacke recoil
      01797
      01871
      02525
      03177
      03501 - Located in UK
      03796 - Kohler K90T-27107D with serial 364044 equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
      04883
      04885
      05000
      05619
      05798
      06528 - May be 16528
      06771
      07633
      07649 - Transmission J12-8 October 12, 1958
      07725
      08440
      08612
      09284
      09337 - Hard to read
      11432
      11628 - # 3521 spline gear with 10 splines changed to 11 splines in 5003 and 5010 transmissions at serial # 11628 PSB #023
      11916
      12221 - B3-9 trans casting date - Kohler K91 engine with Schnacke recoil
      12291
      14713
      16097
      16528 - May be 06528
      166x6
      16868 - F4-9 trans casting date - Kohler K91 engine with Fairbanks recoil, solid pan seat without holes
      18348
      18500 and lower
      Late 1958 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
      ------------------------------------------------------------------------------------------------------------------

      Details & Attachments
      2 pages 106.94KB

      1959 model RJ-59
      1959 serial numbers that have shown up for the RJ-59
      Early 1959 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
      18501 and up - Possible 1100 units built
      20078 - Located in UK
      203xx
      21033
      292xx
      21900 - 1960 Suburban 400 began production at serial #21900 somewhere around Aug-Oct 1959.
      Late model RJ-59 tractors with a Kohler would have a K-91T-31388A with the Fairbanks recoil starter and paper air filter element. The 31388A was also used on the 1960 Suburban 400.
    • Jennifer
      By Jennifer
      The deck shell is over all pretty good!  It does have a wear hole on the top where they had the wrong pulley on it!!  On runner is missing.  That’s the deck and then there are a few of the deck parts!


×
×
