Snow plow/blade parts

Recommended Posts


oldredrider

So Jeff, are these for sale?

Share this post


Link to post
Share on other sites

WVHillbilly520H

Not at the moment, since I bought 2 more 520s I decided to make myself 2 rear hitches for them, the skid shoes I may have an extra set available later,Jeff.

Share this post


Link to post
Share on other sites

cschannuth

Jeff,



I'm in for a set of the skid shoes if you decide to start selling them.



Thanks,

Craig

Share this post


Link to post
Share on other sites

WVHillbilly520H

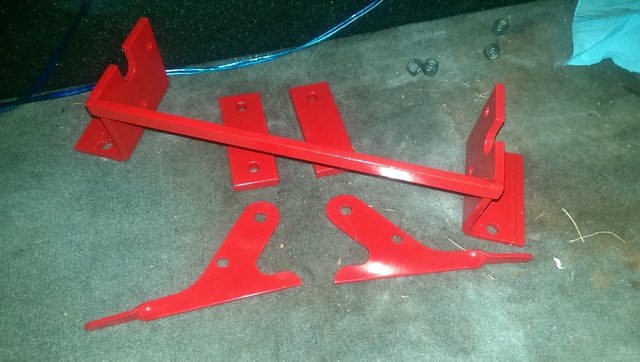

I'll let you all know, I used 1/4" wall 3"x8" rectangular tubing and cut to dimensions on a band saw then heated them with a torch while in a vice and bent them to the angle as close factory as I could get them then drilled 4 3/8" holes and finished the slots up in a milling machine,Jeff. Oh and I had the quick hitches powder coated (ruby red) here's pic ...


Edited by WVHillbilly520H
  • Like 3

Share this post


Link to post
Share on other sites

WVHillbilly520H

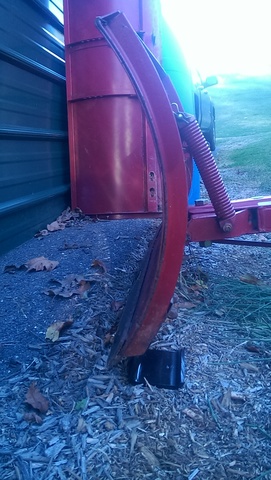

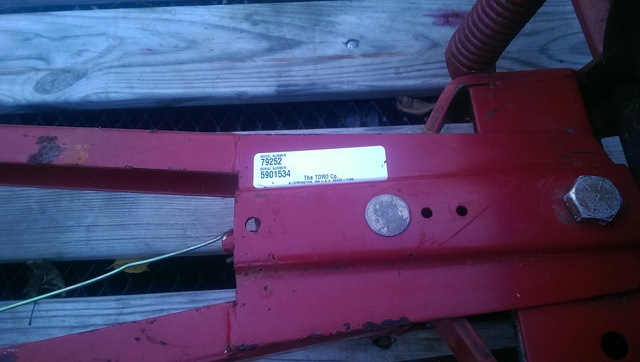

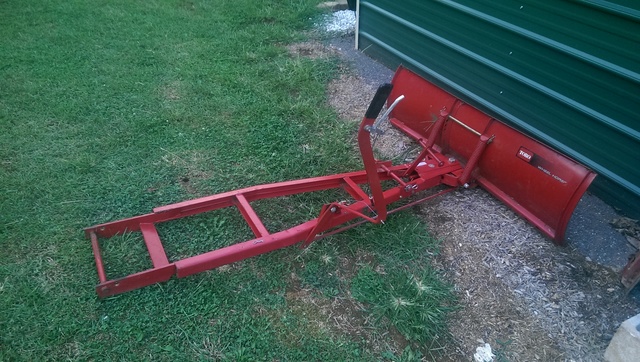

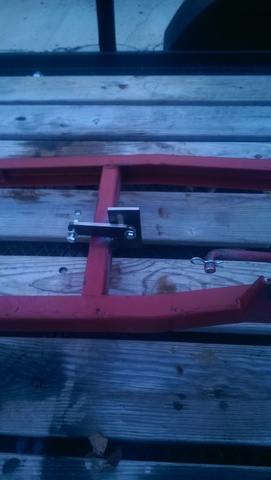

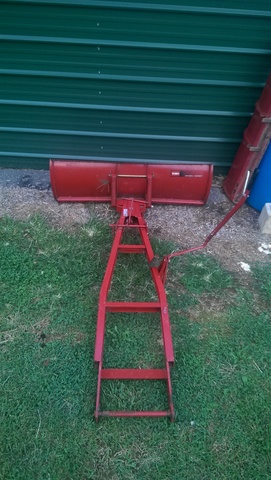

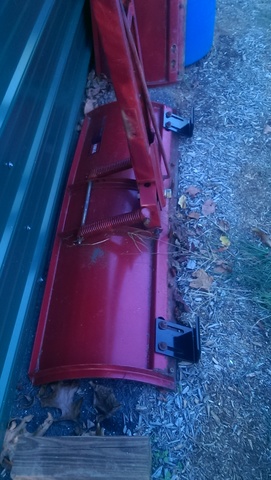

I just finished up converting the model 79252 plow that was originally for the 26x series lawn tractor over to install/hook up on the "classic" B,C,3-4-500 series tractors by stripping the original lift linkage off and welding in the center lift point/bar and rear quick hitch,Jeff.









  • Like 5

Share this post


Link to post
Share on other sites

Tankman

Very nice work! Great!



I often think, "Wish I was still in the shop."

Fab'd a lot of WH parts using (under the Rustoleum Regal Red paint) 316 SS.

  • Like 1

Share this post


Link to post
Share on other sites

WVHillbilly520H

Well last evening I sold the above snow plow to a friend at work who inherited his dad's bought new 418-8 with electric lift so I believe it went to good home,Jeff.

Share this post


Link to post
Share on other sites

fast88pu

Hi Jeff I am also going to convert a plow like that over to work on a 300-400-500 series tractor. Do you have any pictures of the new lift tab mounted and welded on the plow. I will have to make one. Thank you kyle

  • Like 1

Share this post


Link to post
Share on other sites

WVHillbilly520H

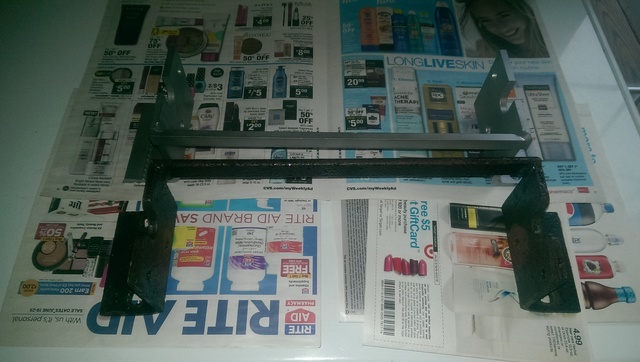

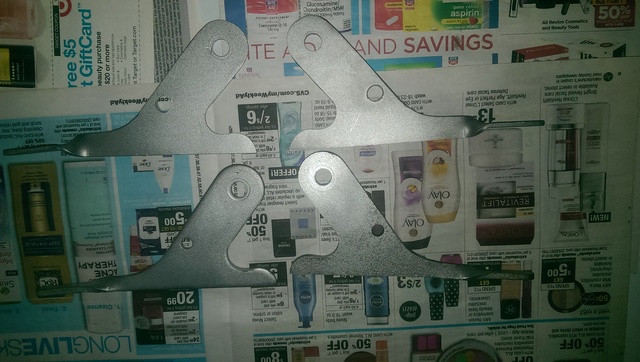

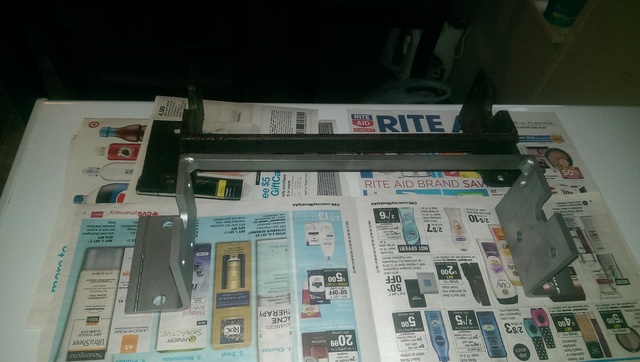

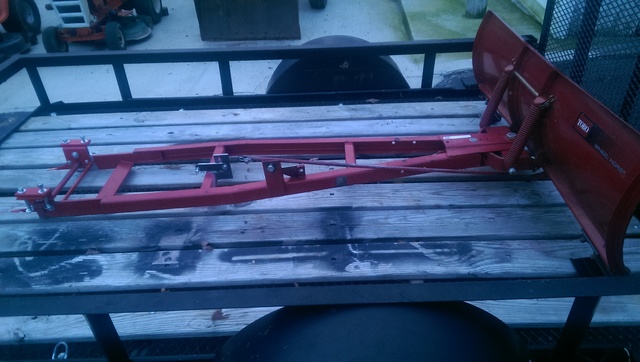

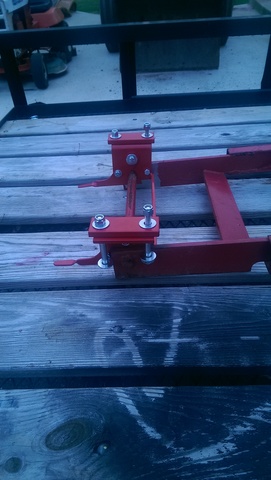

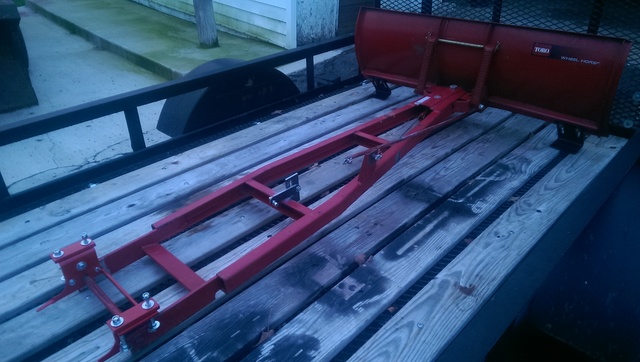

@fast88pu, yes sir it's right above post 6, pictures 2 (a close up) then 3,& 4, I don't have the actual dimensions right now but I do know it's offset to one side more than the other, Jeff.

Share this post


Link to post
Share on other sites

Chris G

That's some pretty nice fabrication!

  • Like 1

Share this post


Link to post
Share on other sites


Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Similar Content

    • WVHillbilly520H
      By WVHillbilly520H

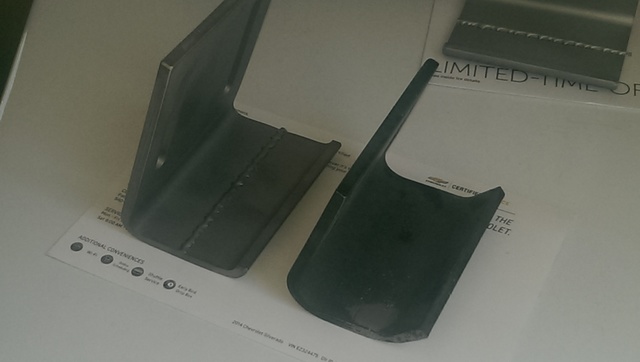

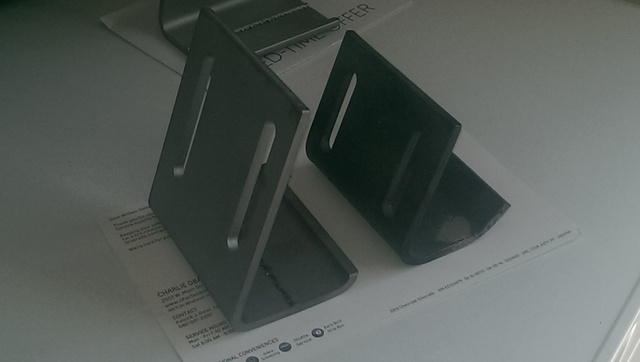

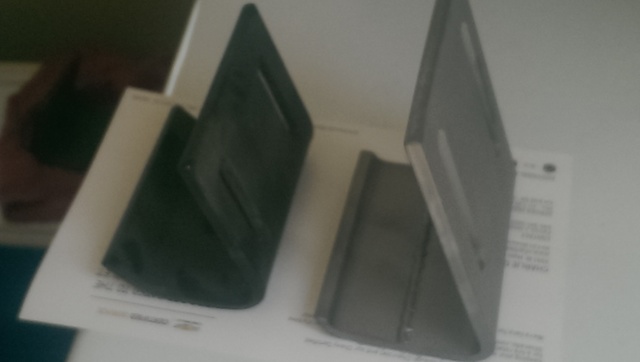

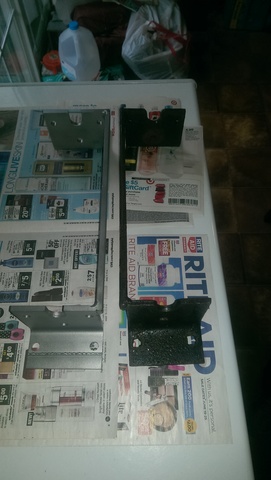

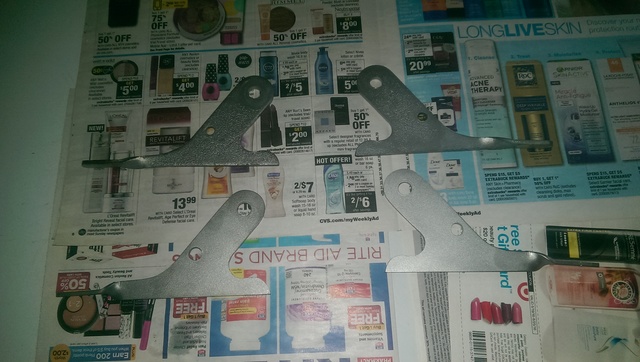

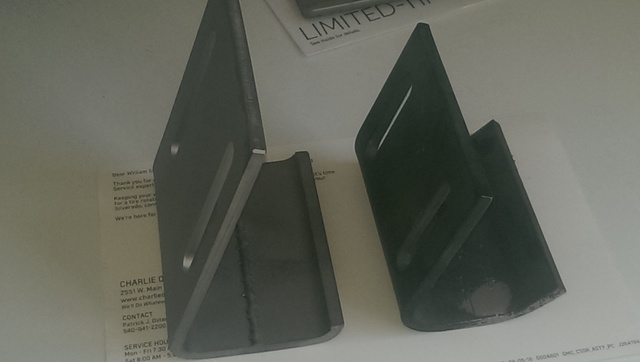

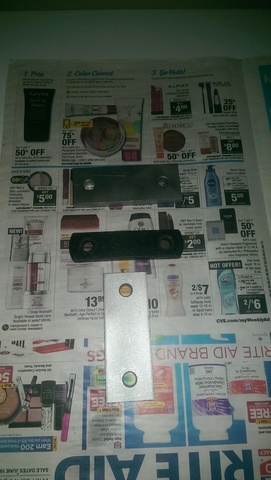

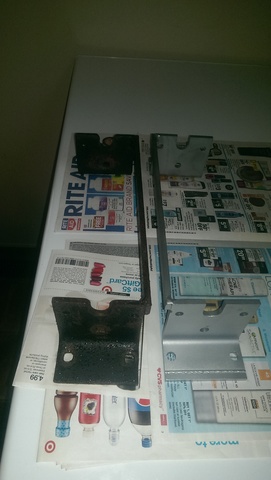

      A while back I posted I made some of these skid shoes, Now that I have moved on/up at work and don't have direct access to the machines I used to make these I'll pass along how and what I used,  if anybody has the tools/skills to do so or has a favorite fab shop...first up the to scale blue print then some pics of the final product, also I made mine with more adjustments than the factory Toro  ones, I used 1/4" wall 3"x8" rectangle tubing cut to size and then drilled 4 holes and mill cut the slotted holes, next I bent a weld filler rod to the angle of the original shoes (short black in pics) approximately 15° angle as a guide as I set the "L" shaped parts long side in the vise jaws then using the "blue wrench" Oxy/Acet torch heated along the bend till dull cherry red using a large adjustable wrench to slowly work the foot to the angle of my guide wire may have to repeat this step multiple times till desired results then quench in water, bead blasted and ready for paint powdercoating...Jeff.






×
×
