654 Predator repower question

[cafoose 3,476]

I'm thinking of re-powering my 654 with a predator 6.5 hp. Does anyone know if it fits without major modifications? I'd rather not cut the hood or anything else if possible.

[illinilefttackle 399]

I did a 656 with the Predator- only change was had to make new mounting plate to match holes and raise the engine slightly- Really came out nice!- Good Luck!- Al

Edited October 22, 2016 by illinilefttackle
pic

[cafoose 3,476]

2 hours ago, illinilefttackle said:

Edited 1 hour ago by illinilefttackle
pic

I did a 656 with the Predator- only change was had to make new mounting plate to match holes and raise the engine slightly- Really came out nice!- Good Luck!- Al





This is not mine it's from the internet but it's basically what mine looks like. Mine is not restored and currently has a Briggs 8 hp that is too big to put the hood on.







Edited October 22, 2016 by cafoose

[Achto 29,775]

To avoid cutting sheet metal when I put a 212 in my Suburban I stripped the engine down. I used the stock gas tank for the tractor, a high flow go kart air cleaner, and a custom exhaust. I also ran the breather hose that comes from valve cover to a separate breather filter. Note: if you use a high flow air cleaner you will most likely have to replace or drill out the main jet on the carburetor. I drilled mine out with a #67 drill bit to get it running smooth.

[slammer302 2,156]

The 654 is a round hood I believe so it will be harder. The gastank and muffler will need to be removed from the predator.

Unless you move the engine back and use a shorter belt and make the belt guard shorter

[cafoose 3,476]

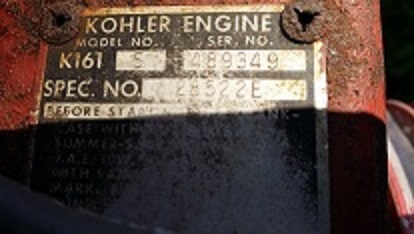

Just checked the spec plate on the Kohler in my Commando 8 looks like someone put a K161 in it. Will that fit my 654 with no hood modifications? Can I use the gas tank and starter/generator from the Commando 8 as well?

The fuel pump is not working on the K161 and it looks like it can be rebuilt. Is it simple to do and where can I get a kit?

Edited October 23, 2016 by cafoose

[Achto 29,775]

With the K161 7hp engine you would basically be doing the same set up as a 704 so I would think every thing would work. Not positive though.
