Honda FiveTrax Quad.. V Twin engine swap

Recommended Posts

I have been mostly spending a lot of time at the lathe turning down this, boring out that, and trueing up the other.



Not that many photo's but this was quite interesting to make out of two parts and a bit of welding.

It's not quite finished in the photo, only a bit of tidying to do..








A bored out sprocket is a nice tight fit on the shaft.








Not the fun part, making the 90'd drive thingy fit in not much space..



It's in there somewhere!











This view might help to see what's going on.








The plan was to fit this sprocket to the shaft that comes from the Honda gearbox..








And put this bearing at the end to hold things steady..

The trouble is, not enough space, the drive shaft to the front takes up a fair bit of space too!








Soooo... The plan now is to mount this bigger bearing a lot closer to the gearbox case and fit the sprocket on the end only much more forward than it was..

Of course I don't have a bearing holder for the bigger bearing!








So a bit of thick steel slicing..








Cut's well for a £10 power saw :thumbs:








An almost flat plate.








Flat and mostly bored out..








Where were we? Oh yes, making a bearing holder..

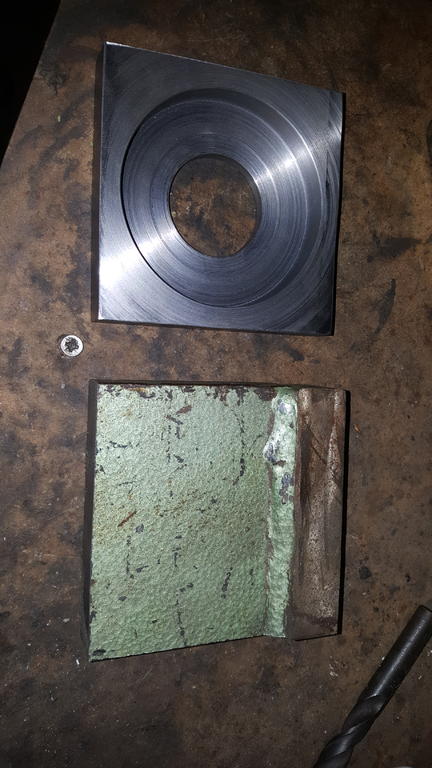

Some more turning later and half of the bearing holder was just the right size, a nice tight fit that will need gentle press pressure to push it in.








No idea why these photo's are being turned sideways when I upload them, but anyway here's half the bearing holder and a blank other half.

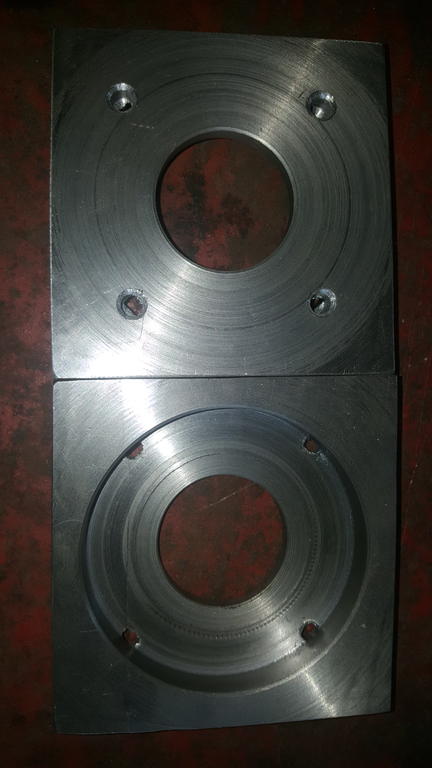

Both sides done.








The four holes in each half are there so the bearing can be punched back out the holder should needs be..








Time to fit the bearing... Almost..

As the holder will have to be taken on and off MadTrax many many times, and a bit of drilling and grinding going on, rather than fit the bearing and risk it getting full of nasty stuff I made....








This fake bearing :D











With a little bit of trimming to the inside half of the bearing holder a test fit was in order..








It's rather tight on one of the engine mounts, but it fit's :thumbs:








Looks like the sprockets can be made to line up :thumbs:








Now the big one... Will the shaft from the transfer box to the front fit without hitting anything and how tight will the UJ angles be?



It fit's and the UJ angles are well under 33'degrees, if I remember right the rear UJ angle is about 12'D and the front is a tad over 20.. Much better than it used to be :thumbs:








It's tight but there is plenty of clearance :D








The bearing holder was drilled and a tapped so the two bit's could be bolted together..

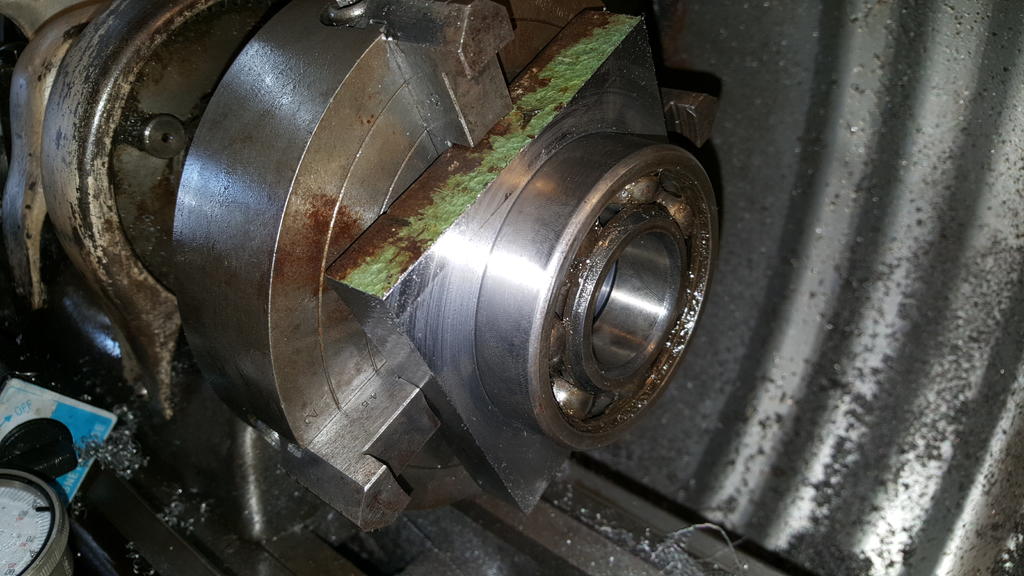

A clean up on the lather later and the bearing was pressed in..

I couldn't of been happier with the fit of the bearing :)











Fitted.. Just out of view behind the holder is a couple of tack welds just to hold the holder in the right place.. and yes the spocket is free to move at the moment as I don't know quite how far up/down the shaft it needs to go.








Now onto the fun part.. Getting the 90'd drive in the right place..

Which is where the bit of angle that is bolted to the drive will come in handy.

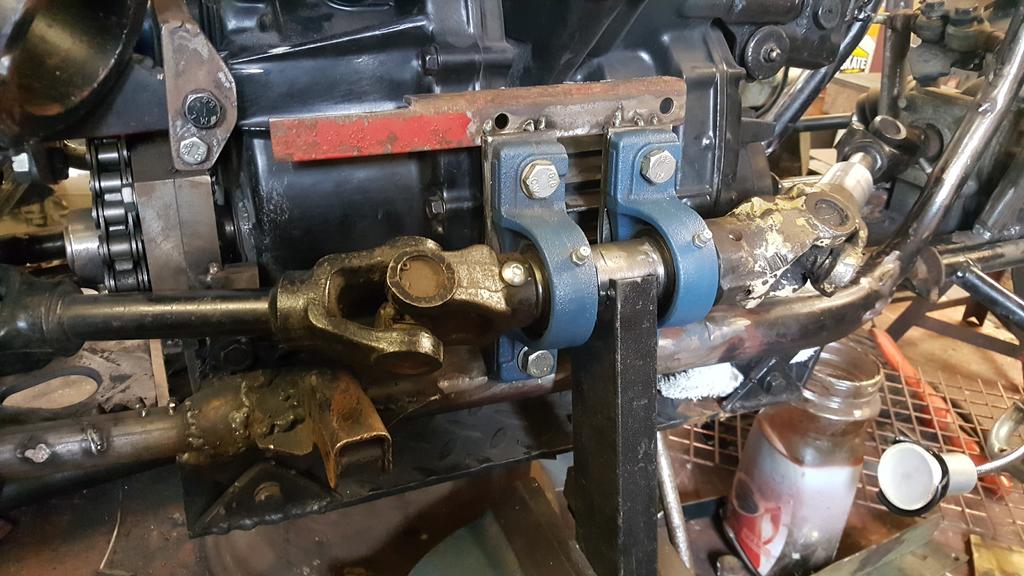

If you look behind the air filter you can just see 3 more bit's bolted to the drive case..








The go up and get clamped to a couple of bit's of box.. This will hold things steady and give me enough adjustment to adjust it's postition.








But before I square the drive up I need to make the last bit of the drive puzzle and fit a sprocket and bearing to the hollow shaft that's coming out of the drive..

That should keep me busy tomorrow :D




  • Like 4

Share this post


Link to post
Share on other sites


On 18/05/2018 at 6:50 PM, Sparky said:

Some incredible fab skills you have there!





Thanks Mike, I'm just learning as I go along.. Every project has to have new challenges, for me it's what makes the builds so much fun.. Solving problems and learning new skills as I go along :)



Well, morning/afternoon/evening all. It's been a while since I updated this as pulling apart a Volvo had been taking up most of my time.. Making bits on the lathe for MadTrax has taken a while as well..



Anyway..



A shaft was needed to slide over the splines on the 90 degree drive thingy to get the power out the same side as it need to go in the transfer box.. Here it is on the lathe.

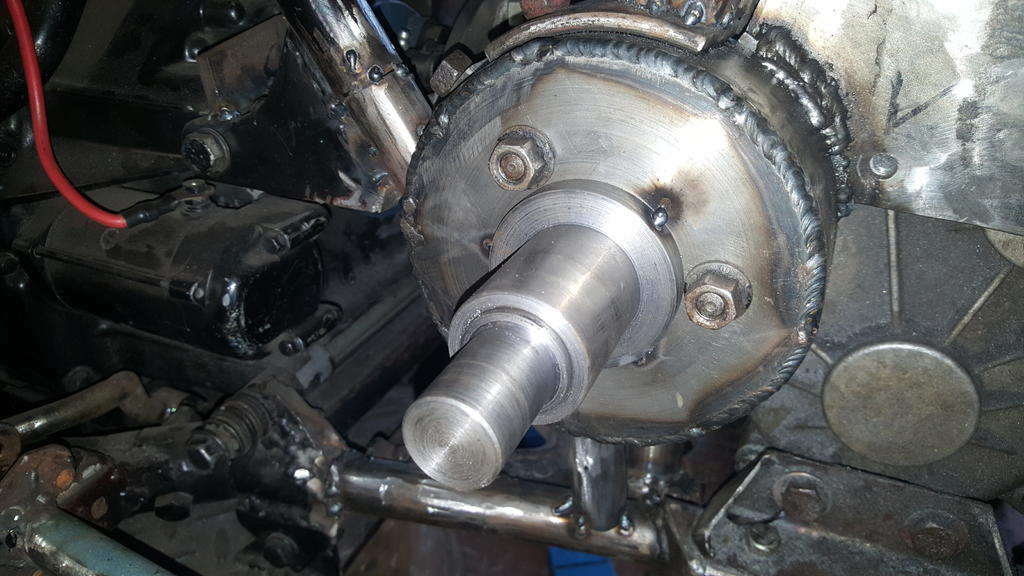

The shaft with the splined bit pushed tightly on the end.. Just needs welding up then back on the lathe for the final machining.











That looks better, turned down to size ready for a bearing on the end..








But how to hold it in the right place for making bearing mountings as we all know splines always have a bit of play in them?

This will do the job :)











Slid over the shaft.. Once it is tack welded to the flat plate behind it will hold the shaft steady... I hope that makes sense?








Now another fun bit.. A long long time was spent getting the 90 degree drive in exactly the right place.. No mean feat considering it had to be right in so many planes!

To make sure it stayed put, the tempoary mountings (bit of angle) were temporarily tacked in place..

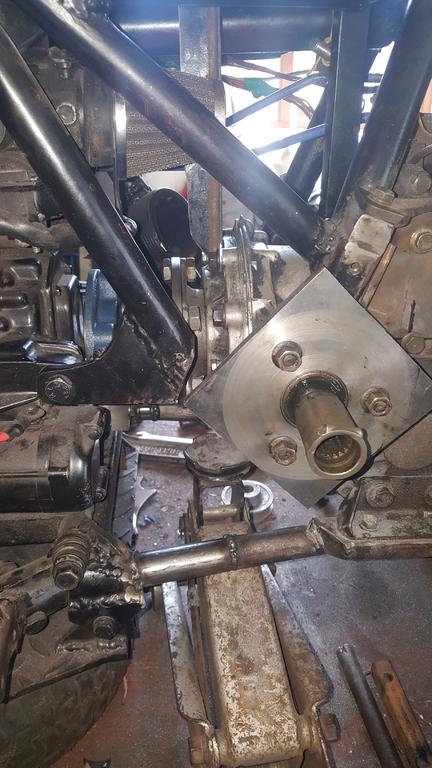

In the above photo you can see the square bit of plate bolted to the end of the 90 degree drive thingy... Well, it didn't stay square for long..

Ok, it's not perfectly round, but that's not a problem as you will see.








But what to fit it in??

A bit of this 5 1/2 diameter pipe will do :D

Yes I know it doesn't look that safe, but due to the weight of it, it wasn't going anywhere..








A 2 inch bit of pipe with both sides faced off on the lathe.








The lip I cut on the round plate makes it a perfect fit in the bit of pipe.








Plonked on to have a look..








A lot of welding later including 3 long runs inside and I don't think the plate and pipe will be parting company anytime soon :D :thumbs:








As much as I would of liked to weld the big pipe into the frame to make it all very strong, I wouldn't be able to get the transfer box out if I did!  So I have made up some curved mounts which you will see in the next update..



But while I was at it I thought it maight be an idea to bolt a few bits in place to check everything still fitted..








With a bit of trimming and a lot of strengthening the bearing block can be made to fit flush on to the n/s foot rest which keeps things neat and tidy, but the footrest will need a lot of extra strength added.








I did at one point think I would have to widen the foot rests as the chain, sprocket and bearing would take up so much space.. But with the bearing mounted flush the chain and sprocket hardly poke through at all, also the 90 degree mount only takes an inch or so foot space away from a bit of the footrest that doen't feel a natural place to put your foot anyway..

So no widening needed, just a bit of extra mesh to go over the chain..

Oh, I do have some much better looking mesh to replace the rather tatty looking mesh thats fitted already,








A view of the back.. The chain needs to lose a link and a half and there is plenty of space to put a chain tensioner.








Good news with the o/s footrest as well..

The drive shaft that goes to the front now takes up so little space (much closer to the engine etc) that all I need to do is put a cover over it so it doesn't try and grab my boot laces as it spins..








Plenty of space to mount the barke pedal as well :thumbs:








And that is where I have got to on this build as of yesterday.... We shall see what progress Thurs/Friday brings as I want to spend next Mon/Tuesday having a play with Project Wheel-Vo :D



  • Like 2

Share this post


Link to post
Share on other sites


Watching your work is like taking an engineering class with out have a clue how you arrive at your solutions. Waiting for the next show and tell on this projects.

Cheers from Colonies

  • Like 1

Share this post


Link to post
Share on other sites

On 28/06/2018 at 12:50 AM, elcamino/wheelhorse said:

Watching your work is like taking an engineering class with out have a clue how you arrive at your solutions. Waiting for the next show and tell on this projects.

Cheers from Colonies



Hi Jim, I think by solutions are based on what bit's/parts I have about the place, and working out a way of making them all work together..

Not sure that has helped?



Well, long time no update. Sorry about that.
It's been a very very busy summer that has not really given me any spare time to do anything including forums and even YouTube!

So what has been happening at the workshop has been happening at a slow pace, I have been taking photo's and videoing the action, up until a week or so ago I've not had any time to do anything with the footage!


Having got the 90 degree drive thing in the right place, it needed to be mounted strongly.

The curved brackets were made by welding on end to the large bit of thick wall pipe and beating it around with a large hammer while it was still hot from welding.. I thought I had some photo's of that stage but I can't find them!

As you can see it's all only tacked in place at the mo, it will only get fully welded once I know the transfer box etc can actually be removed from the frame!  In theory they should, but you never 100% know for sure until you try..











A thrid mount will be going down to the frame but I couldn't work out exactlly where until I had made and mounted a strengthening plate that runs between the frame rails..



Of course I did not have a large enough thick enough bit of steel plate, so I had to make one..

Missing a few photo's here but I had to slice up a Wh 312-8 fuel tank/fender pan mount for the steel..



Clamped down ready for welding.








Leaving a big enough gap to fill with weld.








Weld won't stick to brass so a brass plate was clamped to the underside.. The black bit is ally which works as well, it just burns away a lot faster..








Welded, shaped and roughly put in place.

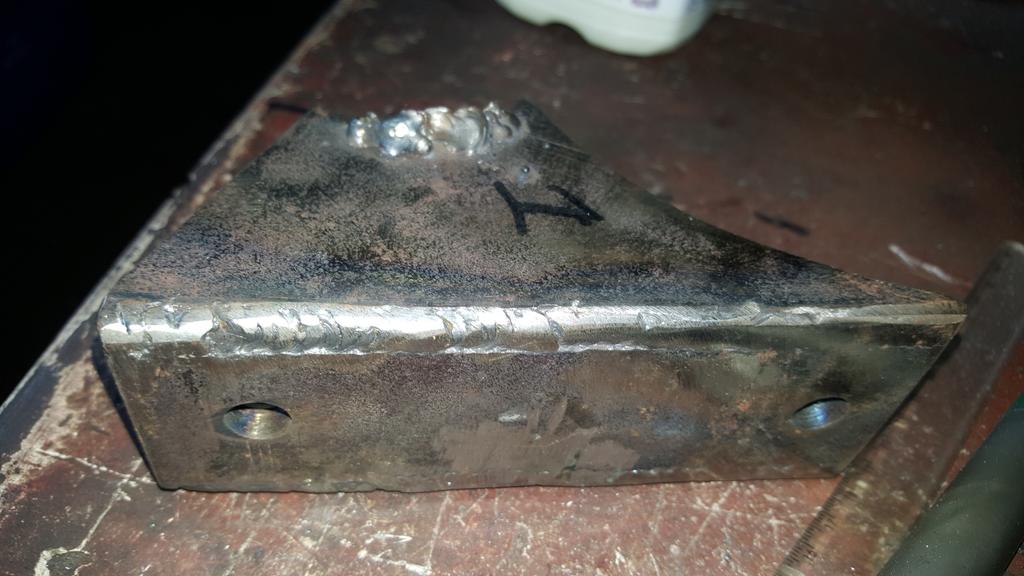

To mount the plate I knocked up four of these captive nut brackets.








In order to center punch the flat plate in the right place for dilling I drilled a hole though a spare bolt that was only just big enough to get my punch in.. It makes sure the punch mark is in the center of the capive nuts.








Brackets tacked on.

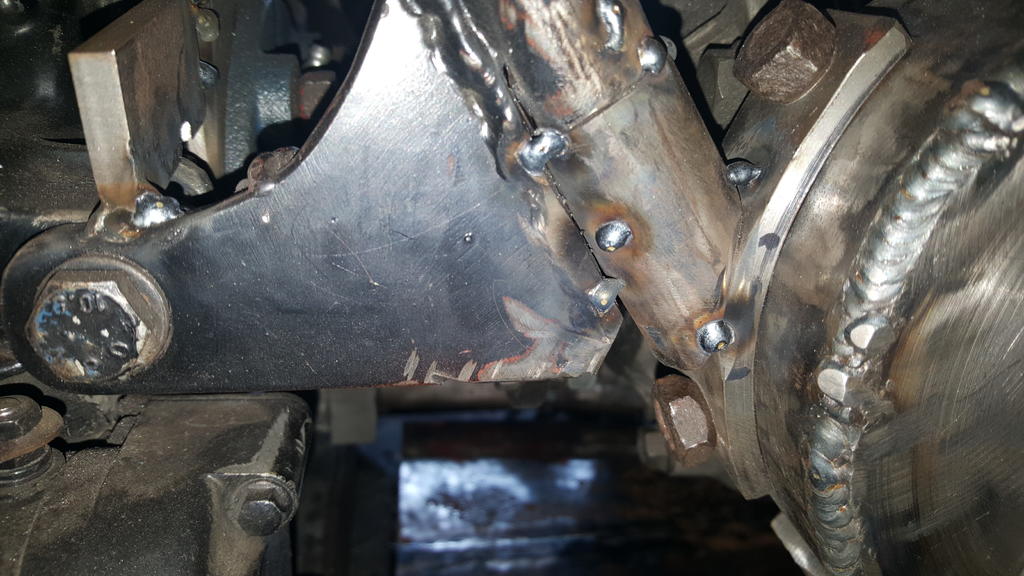

Lot's of chopping and welding later the plate now has some strengthening holes including one just below the odd shaped tube and bit of box 90 degree drive mount so a ratchet can be used to bolt it on..








A pic from the other side with the third tube mount tacked in place.




Share this post


Link to post
Share on other sites


With the above done the time had come to mount the bearing that holds the shaft out of the transfer box up.

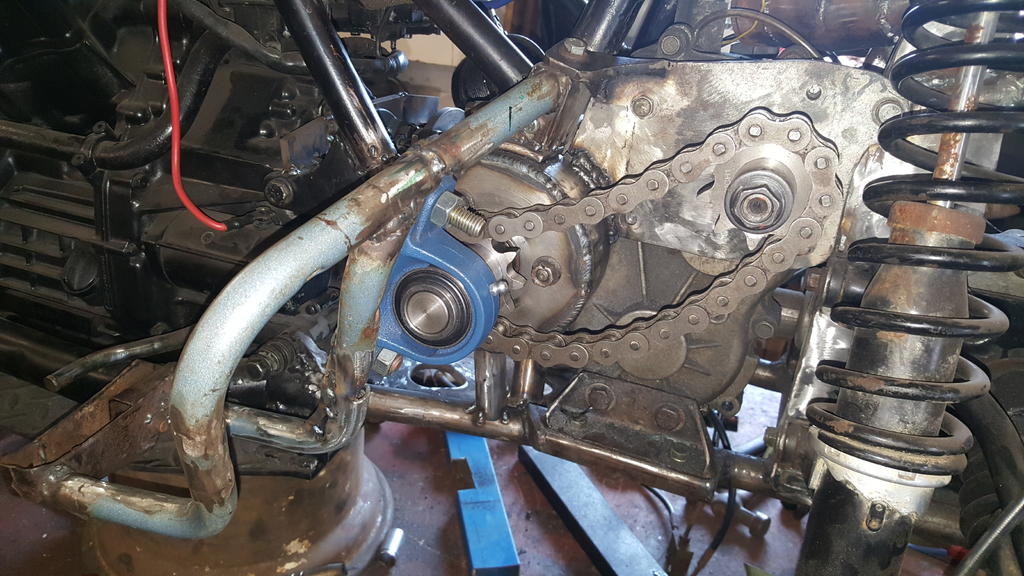

Here it is roughly in place, the foot rest thingy still needs a little trimming at this point.








The next four photo's were taken from video footage I took quite a while back, but they are handy for showing a part I had to make.



The end of the shaft in the TB has splines which as we all know have a little play in them.








To hold the shaft in exactly the righ place I make up this collar/sleave/thingy..











Which slides over the shaft and when flat against the plate hold the shaft in the right place.








Skipping forward in time again the collar/sleave/thingy has been tacked in place. Once the bearing is mounted it will be removed.








The old steel mesh was removed from the foot rest (I have some new mesh which matches the exhaust guard) and a nice strong bearing mounting plate welded on.

Oh, the top tube has also been sliced off and welded back on with a nice strong steel bar inside for extra strength.








A view from the back, I need to get a half link to shorten the chain and make a tensioner thingy.








One thing I was worried about was how much the chain would stick through the footrest... As you can see it doesn't stick though at all.. Me happy with that :thumbs:



And that is where I have got too, with a bit of luck I will have more time next week to spend at the workshop..






Quite a hard thing to photo if you don't have a clear different colour background!

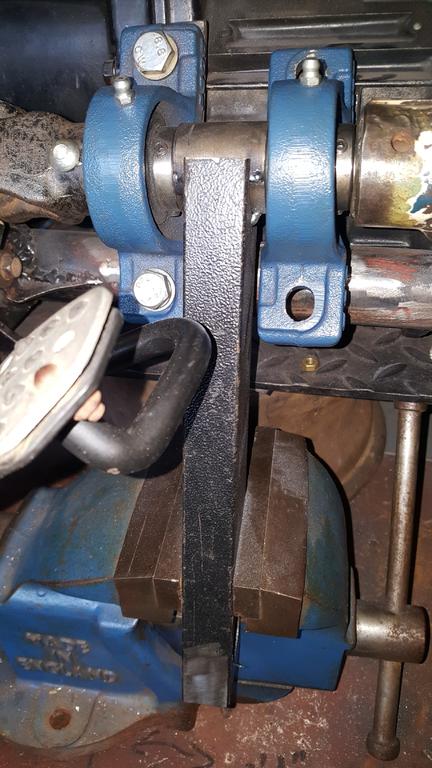

I have fitted the Quadzilla brake pedal, it was originally a flat plate that was bolted to all sorts of places to give it strength.
