Looking for information on Kohler Engine

Recommended Posts


I recently pulled this Wheel Horse out of my Father-In-Law's garage. He said that he picked it up some years ago at a yard sale.  I am interested in getting it running again but as can be seen from the pictures the carb is missing.  I am not having any luck surfing the web trying to figure out where to get parts.  My Father-In-Law said that the engine ran but he pulled the carb for another project and never got back to this one.  If anyone could help point me to a service manual I would greatly appreciate it.







Muffler will be needed once this thing gets fired up!!

Share this post

Link to post
Share on other sites


   Carburetors for Kohlers are plentiful and cheap on E-bay.New or used,any horsepower.The muffler may be more of an issue inless you go with an aftermarket unit.Same source.Luck,JAinVa

Edited by JAinVA
  • Like 1

Share this post

Link to post
Share on other sites

@JerDecker63 Photos did not open for me either.


Share this post

Link to post
Share on other sites

Thanks for the feedback on the photos.  I will try to load them in a different format.

Richard: Based on the links you provided I am guessing that this is a 4 hp engine. ??  I am going to pull the head off and will measure the bore to verify.

3 hours ago, 953 nut said:

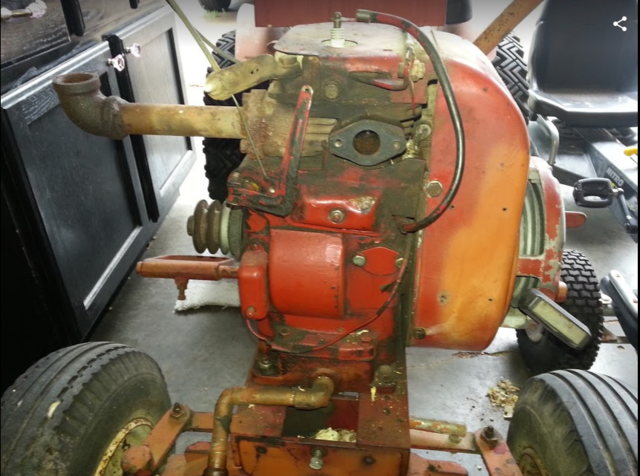

 Intake side of 552.PNG

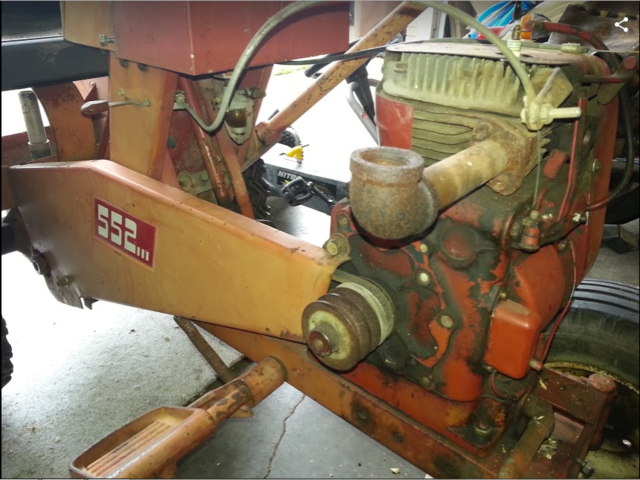

drive side of 552 engine.PNG

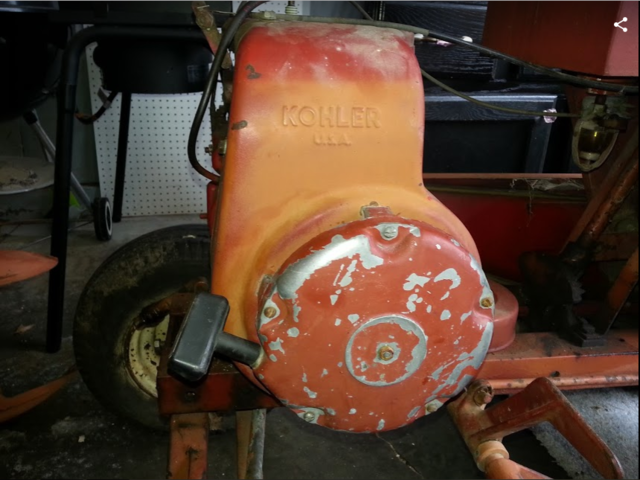

Recoil side of 552.PNG

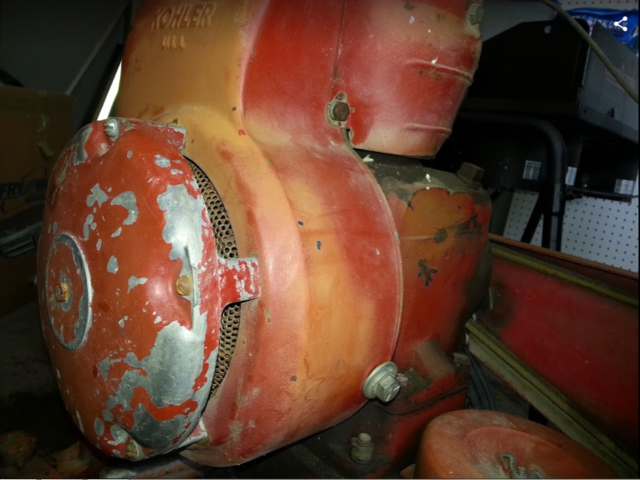

Start side of 552 from rear.PNG

Share this post

Link to post
Share on other sites
953 nut

:text-coolphotos:  The information tag is missing from your engine, but if you measure the cylinder and the stroke you can determine the size.

Kohler Single Cylinder Engine Specs _ Torque Values and Sequences for Fasteners _ Identification & Torque Settings of Most Commonly Used Grades of Bolts (1).html

Share this post

Link to post
Share on other sites
