HokieAg07

Terry, would it be possible to reproduce the overlay for the idiot lights on the top of the dash on the 520 tractors?




  • Like 2

Share this post


Link to post
Share on other sites

new horse

hello, I was wondering if you ever found a replacement overlay for your light panel?? I'm new to the wheel horse family, and also need the same overlay for my 520H.



best regards

curt

Share this post


Link to post
Share on other sites

HokieAg07

78-8350 is the Toro part number for a new overlay. They are now red instead of black, FYI

Share this post


Link to post
Share on other sites

Kurt-NEPA

I tried the red one from Toro, but the location for each light was wrong for my 88 520H..



So I cheated.  I scanned in the red one. Opened it in Photoshop and changed the red to black, then moved the text to where it should be.  Then printed it with an Ink Jet printer on transparency paper and cut it out..  I put white PVC tape on the back and glued it the dash.  Its not a perfect solution, but its better than nothing and has been working well for 2 years now.



I hope Terry responds and is able to make them.

  • Like 3

Share this post


Link to post
Share on other sites

new horse

heck Kurt, it sounds like YOU should be making them and selling replacements!!! I believe I've found a replacement/used dash bezel that still has the overlay on it, I'm going to buy it and just swap the whole dash on mine.



Curt

  • Like 1

Share this post


Link to post
Share on other sites

Vinylguy



On 4/3/2016 at 1:17 PM, Kurt-NEPA said:

I tried the red one from Toro, but the location for each light was wrong for my 88 520H..



So I cheated.  I scanned in the red one. Opened it in Photoshop and changed the red to black, then moved the text to where it should be.  Then printed it with an Ink Jet printer on transparency paper and cut it out..  I put white PVC tape on the back and glued it the dash.  Its not a perfect solution, but its better than nothing and has been working well for 2 years now.



I hope Terry responds and is able to make them.

 Sorry I missed this post Kurt. If you email me a pdf file of your panel I will print one on my vinyl for you to experiment with?



  • Like 2

Share this post


Link to post
Share on other sites

Kurt-NEPA
On 5/20/2016 at 0:34 PM, Vinylguy said:



 Sorry I missed this post Kurt. If you email me a pdf file of your panel I will print one on my vinyl for you to experiment with?





Hi Terry,  I'll send you what I have.  Maybe you can do your wonders with it.



Thanks,



Kurt

Share this post


Link to post
Share on other sites

cleat

I will scan one for the 520-HC (or 516) and send it to you as well to have on file.



Share this post


Link to post
Share on other sites

new horse

I would be very interested in buying a couple of these, I need one, and it would be great to always have a extra!

Share this post


Link to post
Share on other sites

cleat

Hi Terry;



I sent you the pictures and dimensions.





Share this post


Link to post
Share on other sites

Vinylguy

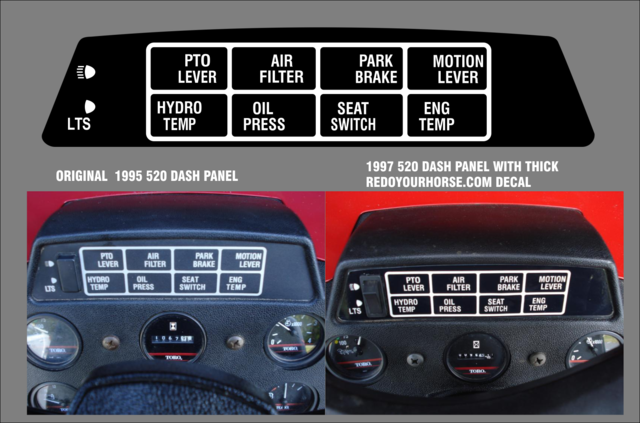

I finally got back to this project and have a test decal for the panels shown below.

I have made a thick test decal with 2 layers of laminate to make them thicker.

520 HC PANEL LIGHT TEMPLATE.png520 PANEL LIGHT TEMPLATE.png

  • Like 1

Share this post


Link to post
Share on other sites

cleat

They look great, I may get one of each added to my next order just to have here as spares.

Share this post


Link to post
Share on other sites

Vinylguy
4 hours ago, cleat said:

They look great, I may get one of each added to my next order just to have here as spares.

Not sure how they will work as the originals are applied over a thin clear adhesive backed plastic film

for rigidity over the bulb area?

520 PANEL LIGHT TEMPLATES.png

  • Like 2

Share this post


Link to post
Share on other sites

cleat

They seem to be a very dark burgundy plastic film that red light shines through.



Cleat

Share this post


Link to post
Share on other sites

new horse

I would like to purchase a set, when/are they available??

Share this post


Link to post
Share on other sites


Kurt-NEPA

Wow Terry!  They are looking great!





  • Like 1

Share this post


Link to post
Share on other sites

HokieAg07

Looks good Terry, good work!

Share this post


Link to post
Share on other sites

JERSEYHAWG /  Glenn

Hey Terry, do you think you can do one for a 520-8?  They are different.



Glenn

Share this post


Link to post
Share on other sites

Donald Hill

I just bought a 520h and am in need of the idiot light panel overlay, are they being reproduced now?

Don

Share this post


Link to post
Share on other sites

Kurt-NEPA
2 hours ago, Donald Hill said:

I just bought a 520h and am in need of the idiot light panel overlay, are they being reproduced now?

Don



Try Terry's internet store.



http://www.redoyourhorse.com/

Share this post


Link to post
Share on other sites

Donald Hill

Yeah, I looked at his site but didn't see any there.  Thanks for the reply!

Share this post


Link to post
Share on other sites
