Looking for specs on Tecumseh 10 hp, on a 1970 raider 10, MN 1 6051, particularly head bolt torque and tightening sequence. Forgive me if this has been covered but I could not find it. Thanks

[rmaynard 14,911]

Did you check our "downloads" section, under engines? Tecumseh service manuals are there.

http://www.wheelhorseforum.com/files/file/4196-engine-tecumseh-hh-70-hh120-smpdf/

Edited June 4, 2015 by rmaynard

[kudzu3 323]

I did check but couldn't find what I was looking for, I'll try again. Thanks Bob.

[rmaynard 14,911]

DISREGARD THIS IMAGE AND SEE BELOW


And that is INCH pounds, not FOOT pounds. Edited June 4, 2015 by rmaynard

[kudzu3 323]

Thanks Bob, I was a little unsure about which engine I have. Is the above sketch for a 1970 10 hp techy?

[rmaynard 14,911]

Yes.

[oldredrider 2,547]

You SHOULD have a HH100 engine in that model.

[rmaynard 14,911]

Okay. My bad. Good catch Paul.

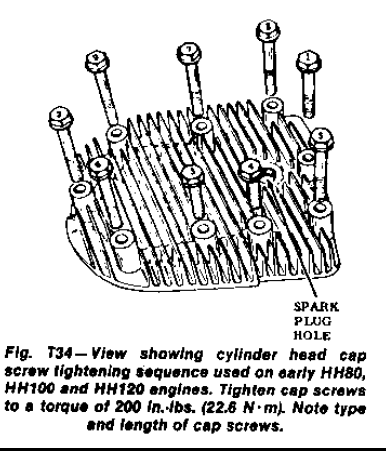

The picture that that I chose was improper. According to the same manual, here is the correct picture and info. Hard to read the numbers on the bolt heads. If anyone has a better image, please post.

Edited June 4, 2015 by rmaynard
To correct wrong info

[tbarnhart 240]

Here's the complete service manual.

http://www.wheelhorseforum.com/files/file/17-engine-tecumseh-8hp-18hp-cast-iron-sm-691462apdf/

[gwest_ca-(File Mod) 10,504]

Hope this is readable.
Taken from page 31 of this manual for larger copy
http://www.wheelhorseforum.com/files/file/17-engine-tecumseh-8hp-18hp-cast-iron-sm-691462apdf/

Garry



Edited June 4, 2015 by gwest_ca

[kudzu3 323]

Thank you all.
