WHEEL HORSE 312-8

lowering tractor

Recommended Posts

WHEEL HORSE 312-8

How would lower a wheel horse my buddy wants to know

Share this post


Link to post
Share on other sites

JERSEYHAWG /  Glenn

Dig a hole and drop it in.....lol. j/k

Now there is a good question. Will be following this. Can I ask why?

Glenn

  • Like 2
  • Haha 1

Share this post


Link to post
Share on other sites

WHEEL HORSE 312-8

Were building a winter drifter for the snow gonna be posting pics and info as we go

Share this post


Link to post
Share on other sites

Jparkes43

this will be good i have no idea how to lower it could do it to mine if its simple enough. racing guys have been doing it for ages so it is certainly possible.



james

Share this post


Link to post
Share on other sites


546cowboy

Now that looks really cooooooool ! Needs some tri-ribs on the front and some slicks on the back now. What engine or engines are you going to use?

Edited by 546cowboy

Share this post


Link to post
Share on other sites

19richie66

20hp Kohler Magnum twin.

  • Like 1

Share this post


Link to post
Share on other sites

AMC RULES

:woohoo: Looks like...  :auto-layrubber:

  • Like 1

Share this post


Link to post
Share on other sites

WHEEL HORSE 312-8

Hell ya I'm thinking about flipping frame

Share this post


Link to post
Share on other sites

19richie66

I cut off the axle pivot plates and rewelded them to the bottom of the frame after I flipped it. It would have been dragging the ground if I left it stock.

Share this post


Link to post
Share on other sites

WHEEL HORSE 312-8

Would u mind sending ur photos to my phone

Share this post


Link to post
Share on other sites

Ethan and Randies horses

put front spindles upside down and use cub cadet  axle

Share this post


Link to post
Share on other sites

Don1977

Check out the low profile tires on "For Sale" if you want to get lower after turning over the frame.

Share this post


Link to post
Share on other sites

wallfish

I did what Richie did by adding the 60s front axel but instead of flipping the frame, cutting the axle pivot off to weld it back on, I cut the trans mount off, flipped that over and welded it back on to keep it looking stock

Flipped the spindles on the 2 seater



Edited by wallfish
  • Like 4

Share this post


Link to post
Share on other sites

Jim Turner
On 10/16/2014 at 4:05 AM, 19richie66 said:

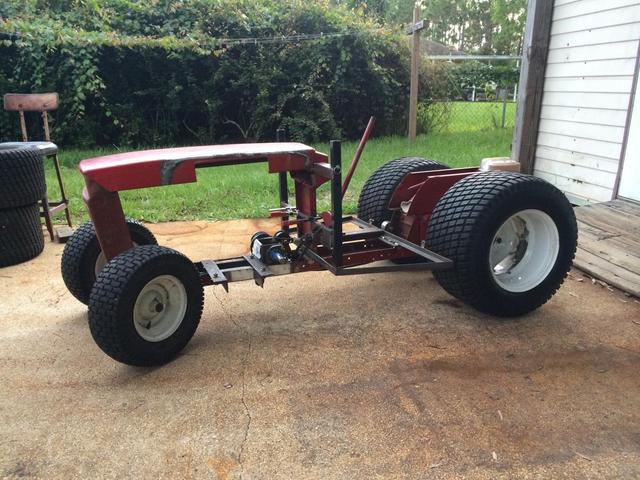

I flipped the frame upside down on mine. Also made drop spindles and used a early 60's front axle. Its as low as I want it. I imagine low profile golf cart rear tires would give a little more in the rear.

post-9187-0-14243200-1413446264_thumb.jp

post-9187-0-52058400-1413446224_thumb.jp

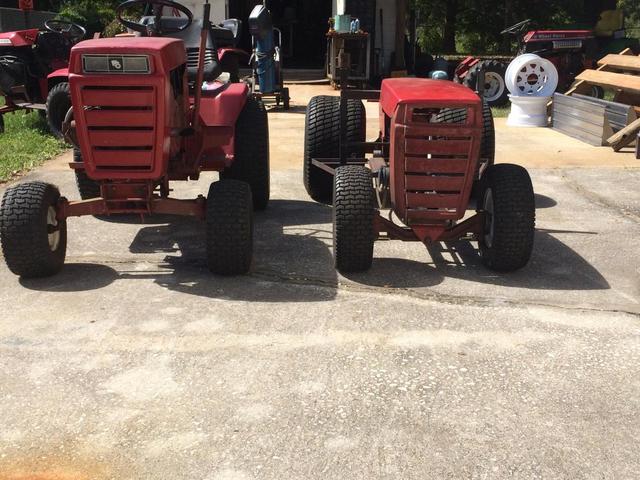

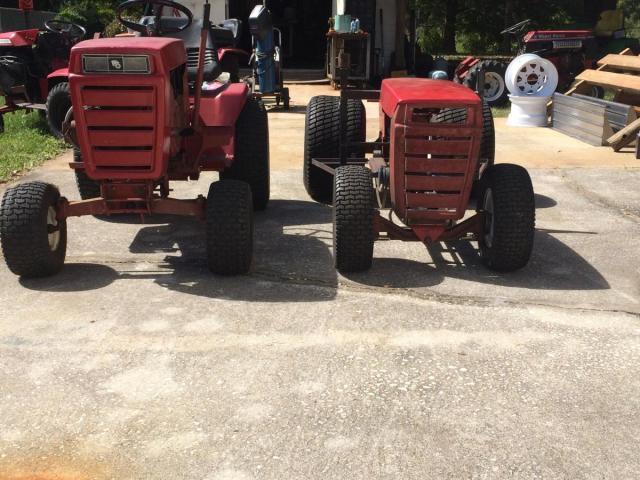

Compared to a stock height tractor.

Interesting how much narrower that older front axle is. I considered using this front axle on an 877 and use 12" narrow wheels for up front but the wheels would probably hit the side of the frame. have you got any further on this build?

Share this post


Link to post
Share on other sites

19richie66

It eneded up getting disassembled and put in storage as a bunch of parts. The engine ended up in my wife’s 1054 build. Still have the frame,axle,hood and wheels/tires. May get built back to something one day.

Edited by 19richie66
  • Like 2

Share this post


Link to post
Share on other sites

hcminis

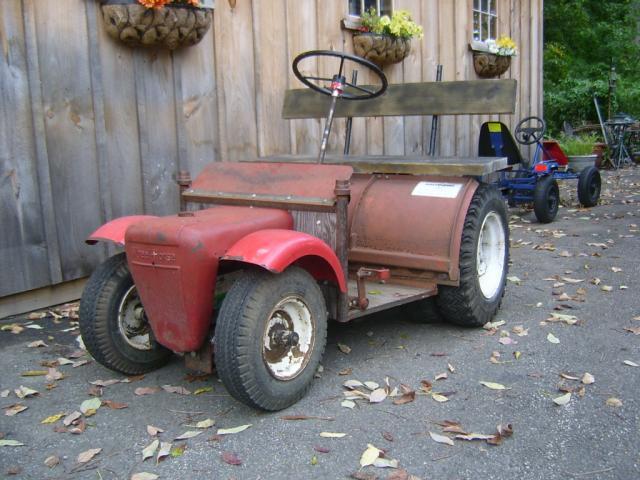

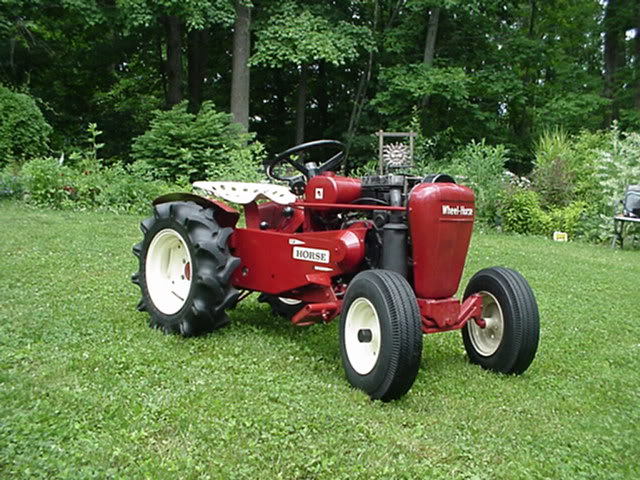

Before and After.  Built by Jon Bell




Edited by hcminis
  • Like 2
  • Excellent 1

Share this post


Link to post
Share on other sites
