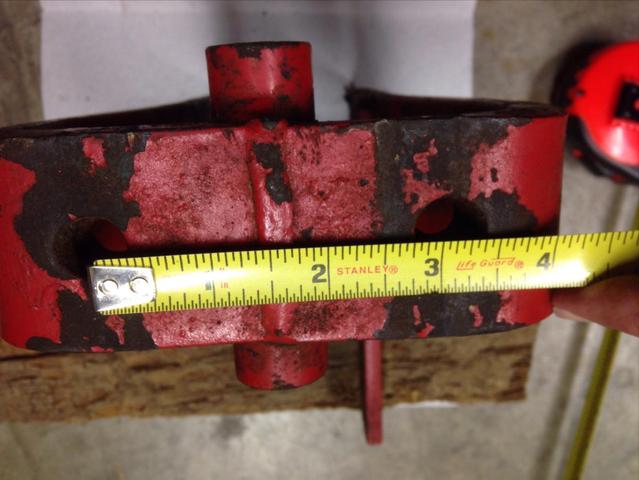

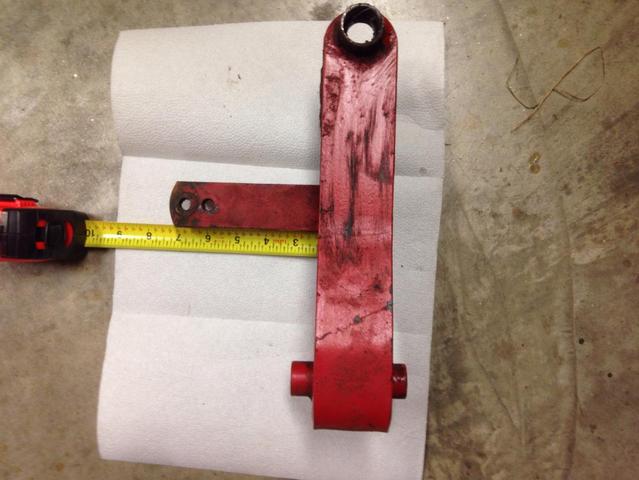

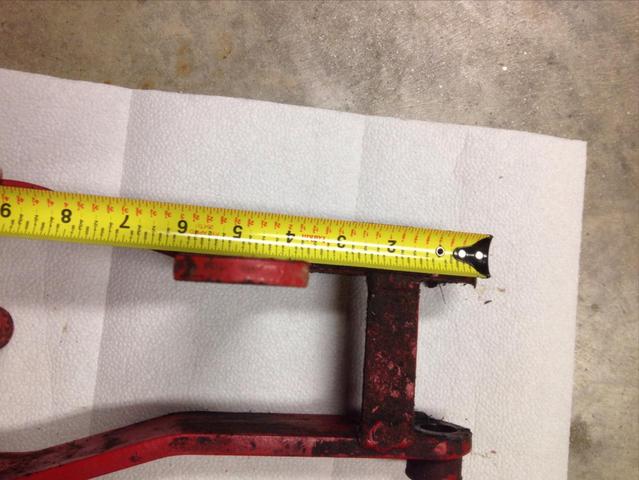

leeave96 487 #1 Posted January 2, 2014 I had a friend ask about giving him the dimensions of a clevis hitch as he had a friend that was going to try his hand at building one, so I took my clevis hitch, laid a tape measure beside it and took some pics. Thought I'd post them here incase others need/want the dimensions too. 1 Share this post Link to post Share on other sites

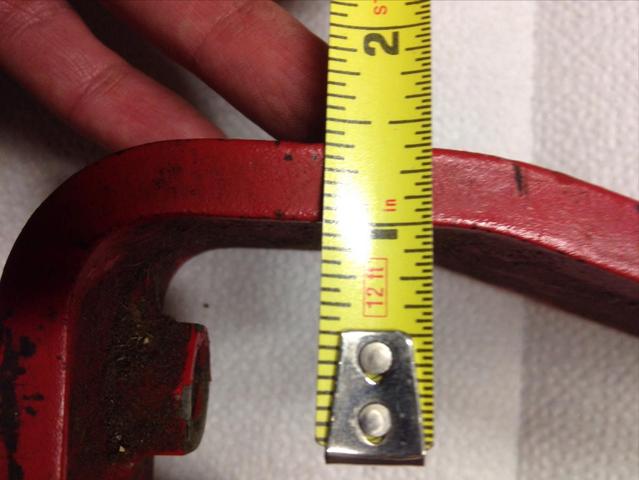

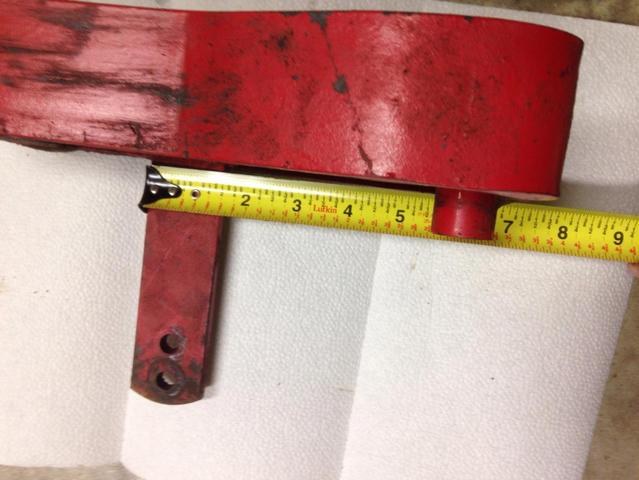

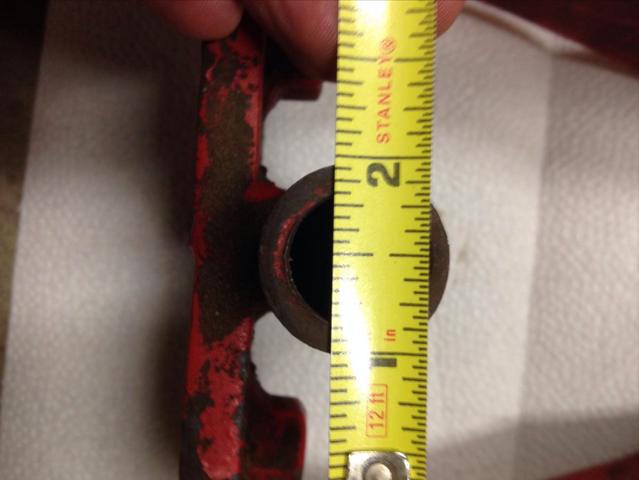

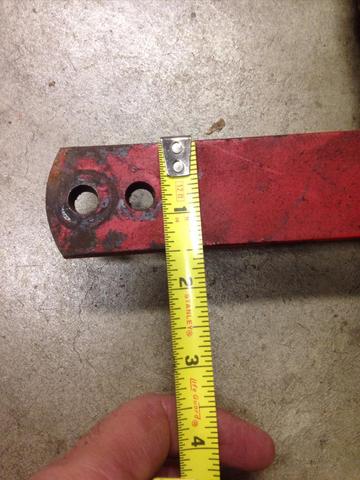

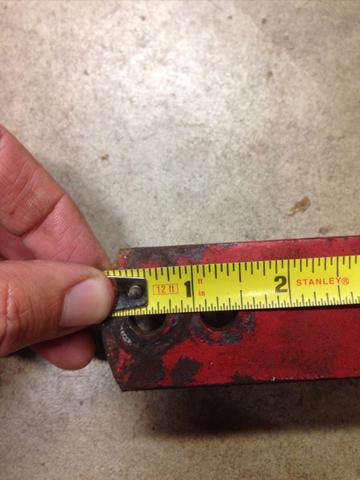

leeave96 487 #2 Posted January 2, 2014 More pics... 2 Share this post Link to post Share on other sites

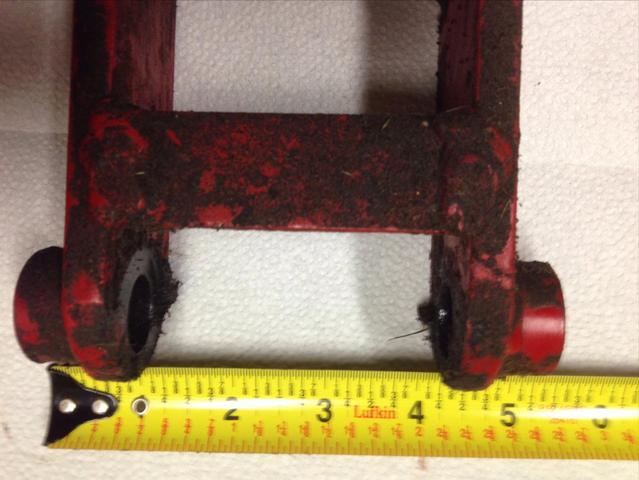

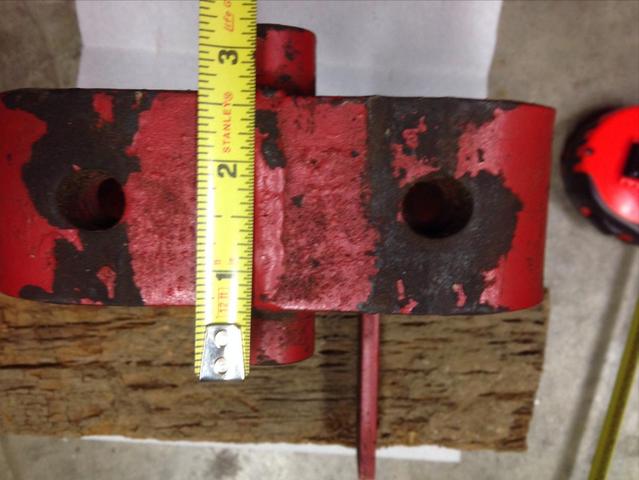

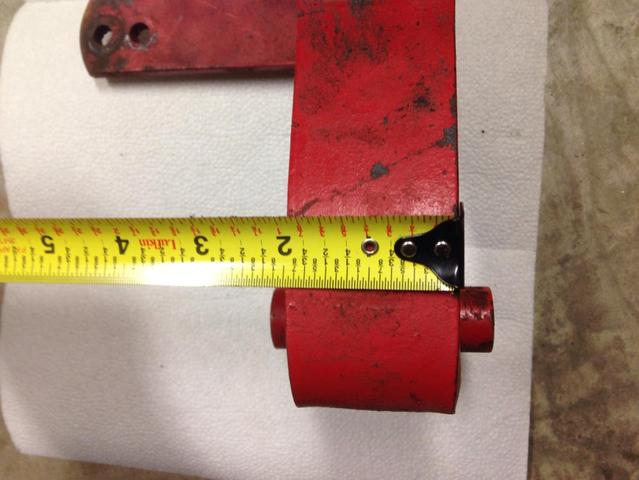

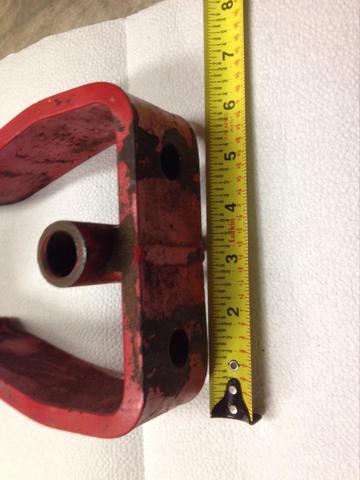

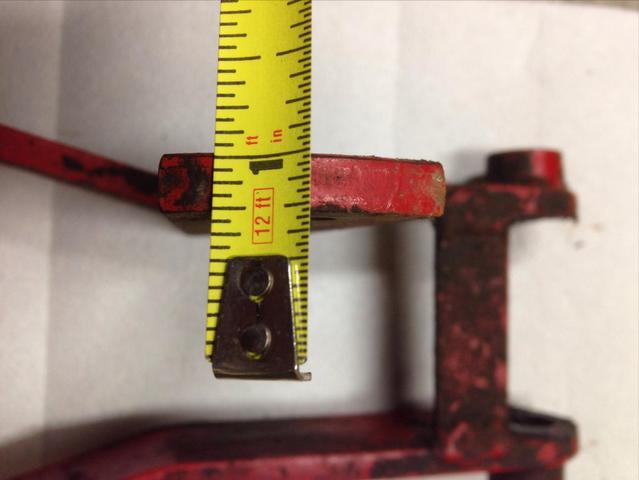

leeave96 487 #3 Posted January 2, 2014 More pics... 1 Share this post Link to post Share on other sites
leeave96 487 #4 Posted January 2, 2014 Here is a link to the manual section for this clevis hitch: I didn't take a pic of the large mounting holes as the hole diameter is basically that of the hitch pin on the tractor tranny. I also didn't get the two hole thread diameters on the face of the hitch. They are bolts that are welded onto the back side and are around 1/2 inch bolts. 1 Share this post Link to post Share on other sites
