Is there anyone who parts out Tillers?

[312Hydro 473]

Looking to help Griff find the bracket that attaches the tiller to the axle bracket. Part #4 in the diagram. I believe they are all the same?

http://www.partstree.com/parts/?lc=toro_consumer&mn=07-36TL01%2C+36%22+Tiller%2C+1981&dn=810179R1-79R10003-0002



Surely someone has this laying around?

[dennist 139]

I have read his posts several times and didn't understand what the part was...does he need the pulleys also? I do have a few spare tillers and could take one apart if needed. Just PM me if interested.-Dennis

[Griff 17]

Thanks Rich for putting this post out, it's a BIG help, mate.

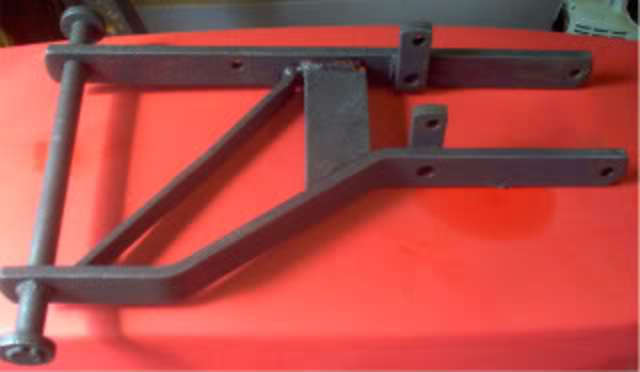

I need the whole thing Dennis.This is a pic of the bracket without the pulley

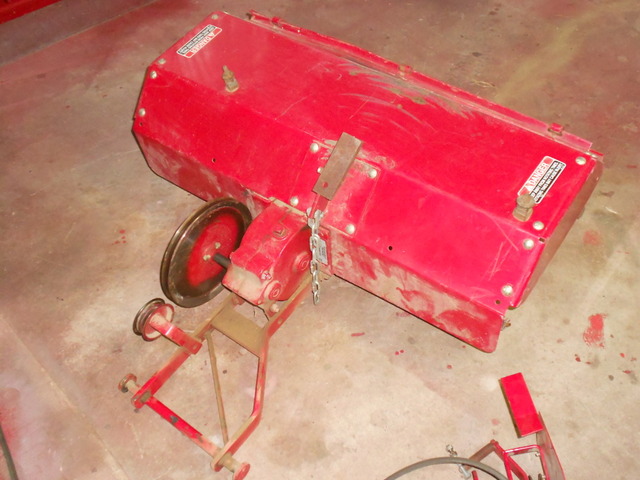

and this is it fixed to the tiller.





I've got the big pulley for the tiller but no key for the keyway, no big deal though.Would you be able to canibalise a tiller to get me these parts?

[dennist 139]

Griff, I will get you this just for shipping cost, but you need to Personal Message me.
