kaiser

gt1600 vs 416-8 and some questions

Recommended Posts

kaiser

i just picked up a semi restored work horse gt1600. the previous owner painted it red, but it's mostly complete and runs great.



from what i gather the gt1600 is pretty much identical to the 416-8 except it has a briggs v-twin instead of an onan, am i correct?

are there any other differences?



i'm missing the side panel that covers the drive belt, are the 300 and 400 series panels the same? i'm going to have to find one.



the tractor also has a new differential and larger axle. the original 4 spider gear diff went bad so the p.o. pulled one off a c series which has 8 spider gears and a larger axle.

i'm not sure exactly what tractor the differential came from.



great forum you have here, thanks!



pete-



Share this post


Link to post
Share on other sites

WH854

i just picked up a semi restored work horse gt1600. the previous owner painted it red, but it's mostly complete and runs great.



from what i gather the gt1600 is pretty much identical to the 416-8 except it has a briggs v-twin instead of an onan, am i correct?

are there any other differences?



i'm missing the side panel that covers the drive belt, are the 300 and 400 series panels the same? i'm going to have to find one.



the tractor also has a new differential and larger axle. the original 4 spider gear diff went bad so the p.o. pulled one off a c series which has 8 spider gears and a larger axle.

i'm not sure exactly what tractor the differential came from.



great forum you have here, thanks!



pete-

P/N 107975G Is no longer available Per Toro :hide:

Chas

Share this post


Link to post
Share on other sites

kaiser

doh! i just called the p.o. he doesn't have it either.



i guess i'll have to keep a look out....

Share this post


Link to post
Share on other sites

WH854

doh! i just called the p.o. he doesn't have it either.



i guess i'll have to keep a look out....

That P/N was for the GT1600 V-Twin, but maybe you can use one off of a C series or later Model, they all look the same in these parts diagram. Try Kelly send him a PM :thumbs: P/N 107975 is available for a416-8 $70.00 new

Chas

Share this post


Link to post
Share on other sites

kaiser

Cool, thanks for the info. I might try to pick one up used, I'm pretty sure all the 300 series use the same guard.

Share this post


Link to post
Share on other sites

Duff

Hi, Pete and welcome to :rs: !



You'll definitely want to put a guard on before driving the tractor - it plays a part is stopping the motion of the main drive belt so you don't grind the gears when shifting. As Chas suggested. PM Kelly - he has a wealth of used parts and is a darned good guy to deal with!



Duff :thumbs:

Share this post


Link to post
Share on other sites

Irv

Some of the 416-8s came with Kohler motors (I have one). There is a belt guard on ebay now off a 314 that will probably work unless Kelly can hooh you up. welcome to RS and we like pictures!

Share this post


Link to post
Share on other sites

ericj

there is a difference between a single cylinder kohler and  an onan not sure about the briggs , but there is a difference





eric j

Share this post


Link to post
Share on other sites

kaiser

so far the only difference i can find between the 416-8 and the work horse gt1600 is color and engine.



i sure would like to get a decal kit for it, would it be sacrilige to put a 416-8 decal set on it? i mean they p.o. painted it red, it's supposed to be grey.

i see redoyourhorse has some different color decals, i think the black with grey writting would look cool.



i come from aircooled vw's and the purists would frown upon such actions.

Share this post


Link to post
Share on other sites

Duff

Not sacrilege at all! Although we have a few purists here, even they concede that what a person does with his/her own tractor within their means is perfectly acceptable. The main point is we're preserving Wheel Horse tractors as a fine example of American engineering and construction. What color (well, maybe except for GREEN :ychain: ) they are is a matter of personal choice.



Duff :thumbs:  :thumbs:

  • Like 1

Share this post


Link to post
Share on other sites

kaiser

considering that i'll most likely keep this tractor forever i'll do it once i have some extra$$.



this horse is such a blast to just drive around, i've got all sorts of crazy idea's going through my head.



speaking of green, my step grandad owns a deere dealership in vermont and has a very large vintage tractor collection.....yet i chose a wheel horse, i gotta be different. lol

Share this post


Link to post
Share on other sites

kaiser

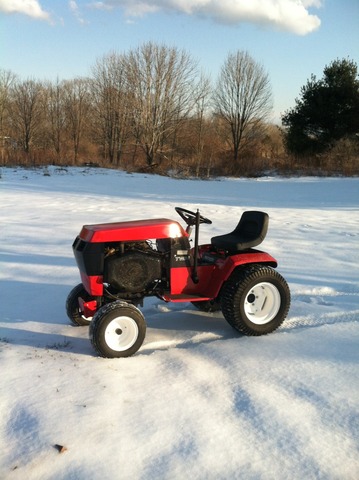

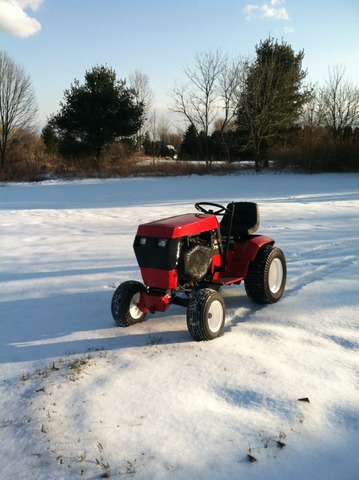

Since y'all like pics here's a couple I just took out in the snowy wonderland.post-9777-136381975962_thumb.jpgpost-9777-136381977468_thumb.jpg

Share this post


Link to post
Share on other sites

can whlvr

looks good,decals will finish her off

Share this post


Link to post
Share on other sites

kaiser

Thanks, one more with the boy:post-9777-136382097315_thumb.jpg He may be more excited then me! He's 3 and a half, calls it a trashkter. Lol

  • Like 1

Share this post


Link to post
Share on other sites

chrisd200(inactive)

Very Nice Indeed. Can't beat sharing the horses with the younger generations!!!! Welcome to Redsquare!!

Share this post


Link to post
Share on other sites

kaiser

i'm trying to find a part # for the implement/mower deck belt. i have no idea what deck i have, the p.o. said it's a 48".

i got the drive belt pn# 108502 off the lookuptoro site using vin a1-16b801, but i don't have a model# for the deck.



i'll take some picks of the deck tonight, so maybe you guys can help me out. i don't "need" belts yet but would like to keep them in stock.



edit: i think this is my deck 48" side discharge





in the toro parts lookup it lists 3 belts for the actual deck but it doesn't give lenths or anything.



so guess i need help finding the part# for the mower drive belt that's on the deck and the implement belt that goes from the pto to the deck.



any help is greatly appreaciated.

Share this post


Link to post
Share on other sites

WH854

i'm trying to find a part # for the implement/mower deck belt. i have no idea what deck i have, the p.o. said it's a 48".

i got the drive belt pn# 108502 off the lookuptoro site using vin a1-16b801, but i don't have a model# for the deck.



i'll take some picks of the deck tonight, so maybe you guys can help me out. i don't "need" belts yet but would like to keep them in stock.



edit: i think this is my deck 48" side discharge





in the toro parts lookup it lists 3 belts for the actual deck but it doesn't give lenths or anything.



so guess i need help finding the part# for the mower drive belt that's on the deck and the implement belt that goes from the pto to the deck.



any help is greatly appreaciated.

The drive belt P/Ns Listed for your tractor are 7473(5//8 X 82"), 107939(5/8 X 83") 108502(5/8 X83") Deck I used 05-48MS03  deck drive belt P/N 94-2501( 1/2 X 102") spindle belt P/N 1594(1/2 X 107" ) Hope I got them correct :thumbs:

Chas :thumbs:  :thumbs:

Share this post


Link to post
Share on other sites

kaiser

excellent! thanks a bunch.



what the heck did we do before the internet? lol

Share this post


Link to post
Share on other sites

gwest_ca

05-48MS03 48" deck uses 3 blades 16-1/16" long

05-42MS03 42" side discharge deck uses 3 blades 14" long



Mower drive belt for 48" deck

Toro 102742 nla Use 94-2501 {HA/Ax103"}, 6378 Gates 1/2"x103-1/4" 40 degrees,

6378 Napa 1/2"x103-1/4" 40 degrees



Mower spindle belt for 48" deck

Toro 1594 {HAx107.21"} 1/2"x107.21"



Tractor transmission drive belt

Toro 107939 from belt chart nla Use 93-9809 (HBx83.5") 5/8"x83-1/2" Available only from Toro



Garry

Share this post


Link to post
Share on other sites

kaiser

thanks garry.

Share this post


Link to post
Share on other sites

kaiser

dumb question, are the red kevlar (rotary brand) belts any good? they sure look neat.

Share this post


Link to post
Share on other sites

kaiser

dumb question, are the red kevlar (rotary brand) belts any good? they sure look neat.



anyone have any input on the red kelvar belts?



i got a new/used side cover (belt guard). i was amazed when i picked it up, holy moly that little piece of sheet metal is heavy. that little piece weighs more then a fender for a new vw.



quality!

Share this post


Link to post
Share on other sites

SousaKerry

holy moly that little piece of sheet metal is heavy. that little piece weighs more then a fender for a new vw.



The better to protect your leg with.



As heavy as they are I have several that are rusted right through.  So I made a new one outa stainless steel :handgestures-thumbupright:
