12hp kohler throttle linkage questions

[clstevens 0]

I'm currently working on getting a 69 charger into good working order. I am running into trouble with the throttle linkage. It all looks simple enough, but I have no idea where the engine was sourced from. The tractor was a 10hp when it started life and now has a great running 12hp k301. Does anyone have a pic of the correct throttle linkage and throttle cable routing for this tractor? I have the twist lock throttle cable and it looks like this throttle linkage isn't correct. Any help is greatly appreciated.

[Martin 2,130]

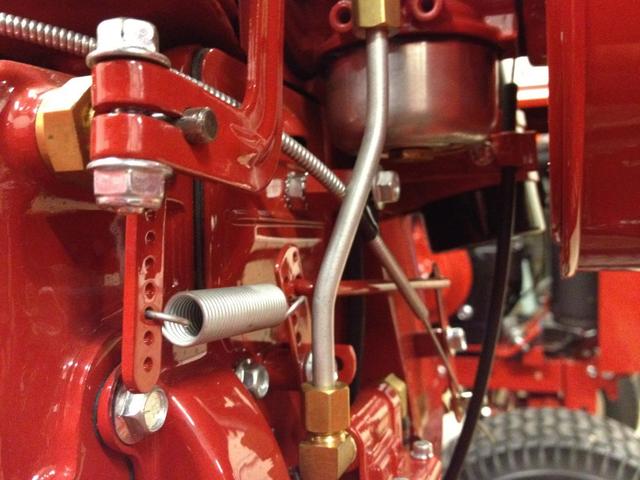

im not sure how the throttle cable routing for your tractor is to the engine, but most of the big block kohlers have this setup.....

[clstevens 0]

Thank you so much for the pics. The piece the throttle cable connects to is very different than the one on my engine. It is not straight it is an L shape. Any idea where I could get a part number to find a replacement? I don't even know what that part would be called. That is one good looking engine.

[Martin 2,130]

im not sure if the L shape is right for yours or not. i know my 1054 has the L shaped bracket.....

i dont think its hard to adapt either way, all the holes are usually there in the blower shroud. if you need measurements of the L bracket, i would be happy to post them here. would be very simple to make one.

[clstevens 0]

That L shape bracket on your 1054 is identical to mine. I just put a new cable on for the throttle and now I just need to get it routed to the bracket and clamped down. It also appears the bar running from that bracket is flipped backwards on mine. I really appreciate you taking the time to post these pics. My Charger is a long way from being done and I want to have a good understanding of how everything should be before I go stripping everything down and painting.
