wheel horse model 856 deck drive linkage

[rhal 0]

hello

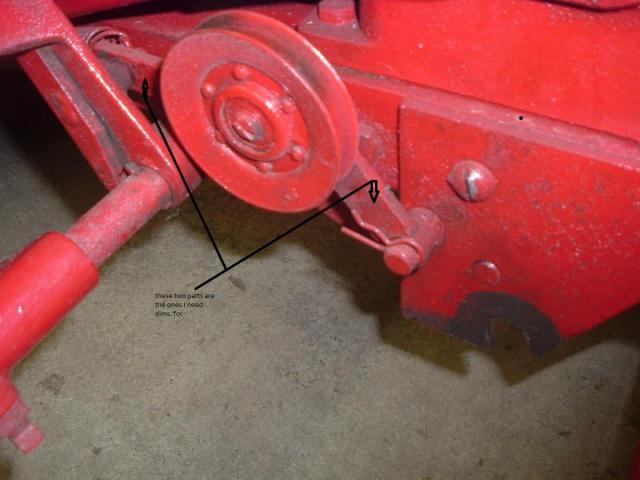

posting a picture of the linkage for mower drive on a model 856 with the 32 " deck.

would like the measurement of the two arms indicated by arrows.

(overall length and dimensions between holes)

thanks for any help

[Martin 2,130]

i can give you the measurements from my 875 but the arms on mine have offset bends in them. the distances between the holes might be the same though.

pin is 2" and threaded hole for the idler pulley bolt is 3 1/8"

the arm offset is 3/4"

overall length (not including offset) is 3 3/4"

these measurements are a little hard to read, first hole is 3 5/8" second is 4 1/4"

arm offset is 1"

overall length (not including offset) is 5 1/2"
