Throttle linkage diagram

[3609horse 27]

Not sure if this is the right place for this question but here goes. I picked up a nice C-175 with hydro that was missing the motor. I put a 14 kohler in that I had in the garage but I don't know how to hook up the throttle linkage. I have an idea but it seems wrong. Does anyone have a picture of the cable connections so I can see how wrong I am. Thanks......Gene

[Marv 994]

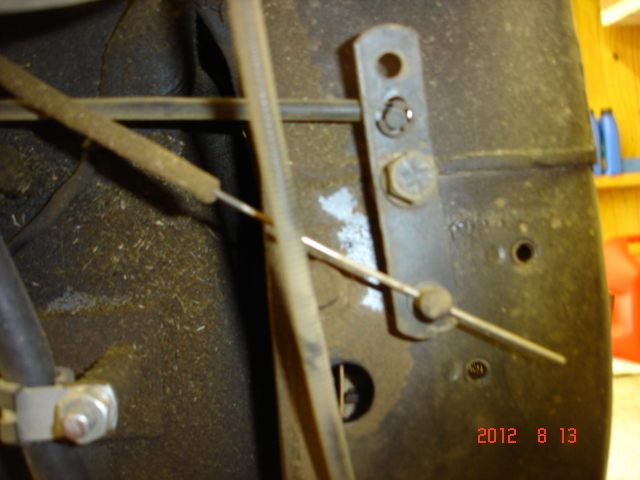

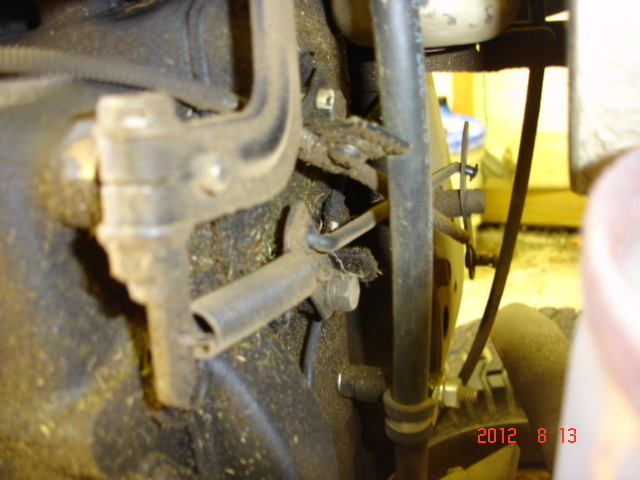

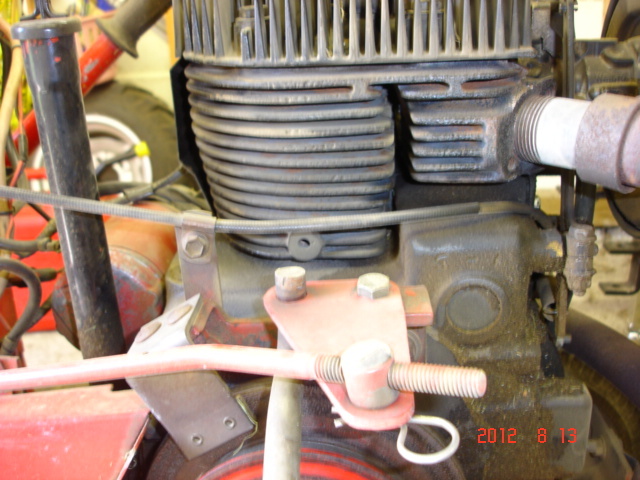

You probably have this done by now but here are pictures.

[rmaynard 16,700]

I was going to post my B-100 throttle pics but Marv beat me to it.

[glgrumpy 35]

Great PIX! Now how about one for a B080 with 8hp engine and governor with round link? Forgot how mine was on there, have it close now I think, but not liking how it works really. Think there is also a return spring somewhere in gove linkage that I don't have now??

[TT-(Moderator) 1,169]

Great PIX! Now how about one for a B080 with 8hp engine and governor with round link? Forgot how mine was on there, have it close now I think, but not liking how it works really. Think there is also a return spring somewhere in gove linkage that I don't have now??

Feel free to use the "search" box located at the top right of the page.

These may get you started:

The main difference is the B-80 throttle wire passes under the engine and comes up the right front corner of the engine. The housing clamp should fasten to the block just above the points cover:

[3609horse 27]

Thanks for the pictures. I have it run a little differet but it works. Now that I know I will change it back to original. The problem I had or have is I have a push cable and this requires a pull type cable to work right. I will swap out the cables and hook it up right, thanks for the help. Gene
