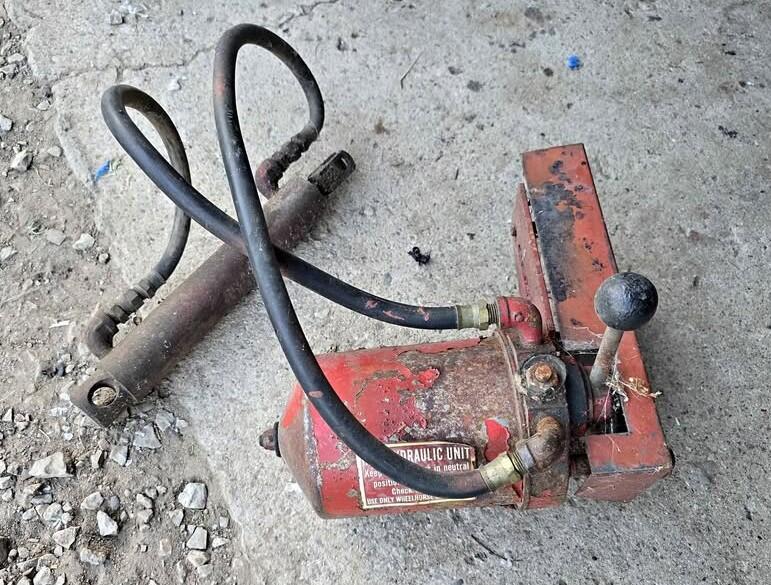

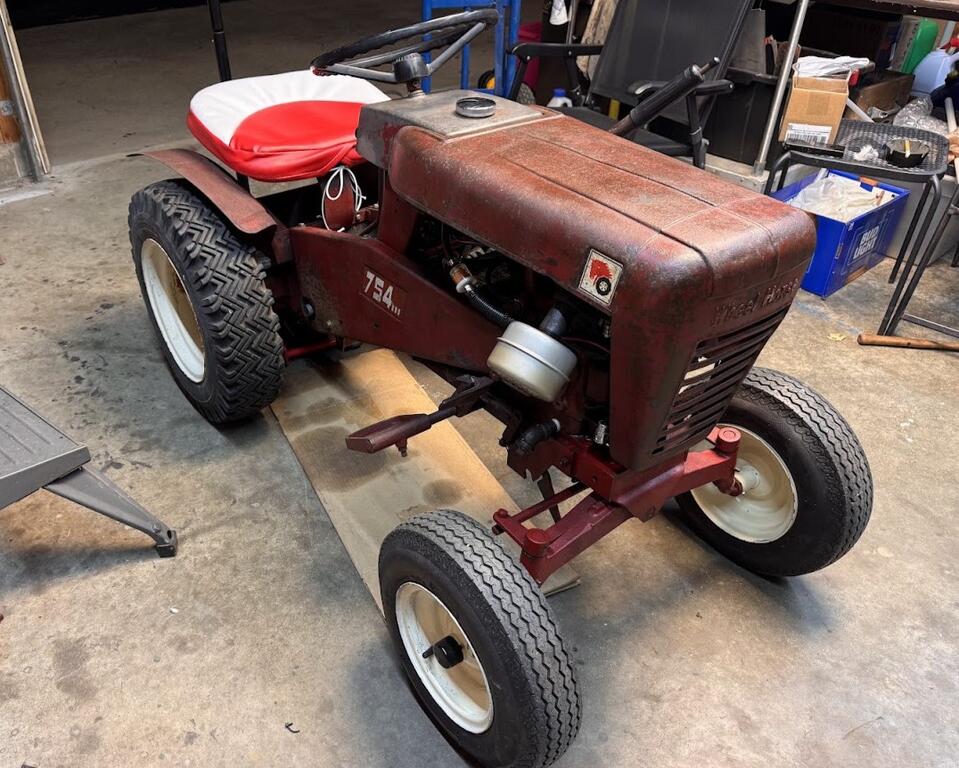

Bar Nuthin 3,125 #1 Posted 5 hours ago I found a decent deal on a HY-2 setup - but I'm not sure if it is compatible with my 1964 - 754. If it is, does it require a different rockshaft? Share this post Link to post Share on other sites
953 nut 68,915 #2 Posted 5 hours ago YES, read the manual. 1 Share this post Link to post Share on other sites
Bar Nuthin 3,125 #4 Posted 4 hours ago (edited) 51 minutes ago, 953 nut said: YES, read the manual. Okay, so may take a little creative fabrication on my part but certainly looks doable! Edited 4 hours ago by Bar Nuthin Share this post Link to post Share on other sites

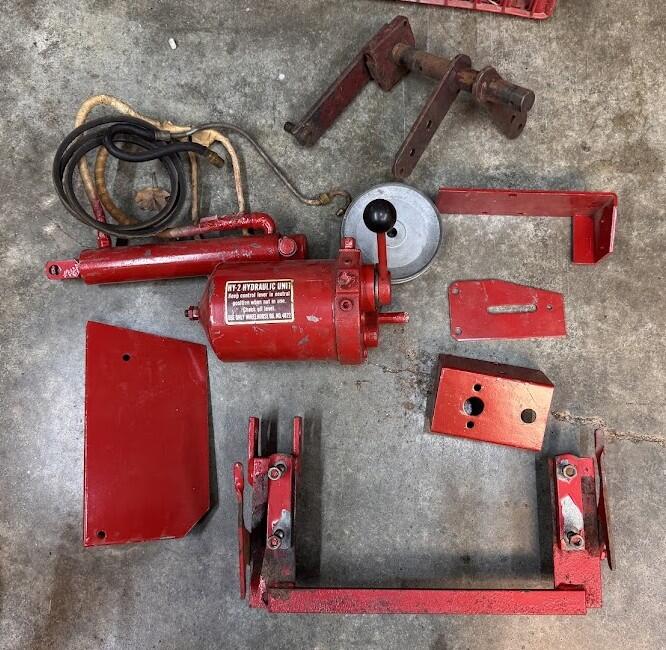

ri702bill 12,936 #5 Posted 4 hours ago (edited) Is what you have in the picture all you have of it? I do not see the lift bellcrank weldment. And that part is the difference between a HY-2 and a HY-3... It is the HY-3 setup that you need. To use the HY-2 setup, you hould need the hoodstand from the earlier 701, 502, 552, or 702. I also do not see the axle mount for the back pivot end of the cylinder. IF you can find the correct plow bracket for an 854, it has that built in. Ditto for the keyswitch reliocator bracket. I was able to score a complete HY-2 setup a few years back to be installed on my 502 Edited 4 hours ago by ri702bill 1 Share this post Link to post Share on other sites
Bar Nuthin 3,125 #6 Posted 4 hours ago 2 minutes ago, ri702bill said: To use the HY-2 setup, you hould need the hoodstand from the earlier 701 or 702. Well that certainly changes things. Teh bellcrank and axle mount I could deal with, but I'm not interested enough to swap out the original tower. Share this post Link to post Share on other sites
ri702bill 12,936 #7 Posted 3 hours ago 14 minutes ago, Bar Nuthin said: Well that certainly changes things. Teh bellcrank and axle mount I could deal with, but I'm not interested enough to swap out the original tower. My intention was to mount the HY-2 setup on my 854.... but with the necessary changes required to do so, it was a no-brainer to go with the 502. Share this post Link to post Share on other sites
Bar Nuthin 3,125 #8 Posted 32 minutes ago 3 hours ago, ri702bill said: My intention was to mount the HY-2 setup on my 854.... but with the necessary changes required to do so, it was a no-brainer to go with the 502. Thanks for the great pictures. I purchased the items in my photo pretty cheap, so I can always recoup if I decide to sell. Share this post Link to post Share on other sites
