BR2 0 #1 Posted 5 hours ago New to the group and Wheel Horse mowers. Looking for some in put on drain plugs on hydro pump and transaxle.. would like to service them before run it to much. Share this post Link to post Share on other sites

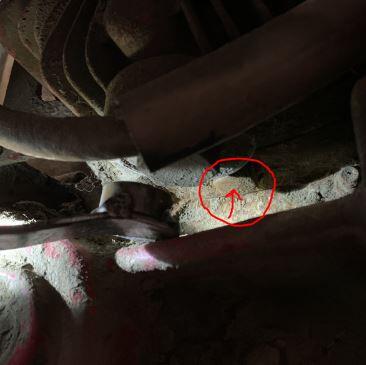

JoeM 9,862 #2 Posted 2 hours ago If the machine has the Eaton 11 (has a spin on oil filter on the left side under the seat pan) the drain plug is the main plug located under the rear housing and requires a 1/4" hex wrench. If it has the Eaton 7, (no oil filter) This transmission has two separate oil compartments. One is the hydro (10w-30 oil) that is dedicated to hydro pump and is captive. The other is rear gearing lubrication. Takes 80w-90 and drains from the main plug located under the rear housing and requires a 1/4" hex wrench. The Eaton 7 hydro system can be drained and refilled. The drain plug is an o-ring plug located under the pump unit on the right side. 1 1 Share this post Link to post Share on other sites
Ed Kennell 45,920 #3 Posted 32 minutes ago (edited) I have always found the Eaton 700 in the ***A tractors and the Eaton 1100 in the ***H tractors. Edited 31 minutes ago by Ed Kennell Share this post Link to post Share on other sites
