Snow plow braket dimensions to fit a 312 8

[Wheelhorse3128 7]

Planning on making a blade but first need brakets and I would like to know if anyone could give me some dimensions

[Ed Kennell 45,845]

52 minutes ago, Wheelhorse3128 said:

dimensions

Are we talking. all of the below?

axle bracket

plow frame

blade

angle sector

angle lever

[953 nut 65,472]

1 hour ago, Wheelhorse3128 said:

but first need brakets and I would like to know if anyone could give me some dimensions

The rear axle bracket is built of a pair of angle iron pieces with a 3/4" round top slot cut in the bottom as pictured below. They do not need to be welded to the cross bar but will need the two bolts each and the heavy bracket for the other side of your axle.

The arm that swings under the snow plow's 3/4" rear cross bar is pictured. I have no dimensions to give you but the frame of the snow plow will go between the angle irons.

For a 312-8 you would want the angle iron  pieces mounted with the ears outward rather than inward, this is the only good picture I have and it is for the older short frame tractors.



Edited 1 hour ago by 953 nut

[Ed Kennell 45,845]

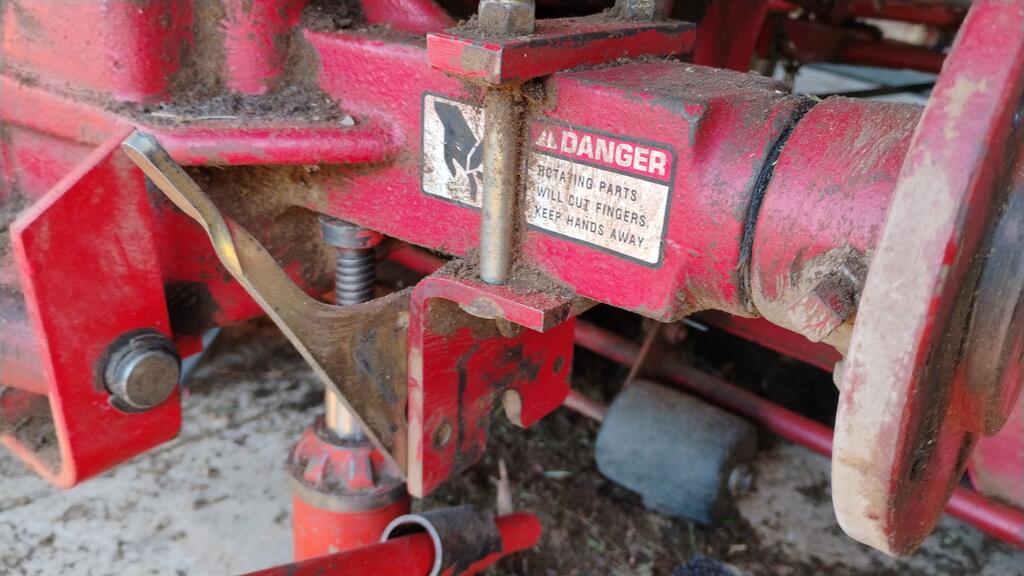

Here is a picture of the axle bracket on my 312H.    Use the axle size as a reference.
