C-120 Auto No Reverse

[Tom Rochon 0]

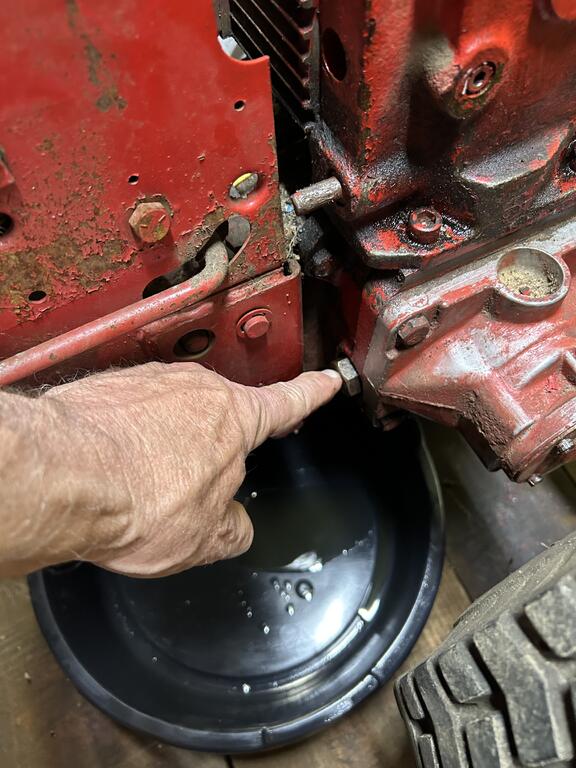

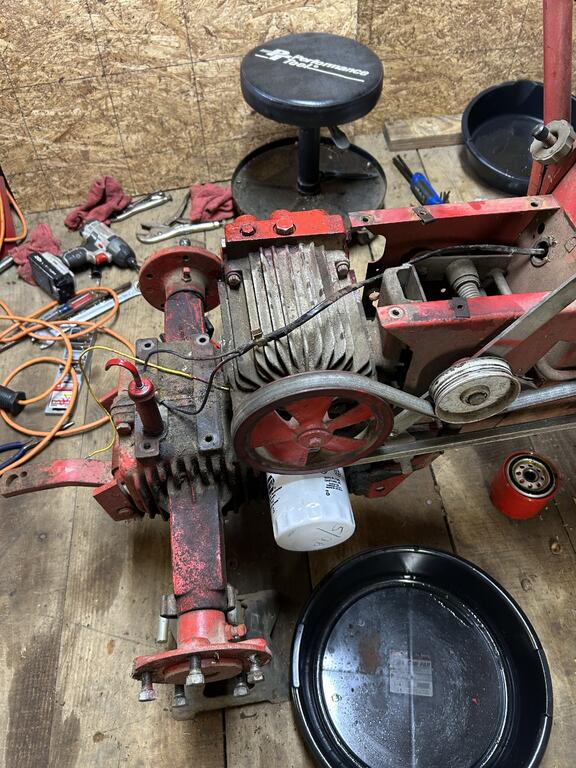

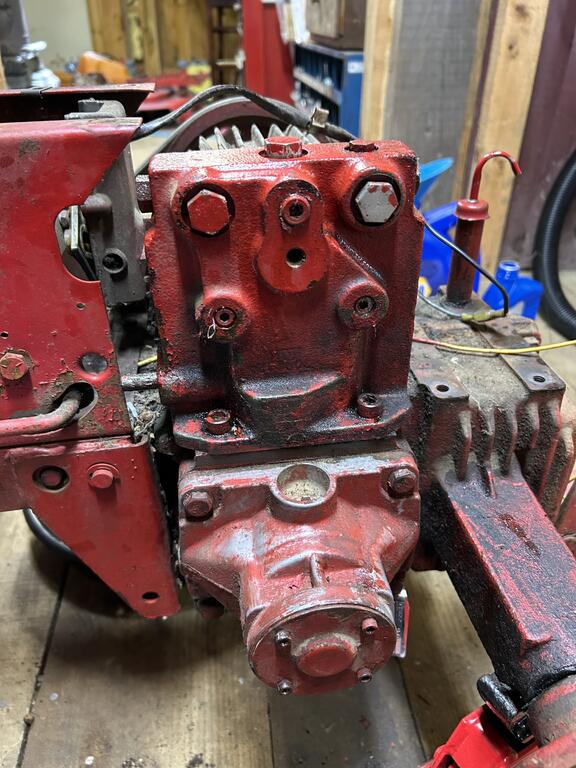

I grew up on and learned how to drive on my Dads 67 Wheel Horse. I have a C-120 Auto that runs mint, but no reverse.  I changed the filter and fresh 10-30W oil and made sure the hand push valve is closed.  Tractor is a type  10491 serial 119527. Transaxle is a Sundstrand 90-1136 serial  03-PD 22618.



i have no history this tractor. The guy I bought it from said it didn’t run. Ran some emery cloth through the points adjusted them and this thing runs like new.



recommendations are appreciated.

[gwest_ca-(File Mod) 12,144]

Welcome to Red Square.

Here is a link to 24 subjects on your model and they in a random order.

https://www.wheelhorseforum.com/search/?q=1-0491&quick=1&type=downloads_file

[pfrederi 20,245]

welcome

This manual may help click on the picture. It has good diagnostics.





[953 nut 65,183]

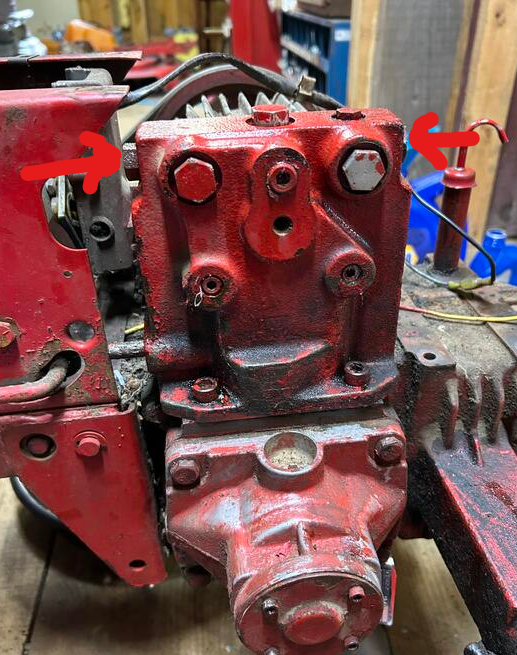

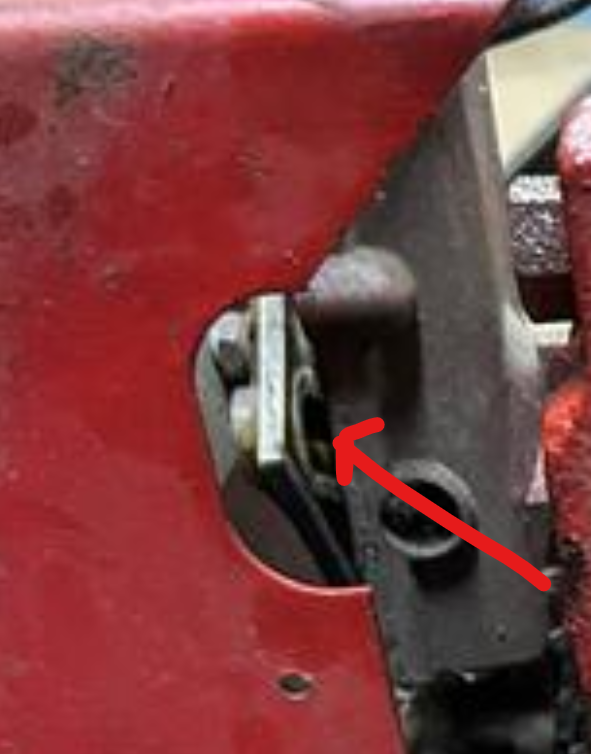

There is a plastic cam plate that connects the motion control lever to the Sundstrand transmission motion control. They6 tend to become worn and I would start by looking there.
